2011 FORD FIESTA Owners Manual

To remove a fuse, use the fuse puller tool provided on the inside of the
passenger compartment fuse panel cover.
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtected circuits
F1 40A* Anti-lock brake system (ABS)
pump
F2 50A* Transmission control module
(TCM)
F3 40A* Engine cooling fan relay
F4 40A* Heater blower relay, Climate
controls
F5 60A* Passenger compartment fuse
panel
F6 30A* Body control module (BCM) –
door locks
F22
F6 F1
F2
F3
F4
F5
F7
F8
F9
F10
F11
F12
F13
F14
F15
F16
F17
F18
F19
F20
F21F23F24
F25
F26
F27
F28
F29
F30
F31
F32
F33
F34
F35
F36
F37
F38 F39 F40
R7
R1
R2
R3R8
R9
R10
R11
R6 R5 R4
R12
R13
Roadside Emergencies
257
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected circuits
F7 60A* Passenger compartment fuse
panel
F8 30A* Fuel pump
F9 20A* ABS module valve
F10 — Not used
F11 30A* Starter inhibit relay, Starter motor
F12 10A** Left headlamp (high beam)
F13 10A** Right headlamp (high beam)
F14 10A** Left headlamp (low beam)
F15 10A** Right headlamp (low beam)
F16 15A** A/C clutch relay, Mass air flow
(MAF) sensor, Powertrain control
module (PCM), Fuel injectors,
Vehicle speed sensor (VSS),
Variable camshaft timing, Canister
purge
F17 15A** Heated exhaust gas oxygen
sensor, Catalyst module sensor
F18 15A** Ignition coil
F19 — Not used
F20 10A** Not used (spare)
F21 — Not used
F22 15A** BCM – exterior lighting
F23 7.5A** Low beam relay
F24 15A** BCM – turn signals
F25 15A** Low beam relay, Daytime running
lights
F26 7.5A** Power mirror switch, Driver
window switch
F27 7.5A** TCM, PCM, Natural vacuum leak
detection
F28 15A** Not used (spare)
Roadside Emergencies
258
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

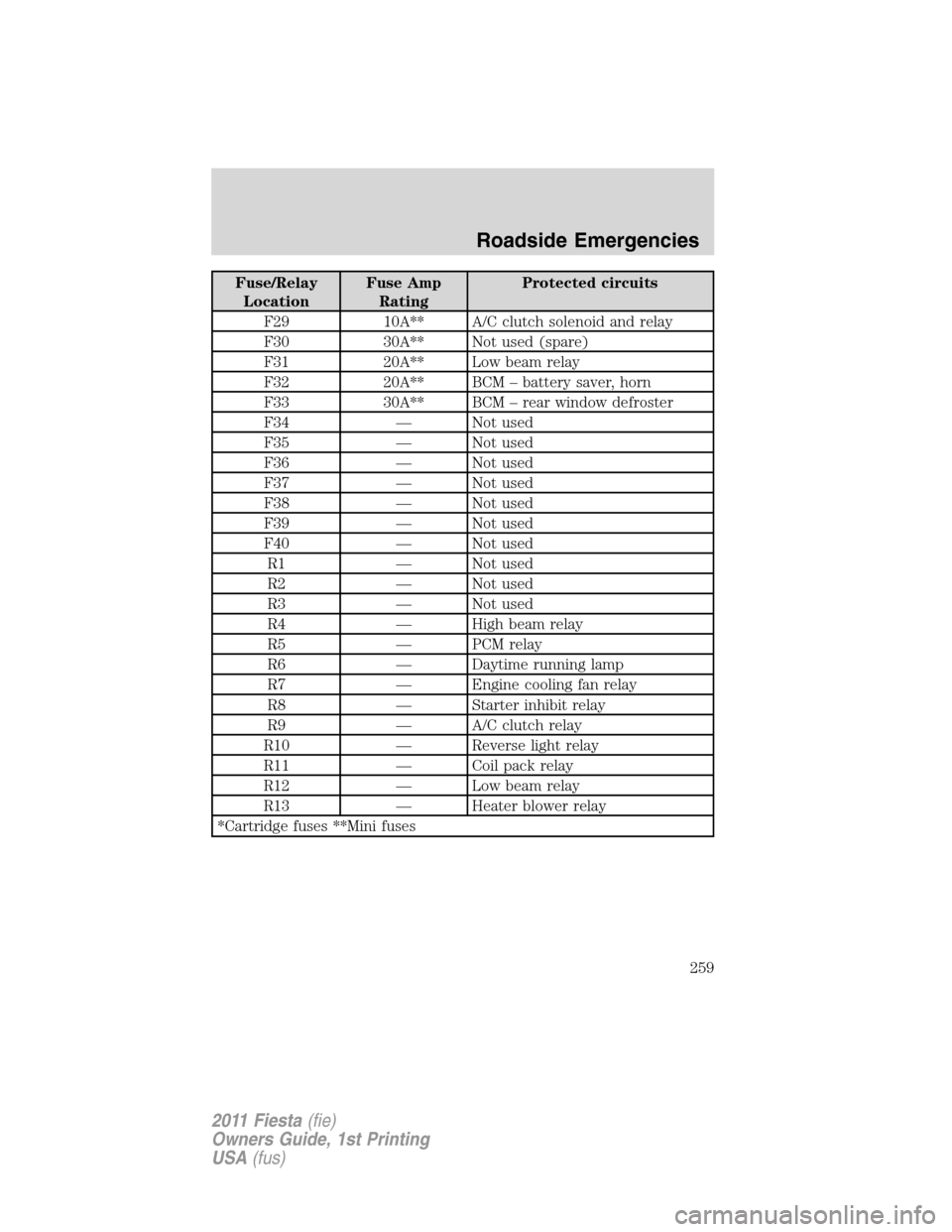

Fuse/Relay
LocationFuse Amp
RatingProtected circuits
F29 10A** A/C clutch solenoid and relay
F30 30A** Not used (spare)
F31 20A** Low beam relay
F32 20A** BCM – battery saver, horn
F33 30A** BCM – rear window defroster
F34 — Not used
F35 — Not used
F36 — Not used
F37 — Not used
F38 — Not used
F39 — Not used
F40 — Not used
R1 — Not used
R2 — Not used
R3 — Not used
R4 — High beam relay
R5 — PCM relay
R6 — Daytime running lamp
R7 — Engine cooling fan relay
R8 — Starter inhibit relay
R9 — A/C clutch relay
R10 — Reverse light relay
R11 — Coil pack relay
R12 — Low beam relay
R13 — Heater blower relay
*Cartridge fuses **Mini fuses
Roadside Emergencies
259
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare tire is in use. To restore the full functionality
of the monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat serviced by an authorized dealer in order to prevent damage
to the TPMS sensors, refer toTire pressure monitoring system
(TPMS)in theTires, Wheels and Loadingchapter. Replace the spare
tire with a road tire as soon as possible. During repairing or replacing of
the flat tire, have the authorized dealer inspect the TPMS sensor for
damage.
WARNING:The use of tire sealants may damage your tire
pressure monitoring system (TPMS) and should not be used.
However, if you must use a sealant, the TPMS sensor and valve stem
on the wheel must be replaced by an authorized Ford dealer.
WARNING:Refer toTire pressure monitoring system (TPMS)
in theTires, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function.
Dissimilar spare tire/wheel information
WARNING:Failure to follow these guidelines could result in an
increased risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
Roadside Emergencies
260
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that
is different in brand, size or appearance from the road tires and wheels
and can be one of three types:
1.T-type mini-spare:This spare tire begins with the letter “T” for tire
size and may have “Temporary Use Only” molded in the sidewall
2.Full-size dissimilar spare with label on wheel:This spare tire has
a label on the wheel that states: “THIS TIRE AND WHEEL FOR
TEMPORARY USE ONLY”
When driving with one of the dissimilar spare tires listed above,do not:
•Exceed 50 mph (80 km/h)
•Load the vehicle beyond maximum vehicle load rating listed on the
Safety Compliance Label
•Tow a trailer
•Use snow chains on the end of the vehicle with the dissimilar spare
tire
•Use more than one dissimilar spare tire at a time
•Use commercial car washing equipment
•Try to repair the dissimilar spare tire
Use of one of the dissimilar spare tires listed above at any one wheel
location can lead to impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
•Wet weather driving capability
3.Full-size dissimilar spare without label on wheel
When driving with the full-size dissimilar spare tire/wheel,do not:
•Exceed 70 mph (113 km/h)
•Use more than one dissimilar spare tire/wheel at a time
•Use commercial car washing equipment
•Use snow chains on the end of the vehicle with the dissimilar spare
tire/wheel
Roadside Emergencies
261
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

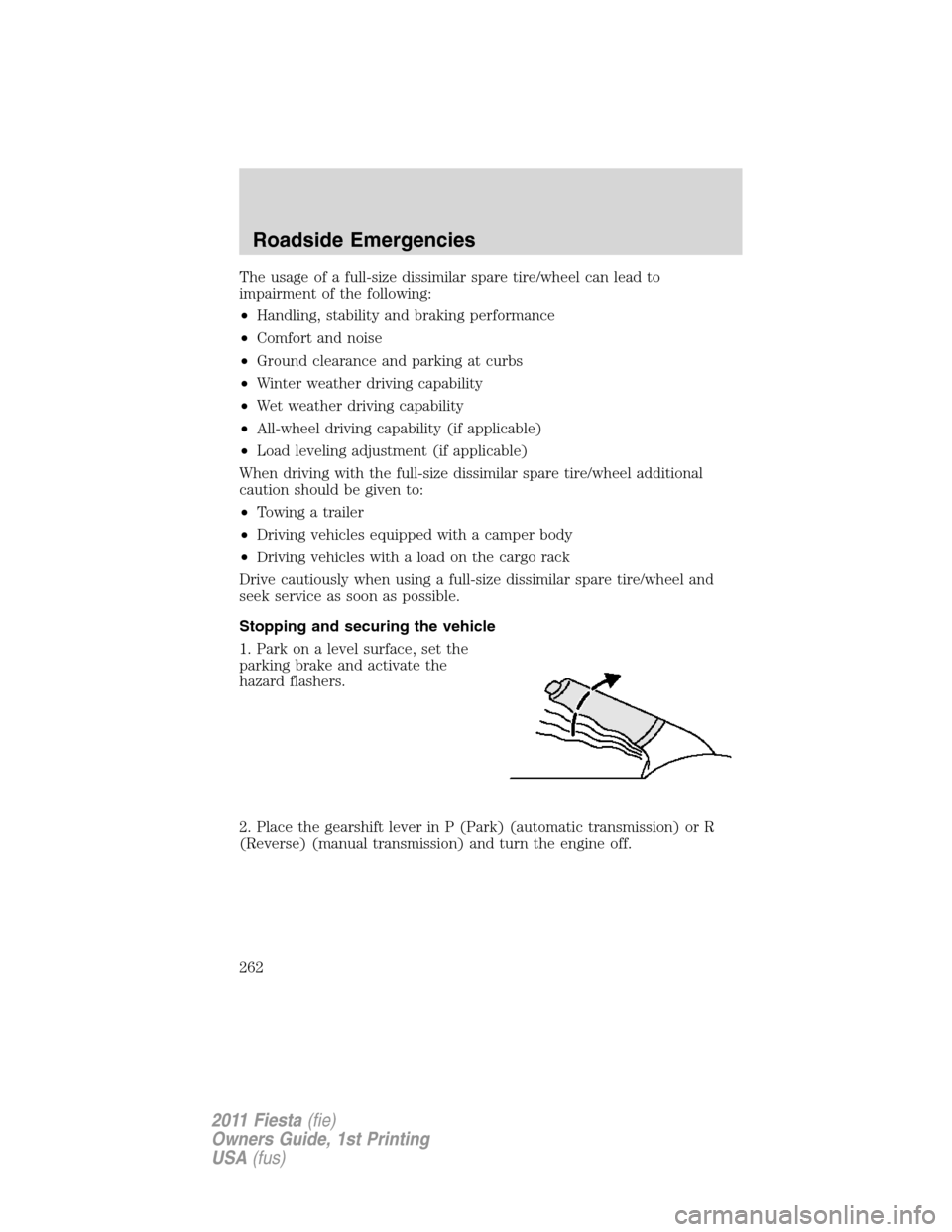

The usage of a full-size dissimilar spare tire/wheel can lead to
impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
•Wet weather driving capability
•All-wheel driving capability (if applicable)
•Load leveling adjustment (if applicable)
When driving with the full-size dissimilar spare tire/wheel additional
caution should be given to:
•Towing a trailer
•Driving vehicles equipped with a camper body
•Driving vehicles with a load on the cargo rack
Drive cautiously when using a full-size dissimilar spare tire/wheel and
seek service as soon as possible.
Stopping and securing the vehicle
1. Park on a level surface, set the
parking brake and activate the
hazard flashers.
2. Place the gearshift lever in P (Park) (automatic transmission) or R
(Reverse) (manual transmission) and turn the engine off.
Roadside Emergencies
262
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

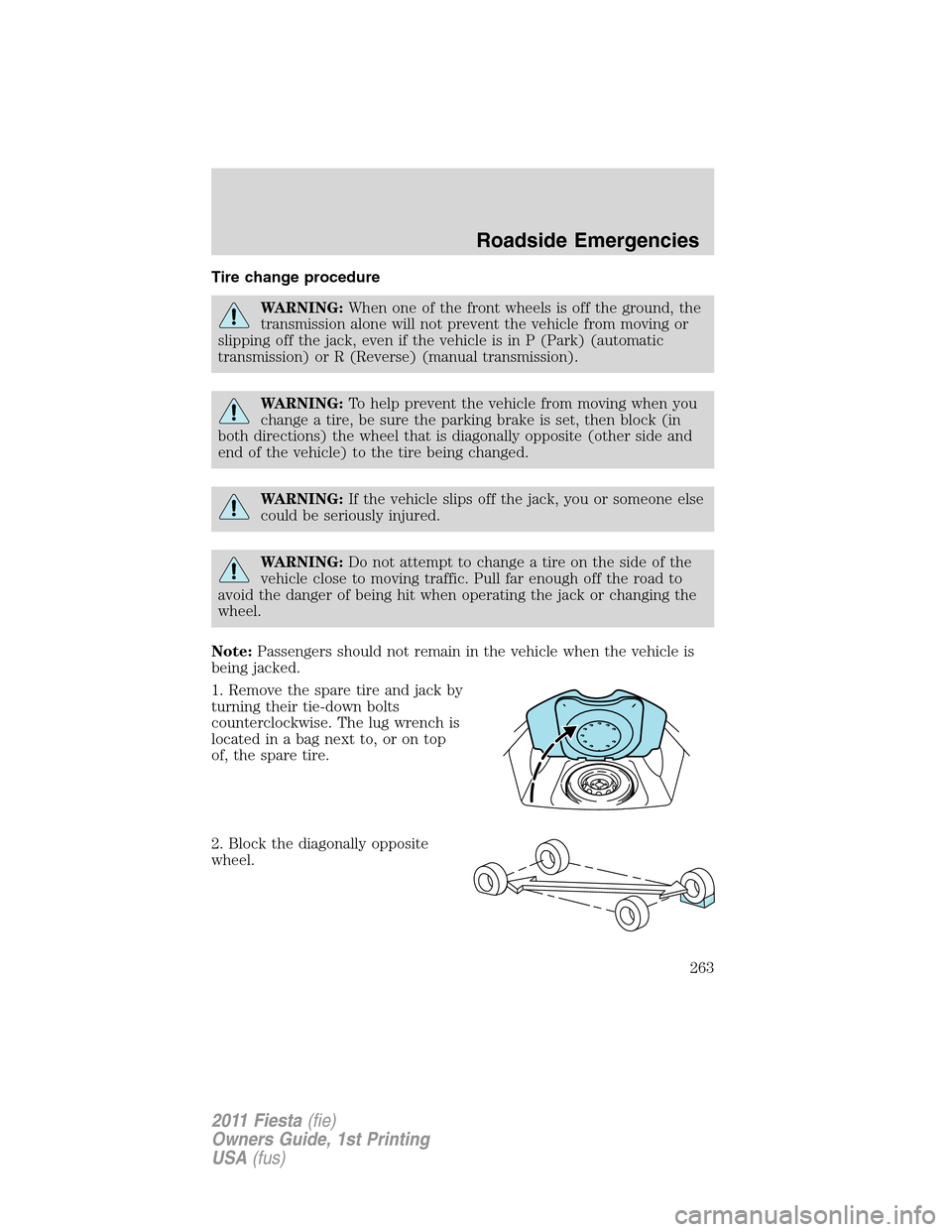

Tire change procedure
WARNING:When one of the front wheels is off the ground, the
transmission alone will not prevent the vehicle from moving or
slipping off the jack, even if the vehicle is in P (Park) (automatic
transmission) or R (Reverse) (manual transmission).
WARNING:To help prevent the vehicle from moving when you
change a tire, be sure the parking brake is set, then block (in
both directions) the wheel that is diagonally opposite (other side and
end of the vehicle) to the tire being changed.
WARNING:If the vehicle slips off the jack, you or someone else
could be seriously injured.
WARNING:Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off the road to
avoid the danger of being hit when operating the jack or changing the
wheel.
Note:Passengers should not remain in the vehicle when the vehicle is
being jacked.
1. Remove the spare tire and jack by
turning their tie-down bolts
counterclockwise. The lug wrench is
located in a bag next to, or on top
of, the spare tire.
2. Block the diagonally opposite
wheel.
Roadside Emergencies
263
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

3. Loosen each wheel lug nut
one-half turn counterclockwise but
do not remove them until the wheel
is raised off the ground.
4. The vehicle jacking points are
located inward of the wheels.
WARNING:To lessen the risk of personal injury, do not put any
part of your body under the vehicle while changing a tire. Do not
start the engine when your vehicle is on the jack. The jack is only
meant for changing the tire.
5. Position the jack in the indentions
on the sill next to the tire you are
changing. Turn the jack handle
clockwise until the tire is off the
ground.
6. Remove the lug nuts with the lug wrench.
7. Replace the flat tire with the spare tire, making sure the valve stem is
facing outward. Reinstall the lug nuts until the wheel is snug against the
hub. Do not fully tighten the lug nuts until the wheel has been lowered.
8. Lower the wheel by turning the jack handle counterclockwise.
Roadside Emergencies
