2011 FORD FIESTA Owners Manual

Page 169 of 357

FORD FIESTA 2011 6.G Owners Manual •a readiness light and tone
•and the electrical wiring which connects the components
•Side curtain airbag system. Refer toSide curtain airbag systemlater
in this chapter.
•Front passenger sens

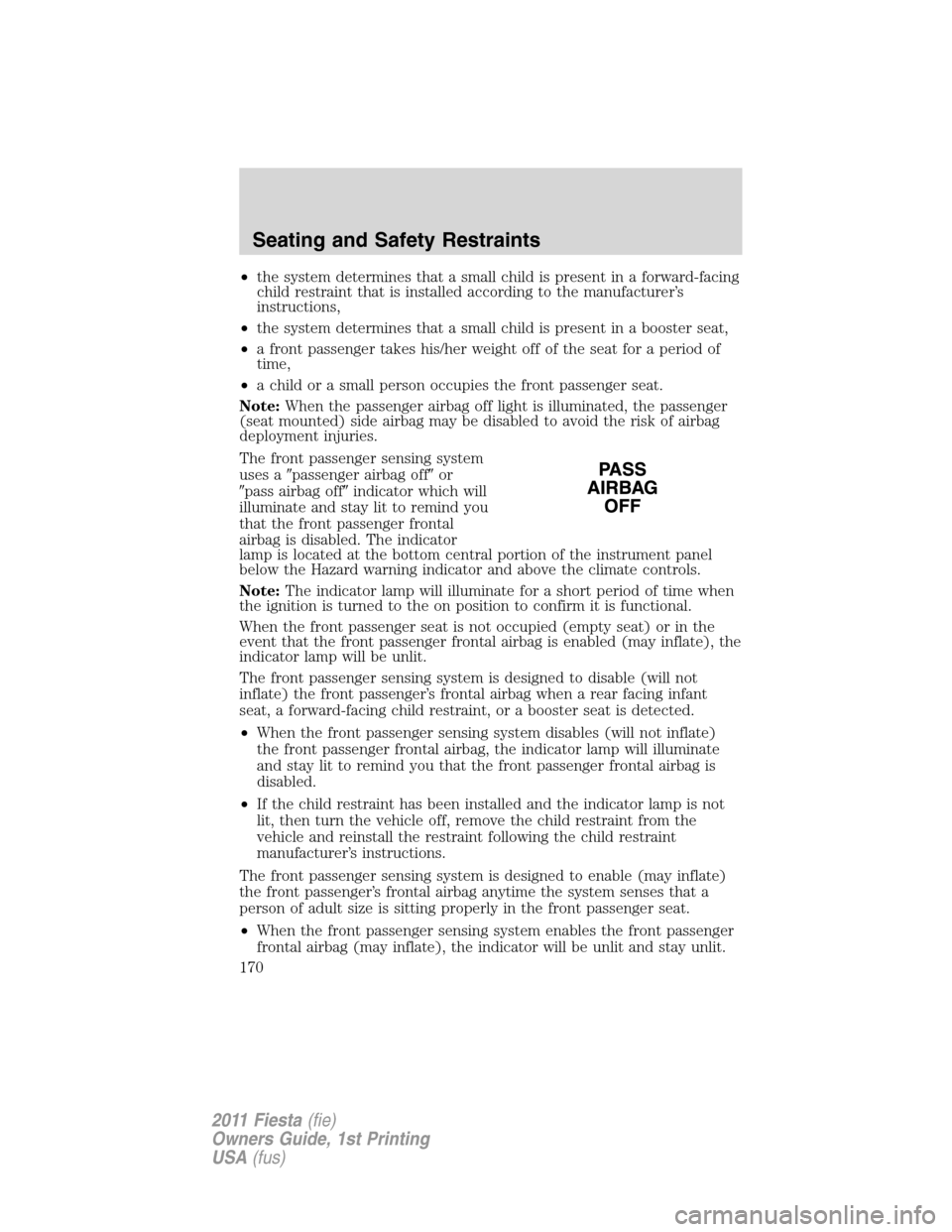

Page 170 of 357

FORD FIESTA 2011 6.G Owners Manual •the system determines that a small child is present in a forward-facing
child restraint that is installed according to the manufacturer’s
instructions,
•the system determines that a small child

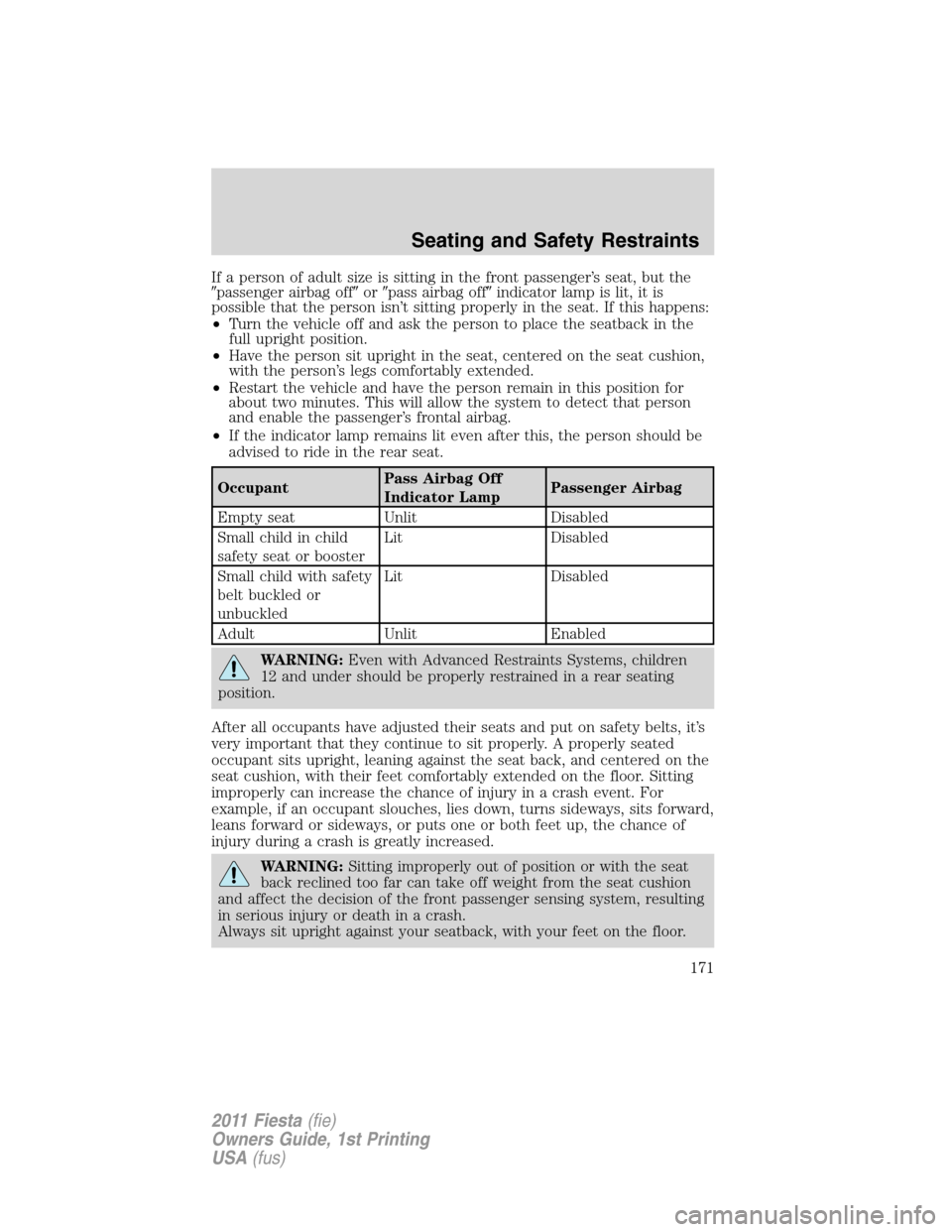

Page 171 of 357

FORD FIESTA 2011 6.G Owners Manual If a person of adult size is sitting in the front passenger’s seat, but the
passenger airbag offorpass airbag offindicator lamp is lit, it is
possible that the person isn’t sitting properly in

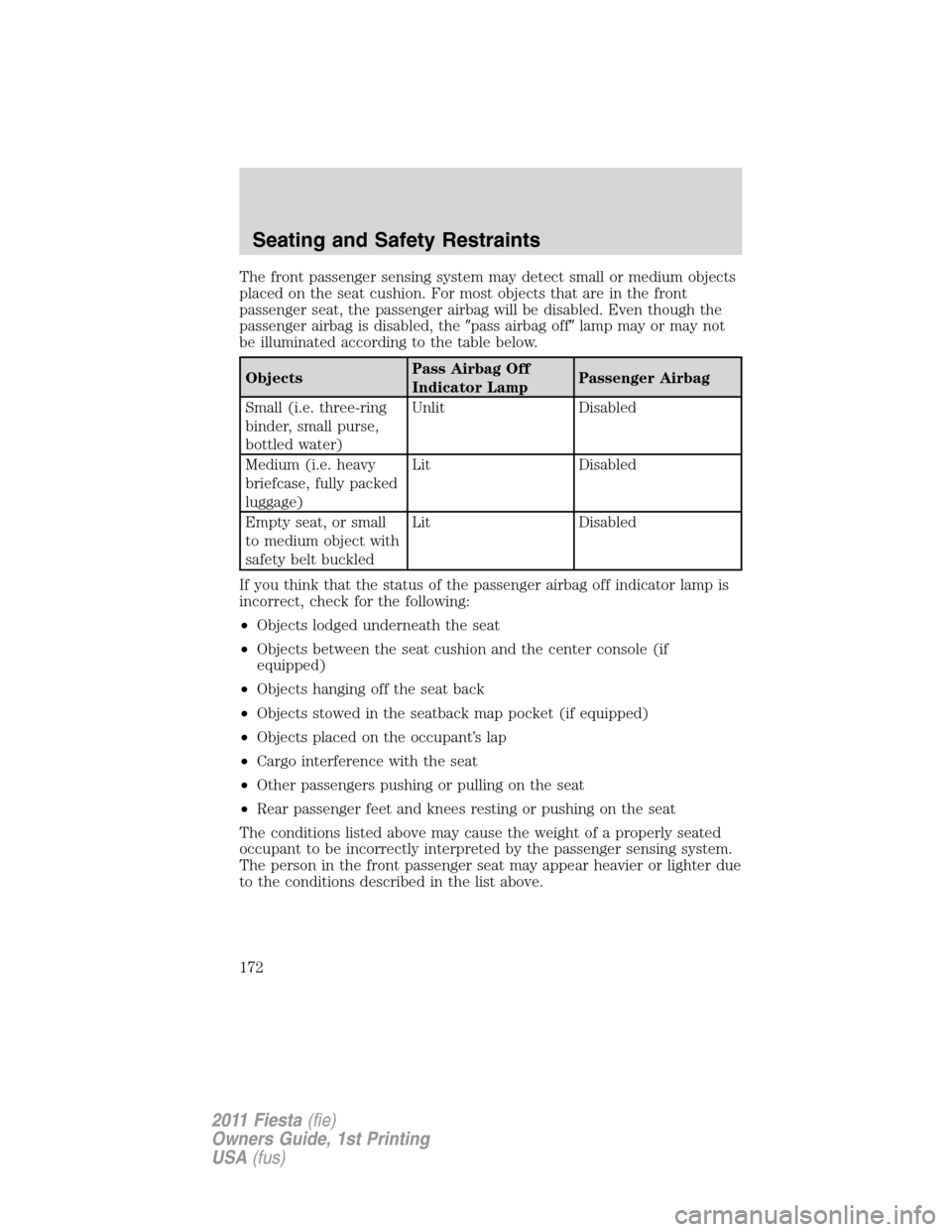

Page 172 of 357

FORD FIESTA 2011 6.G Owners Manual The front passenger sensing system may detect small or medium objects
placed on the seat cushion. For most objects that are in the front
passenger seat, the passenger airbag will be disabled. Even tho

Page 173 of 357

FORD FIESTA 2011 6.G Owners Manual WARNING:To reduce the risk of possible serious injury:
Do not stow objects in seat back map pocket (if equipped) or
hang objects off seat back if a child is in the front passenger seat.
Do not place o

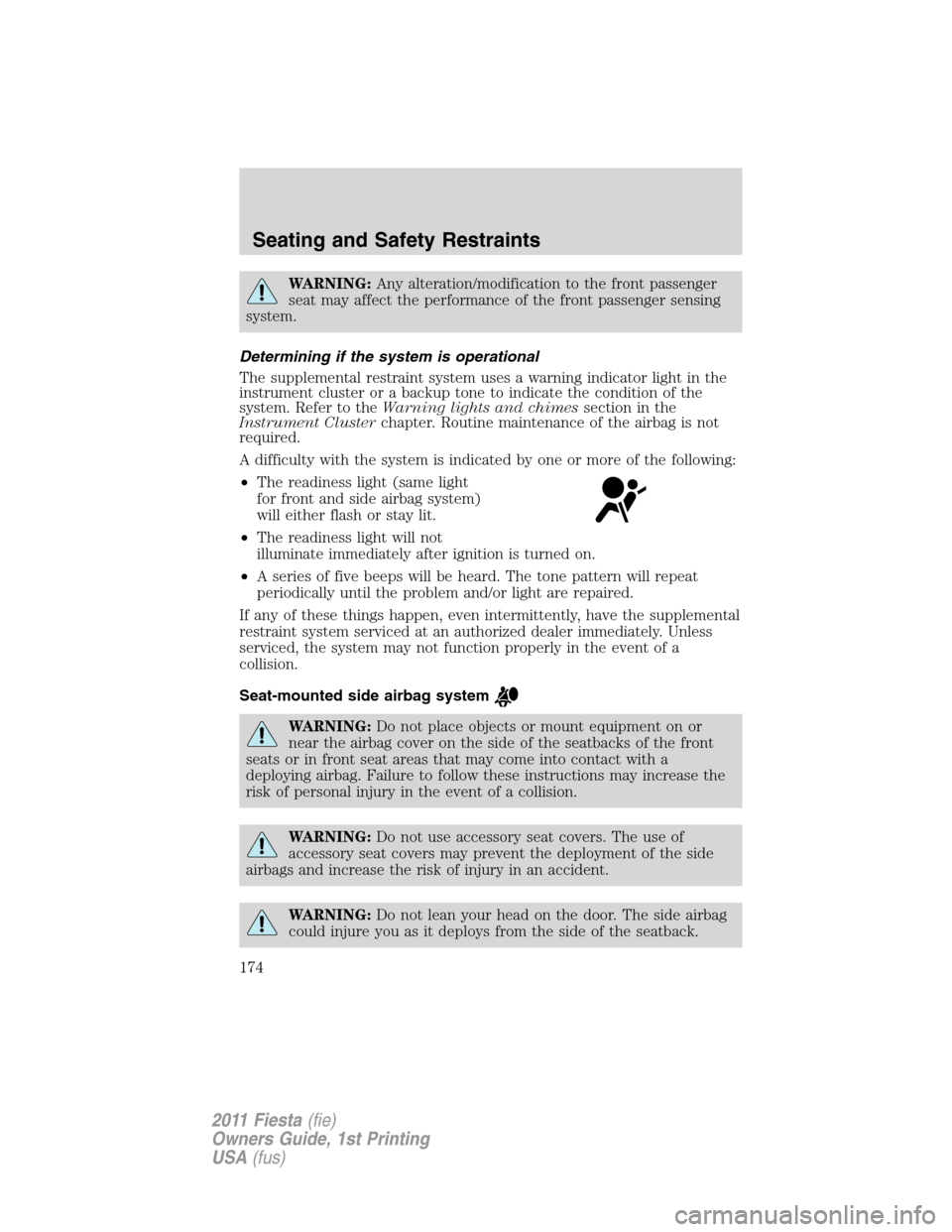

Page 174 of 357

FORD FIESTA 2011 6.G Owners Manual WARNING:Any alteration/modification to the front passenger
seat may affect the performance of the front passenger sensing
system.
Determining if the system is operational
The supplemental restraint sy

Page 175 of 357

FORD FIESTA 2011 6.G Owners Manual WARNING:Do not attempt to service, repair, or modify the
airbag SRS, its fuses or the seat cover on a seat containing an
airbag. Contact your authorized dealer as soon as possible.
WARNING:All occupan

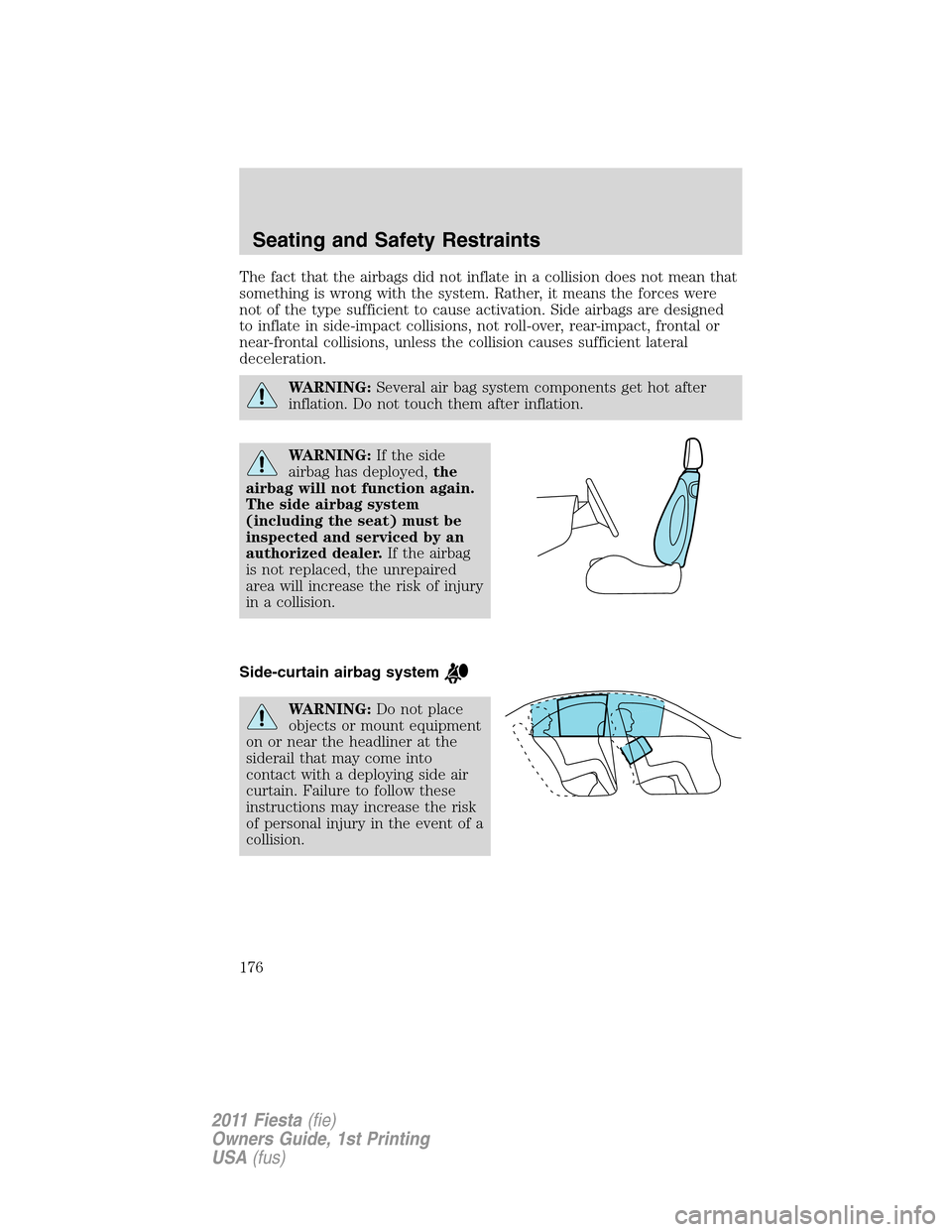

Page 176 of 357

FORD FIESTA 2011 6.G Owners Manual The fact that the airbags did not inflate in a collision does not mean that
something is wrong with the system. Rather, it means the forces were
not of the type sufficient to cause activation. Side ai
