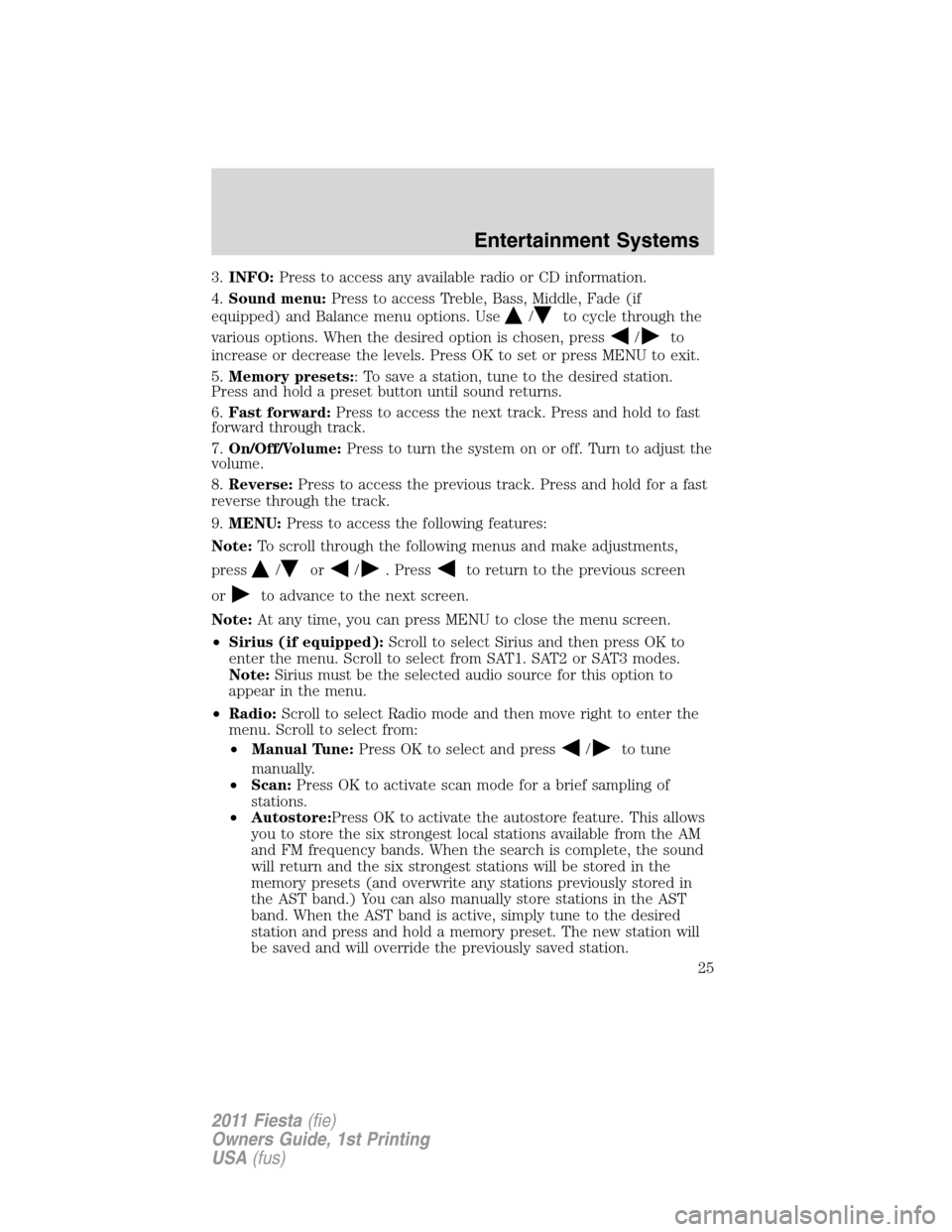

Page 25 of 357

3.INFO:Press to access any available radio or CD information.
4.Sound menu:Press to access Treble, Bass, Middle, Fade (if
equipped) and Balance menu options. Use
/to cycle through the
various options. When the desired option is chosen, press
/to
increase or decrease the levels. Press OK to set or press MENU to exit.
5.Memory presets:: To save a station, tune to the desired station.
Press and hold a preset button until sound returns.
6.Fast forward:Press to access the next track. Press and hold to fast
forward through track.
7.On/Off/Volume:Press to turn the system on or off. Turn to adjust the
volume.
8.Reverse:Press to access the previous track. Press and hold for a fast
reverse through the track.
9.MENU:Press to access the following features:
Note:To scroll through the following menus and make adjustments,
press
/or/. Pressto return to the previous screen
or
to advance to the next screen.
Note:At any time, you can press MENU to close the menu screen.
•Sirius (if equipped):Scroll to select Sirius and then press OK to
enter the menu. Scroll to select from SAT1. SAT2 or SAT3 modes.
Note:Sirius must be the selected audio source for this option to
appear in the menu.
•Radio:Scroll to select Radio mode and then move right to enter the
menu. Scroll to select from:
•Manual Tune:Press OK to select and press
/to tune
manually.
•Scan:Press OK to activate scan mode for a brief sampling of
stations.
•Autostore:Press OK to activate the autostore feature. This allows
you to store the six strongest local stations available from the AM
and FM frequency bands. When the search is complete, the sound
will return and the six strongest stations will be stored in the
memory presets (and overwrite any stations previously stored in
the AST band.) You can also manually store stations in the AST
band. When the AST band is active, simply tune to the desired
station and press and hold a memory preset. The new station will
be saved and will override the previously saved station.
Entertainment Systems
25
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

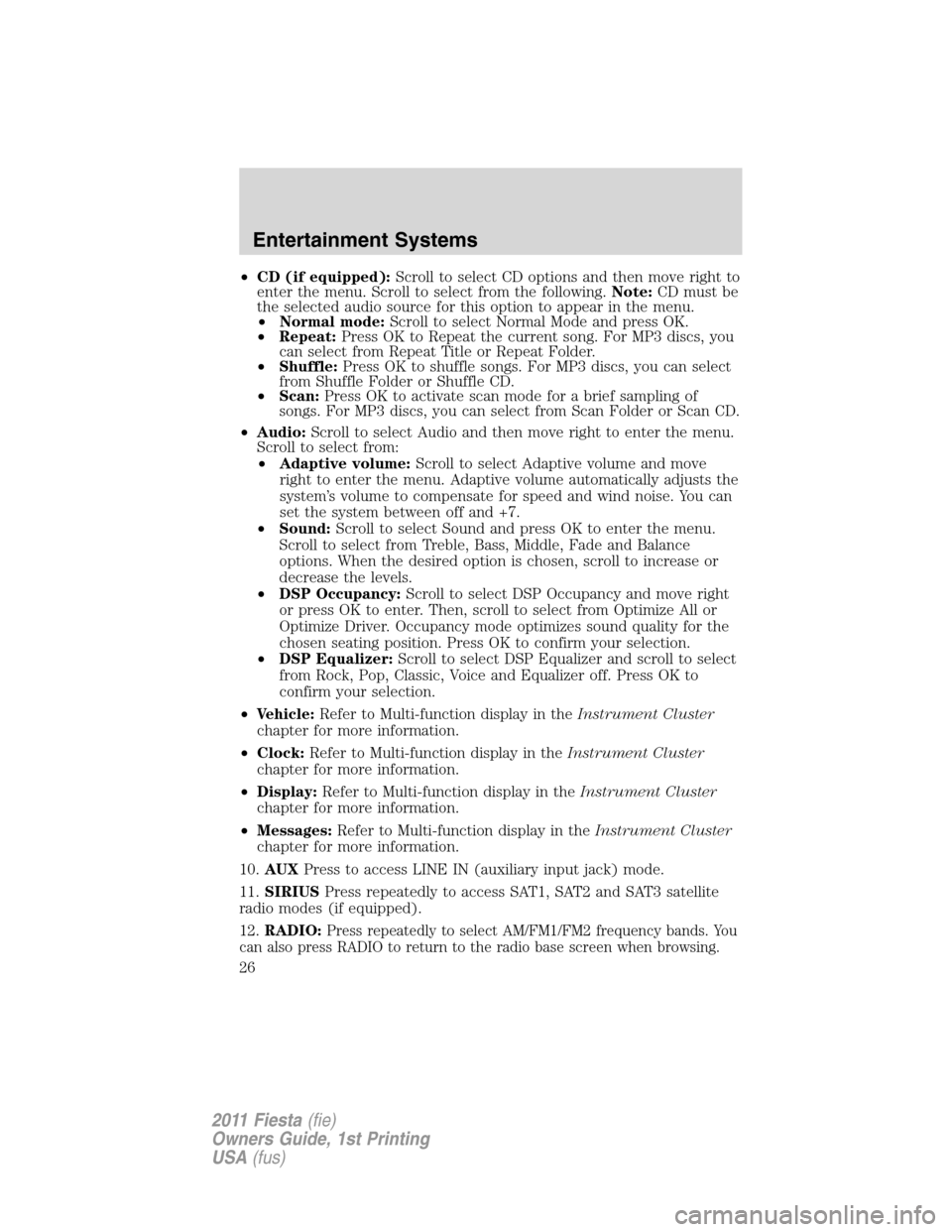

Page 26 of 357

•CD (if equipped):Scroll to select CD options and then move right to
enter the menu. Scroll to select from the following.Note:CD must be
the selected audio source for this option to appear in the menu.
•Normal mode:Scroll to select Normal Mode and press OK.
•Repeat:Press OK to Repeat the current song. For MP3 discs, you
can select from Repeat Title or Repeat Folder.
•Shuffle:Press OK to shuffle songs. For MP3 discs, you can select
from Shuffle Folder or Shuffle CD.
•Scan:Press OK to activate scan mode for a brief sampling of
songs. For MP3 discs, you can select from Scan Folder or Scan CD.
•Audio:Scroll to select Audio and then move right to enter the menu.
Scroll to select from:
•Adaptive volume:Scroll to select Adaptive volume and move
right to enter the menu. Adaptive volume automatically adjusts the
system’s volume to compensate for speed and wind noise. You can
set the system between off and +7.
•Sound:Scroll to select Sound and press OK to enter the menu.
Scroll to select from Treble, Bass, Middle, Fade and Balance
options. When the desired option is chosen, scroll to increase or
decrease the levels.
•DSP Occupancy:Scroll to select DSP Occupancy and move right
or press OK to enter. Then, scroll to select from Optimize All or
Optimize Driver. Occupancy mode optimizes sound quality for the
chosen seating position. Press OK to confirm your selection.
•DSP Equalizer:Scroll to select DSP Equalizer and scroll to select
from Rock, Pop, Classic, Voice and Equalizer off. Press OK to
confirm your selection.
•Vehicle:Refer to Multi-function display in theInstrument Cluster
chapter for more information.
•Clock:Refer to Multi-function display in theInstrument Cluster
chapter for more information.
•Display:Refer to Multi-function display in theInstrument Cluster
chapter for more information.
•Messages:Refer to Multi-function display in theInstrument Cluster
chapter for more information.
10.AUXPress to access LINE IN (auxiliary input jack) mode.
11.SIRIUSPress repeatedly to access SAT1, SAT2 and SAT3 satellite
radio modes (if equipped).
12.RADIO:
Press repeatedly to select AM/FM1/FM2 frequency bands. You
can also press RADIO to return to the radio base screen when browsing.
Entertainment Systems
26
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 27 of 357

Autostore feature:The autostore feature allows you to store the six
strongest local stations available from the AM and FM frequency bands. To
use, select AST. The display will read ‘Hold to start autostore’. Continue
holding the button until ‘Autostoring’ appears in the display. When the
search is complete, the sound will return and the six strongest stations will
be stored in the memory presets (and overwrite any stations previously
stored in the AST band).
Note:You can also manually store stations in the AST band. When the AST
band is active, simply tune to the desired station and press and hold a
memory preset. The new station will be saved and will override the
previously saved station.
13.CD:Press to enter CD mode (if equipped).
14.
(Eject):Press to eject a CD (if equipped.)
15.Cursor controls:Use to cycle through various menu selections.
Note:You can either press the arrows or move the OK knob in the
desired direction.

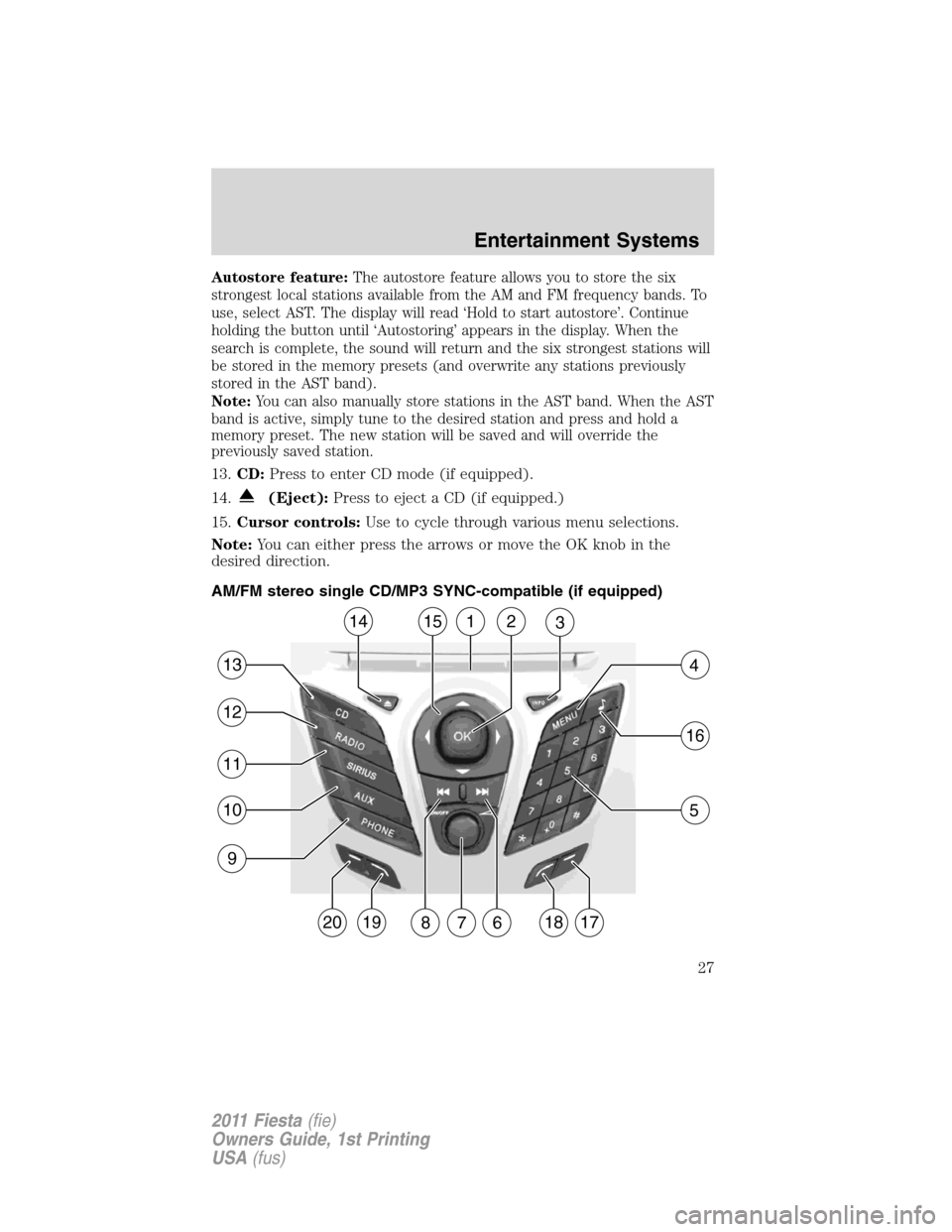

AM/FM stereo single CD/MP3 SYNC-compatible (if equipped)
1431512
12
13
11
10
9
78
620191718
16
4
5
Entertainment Systems
27
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 28 of 357

WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
One hour mode:Press the ON/OFF control to operate the system with
the ignition turned off; the system will automatically turn off after one
hour.
Setting the clock:Press the H or M buttons on the outside of the
multifunction to access the clock settings. Once you are in the clock
setting, press the H or M button repeatedly until the desired number
appears. Press OK to confirm and close.
1.CD slot:Insert a CD, label side up.
2.OK:Use in various menu selections to select or deselect your choice.
3.INFO:Press to access any available radio or CD information.
4.MENU:Press to access the following features:
Note:To scroll through the following menus and make adjustments,
press
/or/. Pressto return to the previous screen
or
to advance to the next screen.
Note:At any time, you can press MENU to close the menu screen.
•Sirius (if equipped):Scroll to select Sirius and then press OK to
enter the menu. Scroll to select from SAT1. SAT2 or SAT3
modes.Note:Sirius must be the selected audio source to access this
menu.
•SYNC media (if equipped):Scroll to select Mediaplayer Menu and
then press OK to enter the menu. Refer to yourSYNCsupplement
for more information.Note:SYNC audio must be the selected audio
source to access this menu.
•SYNC phone (if equipped):Scroll to select Phone Menu and then
press OK to enter the menu. Refer to yourSYNCsupplementrfor
more information.Note:SYNC Phone must be the selected feature to
access this menu.
•Audio:Scroll to select Audio and then move right to enter the menu.
Scroll to select from:
Entertainment Systems
28
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

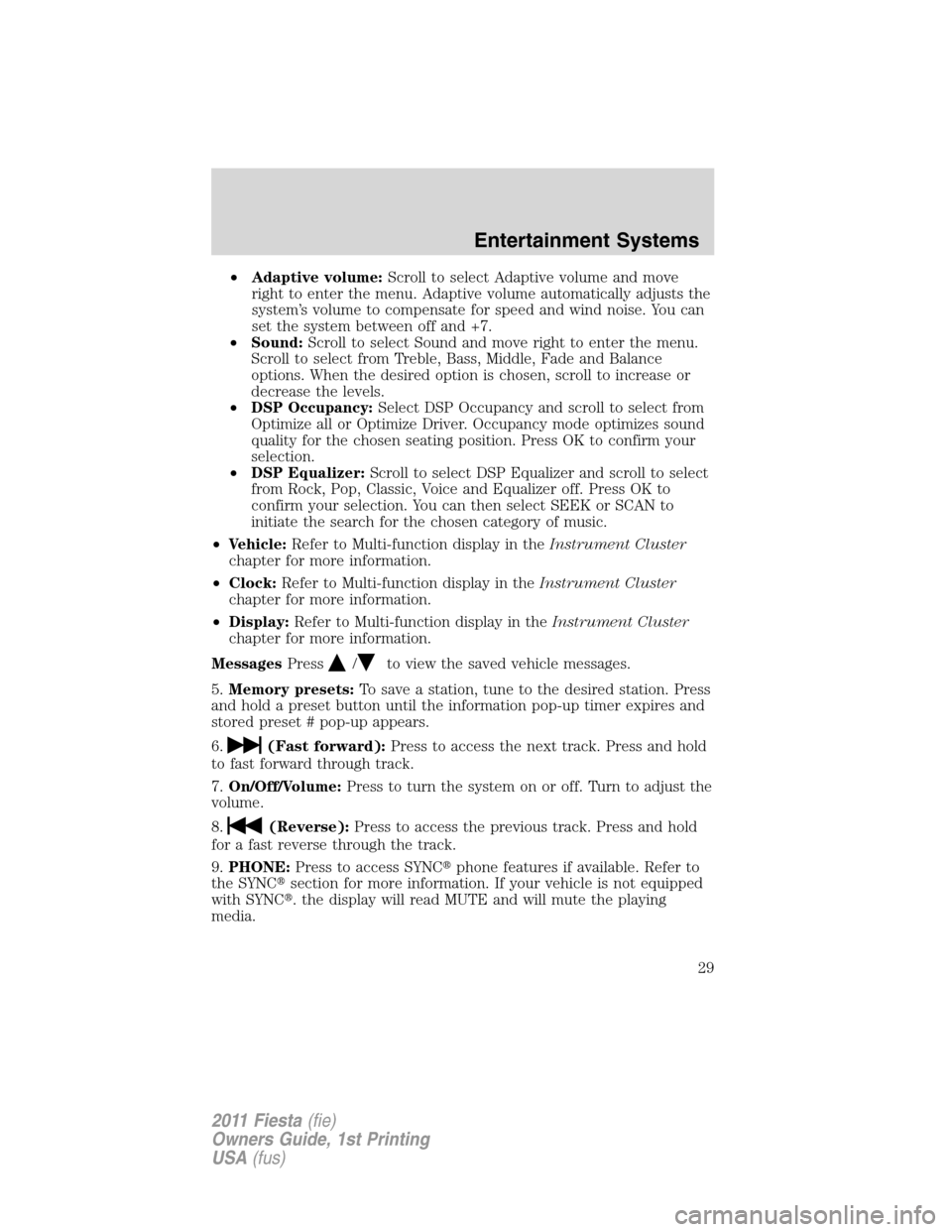

Page 29 of 357

•Adaptive volume:Scroll to select Adaptive volume and move
right to enter the menu. Adaptive volume automatically adjusts the
system’s volume to compensate for speed and wind noise. You can
set the system between off and +7.
•Sound:Scroll to select Sound and move right to enter the menu.
Scroll to select from Treble, Bass, Middle, Fade and Balance
options. When the desired option is chosen, scroll to increase or
decrease the levels.
•DSP Occupancy:Select DSP Occupancy and scroll to select from
Optimize all or Optimize Driver. Occupancy mode optimizes sound
quality for the chosen seating position. Press OK to confirm your
selection.
•DSP Equalizer:Scroll to select DSP Equalizer and scroll to select
from Rock, Pop, Classic, Voice and Equalizer off. Press OK to
confirm your selection. You can then select SEEK or SCAN to
initiate the search for the chosen category of music.
•Vehicle:Refer to Multi-function display in theInstrument Cluster
chapter for more information.
•Clock:Refer to Multi-function display in theInstrument Cluster
chapter for more information.
•Display:Refer to Multi-function display in theInstrument Cluster
chapter for more information.
MessagesPress
/to view the saved vehicle messages.
5.Memory presets:To save a station, tune to the desired station. Press
and hold a preset button until the information pop-up timer expires and
stored preset # pop-up appears.
6.
(Fast forward):Press to access the next track. Press and hold
to fast forward through track.
7.On/Off/Volume:Press to turn the system on or off. Turn to adjust the
volume.
8.
(Reverse):Press to access the previous track. Press and hold
for a fast reverse through the track.
9.PHONE:Press to access SYNCphone features if available. Refer to
the SYNCsection for more information. If your vehicle is not equipped
with SYNC. the display will read MUTE and will mute the playing
media.
Entertainment Systems
29
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

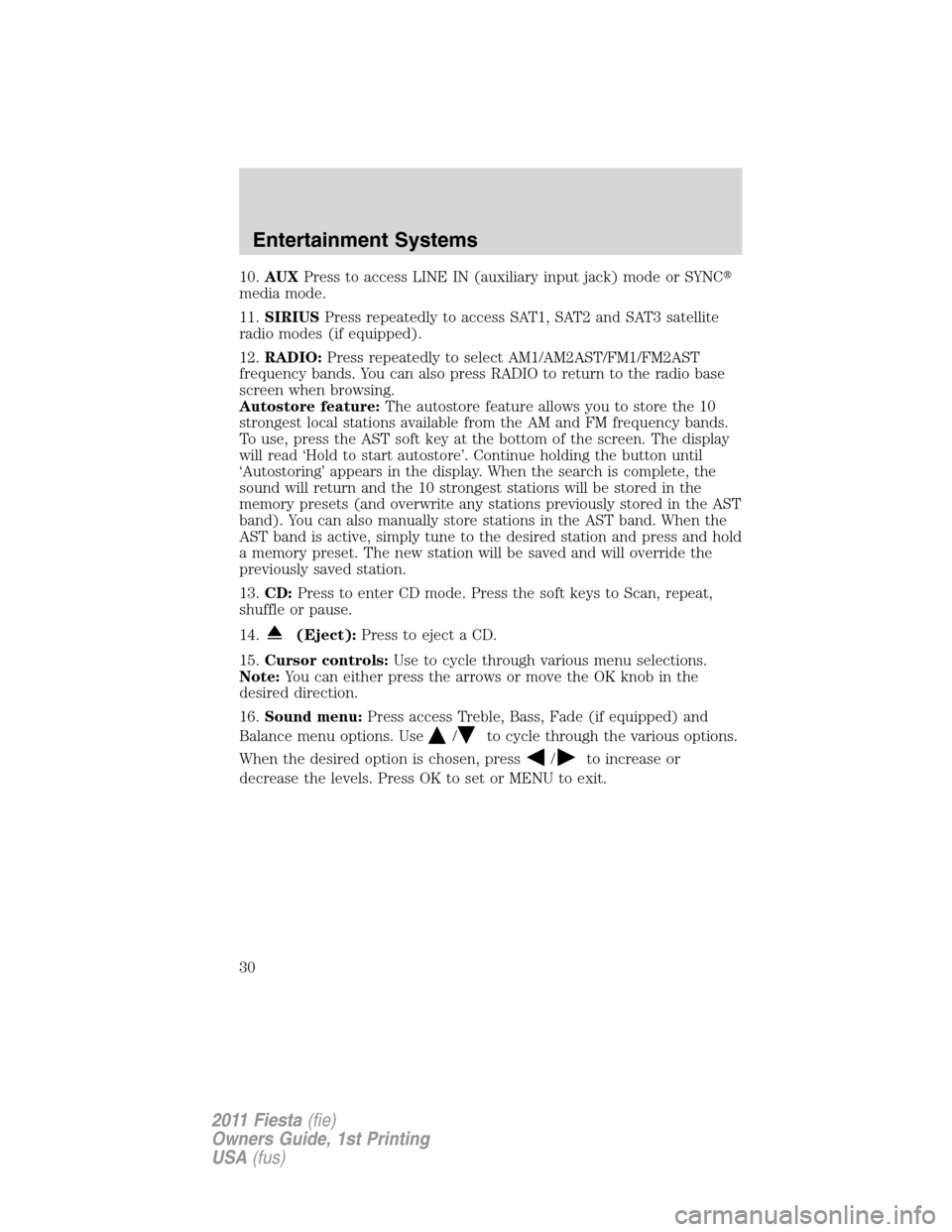

Page 30 of 357

10.AUXPress to access LINE IN (auxiliary input jack) mode or SYNC
media mode.
11.SIRIUSPress repeatedly to access SAT1, SAT2 and SAT3 satellite
radio modes (if equipped).
12.RADIO:Press repeatedly to select AM1/AM2AST/FM1/FM2AST
frequency bands. You can also press RADIO to return to the radio base
screen when browsing.
Autostore feature:The autostore feature allows you to store the 10
strongest local stations available from the AM and FM frequency bands.
To use, press the AST soft key at the bottom of the screen. The display
will read ‘Hold to start autostore’. Continue holding the button until
‘Autostoring’ appears in the display. When the search is complete, the
sound will return and the 10 strongest stations will be stored in the
memory presets (and overwrite any stations previously stored in the AST
band). You can also manually store stations in the AST band. When the
AST band is active, simply tune to the desired station and press and hold
a memory preset. The new station will be saved and will override the
previously saved station.
13.CD:Press to enter CD mode. Press the soft keys to Scan, repeat,
shuffle or pause.
14.
(Eject):Press to eject a CD.
15.Cursor controls:Use to cycle through various menu selections.
Note:You can either press the arrows or move the OK knob in the
desired direction.
16.Sound menu:Press access Treble, Bass, Fade (if equipped) and
Balance menu options. Use
/to cycle through the various options.
When the desired option is chosen, press
/to increase or
decrease the levels. Press OK to set or MENU to exit.
Entertainment Systems
30
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 31 of 357
17–20Soft keys:Press these soft
keys to access the corresponding
functions on the screen.
Auxiliary input jack (Line in)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
20191817
Entertainment Systems
31
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 32 of 357

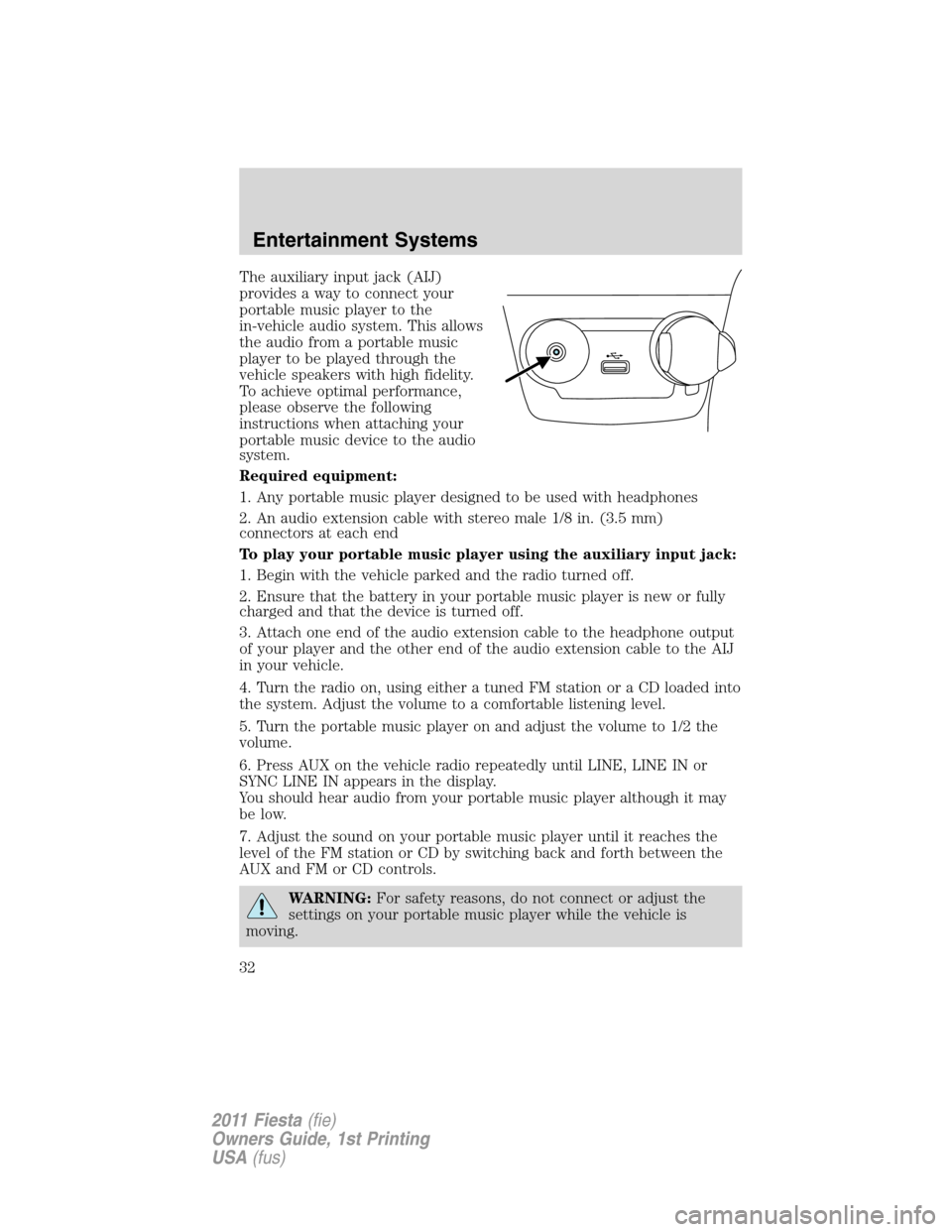

The auxiliary input jack (AIJ)
provides a way to connect your
portable music player to the
in-vehicle audio system. This allows
the audio from a portable music
player to be played through the
vehicle speakers with high fidelity.
To achieve optimal performance,
please observe the following
instructions when attaching your
portable music device to the audio
system.
Required equipment:
1. Any portable music player designed to be used with headphones
2. An audio extension cable with stereo male 1/8 in. (3.5 mm)
connectors at each end
To play your portable music player using the auxiliary input jack:
1. Begin with the vehicle parked and the radio turned off.
2. Ensure that the battery in your portable music player is new or fully
charged and that the device is turned off.
3. Attach one end of the audio extension cable to the headphone output
of your player and the other end of the audio extension cable to the AIJ
in your vehicle.
4. Turn the radio on, using either a tuned FM station or a CD loaded into
the system. Adjust the volume to a comfortable listening level.
5. Turn the portable music player on and adjust the volume to 1/2 the
volume.
6. Press AUX on the vehicle radio repeatedly until LINE, LINE IN or
SYNC LINE IN appears in the display.
You should hear audio from your portable music player although it may
be low.
7. Adjust the sound on your portable music player until it reaches the
level of the FM station or CD by switching back and forth between the
AUX and FM or CD controls.
WARNING:For safety reasons, do not connect or adjust the
settings on your portable music player while the vehicle is
moving.
Entertainment Systems
32
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
