2010 Peugeot 3008 Dag Owner's Manual

216
NAV
5
6
7
1
2
3
4
8
04

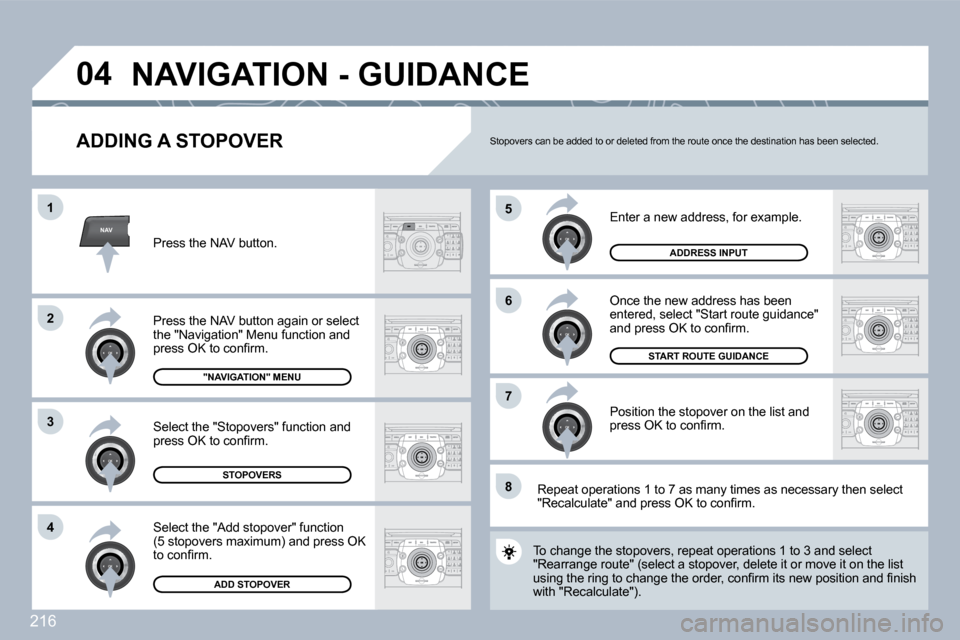

ADDING A STOPOVER
Enter a new address, for example.
Once the new address has been entered, select "Start route guidance" and press OK to confi rm.
Position the stopover on the list and press OK to confi rm.
Press the NAV button.
Press the NAV button again or select the "Navigation" Menu function and press OK to confi rm.
Select the "Add stopover" function (5 stopovers maximum) and press OK to confi rm.
Select the "Stopovers" function and press OK to confi rm.
ADDRESS INPUT
ADD STOPOVER
STOPOVERS
"NAVIGATION" MENU
START ROUTE GUIDANCE
To change the stopovers, repeat operations 1 to 3 and s and select "Rearrange route" (select a stopover, delete it or move iove it on the list using the ring to change the order, confi rm its new position and fi nish using the ring to change the order, confi rm its new position and fi nish with "Recalculate").
Stopovers can be added to or deleted from the route once the destination has been selected.
Repeat operations 1 to 7 as many times as necessar y then select "Recalculate" and press OK to confi rm.
NAVIGATION - GUIDANCE

217
NAV
04
1
2
3
4
7
85
6

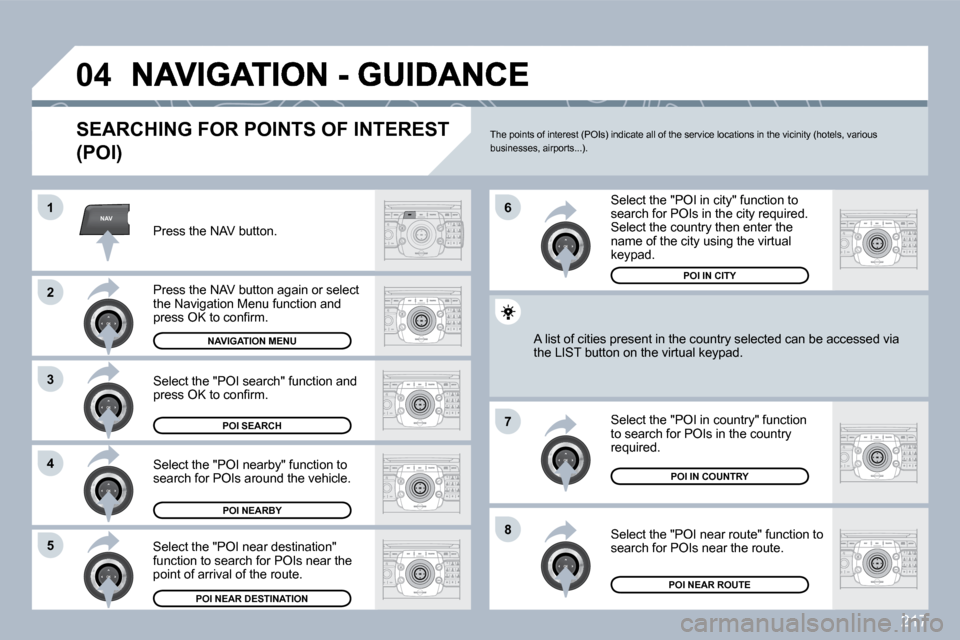

SEARCHING FOR POINTS OF INTEREST
(POI)
Press the NAV button.
Press the NAV button again or select the Navigation Menu function and press OK to confi rm.
Select the "POI nearby" function to search for POIs around the vehicle.
Select the "POI search" function and press OK to confi rm.
NAVIGATION MENU
POI SEARCH
POI NEARBY
Select the "POI in city" function to search for POIs in the city required. Select the country then enter the name of the city using the virtual keypad.
Select the "POI near route" function to search for POIs near the route.
Select the "POI in country" function to search for POIs in the country required.
Select the "POI near destination" function to search for POIs near the point of arrival of the route.
POI NEAR DESTINATION
POI IN COUNTRY
POI NEAR ROUTE
A list of cities present in the country selected can be accbe accessed via the LIST button on the virtual keypad.
POI IN CITY
The points of interest (POIs) indicate all of the service locations in the vicinity (hotels, various businesses, airports...).

218
04 NAVIGATION - GUIDANCE

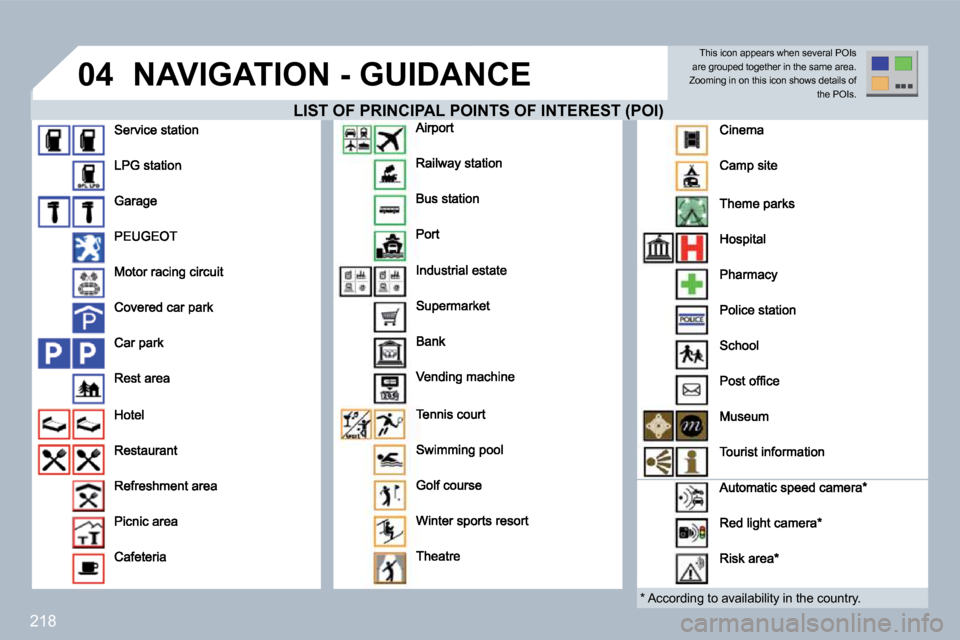

LIST OF PRINCIPAL POINTS OF INTEREST (POI) LIST OF PRINCIPAL POINTS OF INTEREST (POI)
* According to availability in the country.
This icon appears when several POIs are grouped together in the same area. Zooming in on this icon shows details of the POIs.

219
04
5
6
3
4
2
NAV
1
Download the "Risk areas POIs" update fi le onto an SD card or USB stick from the Internet. This servic e is available on www.peugeot.fr or www.peugeot.co.uk.
The fi les must be copied to the root on the chosen medium. The fi les must be copied to the root on the chosen medium.
Insert the medium (SD card or USB stick) containi ng the POI database into the system's SD card reader o r USB reader.
Successful downloading is confi rmed by a message.
The system restarts.

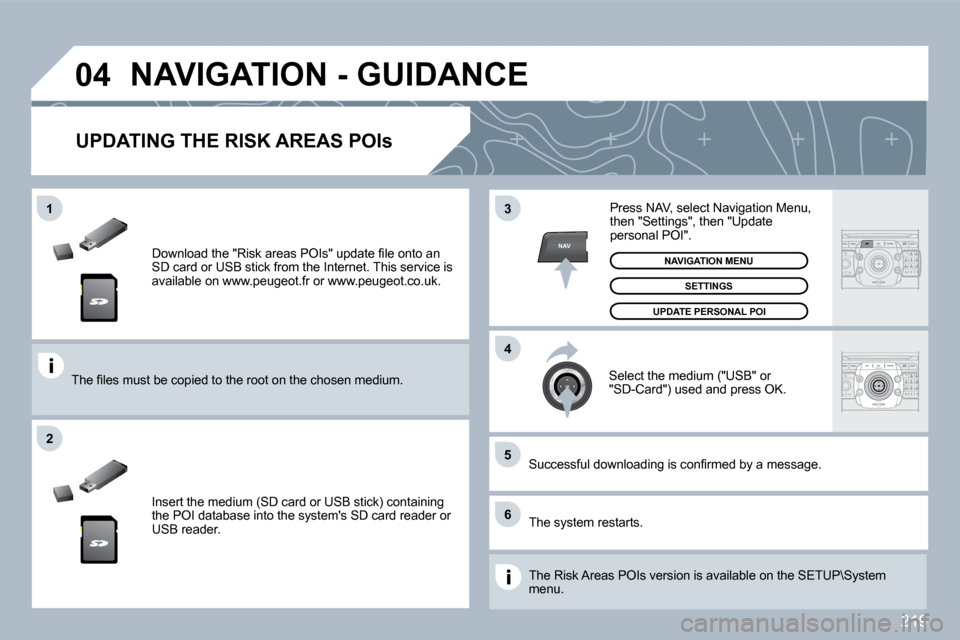

UPDATING THE RISK AREAS POIs
Select the medium ("USB" or "SD-Card") used and press OK.
Press NAV, select Navigation Menu, then "Settings", then "Update personal POI".
SETTINGS
NAVIGATION MENU
NAVIGATION - GUIDANCE
The Risk Areas POIs version is available on the SETUPETUP\System menu.
UPDATE PERSONAL POI

220
04
5
3
4
NAV1
2
1

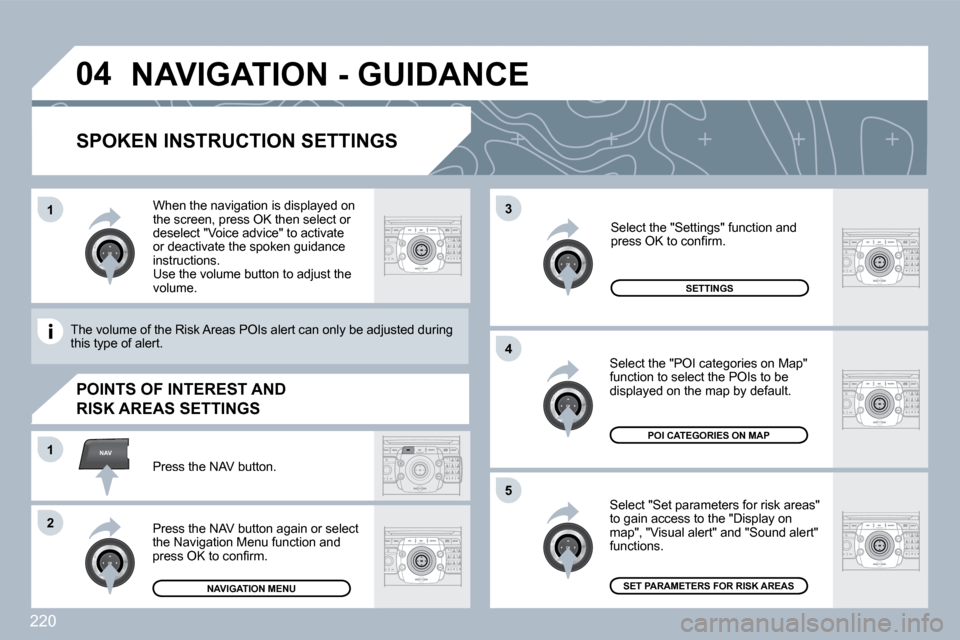

SPOKEN INSTRUCTION SETTINGS
Select "Set parameters for risk areas" to gain access to the "Display on map", "Visual alert" and "Sound alert" functions.
Select the "POI categories on Map" function to select the POIs to be displayed on the map by default.
Press the NAV button.
Press the NAV button again or select the Navigation Menu function and press OK to confi rm.
Select the "Settings" function and press OK to confi rm.
NAVIGATION MENU
SETTINGS
POI CATEGORIES ON MAP
SET PARAMETERS FOR RISK AREAS
NAVIGATION - GUIDANCE
When the navigation is displayed on the screen, press OK then select or deselect "Voice advice" to activate or deactivate the spoken guidance instructions. Use the volume button to adjust the volume.
POINTS OF INTEREST AND
RISK AREAS SETTINGS
The volume of the Risk Areas POIs alert can only be adjbe adjusted during this type of alert.

221
TRAFFIC
05
1
2
4
5
3

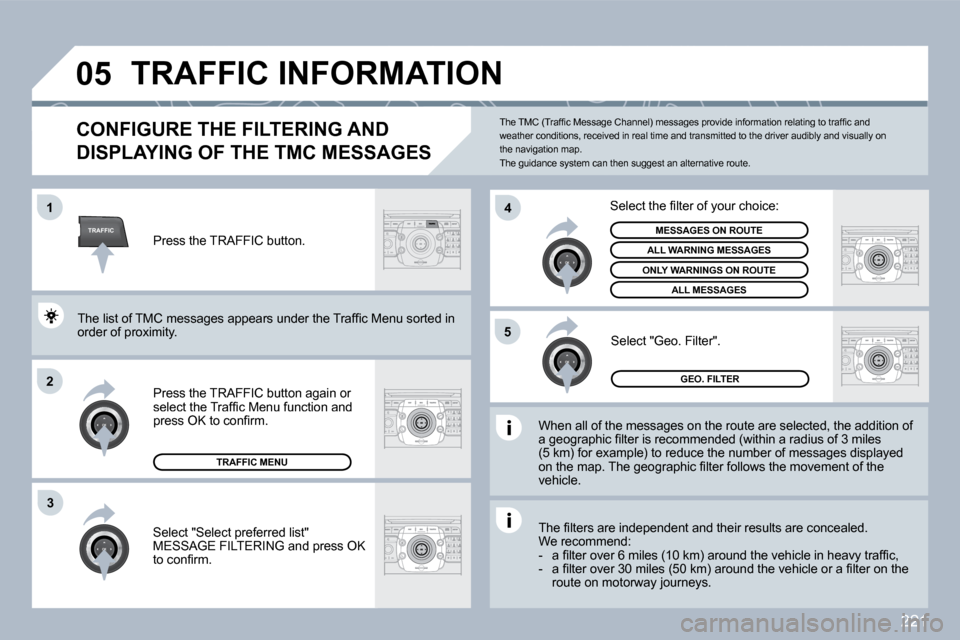

TRAFFIC INFORMATION
CONFIGURE THE FILTERING AND
DISPLAYING OF THE TMC MESSAGES
When all of the messages on the route are selected, the addition of a geographic fi lter is recommended (within a radius of 3 miles(5 km) for example) to reduce the number of message s displayed on the map. The geographic fi lter follows the movement of the vehicle.
The fi lters are independent and their results are concealed. We recommend: - a fi lter over 6 miles (10 km) around the vehicle in heavy traffi c, - a fi lter over 30 miles (50 km) around the vehi cle or a fi lter on the route on motorway journeys.
Press the TRAFFIC button again or select the Traffi c Menu function and press OK to confi rm.
Select "Geo. Filter".
The list of TMC messages appears under the Traffi c Menu sorted in The list of TMC messages appears under the Traffi c Menu sorted in order of proximity.
Select the fi lter of your choice:
MESSAGES ON ROUTE
ALL WARNING MESSAGES
ONLY WARNINGS ON ROUTE
ALL MESSAGES
TRAFFIC MENU
Select "Select preferred list" MESSAGE FILTERING and press OK to confi rm.
The TMC (Traffi c Message Channel) messages provide information relating to traffi c and weather conditions, received in real time and transmitted to the driver audibly and visually on the navigation map. The guidance system can then suggest an alternativ e route.
Press the TRAFFIC button.
GEO. FILTER

222
05
2
1
3
2
1
TRAFFIC INFORMATION
PRINCIPAL TMC SYMBOLS
Red and yellow triangle: traffi c information, par
example:
Black and blue triangle: general information, for example:
With the current audio source displayed on the screen, press the dial.
The shortcut menu for the source appears and give s access to: The shortcut menu for the source appears and gives access to:
Select Traffi c Announcements (TA) and press the dial to confi rm and go to the associated settings.
TA
The TA (Traffi c Announcement) function gives priority to TA alert messages. To operate, this function needs good rece ption of a radio station transmitting this type of message. When a traffi c report is transmitted, the current audio source (Radio, CD, J ukebox, ...) is interrupted automatically to play the TA message. N ormal playback of the audio source resumes at the end of the transmission of the message.
RECEIVING TA MESSAGES

223
RADIO
11
2
3
06

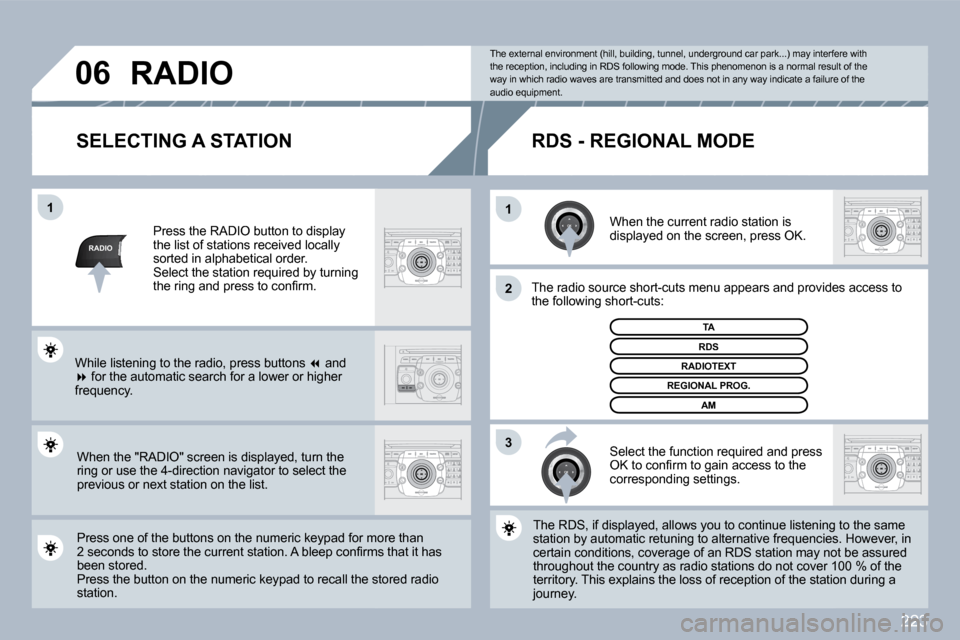

SELECTING A STATION
When the current radio station is displayed on the screen, press OK.
The radio source short-cuts menu appears and providesovides access to the following short-cuts:
Select the function required and press OK to confi rm to gain access to the corresponding settings.
TA
The RDS, if displayed, allows you to continue listening tning to the same station by automatic retuning to alternative freque ncies.ncies. However, in certain conditions, coverage of an RDS station may not y not be assured throughout the country as radio stations do not cover 10ver 100 % of the territory. This explains the loss of reception of the stationstation during a journey.
The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS following mode. Thi s phenomenon is a normal result of the way in which radio waves are transmitted and does n ot in any way indicate a failure of the audio equipment.
RDS - REGIONAL MODE
REGIONAL PROG.
RADIOTEXT
RDS
Press the RADIO button to display the list of stations received locally sorted in alphabetical order. Select the station required by turning the ring and press to confi rm.
Press one of the buttons on the numeric keypad fo r moor more than 2 seconds to store the current station. A bleep confi rms that it has 2 seconds to store the current station. A bleep confi rms that it has been stored. Press the button on the numeric keypad to recall the stothe stored radio station.
AM
RADIO
When the "RADIO" screen is displayed, turn the ring or use the 4-direction navigator to select the previous or next station on the list.
While listening to the radio, press buttons  and  for the automatic search for a lower or higher frequency.
