2010 Peugeot 3008 Dag Owner's Manual

50
Access to the retractable screen
This screen is opened and stored auto-
matically.
However, you can also open it, store it
and adjust it using the various manual
controls:
- opening or storing by means of con-trol A ,
- angle adjustments by means of con- trol B .
It is also fi tted with safety auto-reverse
protection.
Opening the screen

 With the screen stored, press con-
trol A to open it.
The screen opens automatically when
the ignition is switched on, when the
audio and telematics system is switched
on, when an outgoing telephone call is
made, when a voice command is given
and when a warning message linked
with the STOP warning lamp is re-
ceived. Closing the screen

 With the screen open, press control A
to store it.
The screen is stored automatically
when the ignition is switched off, after
approximately three seconds, if the au-
dio and telematics system is off.
If you wish the screen to open
or close automatically when
the audio and telematics sys-
tem is switched on or off, the screen
must not be closed when the audio
and telematics system is operating. When the screen is open, you can ad-
just it precisely in different ways:

 press the corresponding part of con-
trol B to move the screen towards
you or towards the windscreen,
or

 push or pull the screen gently by
hand.
Adjusting the position of the screen
Safety auto-reverse
If the screen meets an obstacle as it
opens or closes, the movement stops
immediately and is reversed by a few
millimetres.
After clearing the obstacle, issue the
command required again. Storing the position of the screen
The system has four pre-set positions
in its memory.
Each time the screen is closed, the
system stores the last position of the
screen.
Each time the screen is re-opened, the
system returns the screen to the pre-set
position closest to that stored.
If you close the screen dur-
ing operation of the audio and
telematics system, it will re-
open automatically when an outgoing
telephone call is made, when a voice
command is given or when a warning
message linked with the STOP warn-
ing lamp is received.

51
TRIP COMPUTER

 Press the button, located at the end
of the wiper stalk , to display the
various items of trip computer data
in succession. The trip computer provides the follow-
ing information:
System which provides current informa-
tion concerning the trip travelled (range,
fuel consumption...).

 Press the control for more than two
seconds to reset to zero the distance
travelled, the average fuel consump-
tion and the average speed.
Zero reset
Data displays - range,
- current fuel consumption,
- distance travelled,
- average fuel consumption,
- average speed.
 The next press then returns you to
the normal display.

54
A few definitions…
When the range falls below 20 miles
(30 km), dashes are displayed. After fi ll-
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km). If dashes are displayed
continuously while driving in
place of the digits, contact a
PEUGEOT dealer. This function is only displayed
from 20 mph (30 km/h).
This value may vary following
a change in the style of driv-
ing or the relief, resulting in a
signifi cant change in the current fuel
consumption. Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled. Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption during the last few
seconds.
Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset. Average speed
(mph or km/h)
This is the average speed
calculated since the last trip
computer zero reset (igni-
tion on).
Distance travelled
(miles or km)
This indicates the distance trav-
elled since the last trip comput-
er zero reset. Distance remaining to
destination
(miles or km)
This is the distance remaining
to be travelled to the fi nal destination. It
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.

52
Monochrome screen C
Instrument panel screen - PEUGEOT Connect Media
16/9 colour screen - PEUGEOT Connect Navigation
TRIP COMPUTER
System which provides current infor-
mation concerning the trip (range, con-
sumption…).
Depending on your vehicle's
equipment, the trip computer
information appears on the
multifunction screen or on the instru-
ment panel screen.
Data displays

 Press the button, located at the end
of the wiper stalk , to display the
various trip computer tabs in suc-
cession. With the instrument panel screen
( PEUGEOT Connect Media )

 Press the up and down arrows on
the navigator, associated with the
PEUGEOT Connect Media, to dis-
play the various trip computer tabs
in succession.
With the screen C or the colour screen
( PEUGEOT Connect Navigation )

53
Trip zero reset

With the screen C or the colour screen (
PEUGEOT Connect Navigation
)

 When the trip required is displayed,
press the control for more than
two seconds.
With the instrument panel screen (
PEUGEOT Connect Media
)

 When the required trip is displayed,
press the "OK" button on the naviga-
tor, associated with the PEUGEOT
Connect Media, for more than two
seconds.
Trips "1" and "2" are independent but
their use is identical.
Trip "1" permits, for example, daily
calculations, and trip "2" monthly calcu-
lations.
- The current information
tab with:

54
A few definitions…
When the range falls below 20 miles
(30 km), dashes are displayed. After fi ll-
ing with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km). If dashes are displayed
continuously while driving in
place of the digits, contact a
PEUGEOT dealer. This function is only displayed
from 20 mph (30 km/h).
This value may vary following
a change in the style of driv-
ing or the relief, resulting in a
signifi cant change in the current fuel
consumption. Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in
relation to the average fuel consump-
tion over the last few miles (kilometres)
travelled. Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption during the last few
seconds.
Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip
computer zero reset. Average speed
(mph or km/h)
This is the average speed
calculated since the last trip
computer zero reset (igni-
tion on).
Distance travelled
(miles or km)
This indicates the distance trav-
elled since the last trip comput-
er zero reset. Distance remaining to
destination
(miles or km)
This is the distance remaining
to be travelled to the fi nal destination. It
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.

55
VENTILATION
System which creates and maintains
good conditions of comfort and visibility in
the vehicle's passenger compartment.
Controls
The incoming air follows various routes
depending on the controls selected by
the driver.
The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits.
The air distribution control enables you
to diffuse the air making use of several
air vents.
The air fl ow control enables you to in-
crease or reduce the speed of the ven-
tilation blower. These controls are grouped together on
control panel
A on the centre console.
Depending on the model, the functions
offered are:
- the level of thermal comfort re- quired,
- air fl ow,
- air distribution,
- demisting/defrosting,
- manual or digital air conditioning controls.
Air intake
The air circulating in the passenger com-
partment is fi ltered and originates either
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode.
Air distribution

1. Windscreen demisting/defrosting vents.

2. Front side window demisting/de-
frosting vents.

3. Side adjustable air vents.

4. Central adjustable air vents.

5. Air outlets to the front footwells.

6. Adjustable air vents for the rear pas-
sengers.

7. Air outlets to the rear footwells.

56
The air conditioning system
does not contain chlorine and
does not present any danger

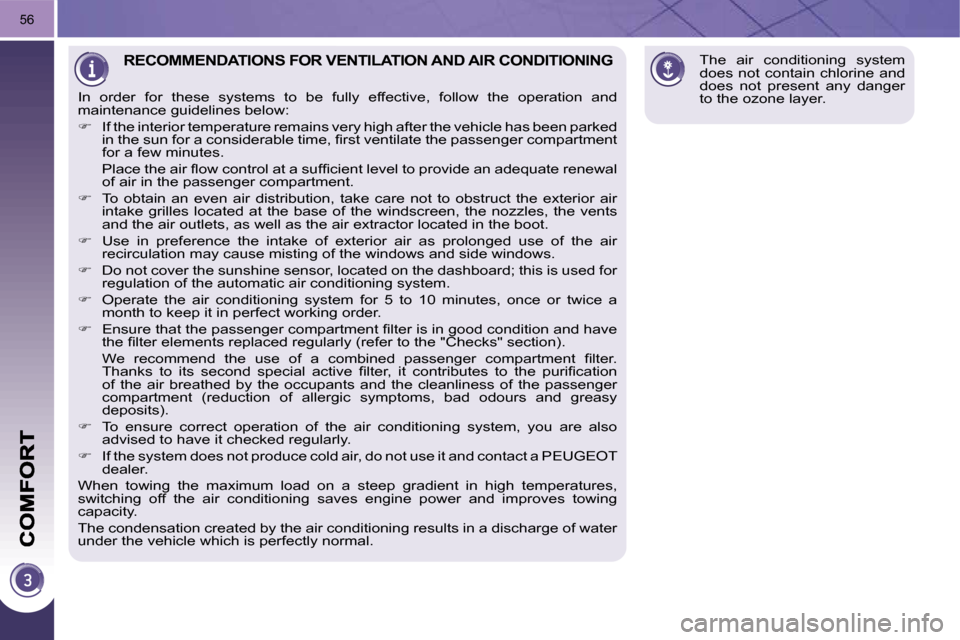

to the ozone layer. RECOMMENDATIONS FOR VENTILATION AND AIR CONDITIONING
In order for these systems to be fully effective, follow the operation and
maintenance guidelines below:

 If the interior temperature remains very high after the vehicle has been parked
in the sun for a considerable time, fi rst ventilate the passen ger compartment
for a few minutes.
Place the air fl ow control at a suffi cient level to provide an adequate renewal
of air in the passenger compartment.

 To obtain an even air distribution, take care not to obst ruct the exterior air
intake grilles located at the base of the windscreen, the n ozzles, the vents
and the air outlets, as well as the air extractor located in the boot.

 Use in preference the intake of exterior air as prolonged use of the air
recirculation may cause misting of the windows and side windows.

 Do not cover the sunshine sensor, located on the dashboard; this is used for
regulation of the automatic air conditioning system.

 Operate the air conditioning system for 5 to 10 minutes, on ce or twice a
month to keep it in perfect working order.

 Ensure that the passenger compartment fi lter is in good condit ion and have
the fi lter elements replaced regularly (refer to the "Checks" sectio n).
We recommend the use of a combined passenger compartment fi lter.
Thanks to its second special active fi lter, it contributes to t he purifi cation
of the air breathed by the occupants and the cleanliness of the passenger
compartment (reduction of allergic symptoms, bad odours and greasy
deposits).

 To ensure correct operation of the air conditioning system, you are also
advised to have it checked regularly.

 If the system does not produce cold air, do not use it and contact a PEUGEOT
dealer.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning saves engine power and i mproves towing
capacity.
The condensation created by the air conditioning results in a discharge of water
under the vehicle which is perfectly normal.
