2010 Peugeot 3008 Dag Owner's Manual

20
DRIVING SAFELY
Electric parking brake
Manual application/release
The parking brake can be applied man-
ually by pulling the control A .
When the ignition is on, the parking
brake can be released manually by

pressing the brake pedal and pulling
then releasing the control A . Automatic application/release
Press the accelerator and release the
clutch, the parking brake is released
automatically and progressively on ac-
celeration.
When the
engine is switched off , the
parking brake is applied automatically.
Before getting out of the
vehicle, check that the
braking warning lamp
( red ! ) and the warning
lamp P on the control A , are on (not
fl ashing).
If you get out of your vehicle
with the engine running, apply
the parking brake manually. Before getting out of the
vehicle, check that the
braking warning lamp
(
red ! ) and the warning
lamp P on the control A are on (not
fl ashing).
Do not leave a child alone in
the vehicle with the ignition on;
they could release the parking
brake.
131 Your vehicle is equipped with a system
which keeps it immobile for a short time
(approximately 2 seconds) to assist you
when starting on a hill, the time required
for you to move your foot from the brake
pedal to the accelerator pedal.
This function is only active:
- when the vehicle has been immobil-
ised completely with your foot on the
brake pedal,
- on certain gradients,
- when the driver's door is closed.
Do not get out of the vehicle
during the hill start assist tem-
porary hold phase. 136
If this warning lamp is lit on the
instrument panel, the automatic
application/release are deacti-
vated .

21
DRIVING SAFELY
Head-up display

1. Head-up display on/off.

2. Brightness adjustment.

3. Display height adjustment.
The adjustments must be
made with the engine running
and the vehicle stationary.
139
Distance alert

1. Distance alert on /off.

2. Alert value increase/decrease.
141
Grip control
ESP (normal mode).
122
Snow.
All terrain.
Sand.
ESP OFF.

22
DRIVING SAFELY
Speed limiter "LIMIT"

1. Limiter mode Selection/Off.

2. Decreasing the programmed value.

3. Increasing the programmed value.

4. Speed limiter On/Off.
The values must be set with
the engine running.
143
Cruise control "CRUISE"

1. Cruise control mode Selection/Off.

2. Programming a speed/Decreasing
the programmed value.

3. Programming a speed/Increasing
the programmed value.

4. Cruise control Off/Resume.
In order to be programmed or
activated, the vehicle speed
must be higher than 25 mph
(40 km/h), with at least fourth gear
engaged on the manual gearbox
(second gear for the 6-speed elec-
tronic gear control gearbox or auto-
matic gearbox).
145
Display on the instrument panel
The cruise control or speed limiter mode
appears on the instrument panel when
it is selected. Cruise control
Speed limiter

23
148
DRIVING SAFELY
6-speed electronic gear control gearbox
This 6-speed gearbox offers a choice
between the comfort of fully automatic
operation or the pleasure of manual
gear changing.

1. Gear lever.

2. Button "S" (sport) .
"Tiptronic - Porsche system" gearbox
This six-speed gearbox offers a choice
between the comfort of fully automatic
operation or the pleasure of manual
gear changing.

1. Gear lever.

2. Button "S" (sport) .

3. Button "  " (snow) .
Moving off

 Select position N and press the
brake pedal fi rmly while starting the
engine.

 Engage fi rst gear (position A or M )
or reverse (position R ) using the
gear lever 1 .

 Take your foot off the brake pedal
then accelerate.
 Select position P or N and press the
brake pedal fi rmly while starting the
engine.

 Select position R , D or M .

 Take your foot off the brake pedal,
then accelerate.

3. Steering mounted "-" paddle.

4. Steering mounted "+" paddle.
152
Moving off

24
INSTRUMENT PANELS
Panel grouping together the vehicle operation indication dials and warning lamps.
Dials

1. Rev counter.
Indicates the engine speed (x 1 000 rpm).

2. Coolant temperature.
Indicates the temperature of the en- gine coolant (° Celsius).

3. Fuel level.
Indicates the quantity of fuel remain- ing in the tank.

4. Speedometer.
Indicates the current speed of the moving vehicle (mph or km/h).

5. Screen.

6. Display zero reset or service indi-
cator re-display button.
Resets the selected function to zero (trip distance recorder or service in-
dicator) or displays the service indi-
cator again.

7. Instrument panel lighting rheostat.
Adjusts the brightness of the light- ing of the instruments and controls,
if the vehicle lighting is on.
For more information, refer to
the paragraph relating to the
button or function and its as-
sociated display.

25
Screen(s)
Instrument panel navigator associated with the PEUGEOT Connect Media
This group of buttons permits:
- when stationary , confi guration of
the vehicle's equipment and the
screen settings (languages, units...),
- while driving , scrolling of the active
functions (trip computer, navigation...). Controls
There are four buttons to control the
large 16/9 screen in the instrument
panel:

1. access the general menu, confi rm
the selection,

2. move up through the menu,

3. move down through the menu,

4. return to the previous display, exit
from the menu.

A. Speed limiter
or
Cruise control.
(mph or km/h)

B. Trip distance recorder.
(miles or km)
C. Service indicator.
(miles or km) or,
Engine oil level indicator.
or
distance recorder.
(miles or km)

D. 6-speed electronic gear control

or automatic gearbox.

E. Warning messages and function
status messages, trip computer,
GPS navigation information, menus
(with
PEUGEOT Connect Media
).

26
Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment (according to country):
- wiper linked with reverse gear (refer to the "Visibility" section),
- selective unlocking (refer to the "Access" section),
- guide-me-home and welcome light- ing (refer to the "Visibility" section),
- interior mood lighting (refer to the "Visibility" section),
- daytime running lamps (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- automatic or manual parking brake (refer to the "Driving" section).
Choice of units
This menu allows you to select the
units: temperature (°Celsius or °Fahr-
enheit) and fuel consumption (l/100 km,
mpg or km/l).
Choice of language
This menu allows you to select the
display language: Deutsch, English,
Espanol, Français, Italiano, Nederlands,
Portugues, Türkçe * .

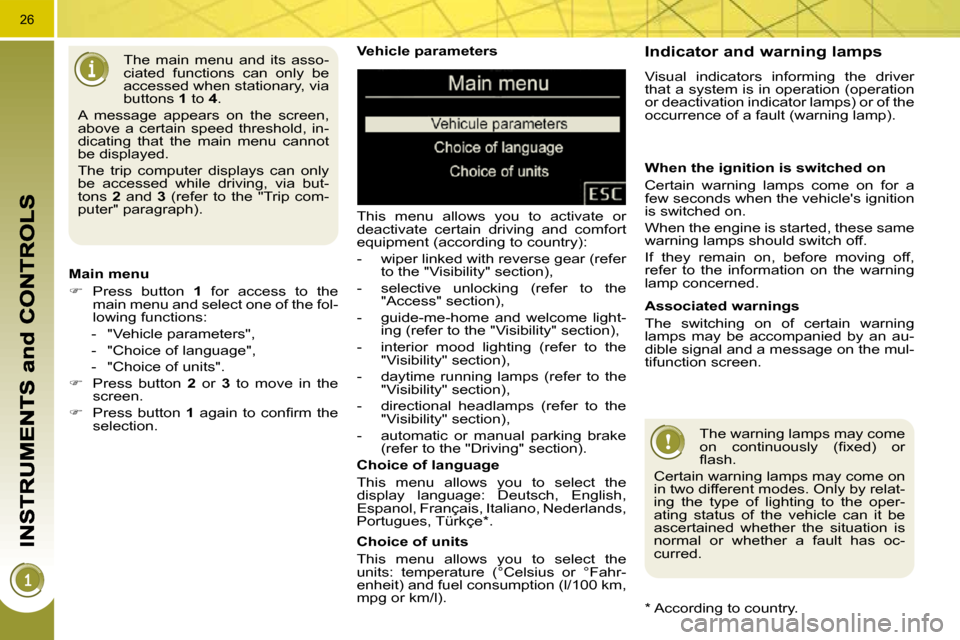

The main menu and its asso-
ciated functions can only be
accessed when stationary, via
buttons
1 to 4 .
A message appears on the screen,
above a certain speed threshold, in-
dicating that the main menu cannot
be displayed.
The trip computer displays can only
be accessed while driving, via but-
tons 2 and 3 (refer to the "Trip com-
puter" paragraph).
Main menu

 Press button 1 for access to the
main menu and select one of the fol-
lowing functions:
- "Vehicle parameters",
- "Choice of language",
- "Choice of units".

 Press button 2 or 3 to move in the
screen.

 Press button 1 again to confi rm the
selection.
* According to country. Indicator and warning lamps
Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lamps) or of the
occurrence of a fault (warning lamp).
When the ignition is switched on
Certain warning lamps come on for a
few seconds when the vehicle's ignition
is switched on.
When the engine is started, these same
warning lamps should switch off.
If they remain on, before moving off,
refer to the information on the warning
lamp concerned.
Associated warnings
The switching on of certain warning
lamps may be accompanied by an au-
dible signal and a message on the mul-
tifunction screen. The warning lamps may come
on continuously (fi xed) or
fl ash.
Certain warning lamps may come on
in two different modes. Only by relat-
ing the type of lighting to the oper-
ating status of the vehicle can it be
ascertained whether the situation is
normal or whether a fault has oc-
curred.

26
Vehicle parameters
This menu allows you to activate or
deactivate certain driving and comfort
equipment (according to country):
- wiper linked with reverse gear (refer to the "Visibility" section),
- selective unlocking (refer to the "Access" section),
- guide-me-home and welcome light- ing (refer to the "Visibility" section),
- interior mood lighting (refer to the "Visibility" section),
- daytime running lamps (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- automatic or manual parking brake (refer to the "Driving" section).
Choice of units
This menu allows you to select the
units: temperature (°Celsius or °Fahr-
enheit) and fuel consumption (l/100 km,
mpg or km/l).
Choice of language
This menu allows you to select the
display language: Deutsch, English,
Espanol, Français, Italiano, Nederlands,
Portugues, Türkçe * .
The main menu and its asso-
ciated functions can only be
accessed when stationary, via
buttons
1 to 4 .
A message appears on the screen,
above a certain speed threshold, in-
dicating that the main menu cannot
be displayed.
The trip computer displays can only
be accessed while driving, via but-
tons 2 and 3 (refer to the "Trip com-
puter" paragraph).
Main menu

 Press button 1 for access to the
main menu and select one of the fol-
lowing functions:
- "Vehicle parameters",
- "Choice of language",
- "Choice of units".

 Press button 2 or 3 to move in the
screen.

 Press button 1 again to confi rm the
selection.
* According to country. Indicator and warning lamps
Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lamps) or of the
occurrence of a fault (warning lamp).
When the ignition is switched on
Certain warning lamps come on for a
few seconds when the vehicle's ignition
is switched on.
When the engine is started, these same
warning lamps should switch off.
If they remain on, before moving off,
refer to the information on the warning
lamp concerned.
Associated warnings
The switching on of certain warning
lamps may be accompanied by an au-
dible signal and a message on the mul-
tifunction screen. The warning lamps may come
on continuously (fi xed) or
fl ash.
Certain warning lamps may come on
in two different modes. Only by relat-
ing the type of lighting to the oper-
ating status of the vehicle can it be
ascertained whether the situation is
normal or whether a fault has oc-
curred.
