PRACTICAL INFORMATION
169
CHANGING A WHEEL
The tools are installed in the boot under
the fl oor.
To gain access to them:

 open the boot,

 place the adjustable boot fl oor at an
angle (refer to the "Fittings" section),

 raise the fl oor,

 secure it by hooking its cord on the
hook on the rear parcel shelf sup-
port,

 remove the polystyrene storage box,

 unclip by pulling upwards then
remove the box containing the
tools.
Access to the tools
Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.

 To make the operation easier, re-
move the adjustable boot fl oor,

 unscrew the yellow central bolt,
With the JBL bass unit

 remove the bass unit disconnecting
the electrical harness,

 remove the polystyrene storage box.

PRACTICAL INFORMATION
169
CHANGING A WHEEL
The tools are installed in the boot under
the fl oor.
To gain access to them:

 open the boot,

 place the adjustable boot fl oor at an
angle (refer to the "Fittings" section),

 raise the fl oor,

 secure it by hooking its cord on the
hook on the rear parcel shelf sup-
port,

 remove the polystyrene storage box,

 unclip by pulling upwards then
remove the box containing the
tools.
Access to the tools
Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.

 To make the operation easier, re-
move the adjustable boot fl oor,

 unscrew the yellow central bolt,
With the JBL bass unit

 remove the bass unit disconnecting
the electrical harness,

 remove the polystyrene storage box.

PRACTICAL INFORMATION
170
All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.

1. Wheelbrace.
For removal of the wheel trim and removal of the wheel fi xing bolts.

2. Jack with integral handle.
For raising of the vehicle.

3. "Bolt cover" tool (according to
equipment).
For removal of the bolt protectors (covers) on alloy wheels.

4. Centring guide.
For refi tting an alloy wheel to the hub.

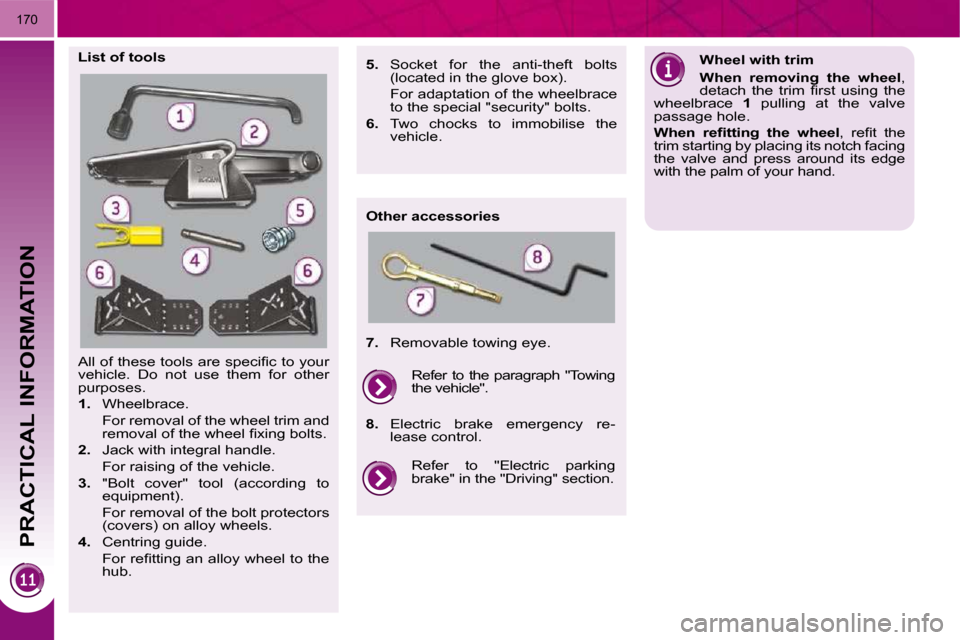

List of tools
Other accessories Wheel with trim

When removing the wheel ,
detach the trim fi rst using the
wheelbrace 1 pulling at the valve
passage hole.

When refi tting the wheel , refi t the
trim starting by placing its notch facing
the valve and press around its edge
with the palm of your hand.

5. Socket for the anti-theft bolts
(located in the glove box).
For adaptation of the wheelbrace to the special "security" bolts.

6. Two chocks to immobilise the
vehicle.

7. Removable towing eye.
Refer to "Electric parking
brake" in the "Driving" section.
Refer to the paragraph "Towing
the vehicle".

8. Electric brake emergency re-
lease control.

PRACTICAL INFORMATION
Access to the spare wheel
The spare wheel is installed in the boot
under the fl oor.
According to country, the spare wheel
may be steel, alloy or of the "space-
saver" type.
To gain access to it, refer to the para-
graph "Access to the tools" on the previ-
ous page. Taking out the wheel

 Unscrew the yellow central bolt.

 Raise the spare wheel towards you
from the rear.

 Take the wheel out of the boot.
Putting the wheel back in place

 Put the wheel back in its housing.

 Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.

 Tighten fully until the central bolt
clicks to retain the wheel correctly.

 Put the box back in place in the cen-
tre of the wheel and clip it.

 Put the polystyrene storage box
back in place.
Tyre under-infl ation
detection
The spare wheel is not fi tted
with a sensor. The punctured wheel
must be repaired by a PEUGEOT
dealer.

PRACTICAL INFORMATION
172
Parking the vehicle
Immobilise the vehicle where
it does not block traffi c: the
ground must be level, stable and
non-slippery ground.
Apply the parking brake unless it
has been programmed to automatic
mode, switch off the ignition and en-
gage fi rst gear * to lock the wheels.
Check that the braking warning lamp
and the P warning lamp on the park-
ing brake control come on.
If necessary, place a chock under the
wheel diagonally opposite the wheel
to be changed.
The occupants must get out of the
vehicle and wait where they are
safe.
Never go underneath a vehicle raised
using a jack; use an axle stand.

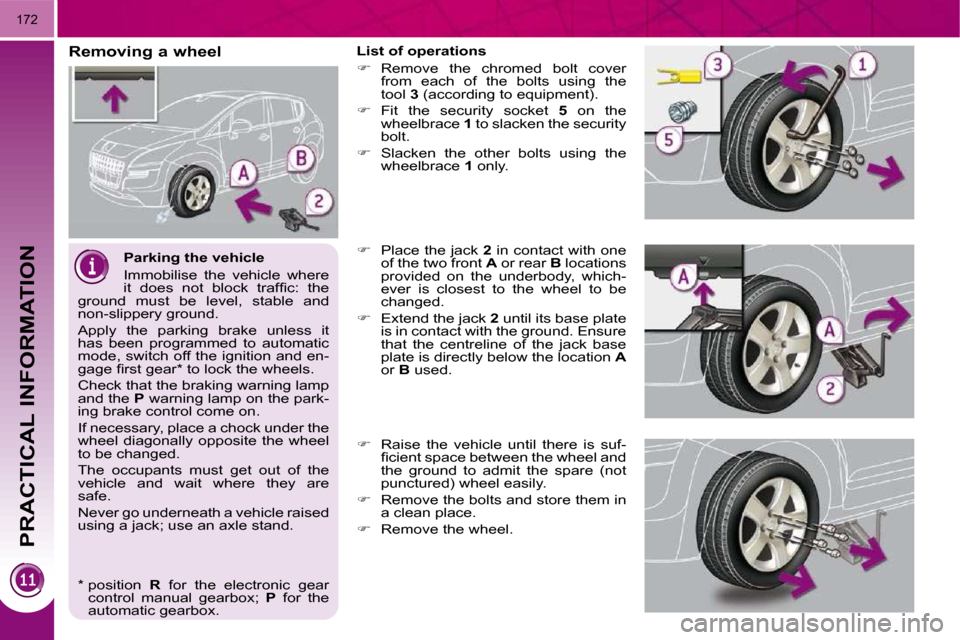

Removing a wheel
List of operations

 Remove the chromed bolt cover
from each of the bolts using the
tool 3 (according to equipment).

 Fit the security socket 5 on the
wheelbrace 1 to slacken the security
bolt.

 Slacken the other bolts using the
wheelbrace 1 only.

 Place the jack 2 in contact with one
of the two front A or rear B locations
provided on the underbody, which-
ever is closest to the wheel to be
changed.

 Extend the jack 2 until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B used.

 Raise the vehicle until there is suf-
fi cient space between the wheel and
the ground to admit the spare (not
punctured) wheel easily.

 Remove the bolts and store them in
a clean place.

 Remove the wheel.
* position R for the electronic gear
control manual gearbox; P for the
automatic gearbox.

PRACTICAL INFORMATION
Fitting the "space-saver"
spare wheel
If your vehicle is fi tted with al-
loy wheels, when tightening the bolts
on fi tting it is normal to notice that the
washers do not come into contact
with the "space-saver" spare wheel.
The wheel is secured by the conical
contact of each bolt.

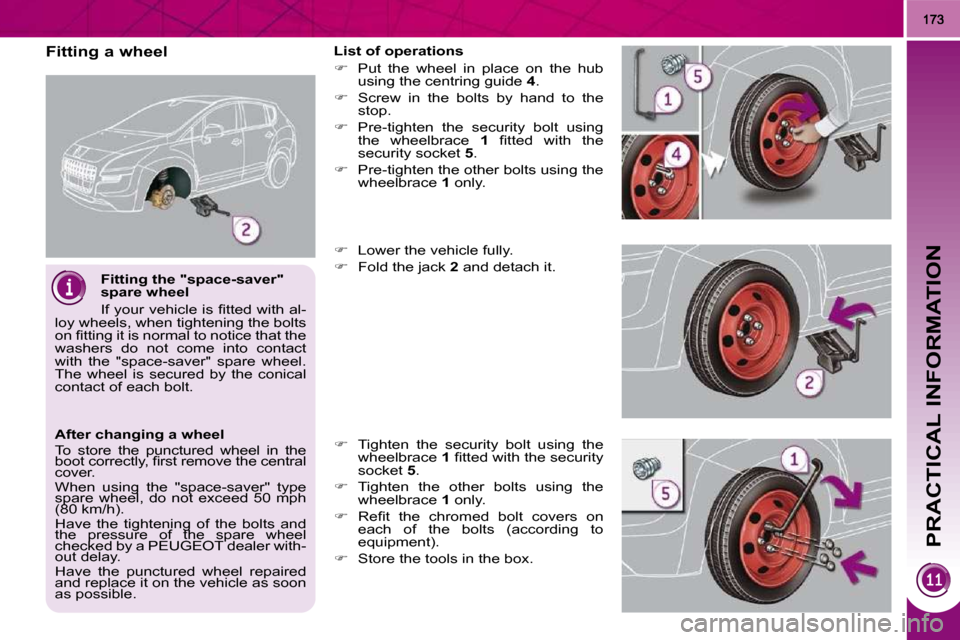

Fitting a wheel
List of operations

 Put the wheel in place on the hub
using the centring guide 4 .

 Screw in the bolts by hand to the
stop.

 Pre-tighten the security bolt using
the wheelbrace 1 fi tted with the
security socket 5 .

 Pre-tighten the other bolts using the
wheelbrace 1 only.

 Lower the vehicle fully.

 Fold the jack 2 and detach it.

 Tighten the security bolt using the
wheelbrace 1 fi tted with the security
socket 5 .

 Tighten the other bolts using the
wheelbrace 1 only.

 Refi t the chromed bolt covers on
each of the bolts (according to
equipment).

 Store the tools in the box.
After changing a wheel
To store the punctured wheel in the
boot correctly, fi rst remove the central
cover.
When using the "space-saver" type
spare wheel, do not exceed 50 mph
(80 km/h).
Have the tightening of the bolts and
the pressure of the spare wheel
checked by a PEUGEOT dealer with-
out delay.
Have the punctured wheel repaired
and replace it on the vehicle as soon
as possible.

PRACTICAL INFORMATION
174
Risk of electrocution
Xenon bulbs (D1S-35W) must
be replaced by a PEUGEOT
dealer.
CHANGING A BULB
Procedure for replacing a faulty bulb
with a new bulb without the use of
tools.

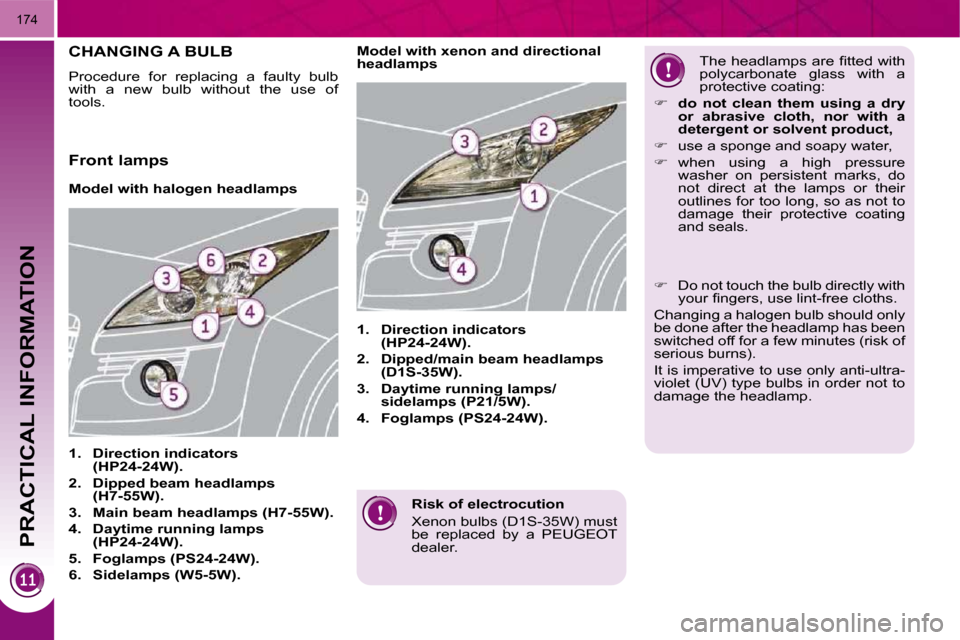

Model with halogen headlamps

1. Direction indicators
(HP24-24W).

2. Dipped
beam
headlamps
(H7-55W).

3. Main beam headlamps (H7-55W).

4. Daytime
running lamps

(HP24-24W).

5. Foglamps
(PS24-24W).

6. Sidelamps
(W5-5W).
1. Direction indicators
(HP24-24W).

2. Dipped/main beam headlamps
(D1S-35W).

3. Daytime
running lamps/

sidelamps
(P21/5W).

4. Foglamps
(PS24-24W).
Model with xenon and dir
ectional
headlamps The headlamps are fi tted with
polycarbonate glass with a
protective coating:

 do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,

 use a sponge and soapy water,

 when using a high pressure
washer on persistent marks, do
not direct at the lamps or their
outlines for too long, so as not to
damage their protective coating
and seals.
Front lamps

 Do not touch the bulb directly with
your fi ngers, use lint-free cloths.
Changing a halogen bulb should only
be done after the headlamp has been
switched off for a few minutes (risk of
serious burns).
It is imperative to use only anti-ultra-
violet (UV) type bulbs in order not to
damage the headlamp.

PRACTICAL INFORMATION
Changing main beam headlamp and
sidelamp bulbs
Changing dipped headlamp bulbs

 Remove the protective plastic cover
by pulling on the tab.

 Disconnect the bulb connector.

 Extract the bulb by pulling and
change it.
To refi t, carry out these operations in
reverse order.
 Remove the protective plastic cover
by pulling on the tab.

 Disconnect the bulb connector.

 Remove the bulb by pulling and
change it
To refi t, carry out these operations in
reverse order.
Changing direction indicator bulbs
Consult a PEUGEOT dealer.
