2010 Peugeot 3008 Dag Owner's Manual

12
SITTING COMFORTABLY
Front seats
Head restraint height and angle
Lumbar 64
Steering wheel adjustment

1. Unlock the control.

2. Adjust for height and reach.

3. Lock the control.
As a safety precaution, these opera-
tions must only be carried out when
stationary. 70
Table position (front passenger seat)
To place objects on the table or to make
the loading of long objects in the vehicle
easier. 65
Front armrest
This incorporates the Peugeot Connect
USB and/or a JACK auxiliary socket.
99

13
SITTING COMFORTABLY
Door mirrors
Adjustment

A. Selection of the mirror to be adjusted.

B. Adjustment of the position of the
mirror in the four directions.
68
Rear view mirror
Manual model

1. Selection of the "day" position of the
mirror.

2. Adjustment of the mirror.
69
Automatic day/night model

1. Adjustment of the mirror.
69
Front seat belts

1. Fastening of the buckle.
124

2. Height adjustment.

Also...

C. Folding/Unfolding.

14
SEEING CLEARLY
Lighting
Ring A Lighting off.
Ring B Sidelamps.
Dipped/main beam headlamps.
Rear foglamp.
or Front and rear foglamps.
Automatic illumination of head-
lamps.
87
Direction indicators
Raise or lower the lighting stalk passing
the point of resistance; the correspond-
ing direction indicators will fl ash for as
long as the stalk remains in this posi-
tion.
"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
This function can be used at any speed,
but it is particularly useful when chang-
ing lane on high-speed roads. 118
Wipers
Stalk A: windscreen wipers
Switching on "AUTO"

 Press the stalk down and release it.
Switching off "AUTO"

 Push the stalk up and return it to
position "0" .
91
Ring B: rear wiper Park.
Intermittent wipe.
Wash-wipe. 92

VENTILATION

Digital
air conditioning: we recommend use of the fully automatic mode by pressing the "AUTO" button.

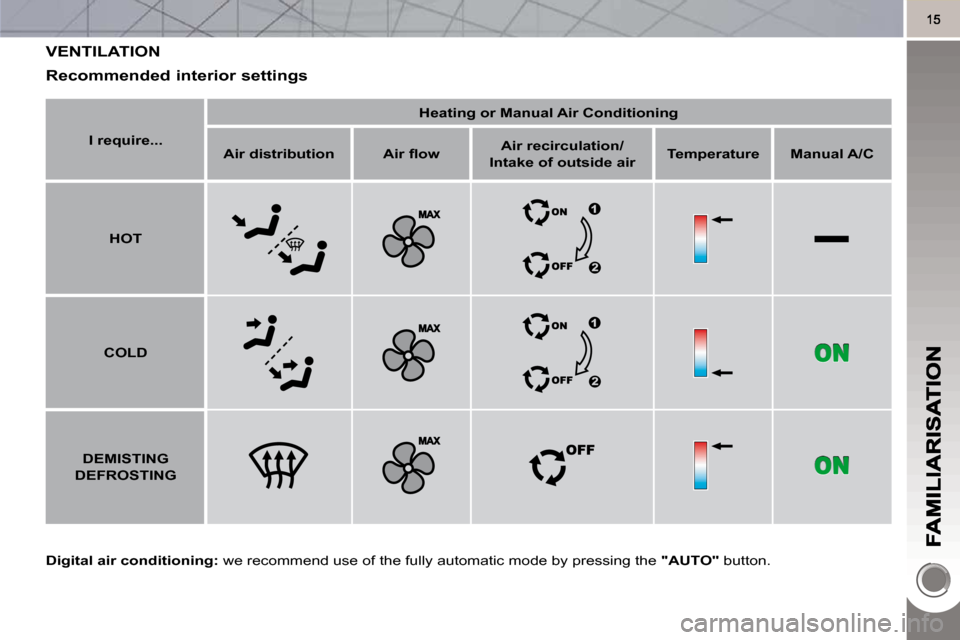

Recommended interior settings

I require...
Heating or Manual Air Conditioning

Air distribution Air fl ow
Air recirculation/

Intake of outside air
Temperature Manual A/C

HOT


COLD

DEMISTING

DEFROSTING

MONITORING
Instrument panel

A. With the ignition on, the needle
should indicate the level of fuel re-
maining.

B. With the engine running, its associ-
ated low level warning light should
switch off.

C. With the ignition on, the oil level in-
dicator should display "OIL OK" for
a few seconds.
If the levels are not correct, top up the
levels which are low.
24
Warning lamps

1. With the ignition on, the orange and
red warning lamps come on.

2. With the engine running, these
warning lamps should switch off.
If warning lamps remain on, refer to the
page concerned.
26
Switch panels
Lighting of the indicator lamp indicates
the status of the corresponding function.

A. Interior volumetric
protection alarm. 76
155
120
79, 117
139
118
141
72

B. Visual and audible
parking sensors.

C. ESP OFF (without
Grip control).

D. Child lock

E. Head-up display.

F. Hazard warning
lamps.

G. Distance alert.

H. Central locking.

Lower

Central

17
PASSENGER SAFETY
Passenger's front airbag

1. Insert the key.

2. Select the position:
"OFF" (deactivation), with "rear fac-
ing" child seat,
"ON" (activation), with front passen-
ger or "forwards facing" child seat.

3. Remove the key keeping the switch
in the new position.
128
front airbag

A. Front and/or rear seat belts not fas-
tened/unfastened warning lamp.

B. Front left seat belt warning lamp.

C. Front right seat belt warning lamp.

D. Rear right seat belt warning lamp.

E. Rear centre seat belt warning lamp.

F. Rear left seat belt warning lamp.

G. Passenger's front airbag deactivat-
ed warning lamp.

H. Passenger's front airbag activated
warning lamp.
125
Child lock (locking of the rear doors)
Lighting of the indicator lamp indicates
the status of the corresponding function. 117

18
ARRANGE YOUR BOOT
3 position adjustable boot
Low position (150 kg max). 108

 To release the fl oor, push
slightly forwards then
raise.

 Use the stops A , placed on each
side of the boot to change the
height of the fl oor more easily. Intermediate position (100 kg max). High position (50 kg max) w
ith the lower
tailgate closed to isolate the lower part
of the boot.
From the high position, place the fl oor
in this position (at an angle), two stops
support it to allow access underneath it
or to the spare wheel.

19
ARRANGE YOUR BOOT
Rear seats

 Place the movable fl oor in the inter-
mediate position .

 Check that nothing is preventing
the seat backs from folding (front
seats suffi ciently advanced, head
restraints, seat belts, ...).

 Check also that no object on or
under the seat could hinder its
movement. 66

 Pull the control of the 1/3 section,
from the boot.
 Pull the control of the 2/3 section,
from the boot.
The seats are aligned with the movable
fl oor and the lower tailgate.
