2010 Peugeot 3008 Dag Owner's Manual

CHILD SAFETY
111
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are secured
using a three point seat belt :

Group 0+: from birth to 13 kg Group 1: from 9 to 18 kg

L1
"RÖMER/BRITAX Baby-Safe Plus".
Installed in the
rearwards-facing position.

L2
"RÖMER Duo Plus ISOFIX".

Groups 1, 2 and 3: from 9 to 36 kg

L3
"KIDDY Life".
The use of the restraining cushion is compulsory for the transportation of young children (from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

L4
"RECARO Start''.
L5
"KLIPPAN Optima".
From the age of 6 years
(approximately 22 kg), the booster is used on its own.
For more information on de-
activating the airbag, refer
to the "Safety" section then
"Airbags".

CHILD SAFETY
111
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are secured
using a three point seat belt :

Group 0+: from birth to 13 kg Group 1: from 9 to 18 kg

L1
"RÖMER/BRITAX Baby-Safe Plus".
Installed in the
rearwards-facing position.

L2
"RÖMER Duo Plus ISOFIX".

Groups 1, 2 and 3: from 9 to 36 kg

L3
"KIDDY Life".
The use of the restraining cushion is compulsory for the transportation of young children (from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

L4
"RECARO Start''.
L5
"KLIPPAN Optima".
From the age of 6 years
(approximately 22 kg), the booster is used on its own.
For more information on de-
activating the airbag, refer
to the "Safety" section then
"Airbags".

CHILD SAFETY
112
INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat b elt
and universally approved (a) in accordance with the weight of the child and the seat in the vehicle:

a: universal child seat, child seat that can be installed in all vehicles using a seat belt.

b: group 0, from birth to 10 kg. Shells seats and baby carriers cann ot be installed in the front passenger seat.

c: consult the legislation in force in your country before insta lling your child on this seat.

U: seat suitable for the installation of a child seat secure d using a seat belt and universally approved, "rearwards-facing"
and/or "forwards-facing".

U (R): idem U , with the vehicle's seat adjusted to the highest positio n and as far back as possible.

L: only the child seats indicated can be installed on the se at concerned (according to country).

X: seat position not suitable for installation of a child seat for the weight class indicated.
Weight of the child and indicative age

Seat
Under 13 kg
(groups 0 ( b )
and 0+)
Up to approx 1 year
From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger
seat ( c ) with
height adjuster


U (R) U (R) U (R) U (R)
Front passenger
seat (c) without
height adjuster
X X X X
Outer rear seats

U * U * U * U *
Centre rear seat

L1 L2, L3, L4 L3, L4, L5 L3, L4, L5
* Do not install a child seat with a stay if your vehicle is fi tted with storage compartment fl aps unde r the footwells.

CHILD SAFETY
113

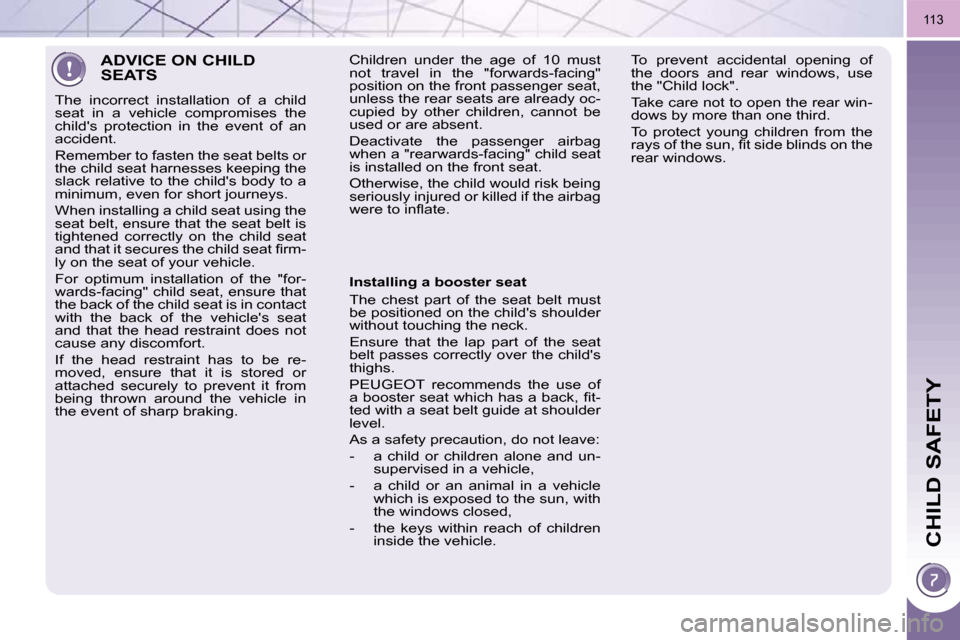

ADVICE ON CHILD SEATS
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack relative to the child's body to a
minimum, even for short journeys.
When installing a child seat using the
seat belt, ensure that the seat belt is
tightened correctly on the child seat
and that it secures the child seat fi rm-
ly on the seat of your vehicle.
For optimum installation of the "for-
wards-facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking. Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level.
As a safety precaution, do not leave:
- a child or children alone and un-
supervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle. To prevent accidental opening of
the doors and rear windows, use
the "Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
Children under the age of 10 must
not travel in the "forwards-facing"
position on the front passenger seat,
unless the rear seats are already oc-
cupied by other children, cannot be
used or are absent.
Deactivate the passenger airbag
when a "rearwards-facing" child seat
is installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were to infl ate.

CHILD SAFETY
"ISOFIX" MOUNTINGS
Your vehicle has been approved in
accordance with the new ISOFIX regu-
lation .
The seats, represented below, are fi tted
with regulation ISOFIX mountings: There are three rings for each seat:
- two rings
A , located between the
vehicle seat back and cushion, indi-
cated by a label,
- a ring B , behind the seat, referred to
as the TOP TETHER for fi xing the
upper strap. This ISOFIX mounting system guaran-
tees you fast, reliable and safe fi tting of
the child seat in your vehicle.
The
ISOFIX child seats are fi tted with
two locks which are secured easily on
the two rings A .
Some also have an upper strap which
is attached to ring B .
To attach this strap, raise the vehicle
seat's head restraint then pass the hook
between its rods. Then fi x the hook on
ring B and tighten the upper strap.
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, consult the summary ta-
ble for the location of the ISOFIX child
seats.

CHILD SAFETY
115
This child seat can also be
used on seats which are not
fi tted with ISOFIX mountings.
In this case, it must be attached to
the vehicle seat using the three point
seat belt.

Follow the instructions for fi tting
the child seat given in the seat
manufacturer's installation guide.
ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE

RÖMER Duo Plus ISOFIX (size category B1 )

Group 1: from 9 to 18 kg
Installed in the forwards-facing position.
Fitted with an upper strap to be secured on the upper ring B ,
referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.

CHILD SAFETY
LOCATIONS FOR INSTALLING ISOFIX CHILD SEATS
In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in t he
vehicle fi tted with ISOFIX mountings.
In the case of universal and semi-universal ISOFIX child seats, th e ISOFIX size category, determined by a letter from A to G ,
is indicated on the child seat next to the ISOFIX logo.

IUF: seat suitable for the installation of an I sofi x U niversal seat, " F orwards-facing" secured using the top belt.

IL-SU: seat suitable for the installation of an I sofi x S emi- U niversal seat either:
- "rearwards-facing" fi tted with a top belt or a support,
- "forwards-facing" fi tted with a stay,
- a shell seat fi tted with an upper strap or a stay.
For advice on securing of the top belt, refer to the paragra ph "Isofi x mountings".

X: seat not suitable for the installation of a child seat or shell for the weight group indicated.


Weight of the child /indicative age

Less than
10 kg
(group 0)
Up to approx. 6 months
Less than 10 kg

(group 0)
Less than 13 kg

(group 0+)
Up to approx. 1 year
From 9 to 18 kg (group 1)
From approx. 1 to 3 years

Type of ISOFIX child seat Shell "rearwards-facing"

"rearwards-facing"
"forwards-facing"

ISOFIX size category F G C D E C D A B B1
Front passenger seat

X X X X
Outer rear seats

X IL-SU * IL-SU *
IUF *

IL-SU *
Centre rear seat

X X X X
* Do not install a child seat with a stay if your vehicle is fi tted with storage compartment fl aps unde r the footwells.

CHILD SAFETY
117
This system is independent
and in no circumstances does
it take the place of the central
locking control.
Check the status of the child lock
each time you switch on the ignition.
Always remove the key from the igni-
tion when leaving the vehicle, even
for a short time.
In the event of a serious impact, the
electric child lock is deactivated auto-
matically to permit the exit of the rear
passengers.
MANUAL CHILD LOCK
Mechanical system to prevent opening
of the rear door using its interior control.
The control is located on the edge of
each rear door.

 Turn the red control one eighth of
a turn to the left using the ignition
key.
ELECTRIC CHILD LOCK
Remote control system to prevent opening
of the rear doors using their interior con-
trols and use of the rear electric windows.

 With the ignition on, press button A .
The indicator lamp on button A comes
on.
This indicator lamp remains on until the
child lock is deactivated.
It is still possible to open the doors from
the outside and operate the rear electric
windows from the driver's control pad.
Locking
Unlocking

 Turn the red control one eighth of
a turn to the right using the ignition
key. Activation
Deactivation

 With the ignition on, press button A
again.
The indicator lamp on button A switches
off.
This indicator lamp remains off until the
child lock is activated.
Any other status of the indica-
tor lamp indicates a malfunction
of the electric child lock. Have
it checked by a PEUGEOT
dealer.
