2010 Peugeot 3008 Dag Owner's Manual

PRACTICAL INFORMATION
ACCESSORIES
"Protection": anti-theft alarm, window etch-
ing, wheel locks, fi rst aid kit,
warning triangle, high visibility
jacket, stolen vehicle track-
ing system, dog guard, snow
chains.

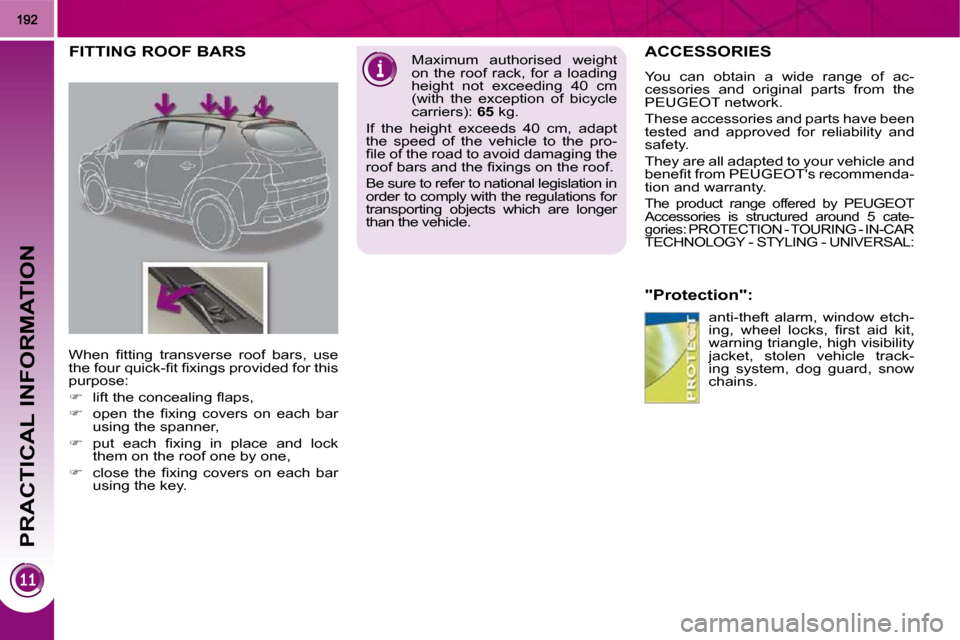

FITTING ROOF BARS Maximum authorised weight
on the roof rack, for a loading
height not exceeding 40 cm
(with the exception of bicycle
carriers): 65 kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the pro-
fi le of the road to avoid damaging the
roof bars and the fi xings on the roof.
Be sure to refer to national legislation in
order to comply with the regulations for
transporting objects which are longer
than the vehicle.
When fi tting transverse roof bars, use
the four quick-fi t fi xings provided for this
purpose:

 lift the concealing fl aps,

 open the fi xing covers on each bar
using the spanner,

 put each fi xing in place and lock
them on the roof one by one,

 close the fi xing covers on each bar
using the key. You can obtain a wide range of ac-
cessories and original parts from the
PEUGEOT network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommenda-
tion and warranty.
The product range offered by PEUGEOT
Accessories is structured around 5 cate-
gories: PROTECTION - TOURING - IN-CAR
TECHNOLOGY - STYLING - UNIVERSAL:

PRACTICAL INFORMATION
ACCESSORIES
"Protection": anti-theft alarm, window etch-
ing, wheel locks, fi rst aid kit,
warning triangle, high visibility
jacket, stolen vehicle track-
ing system, dog guard, snow
chains.
FITTING ROOF BARS Maximum authorised weight
on the roof rack, for a loading
height not exceeding 40 cm
(with the exception of bicycle
carriers): 65 kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the pro-
fi le of the road to avoid damaging the
roof bars and the fi xings on the roof.
Be sure to refer to national legislation in
order to comply with the regulations for
transporting objects which are longer
than the vehicle.
When fi tting transverse roof bars, use
the four quick-fi t fi xings provided for this
purpose:

 lift the concealing fl aps,

 open the fi xing covers on each bar
using the spanner,

 put each fi xing in place and lock
them on the roof one by one,

 close the fi xing covers on each bar
using the key. You can obtain a wide range of ac-
cessories and original parts from the
PEUGEOT network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommenda-
tion and warranty.
The product range offered by PEUGEOT
Accessories is structured around 5 cate-
gories: PROTECTION - TOURING - IN-CAR
TECHNOLOGY - STYLING - UNIVERSAL:

PRACTICAL INFORMATION
193
"Touring": mats * , boot tray, luggage net,
fi xed coat hook on head re-
straint, stainless steel or car-
bon door sills.
For leisure pursuits: roof bars, bicycle
carrier on towbar, bicycle carrier on roof
bars, ski carrier, roof box, booster seats
and child seats, side blinds, under shelf
storage.
Trailer towbar which must be fi tted by
the PEUGEOT network.
"In-car technology": audio systems, amplifi ers,
satellite navigation systems,
Bluetooth system, CD chang-
er, speakers, DVD player,
USB Box, front and rear park-
ing sensors, additional blue-
tooth wireless headphones,
bluetooth audio headphones
mains charger. Installation of
radiocommunication
transmitters
It is advisable to contact a repre-
sentative of the PEUGEOT marque
before installing accessory radio-
communication transmitters with an
external aerial on your vehicle.
The PEUGEOT network will provide
you with the specifi cations (frequen-
cy band, maximum output power,
aerial position, special installation
conditions) of the transmitters which
can be fi tted, in accordance with the
Vehicle Electromagnetic Compatibility
Directive (2004/104/CE).
* To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and secured correctly,
- never fi t one mat on top of another. The fi tting of electrical equip-
ment or accessories which
are not recommended by
PEUGEOT may result in a failure of
your vehicle's electronic system.
Please note this specifi c warning.
You are advised to contact a repre-
sentative of the Marque to be shown
the range of recommended equip-
ment and accessories. Depending on the country in
which the vehicle is sold, it
is compulsory to have a high
visibility jacket, warning triangle and
spare bulbs available in the vehicle.
"Styling": "Universal":
You can obtain "Van" conversion kits to
convert a private vehicle into a van.
seat covers compatible with
lateral airbags, leather gear
lever knob, foglamps, door de-
fl ectors, spoiler, styling strips,
alloy wheels, trims, chrome-
plated door handle shells. screenwash, interior and exte-
rior maintenance and cleaning
products.

TECHNICAL DATA

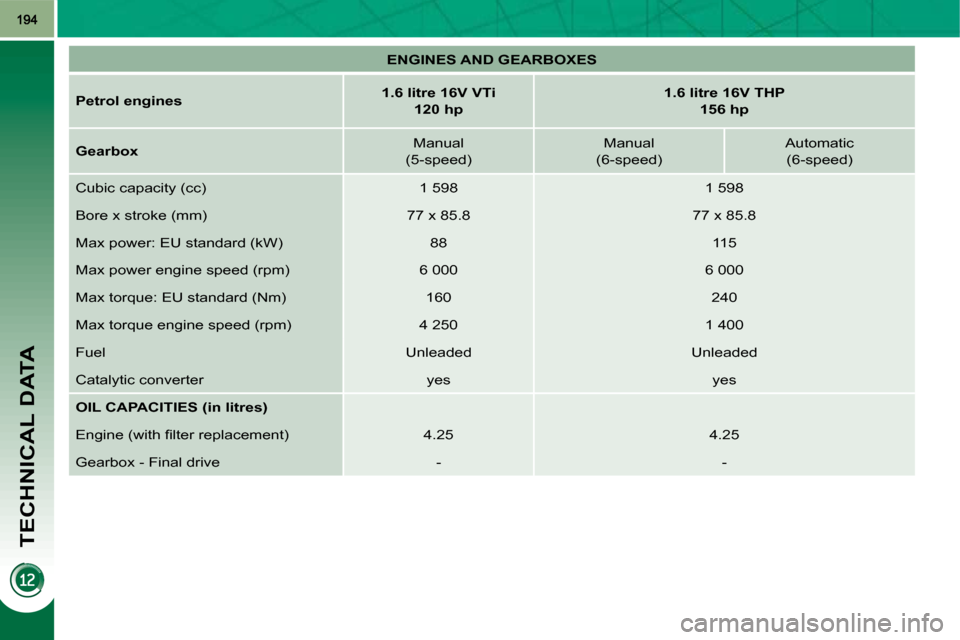

ENGINES AND GEARBOXES

Petrol engines
1.6 litre 16V VTi

120
hp
1.6 litre 16V THP
156
hp

Gearbox Manual
(5-speed) Manual
(6-speed) Automatic
(6-speed)
Cubic capacity (cc) 1 598 1 598
Bore x stroke (mm) 77 x 85.8 77 x 85.8
Max power: EU standard (kW) 88 115
Max power engine speed (rpm) 6 000 6 000
Max torque: EU standard (Nm) 160 240
Max torque engine speed (rpm) 4 250 1 400
Fuel Unleaded Unleaded
Catalytic converter yes yes

OIL CAPACITIES (in litres)

Engine (with fi lter replacement) 4.25 4.25
Gearbox - Final drive - -

TECHNICAL DATA

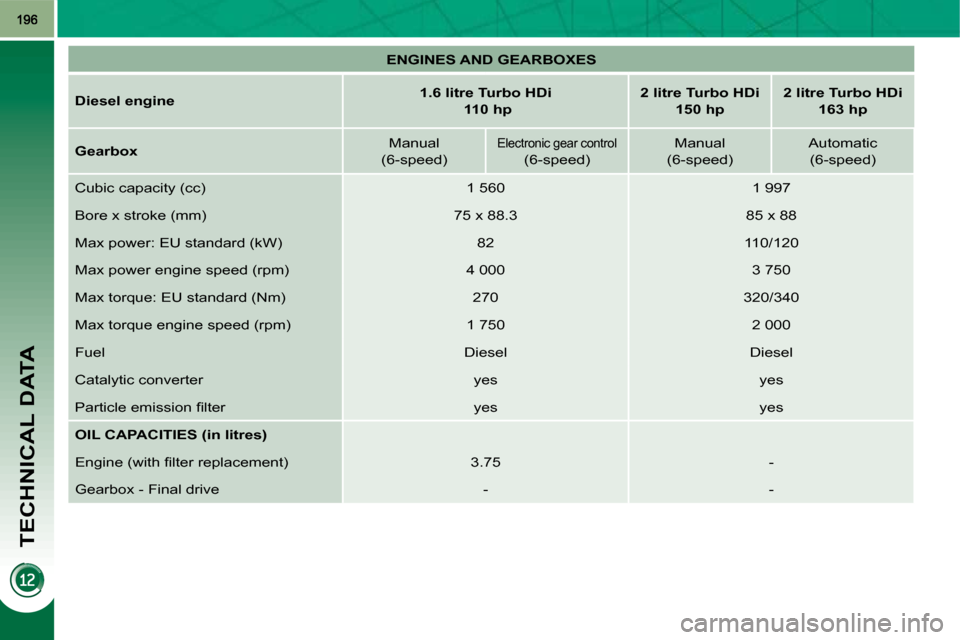

ENGINES AND GEARBOXES

Diesel engine
1.6 litre Turbo HDi


110
hp
2 litre Turbo HDi
150
hp
2 litre Turbo HDi
163
hp

Gearbox Manual
(6-speed)
Electronic gear control
(6-speed) Manual
(6-speed) Automatic
(6-speed)
Cubic capacity (cc) 1 560 1 997
Bore x stroke (mm) 75 x 88.3 85 x 88
Max power: EU standard (kW) 82 110/120
Max power engine speed (rpm) 4 000 3 750
Max torque: EU standard (Nm) 270 320/340
Max torque engine speed (rpm) 1 750 2 000
Fuel Diesel Diesel
Catalytic converter yes yes
Particle emission fi lter yes yes

OIL CAPACITIES (in litres)

Engine (with fi lter replacement) 3.75 -
Gearbox - Final drive - -

TECHNICAL DATA

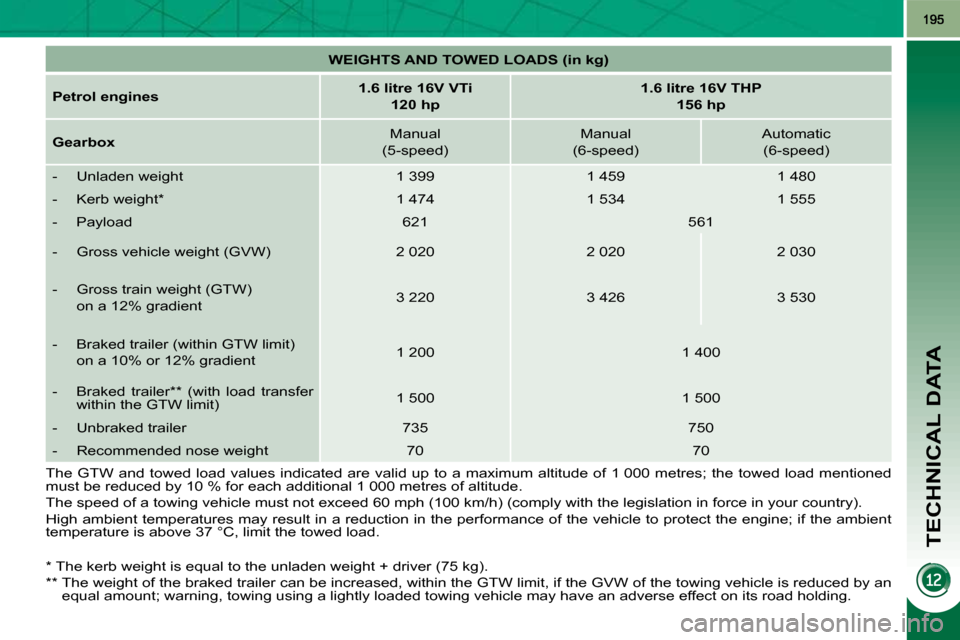

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.6 litre 16V VTi
120
hp
1.6 litre 16V THP
156
hp

Gearbox Manual
(5-speed) Manual
(6-speed) Automatic
(6-speed)
- Unladen weight 1 399 1 459 1 480
- Kerb weight * 1 474 1 534 1 555
- Payload 621 561
- Gross vehicle weight (GVW) 2 020 2 020 2 030
- Gross train weight (GTW)
on a 12% gradient 3 220 3 426 3 530
- Braked trailer (within GTW limit)
on a 10% or 12% gradient 1 200 1 400
- Braked trailer ** (with load transfer within the GTW limit) 1 500 1 500
- Unbraked trailer 735 750
- Recommended nose weight 70 70
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
* The kerb weight is equal to the unladen weight + driver (75 kg).
** The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

TECHNICAL DATA
197

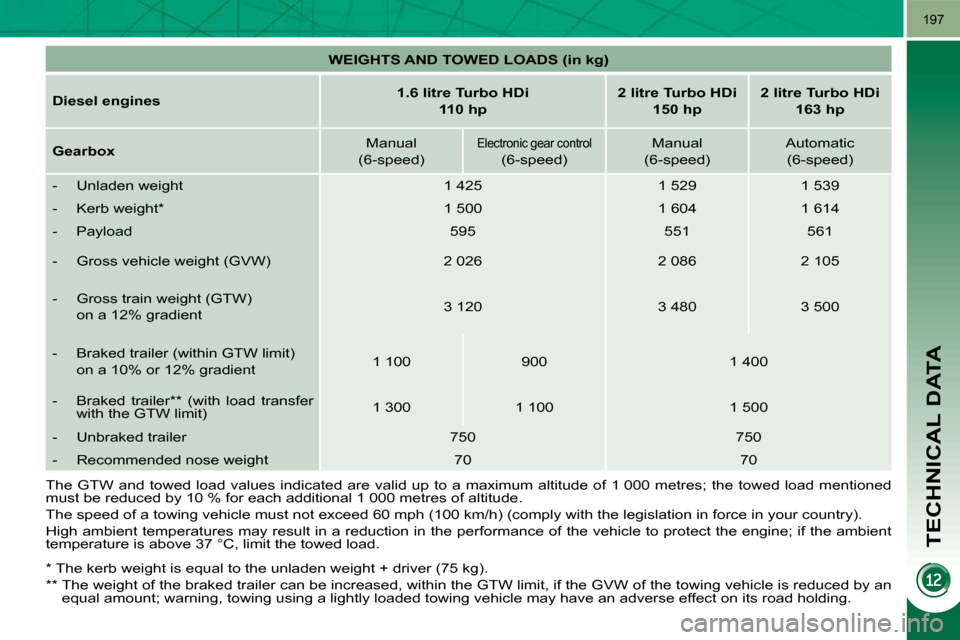

WEIGHTS AND TOWED LOADS (in kg)

Diesel engines
1.6 litre Turbo HDi
110
hp
2 litre Turbo HDi
150
hp
2 litre Turbo HDi
163
hp

Gearbox Manual
(6-speed)
Electronic gear control
(6-speed) Manual
(6-speed) Automatic
(6-speed)
- Unladen weight 1 425 1 529 1 539
- Kerb weight * 1 500 1 604 1 614
- Payload 595 551 561
- Gross vehicle weight (GVW) 2 026 2 086 2 105
- Gross train weight (GTW)
on a 12% gradient 3 120 3 480 3 500
- Braked trailer (within GTW limit)
on a 10% or 12% gradient 1 100 900 1 400
- Braked trailer ** (with load transfer with the GTW limit) 1 300 1 100 1 500
- Unbraked trailer 750 750
- Recommended nose weight 70 70
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
* The kerb weight is equal to the unladen weight + driver (75 kg).
** The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

TECHNICAL DATA
198

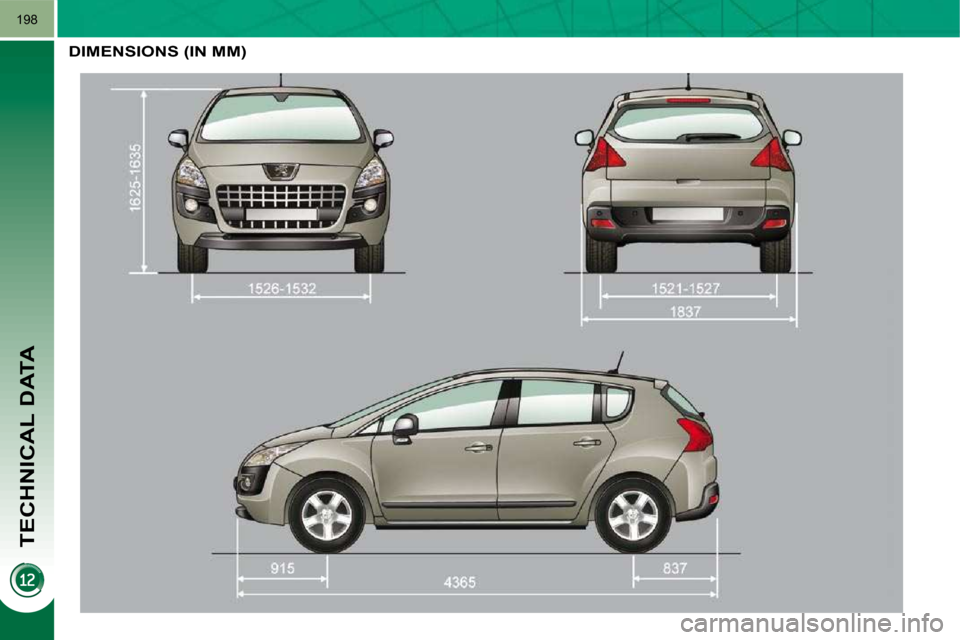

DIMENSIONS (IN MM)
