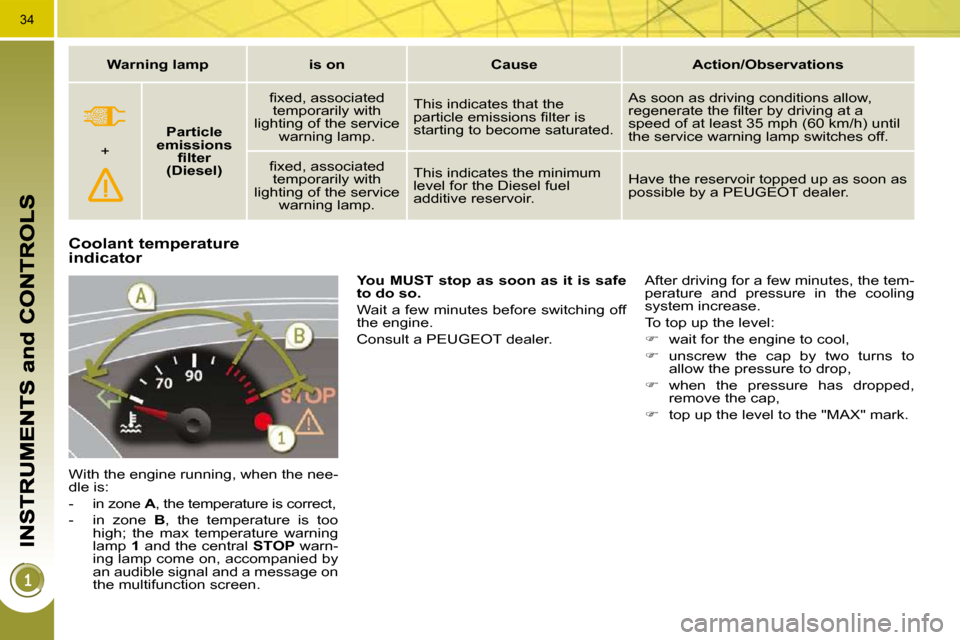

Coolant temperature indicator
With the engine running, when the nee-
dle is:
- in zone A , the temperature is correct,
- in zone B , the temperature is too
high; the max temperature warning
lamp 1 and the central STOP warn-
ing lamp come on, accompanied by
an audible signal and a message on
the multifunction screen. After driving for a few minutes, the tem-
perature and pressure in the cooling
system increase.
To top up the level:

 wait for the engine to cool,

 unscrew the cap by two turns to
allow the pressure to drop,

 when the pressure has dropped,
remove the cap,

 top up the level to the "MAX" mark.

You MUST stop as soon as it is safe
to do so.
Wait a few minutes before switching off
the engine.
Consult a PEUGEOT dealer.

Warning lamp is on Cause Action/Observations
+
Particle
emissions fi lter
(Diesel) fi xed, associated
temporarily with
lighting of the service warning lamp. This indicates that the
particle emissions fi lter is
starting to become saturated. As soon as driving conditions allow,
regenerate the fi lter by driving at a
speed of at least 35 mph (60 km/h) until
the service warning lamp switches off.
fi xed, associated temporarily with
lighting of the service warning lamp. This indicates the minimum
level for the Diesel fuel
additive reservoir.
Have the reservoir topped up as soon as
possible by a PEUGEOT dealer.

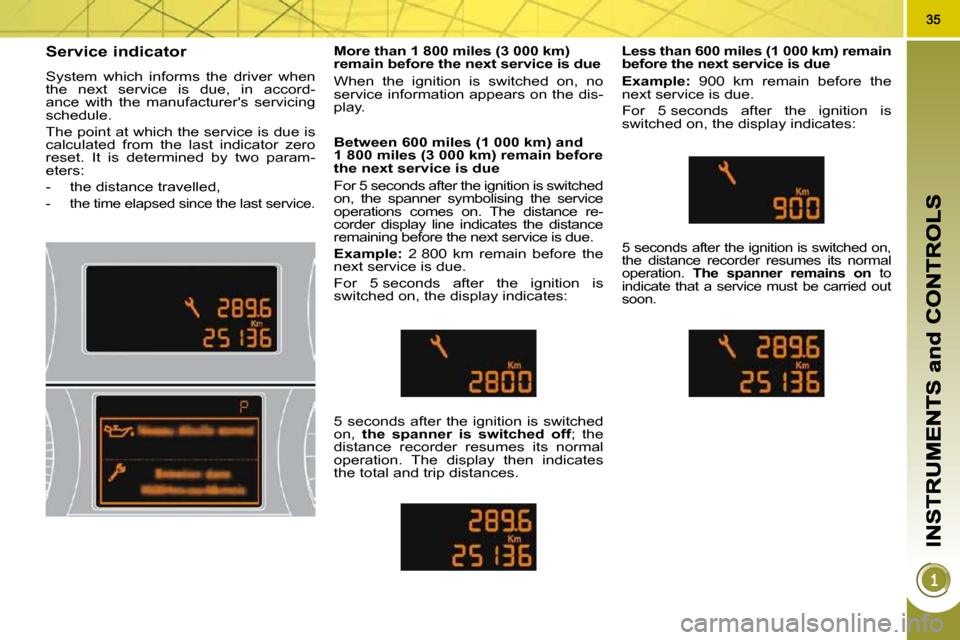

Service indicator
System which informs the driver when
the next service is due, in accord-
ance with the manufacturer's servicing
schedule.
The point at which the service is due is
calculated from the last indicator zero
reset. It is determined by two param-
eters:
- the distance travelled,
- the time elapsed since the last service.
Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain before
the next service is due
For 5 seconds after the ignition is switched
on, the spanner symbolising the service
operations comes on. The distance re-
corder display line indicates the distance
remaining before the next service is due.

Example: 2 800 km remain before the
next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the spanner is switched off ; the
distance recorder resumes its normal
operation. The display then indicates
the total and trip distances. Less than 600 miles (1 000 km) remain
before the next service is due

Example: 900 km remain before the
next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on to
indicate that a service must be carried out
soon.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no
service information appears on the dis-
play.

36
Following this operation, if you
wish to disconnect the battery,
lock the vehicle and wait at
least fi ve minutes for the zero reset
to be taken into account.
Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:

 switch off the ignition,

 press and hold the trip distance re-
corder zero reset button,

 switch on the ignition; the distance
recorder display begins a count-
down,

 when the display indicates "=0" ,
release the button; the spanner
disappears.
The distance remaining may
be weighted by the time fac-
tor, depending on the driver's
driving habits.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.
Service overdue
For 5 seconds after the ignition is
switched on,
the spanner fl ashes to
indicate that the service must be carried
out as soon as possible.

Example: the service is overdue by
300 miles (km).
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation.
The spanner remains lit .
Retrieving the service information
You can access the service information
at any time.

 Press the trip distance recorder zero
reset button.
The service information is displayed for a few seconds, then disappears.

37
The level read will only be cor-
rect if the vehicle is on level
ground and the engine has been
off for more than 15 minutes.

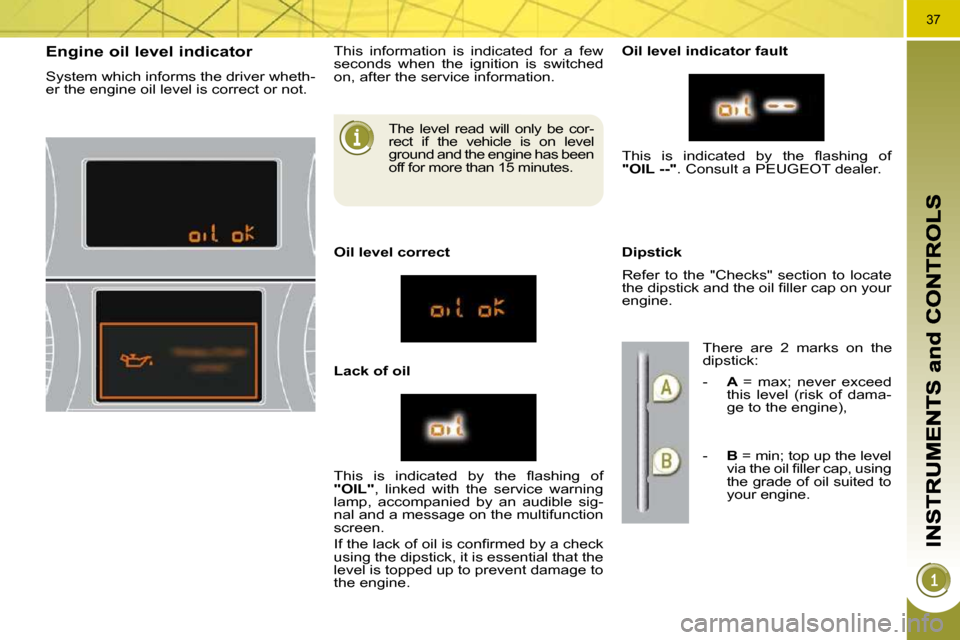

Engine oil level indicator
System which informs the driver wheth-
er the engine oil level is correct or not. This information is indicated for a few
seconds when the ignition is switched
on, after the service information.
Oil level correct
Lack of oil Oil level indicator fault
Dipstick
This is indicated by the fl ashing of

"OIL" , linked with the service warning
lamp, accompanied by an audible sig-
nal and a message on the multifunction
screen.
If the lack of oil is confi rmed by a check
using the dipstick, it is essential that the
level is topped up to prevent damage to
the engine. This is indicated by the fl ashing of

"OIL

--" . Consult a PEUGEOT dealer.
Refer to the "Checks" section to locate
the dipstick and the oil fi ller cap on your
engine. There are 2 marks on the
dipstick:
- A = max; never exceed
this level (risk of dama-
ge to the engine),
- B = min; top up the level
via the oil fi ller cap, using
the grade of oil suited to
your engine.

38

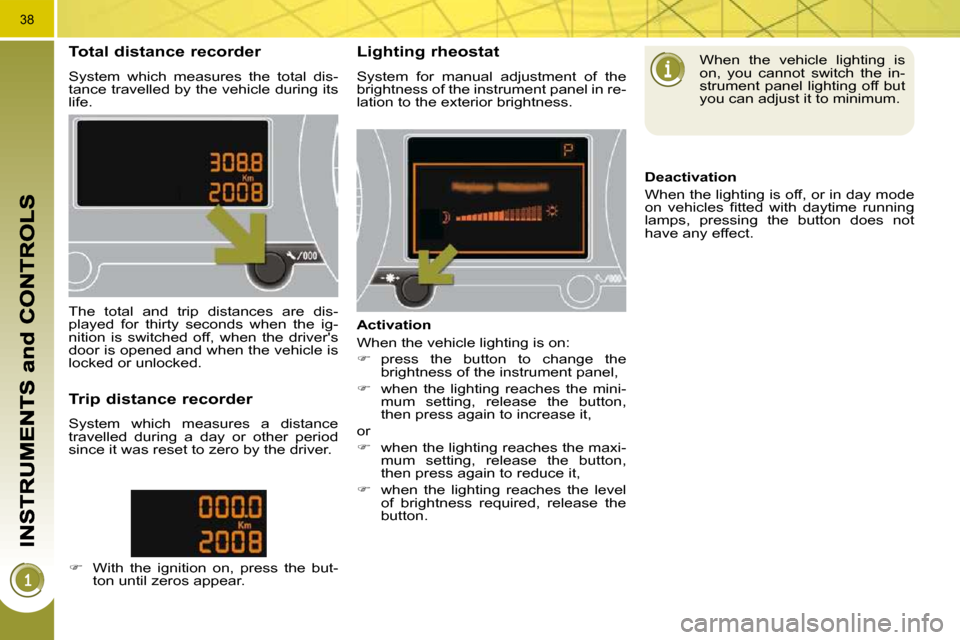

Total distance recorder
System which measures the total dis-
tance travelled by the vehicle during its
life.
Lighting rheostat
System for manual adjustment of the
brightness of the instrument panel in re-
lation to the exterior brightness.
The total and trip distances are dis-
played for thirty seconds when the ig-
nition is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked.
Trip distance recorder
System which measures a distance
travelled during a day or other period
since it was reset to zero by the driver.

 With the ignition on, press the but-
ton until zeros appear. Activation
When the vehicle lighting is on:

 press the button to change the
brightness of the instrument panel,

 when the lighting reaches the mini-
mum setting, release the button,
then press again to increase it,
or

 when the lighting reaches the maxi-
mum setting, release the button,
then press again to reduce it,

 when the lighting reaches the level
of brightness required, release the
button. When the vehicle lighting is
on, you cannot switch the in-
strument panel lighting off but
you can adjust it to minimum.
Deactivation
When the lighting is off, or in day mode
on vehicles fi tted with daytime running
lamps, pressing the button does not
have any effect.

39

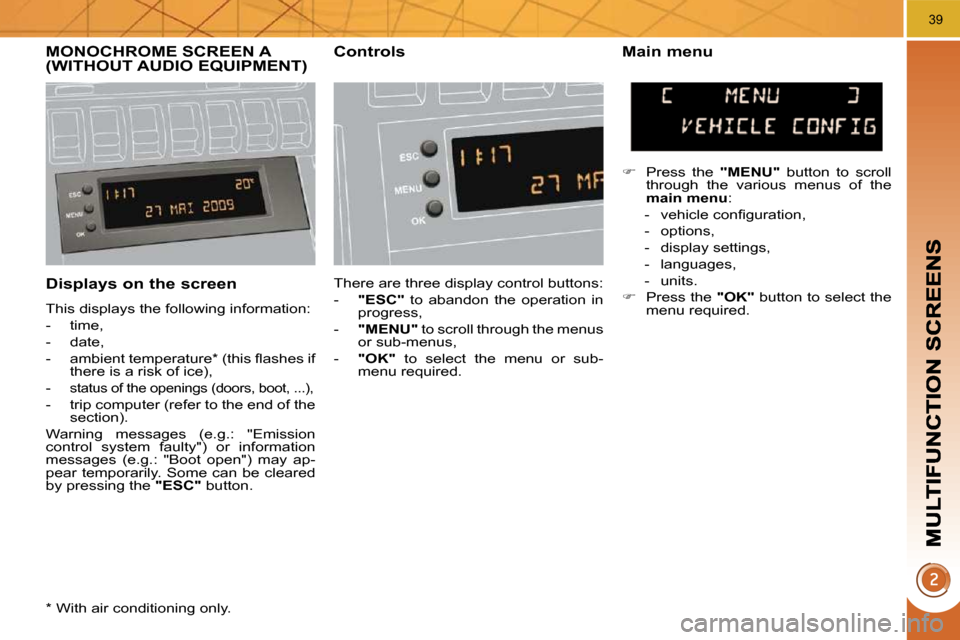

Displays on the screen
This displays the following information:
- time,
- date,
- ambient temperature * (this fl ashes if there is a risk of ice),
-
status of the openings (doors, boot, ...),
- trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. Some can be cleared
by pressing the "ESC" button.
MONOCHROME SCREEN A (WITHOUT AUDIO EQUIPMENT) Controls Main menu
There are three display control buttons:
- "ESC" to abandon the operation in
progress,
- "MENU" to scroll through the menus
or sub-menus,
- "OK" to select the menu or sub-
menu required.
 Press the "MENU" button to scroll
through the various menus of the

main
menu :
- vehicle confi guration,
- options,
- display settings,
- languages,
- units.

 Press the "OK" button to select the
menu required.
* With air conditioning only.

40
Vehicle confi guration Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty).
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-Brasil,
Türkçe, Deutsch, English, Espanol).
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode. Units
Once the "Units" menu has been select-
ed, you can change the units for:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).

 Once you have selected a setting,
press the "OK" button to change its
value.

 Wait for approximately ten sec-
onds without any action to allow
the changed data to be recorded or
press the "ESC" button to cancel.
The screen then returns to the normal
display.

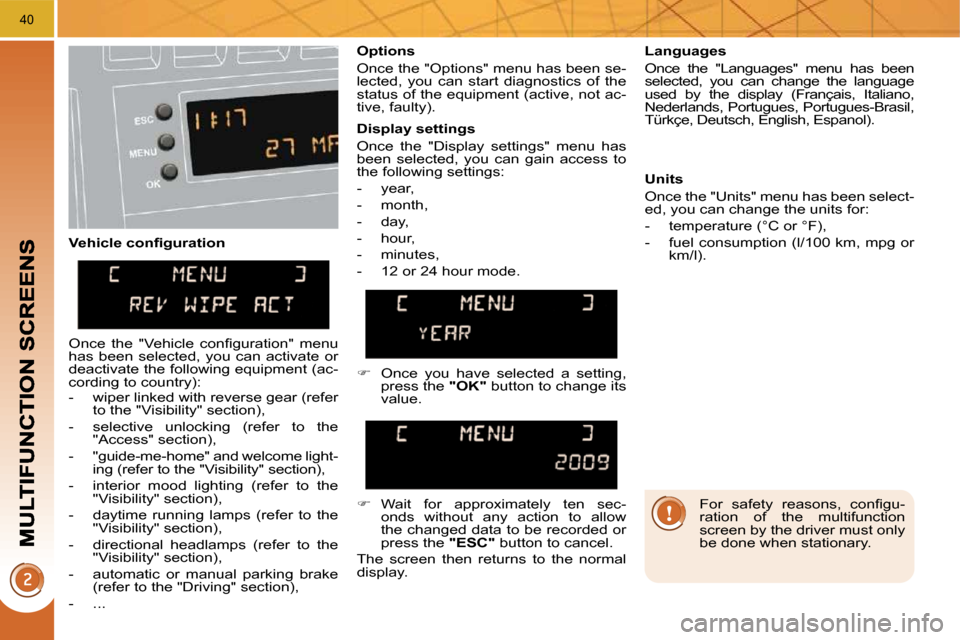

Once the "Vehicle confi guration" menu
has been selected, you can activate or
deactivate the following equipment (ac-
cording to country):
- wiper linked with reverse gear (refer to the "Visibility" section),
- selective unlocking (refer to the "Access" section),
- "guide-me-home" and welcome light- ing (refer to the "Visibility" section),
- interior mood lighting (refer to the "Visibility" section),
- daytime running lamps (refer to the "Visibility" section),
- directional headlamps (refer to the "Visibility" section),
- automatic or manual parking brake (refer to the "Driving" section),
- ... For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.

41

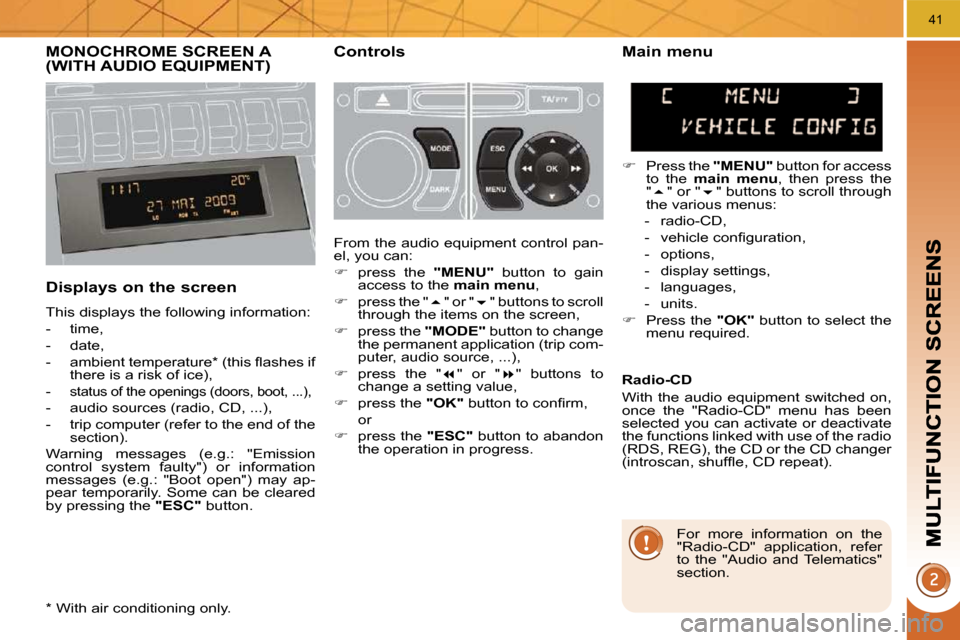

MONOCHROME SCREEN A (WITH AUDIO EQUIPMENT) Controls
Displays on the screen
This displays the following information:
- time,
- date,
- ambient temperature * (this fl ashes if there is a risk of ice),
-
status of the openings (doors, boot, ...),
- audio sources (radio, CD, ...),
- trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. Some can be cleared
by pressing the "ESC" button.
Main menu

 Press the "MENU" button for access
to the main
menu , then press the
"  " or "  " buttons to scroll through
the various menus:
- radio-CD,
- vehicle confi guration,
- options,
- display settings,
- languages,
- units.

 Press the "OK" button to select the
menu required.
From the audio equipment control pan-
el, you can:

 press the "MENU" button to gain
access to the main
menu ,

 press the "  " or "  " buttons to scroll
through the items on the screen,

 press the "MODE" button to change
the permanent application (trip com-
puter, audio source, ...),

 press the "  " or "  " buttons to
change a setting value,

 press the "OK" button to confi rm,
or

 press the "ESC" button to abandon
the operation in progress. Radio-CD
With the audio equipment switched on,
once the "Radio-CD" menu has been
selected you can activate or deactivate
the functions linked with use of the radio
(RDS, REG), the CD or the CD changer
(introscan, shuffl e, CD repeat).
* With air conditioning only. For more information on the
"Radio-CD" application, refer
to the "Audio and Telematics"
section.
