2010 Peugeot 3008 Dag Owner's Manual

FITTINGS
97
INTERIOR FITTINGS

1. Spectacles storage

2. Sun visor

3. Grab handle with coat hook

4. Storage compartment

5. Storage compartment under the
steering wheel

6. Storage compartment

7. Console handle

8. Storage compartment with net

9. Illuminated glove
box

10. Door trays

11. Front 12 V accessories socket
(120 W)

12. Cup
holder,
portable
ashtray

13. Front armrest with storage
compartment

14. Storage compartment

15. Rear 12 V accessories socket
(120 W)

FITTINGS
DRIVER'S STORAGE COMPARTMENTS
Storage box
This has storage areas dedicated to the
handbook pack, ...

 To open, pull the handle then tilt the
box.
ILLUMINATED GLOVE BOX
This has storage areas, audio sockets
for a portable player and a location
for the SIM card (only with Peugeot
Connect Media), ...

 To open the glove box, raise the
handle.
The lamp comes on when the lid is
opened.
SUN VISOR
Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.

 With the ignition on, raise the con-
cealing fl ap; the mirror is lit automat-
ically.
This sun visor is also equipped with a
ticket holder. Card holder
This can be used for a toll payment tick-
et or parking card, for example.
Coin storage
Storage To connect a portable player or
a SIM card, refer to the "Audio
and telematics" section.

FITTINGS
99
12 V ACCESSORIES SOCKETS

 To connect a 12 V accessory (max
power: 120 Watts), remove the cov-
er and connect a suitable adaptor.
Exceeding the maximum power could
result in damage to your accessory.
FRONT ARMREST
Comfort and storage device for the driver
and front passenger.

 Raise the cover on the left.
Storage
A ventilation outlet distributes cooled air.
PORTABLE ASHTRAY

 Pull the cover to open the ashtray.

 To empty it, remove the ashtray by
pulling it upwards.
PEUGEOT CONNECT USB
This connection box, consisting of an
auxiliary socket and/or USB port, is
located in the front armrest (under the
cover).
It permits the connection of portable
equipment, such as a digital audio player
of the iPod ®
type or a USB memory stick.
It reads the audio fi le formats (MP3,
OGG, WMA, WAV, ...) which are trans-
mitted to your audio equipment and
played via the vehicle's speakers.
You can manage these fi les using the
steering mounted controls or the audio
equipment control panel and display
them on the multifunction screen.
When the USB port is used, the porta-
ble equipment charges automatically.
For more information on the
use of this equipment, refer
to the "Audio and Telematics"
section.

FITTINGS
100
To avoid any risk of jamming
of the pedals:

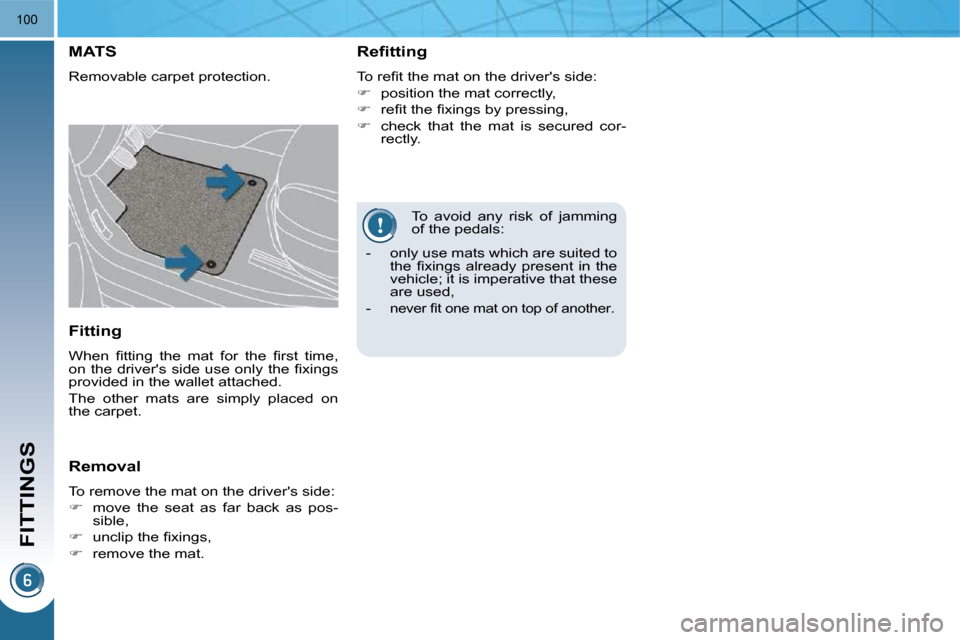

MATS
Removable carpet protection. Refitting
To refi t the mat on the driver's side:

 position the mat correctly,

 refi t the fi xings by pressing,

 check that the mat is secured cor-
rectly.
Fitting
When fi tting the mat for the fi rst time,
on the driver's side use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:

 move the seat as far back as pos-
sible,

 unclip the fi xings,

 remove the mat. - only use mats which are suited to
the fi xings already present in the
vehicle; it is imperative that these
are used,
-
never fi t one mat on top of another.

FITTINGS
101
REAR MULTIMEDIA
Multimedia system permitting the con-
nection of any external portable sys-
tem: Ipod Video, games consoles, DVD
player, … Two separate video sources
can be connected via the RCA
connectors (yellow).
The video is displayed on two
7’’ screens, integrated in the
head restraints. Two separate
audio sources
can be connected via the RCA
connectors (red and white).
The audio is heard through two
wireless headphones with Blue-
tooth technology which operate
with rechargeable batteries.
The A/B button allows you to
pair the headphones with the screen:

A left-hand side, B right-hand side.
You have a 12 V charger with two out-
puts permitting simultaneous charging
of both headphones.
It is also possible to connect a 3 rd
set of
Bluetooth headphones.
Set-up

 With the engine running, connect
your portable system to the RCA con-
nectors (e.g. with AV1 on the left).

 Press the system's ON/OFF button,
the indicator lamp comes on and the
AV1 indicator lamps come on.

 Press and hold the ON/OFF button on
the headphones, the indicator lamp
on the headphones fl ashes in blue.

 Press and hold the system's ON/OFF
button, the pairing with the head-
phones is complete when the blue
indicator lamps on the headphones
and on the system (in the shape of
headphones) are lit continuously.

 Press the ON/OFF buttons on the
screens if you have a video source.

 Start playing your portable system. If your seat is in the table posi-
tion, position a cover to avoid
damaging the screen.
These covers also conceal each
screen.

FITTINGS
102

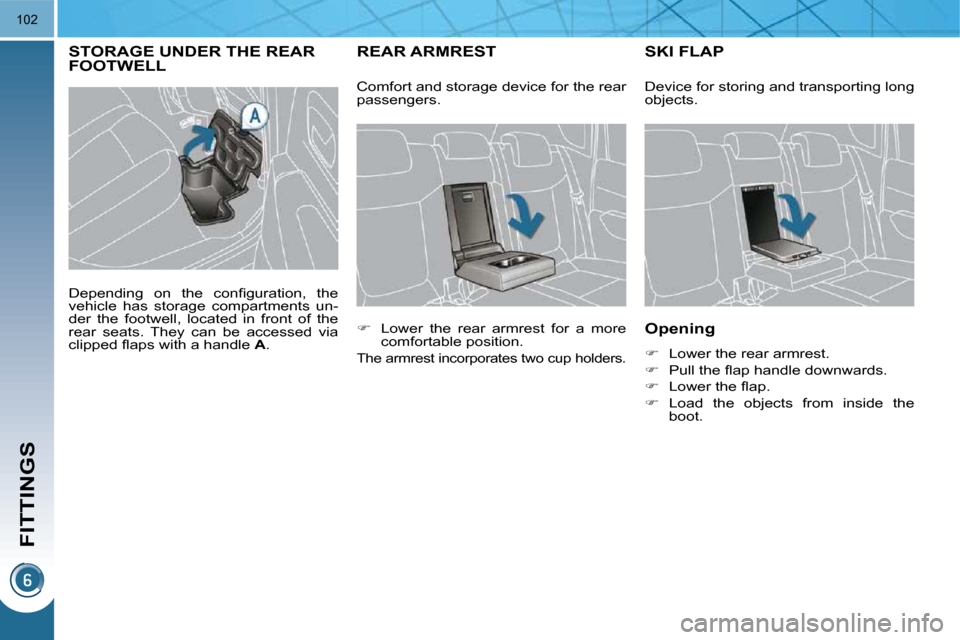

REAR ARMREST SKI FLAP
Opening

 Lower the rear armrest.

 Pull the fl ap handle downwards.

 Lower the fl ap.

 Load the objects from inside the
boot.

 Lower the rear armrest for a more
comfortable position.
The armrest incorporates two cup holders.
Comfort and storage device for the rear
passengers. Device for storing and transporting long
objects.
STORAGE UNDER THE REAR FOOTWELL
Depending on the confi guration, the
vehicle has storage compartments un-
der the footwell, located in front of the
rear seats. They can be accessed via
clipped fl aps with a handle
A .
