TECHNICAL DATA
205
* The kerb weight is equal to the unladen weight + driver (75 kg).
** The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

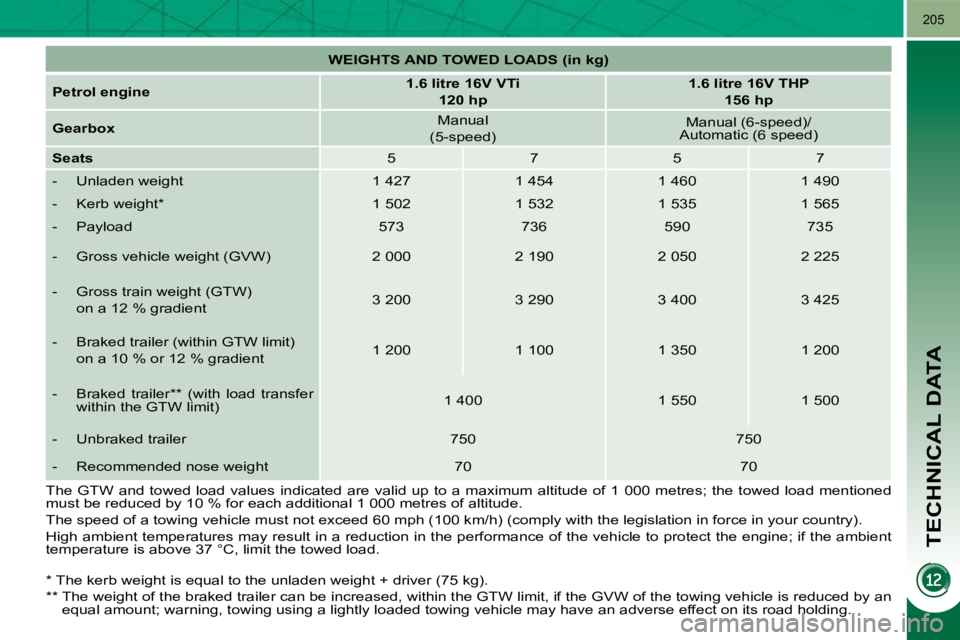

WEIGHTS AND TOWED LOADS (in kg)

Petrol
engine
1.6 litre 16V VTi
120 hp
1.6 litre 16V THP
156 hp

Gearbox Manual
(5-speed)
Manual (6-speed)/
Automatic (6 speed)

Seats 5 7 5 7
- Unladen weight 1 427 1 454 1 460 1 490
- Kerb weight * 1 502 1 532 1 535 1 5 65
- Payload 573 736 590 735
- Gross vehicle weight (GVW) 2 000 2 190 2 050 2 225
- Gross train weight (GTW)
on a 12 % gradient 3 200 3 290 3 400 3 425
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 200 1 100 1 350 1 200
- Braked trailer ** (with load transfer within the GTW limit) 1 400 1 550 1 500
- Unbraked trailer 750 750
- Recommended nose weight 70 70
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

TECHNICAL DATA
207

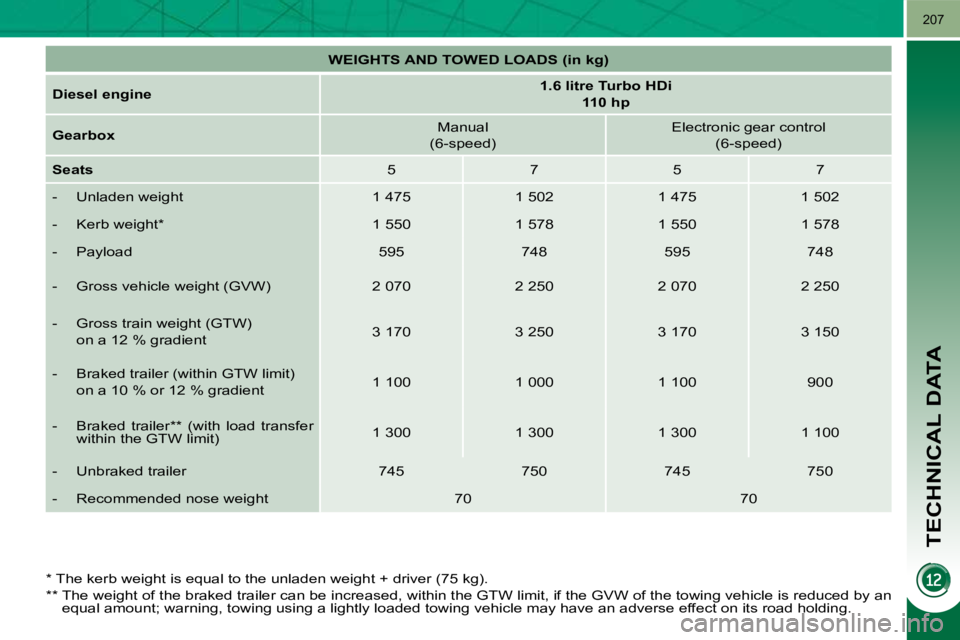

WEIGHTS AND TOWED LOADS (in kg)

Diesel
engine
1.6 litre Turbo HDi
110 hp

Gearbox Manual
(6-speed) Electronic gear control
(6-speed)

Seats 5 7 5 7
- Unladen weight 1 475 1 502 1 475 1 502
- Kerb weight * 1 550 1 578 1 550 1 5 78
- Payload 595 748 595 748
- Gross vehicle weight (GVW) 2 070 2 250 2 070 2 250
- Gross train weight (GTW)
on a 12 % gradient 3 170 3 250 3 170 3 150
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 100 1 000 1 100 900
- Braked trailer ** (with load transfer within the GTW limit) 1 300 1 300 1 300 1 100
- Unbraked trailer 745 750 745 750
- Recommended nose weight 70 70
* The kerb weight is equal to the unladen weight + driver (75 kg).
** The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.

TECHNICAL DATA
208
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
WEIGHTS AND TOWED LOADS (in kg)

Diesel
engine
1.6 litre Turbo HDi
110 hp

Gearbox Manual
(6-speed) Score Electronic gear control
(6-speed) Score

Seats 5 7 5 7
- Unladen weight 1 475 1 502 1 475 1 502
- Kerb weight * 1 550 1 578 1 550 1 5 78
- Payload 595 748 595 748
- Gross vehicle weight (GVW) 2 070 2 250 2 070 2 250
- Gross vehicle weight (MTRA)
on a 12 % gradient 2 950 2 950 2 920 2 950
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 880 700 850 700
- Braked trailer ** (with load transfer within the GTW limit) 1 080 900 1 050 900
- Unbraked trailer 745 750 745 700
- Recommended nose weight 70 70

TECHNICAL DATA
209

WEIGHTS AND TOWED LOADS (in kg)

Diesel
engine
2 litre Turbo HDi
150 hp
2 litre Turbo HDi
163 hp

Gearbox Manual
(6-speed) Automatic
(6-speed)

Seats 5 7 5 7
- Unladen weight 1 563 1 593 1 589 1 619
- Kerb weight * 1 638 1 668 1 664 1 6 94
- Payload 562 717 536 711
- Gross vehicle weight (GVW) 2 125 2 310 2 125 2 330
- Gross train weight (GTW)
on a 12 % gradient 3 475 3 510 3 525 3 530
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 350 1 200 1 400 1 200
- Braked trailer ** (with load transfer within the GTW limit) 1 550 1 500 1 600 1 500
- Unbraked trailer 750 750
- Recommended nose weight 70 70

TECHNICAL DATA
210

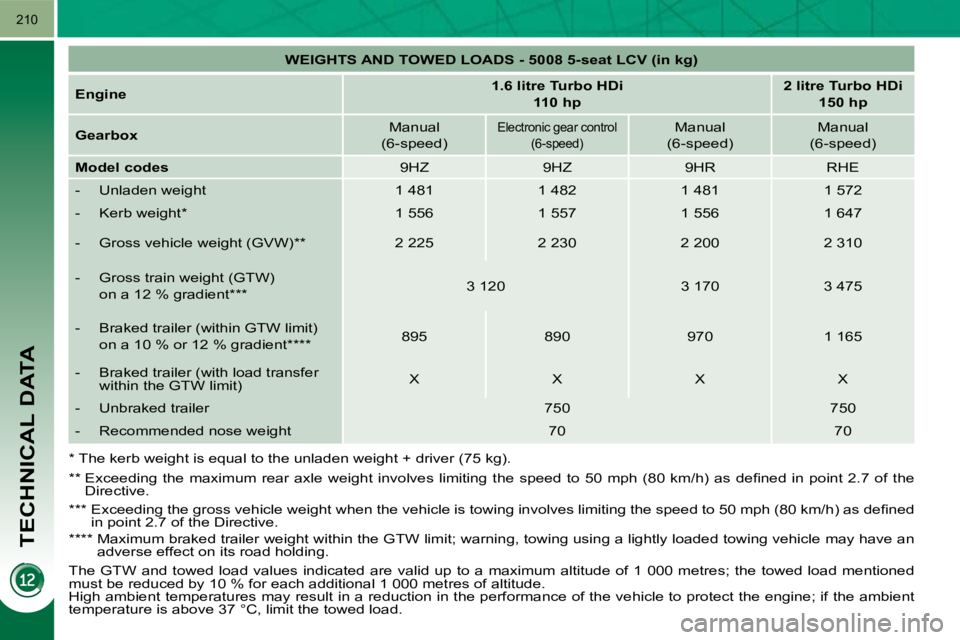

WEIGHTS AND TOWED LOADS - 5008 5-seat LCV (in kg)

Engine
1.6 litre Turbo HDi
110 hp
2 litre Turbo HDi
150 hp

Gearbox Manual
(6-speed)
Electronic gear control (6-speed) Manual
(6-speed) Manual
(6-speed)

Model codes 9HZ 9HZ 9HR RHE
- Unladen weight 1 481 1 482 1 481 1 572
- Kerb weight * 1 556 1 557 1 556 1 6 47
- Gross vehicle weight (GVW) ** 2 225 2 230 2 200 2 310
- Gross train weight (GTW)
on a 12 % gradient *** 3 120 3 170 3 475
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient **** 895 890 970 1 165
- Braked trailer (with load transfer within the GTW limit) X X X X
- Unbraked trailer 750 750
- Recommended nose weight 70 70
* The kerb weight is equal to the unladen weight + driver (75 kg).
** Exceeding the maximum rear axle weight involves limiting the speed to 50 mph (80 km/h) as defi ned in point 2.7 of the
Directive.
*** Exceeding the gross vehicle weight when the vehicle is towing involves limiting the speed to 50 mph (80 km/h) as de fi ned
in point 2.7 of the Directive.
**** Maximum braked trailer weight within the GTW limit ; warning, towing using a lightly loaded towing vehicle may have an
adverse effect on its road holding.
The GTW and towed load values indicated are valid up t o a maximum altitude of 1 000 metres; the towed load mentio ned
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

TECHNICAL DATA
211
DIMENSIONS (IN MM)

TECHNICAL DATA
212

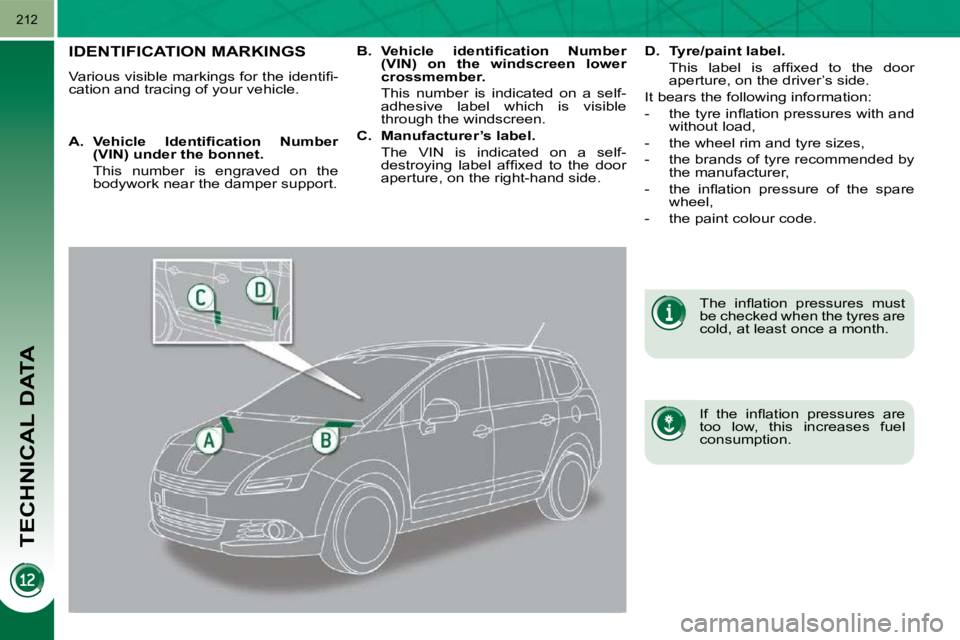

IDENTIFICATION MARKINGS
Various visible markings for the identifi -
cation and tracing of your vehicle. If the infl ation pressures are
too low, this increases fuel
consumption.
The infl ation pressures must
be checked when the tyres are
cold, at least once a month.

A. Vehicle Identifi cation Number
(VIN) under the bonnet.
This number is engraved on the bodywork near the damper support.
B. Vehicle identifi cation Number
(VIN) on the windscreen lower
crossmember.
This number is indicated on a self- adhesive label which is visible
through the windscreen.

C. Manufacturer’s label.
The VIN is indicated on a self- destroying label affi xed to the door
aperture, on the right-hand side.
D. Tyre/paint label.
This label is affi xed to the door aperture, on the driver’s side.
It bears the following information:
- the tyre infl ation pressures with and without load,
- the wheel rim and tyre sizes,
- the brands of tyre recommended by the manufacturer,
- the infl ation pressure of the spare wheel,
- the paint colour code.

214
EMERGENCY OR ASSISTANCE CALL
EMERGENCY CALL
In an emergency, press this button for more than 2 seconds. Flashing of the green indicator lamp and a voice message confi rm that the call has been made to the PEUGEOT Emergency team * .
Pressing this button again immediately cancels the request. The green indicator lamp goes off.
ASSISTANCE CALL
If you purchased your vehicle outside the PEUGEOT dealer netwo rk, we invite you to have a dealer check the confi guration of these services and, if desired, modifi ed to suit your wishes. In a multi-lingual country, confi guration is possible in the offi cial national language of your choice.
When the ignition is switched on, the green indicator lamp comes on for 3 seconds indicating that the system is operating correctly.
Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.
Press this button for more than 2 seconds to request assistance if the vehicle breaks down.
A voice message confi rms that the call has been made * .
OPERATION OF THE SYSTEM The green indicator lamp remains on (without fl ashing) when communication is established. It goes off at the end of commun ication.
This call is dealt with by the PEUGEOT Emergency team which recei ves locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries in which the team is no t operational, or when the locating service has been expressly declined, the call is dealt with directly by the emergency services (112) without the vehicle location.
If an impact is detected by the airbag ECU, and independently of the deployment of any airbags, an emergency call is made automatically.
* This service is subject to conditions and availability.
Consult a PEUGEOT dealer.
If the orange indicator lamp fl ashes: there is a system malfunction.
If the orange indicator lamp is on continuously: the backup battery must be replaced.
In both cases, consult a PEUGEOT dealer.
