Heated seats control
With the engine running, the front seats
can be heated separately.

 Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:

0: Off.

1
: Low.

2
: Medium.

3
: High.
Head restraint height and angle
adjustment
 To raise the head restraint, pull it for-
wards and upwards at the same time.

 To remove the head restraint, press the lug A and pull the head restraint upwards.
 To put the head restraint back in place,
engage the head restraint stems in the
openings keeping them in line with the
seat back.

 To lower the head restraint, press the lug A and the head restraint at the
same time.

 To adjust the angle of the head restraint,
tilt its lower part forwards or rearwards.
The head restraint is fi tted with
a frame with notches which
prevents it from lowering; this
is a safety device in case of impact.

The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
Manual lumbar adjustment

 Turn the knob to obtain the desired
level of lumbar support. Additional adjustments

65
Table position, front passenger seat
This position, associated with that of the
rear seats, allows you to transport long
objects inside the vehicle.
The maximum weight on the seat is
30 kg.
Folding the seat backrest

 Raise the armrest and fold up the
"aircraft" style table, fi xed on the
back of the seat.

 Check that no object, either on or
underneath the seat, could hinder
its movement.

 To make the operation easier, place
the head restraint in the low position
(if the seat is in the fully forward po-
sition).

 If your vehicle is fi tted with the video
pack, place the protective cover on
the head restraint.

 Lift the control, located behind the
seat, then guide the seat back for-
wards. Returning the seat to the normal
position

 Guide the seat backrest rearwards
until it locks in place.
When the seat backrest is in this po-
sition, only the 2 nd row passenger
seat located behind the driver can be
used.

66
REAR HEAD RESTRAINTS
The rear head restraints can be re-
moved and have two positions:
- high, position for use,
- low, storage position.
To raise a head restraint, pull it up-
wards.
To lower it, press the lug then the head
restraint.
To remove it, place it in the high posi-
tion, push the lug and pull it upwards.
To refi t it, engage the head restraint
rods in the holes taking care to remain
in line with the seat back.
2 ND ROW SEATS
Forwards-backwards adjustment
Lift the control A , located at the front of
the seat, then adjust the seat to the po-
sition desired.
"Comfort" position
The three 2 nd row seats are independent
of each other and all the same width.
They all have a "comfort" position. Placing a seat in the "comfort"
position

 Pull on the control B and guide the
seat rearwards.
The backrest reclines and the seat base
moves forward slightly.
Returning the seat to the initial
position

 Pull on the control B and allow the
seat to come forwards.
Always supervise any move-
ments of seats by children.
Never drive with the head re-
straints removed, they must
be in place and correctly ad-
justed.

66
REAR HEAD RESTRAINTS
The rear head restraints can be re-
moved and have two positions:
- high, position for use,
- low, storage position.
To raise a head restraint, pull it up-
wards.
To lower it, press the lug then the head
restraint.
To remove it, place it in the high posi-
tion, push the lug and pull it upwards.
To refi t it, engage the head restraint
rods in the holes taking care to remain
in line with the seat back.
2 ND ROW SEATS
Forwards-backwards adjustment
Lift the control A , located at the front of
the seat, then adjust the seat to the po-
sition desired.
"Comfort" position
The three 2 nd row seats are independent
of each other and all the same width.
They all have a "comfort" position. Placing a seat in the "comfort"
position

 Pull on the control B and guide the
seat rearwards.
The backrest reclines and the seat base
moves forward slightly.
Returning the seat to the initial
position

 Pull on the control B and allow the
seat to come forwards.
Always supervise any move-
ments of seats by children.
Never drive with the head re-
straints removed, they must
be in place and correctly ad-
justed.

67

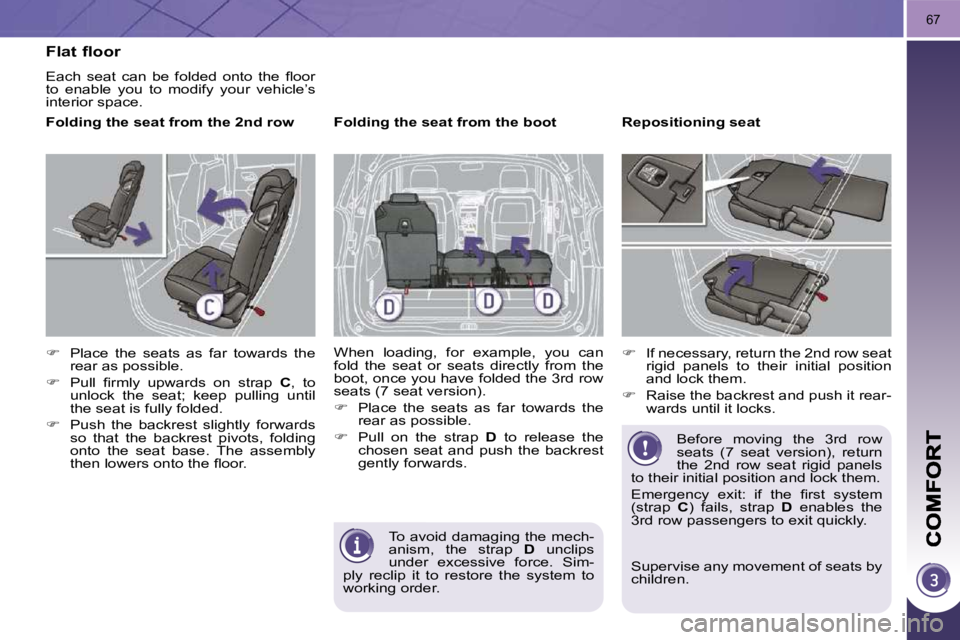

Flat floor
Each seat can be folded onto the fl oor
to enable you to modify your vehicle’s
interior space.
Folding the seat from the 2 nd row

 Place the seats as far towards the
rear as possible.

 Pull fi rmly upwards on strap C , to
unlock the seat; keep pulling until
the seat is fully folded.

 Push the backrest slightly forwards
so that the backrest pivots, folding
onto the seat base. The assembly
then lowers onto the fl oor. Folding the seat from the boot
When loading, for example, you can
fold the seat or seats directly from the
boot, once you have folded the 3 rd row
seats (7 seat version).

 Place the seats as far towards the
rear as possible.

 Pull on the strap D to release the
chosen seat and push the backrest
gently forwards. Repositioning seat

 If necessary, return the 2 nd row seat
rigid panels to their initial position
and lock them.

 Raise the backrest and push it rear-
wards until it locks.
Before moving the 3 rd row
seats (7 seat version), return
the 2 nd row seat rigid panels
to their initial position and lock them.
Emergency exit: if the fi rst system
(strap C ) fails, strap D enables the
3 rd row passengers to exit quickly.
To avoid damaging the mech-
anism, the strap D unclips
under excessive force. Sim-
ply reclip it to restore the system to
working order. Supervise any movement of seats by
children.

68
Rigid panel
Each 2 nd row seat backrest has a rigid
panel attached.
This panel enables you:
- to have a continuous load surface in the boot, whatever the positions of
the seats,
- to avoid having objects sliding under the 2 nd row seats. 30 kg maximum
on each panel.
Releasing/Locking the rigid panel

 Before deploying the rigid panels,
check that the 2 nd row seats are po-
sitioned as far towards the rear as
possible.

 Slide the latch E on the panel up-
wards, to release it.

 Return the panel to its initial position,
then slide the latch E downwards, to
lock it in place.
Entering/Exiting the 3 rd row (7 seat version) Repositioning the seat, from the outside, with the door open
If there are passengers seated in the
3 rd row (7 seat version):

 Manually return the assembly as
far as possible rearwards; the seat
does not return as far as the maxi-
mum rearwards position so as to
retain leg space for the 3 rd row pas-
sengers.

 Fold the seat base.

 Raise the aircraft style table on the
2 nd row seat if it is down.

 Hold the control F in the raised posi-
tion, the seat unlocks and the seat
base comes up against the backrest.

 Push the seat backrest forwards,
holding the control F forwards.

69
3 RD ROW SEATS (7 SEAT VERSION)
Concertina boards
Two rigid concertina boards, which can-
not be separated from the vehicle, cover
the two 3 rd row seats, when these are in
the folded position.
Folding the concertina boards

 Pull on the control, the 3 sections of
the board will fold like a concertina.
When the 3 rd
row seats are upright,
these concertina boards can be left
either:
- fl at behind the seats,
- in the vertical position,
thereby leaving a storage area available.
The two rigid boards can each support
a maximum of 100 kg.
Installing a seat

 Remove the load space screen.

 If necessary, return the 2 nd row rig-
id panels to their initial position and
lock them.

 Correctly position the concertina
board vertically behind the seat.

 Pull on the control G , located behind
the seat backrest. The backrest tilts
rearwards pulling the seat base with it.
The seat locks in the open position.
Storing a seat

 Lower the head restraints.

 Correctly position the concertina
board vertically behind the seat.

 Pull on the control H , located at the
bottom of the seat backrest. The
seat is released.

 Next push the backrest gently for-
wards. The backrest pivots folding
onto the seat base. The seat base
then folds into the stowage area
provided for that purpose.

 Reposition the concertina boards
over the folded seats.

70
SEAT MODULARITY AND THE VARIOUS SEAT CONFIGURATIONS
Designed to be modular, your vehicle
offers numerous seat installation and
loading confi gurations.
Operations to change the existing
confi guration must only be carried out
when stationary (see paragraphs "Rear
seats".
Examples of configurations
7 seats Transporting long objects
5 seats Transport (4 seats)
Loading a large volume
Before moving the 3 rd row
seats, return the rigid panels
of the 2 nd row seats to the up-
right position and lock them in place.
Do not try to fold a 3 rd row seat that
has not fi rst had the backrest fully
locked in place.
Do not leave objects either on or
underneath the seat bases of the
3 rd row seats when you are folding
them.
Do not leave your hand on the con-
trol H as you fold the seats, as you
risk trapping your fi ngers.
