2010.5 PEUGEOT 5008 Owners Manual

FITTINGS
109
High load retaining net To use it in row 1:

 fold the rear seats,

 open the covers of the upper fi xings 1 ,

 unroll the high load retaining net,

 position one of the ends of the net's
metal bar in the corresponding upper
fi xing 1 , then do the same with the
other end,

 slacken the straps fully,

 fi x the snap hook of each of the
straps on the corresponding Top
Tether ring 3 (located on the back of
the folded rear side seats),

 tighten the straps,

 check that the net is hooked and
tightened correctly. To use it in row 2:

 roll up or remove the load space
screen,

 open the covers of the upper fi xings 2 ,

 unroll the high load retaining net,

 position one of the ends of the net's
metal bar in the corresponding up-
per fi xing 2 , then do the same with
the other end,

 fi x the snap hook of each of the
straps in the corresponding stowing
ring 4 ,

 tighten the straps,

 check that the net is hooked and
tightened correctly.
When positioning the net, check
that the strap loops are visible
from the boot; this will make
slackening or tightening easier.
Hooked onto the special upper and low-
er fi xings, this permits use of the entire
loading volume up to the roof:
- behind the front seats (row 1) when
the rear seats are folded.
- behind the rear seats (row 2).

FITTINGS
110
Luggage retaining net
Hooked onto the stowing rings on the
fl oor and/or on the load space cover
roller, this enables you to secure your
luggage. There are 4 possible positions:
- fl at at the bottom of the boot,
- horizontal, level with the load space
cover, - vertical at the back of the rear
seats,
- fl at at the bottom of the boot and ver- tical at the back of the rear seats.

FITTINGS
112
Torch
This is a removable lamp, fi tted in the
boot wall, which can be used to illumi-
nate the boot or as a torch.
Operation
This torch operates with NiMH type
rechargeable batteries.
It has a battery life of approximately
45 minutes and charges while you are
driving. Use

 Extract the torch from its location
pulling the side of the torch A .

 Press the switch, located on the
back, to switch the torch on or off.

 Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.
Storing

 Put the torch back in place in its loca-
tion starting with the narrow part B .
If you have forgotten to switch off the torch, this switches it off auto-
matically. Rear side blinds
Fitted on the rear windows, these protect
your young children from the sun.

 Pull the blind by the central tab.

 Position the blind attachment on the
hook.
Observe the polarities when
fi tting the batteries.
Never replace the rechargeable batter-
ies with normal single-use batteries. It the torch is not engaged cor-
rectly, it may not charge and
may not come on when the
boot is opened.
For the boot lighting function,
refer to the "Visibility - § Boot
lamp" section.
3 rd row (7 seat version)
2 nd row

CHILD SAFETY
113

PEUGEOT recommends that
children should travel in the

rear seats of your vehicle:
- "rearwards-facing" up to the
age of 2,
-

"forwards-facing" over the age of 2.
GENERAL POINTS RELATING TO CHILD SEATS
Although one of PEUGEOT's main criteria
when designing your vehicle, the safety of
your children also depends on you.
For maximum safety, please observe
the following recommendations:
- in accordance with European reg-
ulations, all children under the
age of 12 or less than one and a
half metres tall must travel in ap-
proved child seats suited to their
weight , on seats fi tted with a seat
belt or ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,
-

a child weighing less than 9 kg must
travel in the "rearwards-facing" posi-
tion both in the front and in the rear.
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat ,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the
front passenger seat ,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate .
* The rules for carrying children are specifi c to each country. Refer to the
current legislation in your country. Intermediate longitudinal position
CHILD SEAT IN THE FRONT

CHILD SAFETY
114

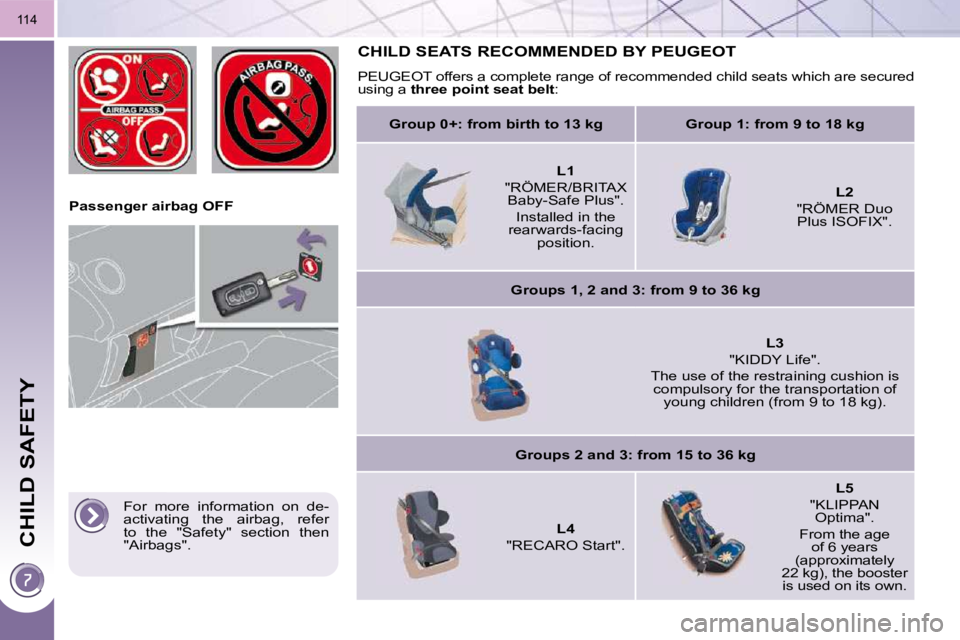

Passenger airbag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are secured
using a three point seat belt :

Group 0+: from birth to 13 kg Group 1: from 9 to 18 kg

L1
"RÖMER/BRITAX Baby-Safe Plus".
Installed in the
rearwards-facing position.

L2
"RÖMER Duo Plus ISOFIX".

Groups 1, 2 and 3: from 9 to 36 kg

L3
"KIDDY Life".
The use of the restraining cushion is compulsory for the transportation of young children (from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

L4
"RECARO Start''.
L5
"KLIPPAN Optima".
From the age of 6 years
(approximately
22 kg), the booster is used on its own.
For more information on de-
activating the airbag, refer
to the "Safety" section then
"Airbags".

CHILD SAFETY
115
Do not place the stay on the
storage compartment cover;
it might break in a serious im-
pact. Where the adjustments
of the stay allow it, we suggest two
other possibilities for installation.
The centre rear seat does not have
a storage compartment below the
footwell. You can therefore easily
fi t a child seat with a stay, whether
Isofi x or universal (installed using the
3 point seat belt).
INSTALLING A CHILD SEAT WITH A STAY
Care must be taken when installing a child seat with stay (a drop down leg) in the vehicle. In particular you should look for the
presence of a storage compartment below the rear seat footwells.
At the bottom of the storage
compartment
If the stay is long enough, you can ad-
just it so that it contact the bottom of
the storage compartment. Remove all
objects from the storage compartment
before installing the stay. Away from the storage
compartment area
Another possibility, if the stay is long
enough and can be inclined suffi ciently
(always by following the recommenda-
tions given the installation instructions
for the child seat), is to position the stay
so that it contacts the fl oor away from
the storage compartment. Adjust the
longitudinal position of the front or rear
seat to obtain a satisfactory position for
the stay away from the storage com-
partment.
If you cannot fi t the stay in way
described, we recommend
that you do not fi t a child seat
with stay to this seat.
