FITTINGS
112
Torch
This is a removable lamp, fi tted in the
boot wall, which can be used to illumi-
nate the boot or as a torch.
Operation
This torch operates with NiMH type
rechargeable batteries.
It has a battery life of approximately
45 minutes and charges while you are
driving. Use

 Extract the torch from its location
pulling the side of the torch A .

 Press the switch, located on the
back, to switch the torch on or off.

 Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.
Storing

 Put the torch back in place in its loca-
tion starting with the narrow part B .
If you have forgotten to switch off the torch, this switches it off auto-
matically. Rear side blinds
Fitted on the rear windows, these protect
your young children from the sun.

 Pull the blind by the central tab.

 Position the blind attachment on the
hook.
Observe the polarities when
fi tting the batteries.
Never replace the rechargeable batter-
ies with normal single-use batteries. It the torch is not engaged cor-
rectly, it may not charge and
may not come on when the
boot is opened.
For the boot lighting function,
refer to the "Visibility - § Boot
lamp" section.
3 rd row (7 seat version)
2 nd row

FITTINGS
107

1. Load space cover

2. Hooks

3. 12 V accessories socket (120 W)

4. Torch

5. Concertina boards

6. Stowing rings on the fl oor

7. Cup holder

8. Armrests

9. Storage compartments or
audio amplifi er

10. 3 rd row seat belt buckles
BOOT FITTINGS (7 SEAT VERSION)

FITTINGS
108

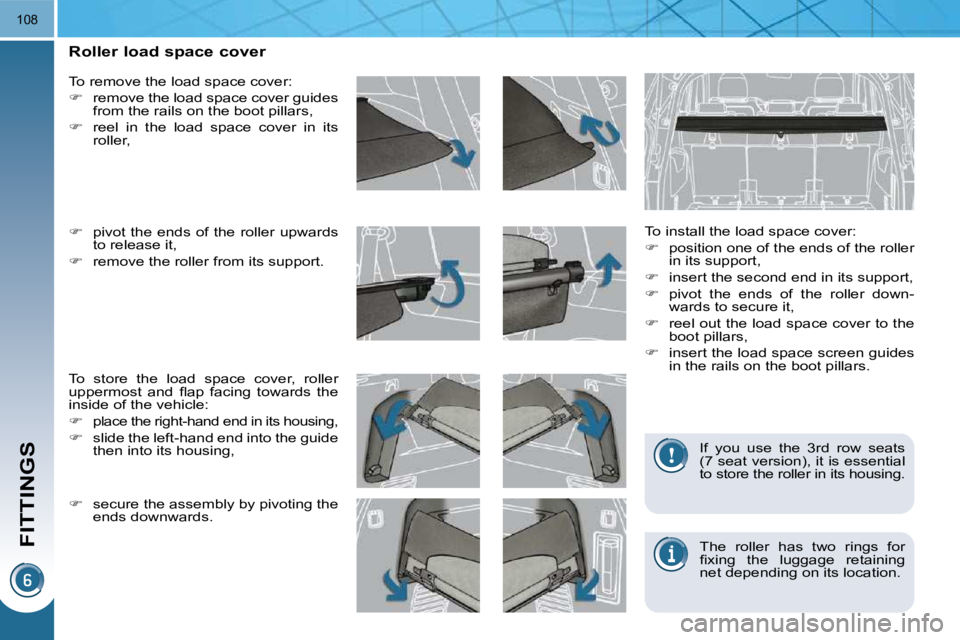

Roller load space cover To install the load space cover:

 position one of the ends of the roller
in its support,

 insert the second end in its support,

 pivot the ends of the roller down-
wards to secure it,

 reel out the load space cover to the
boot pillars,

 insert the load space screen guides
in the rails on the boot pillars.
To remove the load space cover:

 remove the load space cover guides
from the rails on the boot pillars,

 reel in the load space cover in its
roller,
To store the load space cover, roller
uppermost and fl ap facing towards the
inside of the vehicle:


place the right-hand end in its housing,

 slide the left-hand end into the guide
then into its housing,

 pivot the ends of the roller upwards
to release it,

 remove the roller from its support.
The roller has two rings for
fi xing the luggage retaining
net depending on its location.
If you use the 3 rd row seats
(7 seat version), it is essential
to store the roller in its housing.

 secure the assembly by pivoting the
ends downwards.

FITTINGS
109
High load retaining net To use it in row 1:

 fold the rear seats,

 open the covers of the upper fi xings 1 ,

 unroll the high load retaining net,

 position one of the ends of the net's
metal bar in the corresponding upper
fi xing 1 , then do the same with the
other end,

 slacken the straps fully,

 fi x the snap hook of each of the
straps on the corresponding Top
Tether ring 3 (located on the back of
the folded rear side seats),

 tighten the straps,

 check that the net is hooked and
tightened correctly. To use it in row 2:

 roll up or remove the load space
screen,

 open the covers of the upper fi xings 2 ,

 unroll the high load retaining net,

 position one of the ends of the net's
metal bar in the corresponding up-
per fi xing 2 , then do the same with
the other end,

 fi x the snap hook of each of the
straps in the corresponding stowing
ring 4 ,

 tighten the straps,

 check that the net is hooked and
tightened correctly.
When positioning the net, check
that the strap loops are visible
from the boot; this will make
slackening or tightening easier.
Hooked onto the special upper and low-
er fi xings, this permits use of the entire
loading volume up to the roof:
- behind the front seats (row 1) when
the rear seats are folded.
- behind the rear seats (row 2).

FITTINGS
110

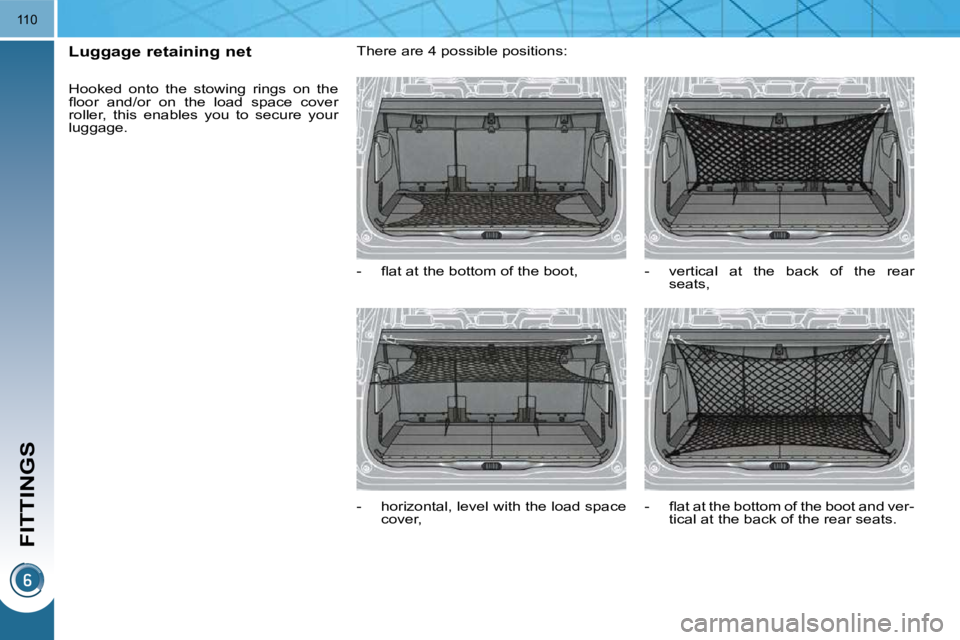

Luggage retaining net
Hooked onto the stowing rings on the
fl oor and/or on the load space cover
roller, this enables you to secure your
luggage. There are 4 possible positions:
- fl at at the bottom of the boot,
- horizontal, level with the load space
cover, - vertical at the back of the rear
seats,
- fl at at the bottom of the boot and ver- tical at the back of the rear seats.

FITTINGS
111
The hooks permit the securing of shop-
ping bags.
Hooks

 To connect a 12 V accessory (max
power: 120 W), remove the cap and
connect an appropriate adaptor.

 Turn the key to the ignition position.
12 V accessory socket

 Raise the concertina board to gain
access to the storage box.
Depending on the confi guration, this
has areas for storing:
- a box of spare bulbs,
- a fi rst aid kit,
- a tyre repair kit,
- two warning triangles,
- ... Storage box (5 seat version)

FITTINGS
112
Torch
This is a removable lamp, fi tted in the
boot wall, which can be used to illumi-
nate the boot or as a torch.
Operation
This torch operates with NiMH type
rechargeable batteries.
It has a battery life of approximately
45 minutes and charges while you are
driving. Use

 Extract the torch from its location
pulling the side of the torch A .

 Press the switch, located on the
back, to switch the torch on or off.

 Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.
Storing

 Put the torch back in place in its loca-
tion starting with the narrow part B .
If you have forgotten to switch off the torch, this switches it off auto-
matically. Rear side blinds
Fitted on the rear windows, these protect
your young children from the sun.

 Pull the blind by the central tab.

 Position the blind attachment on the
hook.
Observe the polarities when
fi tting the batteries.
Never replace the rechargeable batter-
ies with normal single-use batteries. It the torch is not engaged cor-
rectly, it may not charge and
may not come on when the
boot is opened.
For the boot lighting function,
refer to the "Visibility - § Boot
lamp" section.
3 rd row (7 seat version)
2 nd row

FITTINGS
108
Roller load space cover To install the load space cover:

 position one of the ends of the roller
in its support,

 insert the second end in its support,

 pivot the ends of the roller down-
wards to secure it,

 reel out the load space cover to the
boot pillars,

 insert the load space screen guides
in the rails on the boot pillars.
To remove the load space cover:

 remove the load space cover guides
from the rails on the boot pillars,

 reel in the load space cover in its
roller,
To store the load space cover, roller
uppermost and fl ap facing towards the
inside of the vehicle:


place the right-hand end in its housing,

 slide the left-hand end into the guide
then into its housing,

 pivot the ends of the roller upwards
to release it,

 remove the roller from its support.
The roller has two rings for
fi xing the luggage retaining
net depending on its location.
If you use the 3 rd row seats
(7 seat version), it is essential
to store the roller in its housing.

 secure the assembly by pivoting the
ends downwards.
