2010.5 PEUGEOT 5008 Owners Manual

12
SITTING COMFORTABLY
Front seats
Head restraint height and angle
Lumbar 64
Steering wheel adjustment

1. Releasing the adjustment mechanism.

2. Adjustment of height and reach.

3.
Locking the adjustment mechanism.
As a safety precaution, these operations
must only be carried out when stationary.
72
Centre console
This has a large storage area (with re-
cesses for 2 bottles, ...) for the front
passengers and, according to version,
a multimedia system for the rear pas-
sengers.
101,
104

13
SITTING COMFORTABLY
Door mirrors
Adjustment

A.
Selection of the mirror to be adjusted.

B. Adjustment of the position of the
mirror in the four directions.
71
Rear view mirror
Manual model

1. Selection of the "day" position of the
mirror.

2. Adjustment of the mirror.
72
Automatic day/night model

1. Adjustment of the mirror.
72
Front seat belts

1. Fastening the buckle.
128

2. Height adjustment.

Also...

C. Folding/
Unfolding.

14
SEEING CLEARLY
Lighting
Ring A Lighting off.
Ring B Sidelamps.
Dipped/main beam headlamps.
Rear foglamp.
or Front and rear foglamps.
Automatic illumination of
headlamps.
89
Direction indicators
Raise or lower the lighting stalk passing
the point of resistance; the corresponding
direction indicators will fl ash for as long as
the stalk remains in this position.
"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
This function can be used at any speed,
but it is particularly useful when chang-
ing lane on high-speed roads. 124
Wipers
Stalk A: windscreen wipers
Switching on "AUTO"

 Press the stalk down and release it.
Switching off "AUTO"

 Push the stalk up and return it to
position "0" .
93
Ring B: rear wiper Park.
Intermittent wipe.
Wash-wipe. 94
88

Digital air conditioning: we recommend use of the fully automatic mode by pressing the "AUTO" button.
VENTILATION

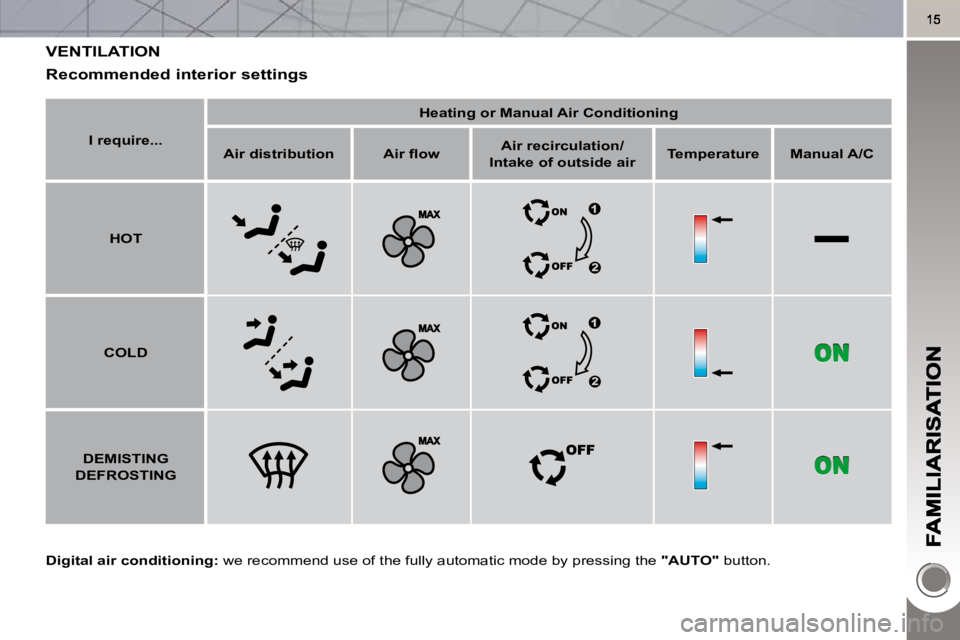

Recommended interior settings

I require...
Heating or Manual Air Conditioning

Air distribution Air fl ow
Air recirculation/

Intake of outside air
Temperature Manual A/C

HOT


COLD

DEMISTING

DEFROSTING

16
MONITORING
Instrument panel

A. With the ignition on, the needle
should indicate the level of fuel re-
maining.

B. With the engine running, its associ-
ated low level warning lamp should
go off.

C. With the ignition on, the oil level in-
dicator should display "OIL OK" for
a few seconds.
If the levels are not correct, top up the
levels which are low.
24
Warning lamps

1. With the ignition on, the orange and
red warning lamps come on.

2. With the engine running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.
26
Switch panels
Lighting of the indicator lamp indicates
the status of the corresponding function.

A. Parking space sensors. 162
78
160
126
123
144
124
146

B.
Interior protection alarm.

C. Visual and audible
parking sensors.

D. ESP OFF.

E. Child lock.

F. Head-up display.

G.
Hazard warning lamps.

H. Distance alert.

Lower

Central
74

I. Central locking.

17
PASSENGER SAFETY
Passenger's front airbag

1. Insert the key.

2. Select the position:
"OFF" (deactivation), with "rear fac-
ing" child seat,
"ON" (activation), with front passen-
ger or "forwards facing" child seat.

3. Remove the key keeping the switch
in the new position.
133
front airbag

A. Front and/or rear seat belts not fas-
tened/unfastened warning lamp.

B. Front left seat belt warning lamp.

C. Front right seat belt warning lamp.

D. Rear right seat belt warning lamp.

E. Rear centre seat belt warning lamp.

F. Rear left seat belt warning lamp.

G.
Passenger's front airbag deactivated
warning lamp.

H. Passenger's front airbag activated
warning lamp.
129
Child lock (locking of the rear doors)
Lighting of the indicator lamp indicates
the status of the corresponding function.
123

7 seat version (3rd row)

I.
Rear right seat belt warning
lamp.

J. Rear left seat belt warning
lamp.

18
ARRANGING YOUR SEATS
Rigid panel
Putting the seats back in place

 Raise the seat back and push it
rearwards until it locks.
From the boot

 Pull the strap B to release the seat
and push the seat back forwards
gently.
Folding the seats in the 2nd row

 Pull the strap A upwards fi rmly to re-
lease the seat and continue to pull
until the seat is fully folded.
Access to the 3rd row seats

 Close the aircraft style tables on the
2 nd row seats if they are open.

 Hold the control D up, the seat is
released and the seat base rises to
the seat back.

 Push the seat back forwards, hold-
ing the control D forwards.
68
67
68
7 SEAT VERSION

 After folding the seats, slide the
catch C .

19
ARRANGING YOUR SEATS (7 SEAT VERSION)
69,
108

 Pull the strap E and guide the seat
until the assembly locks.

 Fold the concertina boards forwards.
 Lower the head restraints and place
the concertina board in the vertical
position behind the seat.

 While pulling the strap F , push the
seat back forwards gently.

 Remove the load space screen from
its storage compartment and position
it behind the 2 nd row seats.

 Place the rigid panels of the 2 nd row
seats upright and lock them then fold
the concertina boards rearwards.

 Remove the load space cover and
store it in its housing.
Changing from 5 to 7 seats
69,
108
