PRACTICAL INFORMATION
After changing a wheel
To store the punctured wheel in the boot
correctly, fi rst remove the central cover.
When using the "space-saver" type
spare wheel, do not exceed 50 mph
(80 km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a PEUGEOT dealer without delay.
Have the punctured wheel repaired
and replace it on the vehicle as soon
as possible.

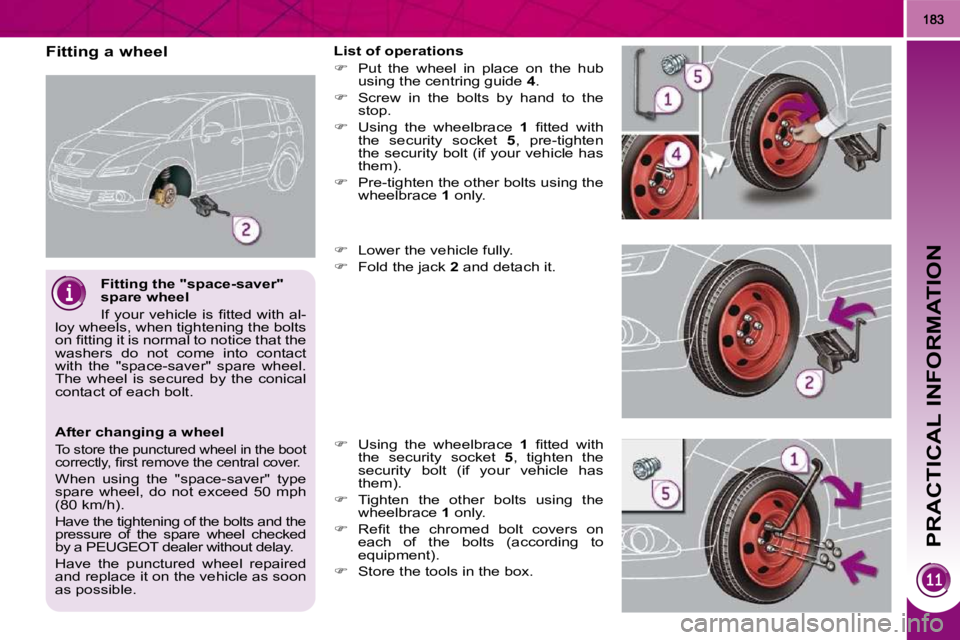

Fitting a wheel
List of operations

 Put the wheel in place on the hub
using the centring guide 4 .

 Screw in the bolts by hand to the
stop.

 Using the wheelbrace 1 fi tted with
the security socket 5 , pre-tighten
the security bolt (if your vehicle has
them).

 Pre-tighten the other bolts using the
wheelbrace 1 only.

 Lower the vehicle fully.

 Fold the jack 2 and detach it.

 Using the wheelbrace 1 fi tted with
the security socket 5 , tighten the
security bolt (if your vehicle has
them).

 Tighten the other bolts using the
wheelbrace 1 only.

 Refi t the chromed bolt covers on
each of the bolts (according to
equipment).

 Store the tools in the box.
Fitting the "space-saver"
spare wheel
If your vehicle is fi tted with al-
loy wheels, when tightening the bolts
on fi tting it is normal to notice that the
washers do not come into contact
with the "space-saver" spare wheel.
The wheel is secured by the conical
contact of each bolt.

PRACTICAL INFORMATION
184
Risk of electrocution
Xenon bulbs (D1S-35W) must
be replaced by a PEUGEOT
dealer.
CHANGING A BULB
Model with halogen headlamps

1. Direction indicators
(HP24 amber-24W).

2. Dipped beam headlamps
(H7-55W).

3. Main beam headlamps (H7-55W).

4. Daytime running lamps
(HP24-24W).

5. Foglamps (PS24-24W).

6. Sidelamps (W5-5W).
1. Direction indicators
(HP24 amber-24W).

2. Dipped/main beam directional
headlamps (D1S-35W).

3. Daytime running lamps/
sidelamps (P21/5W).

4. Foglamps (PS24-24W).
Model with xenon and dir
ectional
headlamps The headlamps are fi tted with
polycarbonate glass with a
protective coating:

 do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,

 use a sponge and soapy water,

 when using a high pressure
washer on persistent marks, do
not direct at the lamps or their
outlines for too long, so as not to
damage their protective coating
and seals.
Front lamps

 Do not touch the bulb directly with
your fi ngers, use lint-free cloths.
Changing a bulb should only be
done after the headlamp has been
switched off for a few minutes (risk of
serious burns).
It is imperative to use only anti-ultra-
violet (UV) type bulbs in order not to
damage the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specifi cation.

PRACTICAL INFORMATION
Changing main beam headlamp and
sidelamp bulbs Changing dipped beam headlamp bulbs
(models with halogen headlamps)

 Remove the protective plastic cover
by pulling on the tab.

 Disconnect the bulb connector.

 Extract the bulb by pulling and
change it.
To refi t, carry out these operations in re-
verse order.
 Remove the protective plastic cover
by pulling on the tab.

 Disconnect the bulb connector.

 Remove the bulb by pulling and
change it.
To refi t, carry out these operations in re-
verse order.
Changing direction indicator and
daytime running lamp bulbs (models
with halogen headlamps)
Consult a PEUGEOT dealer.

PRACTICAL INFORMATION
186
Changing sidelamp and daytime
running lamp bulbs (models with
xenon headlamps)

 Remove the protective plastic cover
by pulling on the tab.

 Disconnect the bulb connector.

 Remove the bulb by pulling and
change it.

To refi t, carry out these operations in
reverse order. Changing foglamp bulbs
You can also contact a
PEUGEOT dealer to have
these bulbs changed. Consult a PEUGEOT dealer.

 Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.

 Tilt the screwdriver to extract the re-
peater and remove it.

 Disconnect the repeater connector.
To refi t, carry out these operations in re-
verse order.
Contact a PEUGEOT dealer to obtain
replacement repeaters.

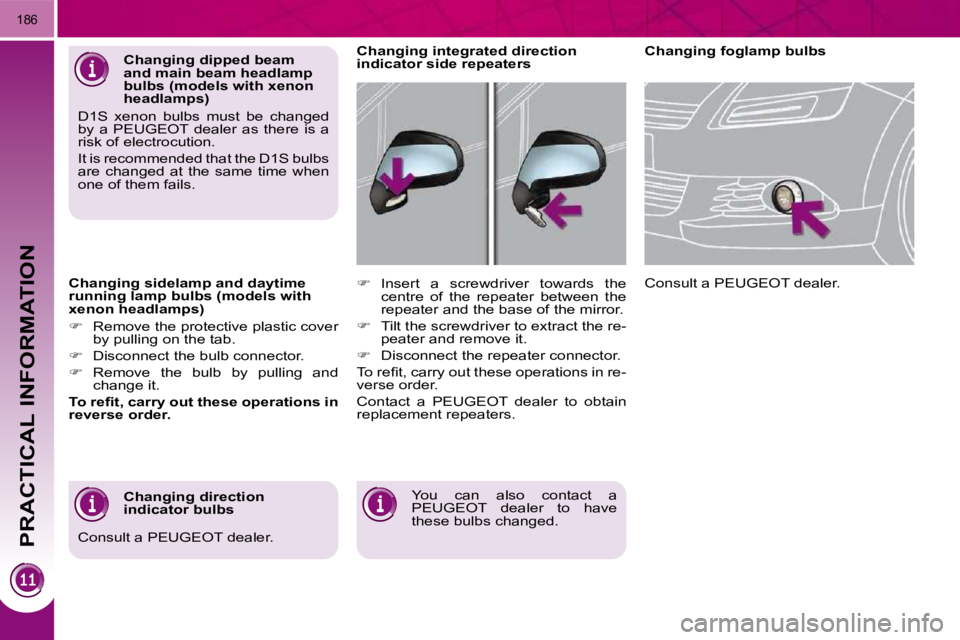

Changing integrated direction
indicator side repeaters
Changing direction
indicator bulbs
Changing dipped beam
and main beam headlamp
bulbs (models with xenon
headlamps)
D1S xenon bulbs must be changed
by a PEUGEOT dealer as there is a
risk of electrocution.
It is recommended that the D1S bulbs
are changed at the same time when
one of them fails.
Consult a PEUGEOT dealer.

PRACTICAL INFORMATION
187
Rear lamps

1. Direction indicators
(PY21W-21W).

2. Brake lamps
(P21W-21W).

3. Sidelamps
(
LEDs
).

4. Reversing lamp
(P21W).

5. Foglamp
(P21W). Changing brake lamp and direction
indicator bulbs

 Press the four tabs and remove the
bulb holder.

 Remove the two lamp unit fi xing
nuts.

 Pull the lamp rearwards (a positioning
lug retains the lamp).

 Disconnect the lamp connector.

 Turn the bulb a quarter of a turn and
change it.
To refi t, carry out these operations in re-
verse order.

PRACTICAL INFORMATION
188
Changing the third brake lamp bulb
Changing foglamp or reversing
lamp bulbs

 Reach under the bumper.

 Turn the bulb a quarter of a turn and
change it.
 Open the boot and remove the upper
seal.

 Unscrew the two nuts.

 Press the threaded pins while sup-
porting the lamp from the outside.

 Disconnect the connector and re-
move the screenwash pipe.

 Press the pairs of clips A then B
then C to detach and gain access to
the bulb holder.
Changing sidelamps (LEDs)
For the replacement of this type of LED
lamp, contact a PEUGEOT dealer.

 Insert a thin screwdriver into one of
the outer holes of the lens.

 Push it outwards to unclip.

 Remove the lens.

 Pull the bulb out and change it.
Changing the number plate lamp
bulbs (W5-5W)

PRACTICAL INFORMATION
189
PEUGEOT will not accept
responsibility for the cost in-
curred in repairing your vehicle
or for rectifying malfunctions resulting
from the installation of accessories
not supplied and not recommended
by PEUGEOT and not installed in
accordance with its instructions, in par-
ticular when the combined consump-
tion of all of the additional equipment
connected exceeds 10 milliamperes. Installing electrical
accessories
Your vehicle's electrical system
is designed to operate with standard
or optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer.
CHANGING A FUSE
Procedure for replacing a failed fuse
with a new fuse to rectify a failure of the
corresponding function.
Access to the tools
The fuse extraction tweezer is fi tted
to the back of the dashboard fusebox
cover.
To gain access to it:

 remove the cover completely,

 remove the tweezer. Changing a fuse
Before changing a fuse, the cause of the
failure must be identifi ed and rectifi ed.

 Identify the failed fuse by checking
the condition of its fi lament.

 Use the special tweezer to extract
the fuse from its housing.

 Always replace the failed fuse with a
fuse of the same rating.

 Check that the number marked on
the fusebox, the rating marked on
the fuse and the following tables all
agree.
Good Failed

PRACTICAL INFORMATION
190

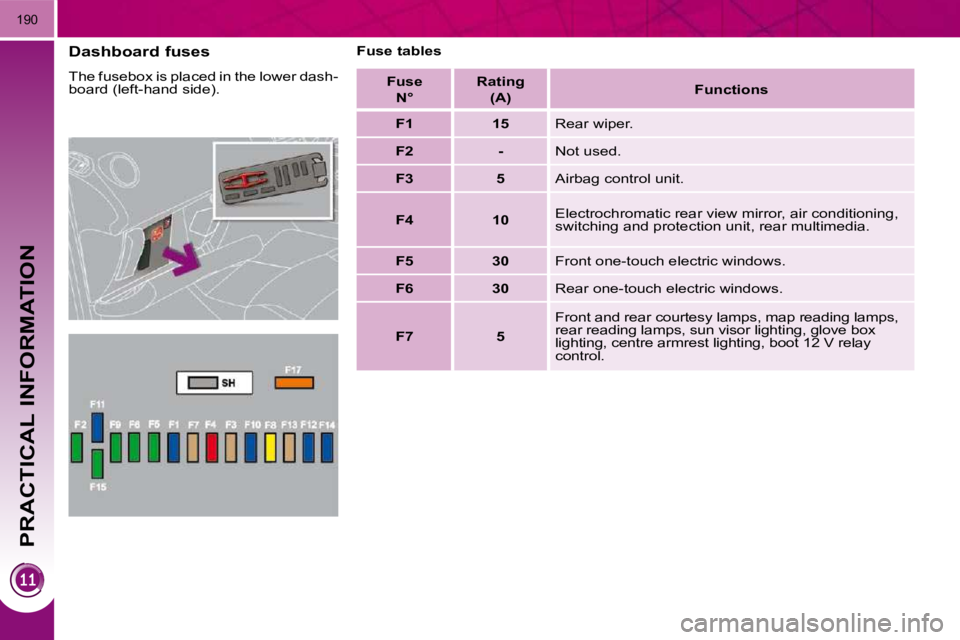

Dashboard fuses
The fusebox is placed in the lower dash-
board (left-hand side). Fuse tables
F us e N° Ratin g
(A)
Functions

F1 15 Rear wiper.

F2 - Not used.

F3 5 Airbag control unit.

F4 10 Electrochromatic rear view mirror, air conditioning,
switching and protection unit, rear multimedia.

F5 30 Front one-touch electric windows.

F6 30 Rear one-touch electric windows.

F7 5 Front and rear courtesy lamps, map reading lamps,
rear reading lamps, sun visor lighting, glove box
lighting, centre armrest lighting, boot 12 V relay
control.
