2010.5 PEUGEOT 5008 Owners Manual

27

Left-hand
direction
indicato
r fl ashing
with buzzer. The lighting stalk is pushed
down.

Right-hand
direction
indicator fl ashing
with buzzer. The lighting stalk is pushed up.
Operation indicator lamps
If one of the following indicator lamps comes on, this confi
rms that the corresponding system has come into operation.

Warning lamp is on Cause Action/Observations

Sidelamps fi xed. The lighting stalk is in
the "Sidelamps" position.

Dipped beam
headlamps fi xed. The lighting stalk is in the
"Dipped beam headlamps"
position.

Main beam
headlamps fi xed. The lighting stalk is pulled
towards you. Pull the stalk to return to dipped beam
headlamps.

Front
foglamps fi xed. The front foglamps are
switched on. Turn the ring on the stalk rearwards twice
to switch off the front foglamps.

Rear
foglamps fi xed. The rear foglamps are
switched on. Turn the ring on the stalk rearwards to switch off
the rear foglamps.

28

Warning lamp is on Cause Action/Observations

Diesel engine
pre-heating fi xed. The ignition switch is at the
2nd position (ignition on). Wait until the warning lamp has switched off
before starting.
The duration for which the warning lamp is on is
determined by the climatic conditions.

Electric
parking brake fi xed. The electric parking brake is
applied. Release the electric parking brake to switch off
the warning lamp: with your foot on the brake
pedal, pull the electric brake control.
Observe the safety recommendations.
For further information about the electric parking
brake, refer to the "Driving" section.

Deactivation
of the
automatic
functions of the electric
parking brake fi xed.
The "automatic application"
(on switching off the engine)
and "automatic release"
functions are deactivated or
faulty. Activate the function (according to country) via
the vehicle confi guration menu or contact a
PEUGEOT dealer.

Foot on the
brake pedal fi xed.
The brake pedal must be
pressed. Press the brake pedal to start the engine with
the 6-speed electronic gear control gearbox
(lever in position
N ) or automatic gearbox
(lever in position P ).
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.
fl ashing. In the case of an electronic
gear control gearbox, if you
hold the vehicle on an incline
using the accelerator for too
long, the clutch overheats. Use the brake pedal and/or the electric parking
brake.

Parking
space

sensors fi xed.
The parking space sensors
function is active. Press the corresponding button to deactivate it.
fl ashing.
The system is measuring the space.

29
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding system has bee n switched off intentionally.
This is may be accompanied by an audible signal and a message on the multifunction screen.

Warning lamp is on Cause Action/Observations

Passenger's
airbag system fi xed. The control, located in the
glove box, is set to the
OFF
position.
The passenger's front airbag
is deactivated.
In this case you can install a
"rear facing" child seat. Set the control to the
ON position to activate the
passenger's front airbag. In this case, do not fi t
a child seat in the rear-facing position.
The passenger's airbag system is put into
service automatically when the vehicle is started
( ON position).

ESP/ASR fi xed. The button, located at the
bottom right of the dashboard,
is pressed. Its indicator lamp
is on.
The ESP/ASR is deactivated.
ESP: electronic stability
programme.
ASR: anti-skid regulation. Press the button to activate the ESP/ASR.
Its indicator lamp switches off.
The ESP/ASR system is activated automatically
when the vehicle is started.
If it has been deactivated, the system is reactiva
ted
automatically from approximately 30 mph (50 km/h).

30
Warning lamps
When the engine is running or the vehicle is being driven, the switching on of one of the following warning lamps indicates a
fault which requires action on the part of the driver.
Any fault resulting in the switching on of a warning lamp must be investigated further by reading the associated message on
the multifunction screen.
If you encounter any problems, do not hesitate to contact a PEUGEOT dealer.

Warning lamp is on Cause Action/Observations

STOP
fi xed, alone or associated
with another warning
lamp, accompanied by
an audible signal and a
message on the screen. Illumination of this warning
lamp is associated with a
serious braking system,
power steering, engine
lubrication or cooling system
fault or a punctured tyre. Stop as soon as it is safe to do so as
there is a risk that the engine will cut out
while driving.
Park, switch off the ignition and call a
PEUGEOT dealer.


Service temporarily.
A minor fault has occurred
for which there is no specifi c
warning lamp. Identify the fault by reading the message
shown in the screen, such as, for example:
- the closing of the doors, boot or bonnet,
- the engine oil level,
- the screenwash level,
- the remote control battery,
- the tyre pressures,
- saturation of the particle emission
fi lter (Diesel).
For any other faults, contact a
PEUGEOT dealer.
fi xed. A major fault has occurred
for which there is no specifi c
warning lamp. Identify the fault by reading the message
shown on the screen and contact a
PEUGEOT dealer.

(PEF:
particle
emissions
fi lter, Diesel)
fi xed, associated
temporarily with a
message on the risk of blockage of the PEF. This indicates the start of
saturation of the particle
emissions fi lter. As soon as traffi c conditions allow,
regenerate the fi lter by driving at a
speed of at least 35 mph (60 km/h) until
the service warning lamp goes off.
fi xed. This indicates the low level in
the Diesel additive reservoir. Have the level topped up by a
PEUGEOT dealer as soon as possible.

31

Electric
parking brake fl ashing. The application or release
of the electric parking brake
was interrupted. You must stop as soon as it is safe to do so.
Park on level ground, switch off the
ignition and contact a PEUGEOT dealer
or a qualifi ed workshop.
+
Electric
parking brake fault fi xed.
The electric parking brake
has a fault. Automatic application/release is no
longer possible.
Contact a PEUGEOT dealer or a
qualifi ed workshop without delay.
The parking brake can be released
manually using the emergency release
procedure.
For more information on the electric
parking brake, refer to the "Driving"
section.

Warning lamp is on Cause Action/Observations

Braking fi xed.
The braking system
fl uid level has dropped
signifi cantly. Top up with brake fl uid recommended by
PEUGEOT.
If the problem persists, have the system
checked by a PEUGEOT dealer.
+ fi xed, associated with
the electric parking
brake fault warning lamp, if the parking brake is released. The braking system has a
fault.
Stop as soon as it is safe to do so.
Park, switch off the ignition and contact
a PEUGEOT dealer.
+ fi xed, associated
with the ABS warning lamp. The electronic brake force
distribution (EBFD) system
has a fault.
Have it checked by a PEUGEOT dealer.

Anti-lock
Braking System (ABS) fi xed.
The anti-lock braking system
has a fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and
contact a PEUGEOT dealer without delay.

32

Warning lamp is on Cause Action/Observations

Engine
autodiagnosis system fi xed. The emission control system
has a fault. This lamp should switch off when the
engine is started.
If it does not switch off, contact a
PEUGEOT dealer urgently.
fl ashing. The engine management
system has a fault.
Risk of destruction of the catalytic convertor.
Have it checked by a PEUGEOT dealer.

Low fuel
level fi xed with the needle
in the red zone. When it fi rst comes on there
remains approximately
6 litres
of fuel in the tank.
At this point, you begin to
use the fuel reserve. Refuel as soon as possible to avoid
running out of fuel.
This warning lamp will come on every
time the ignition is switched on, until a
suffi cient addition of fuel is made.
Fuel tank capacity: approximately
60 litres .
Never continue to drive until you run
out of fuel, as this could damage the
emission control and injection systems.

Maximum
coolant
temperature fi xed with the needle
in the red zone. The temperature of the
cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down
before topping up the level, if necessary.
If the problem persists, contact a
PEUGEOT dealer.

Engine oil
pressure fi xed. There is a fault with the
engine lubrication system. Stop as soon it is safe to do so.
Park, switch off the ignition and contact
a PEUGEOT dealer.

Dynamic
stability control
(ESP/ASR) fl ashing.
The ESP/ASR regulation is
active. The system optimises traction and
improves the directional stability of
the vehicle.
fi xed. Unless it has been
deactivated with the indicator
lamp on the button on, the
ESP/ASR system is faulty. Have it checked by a PEUGEOT dealer.

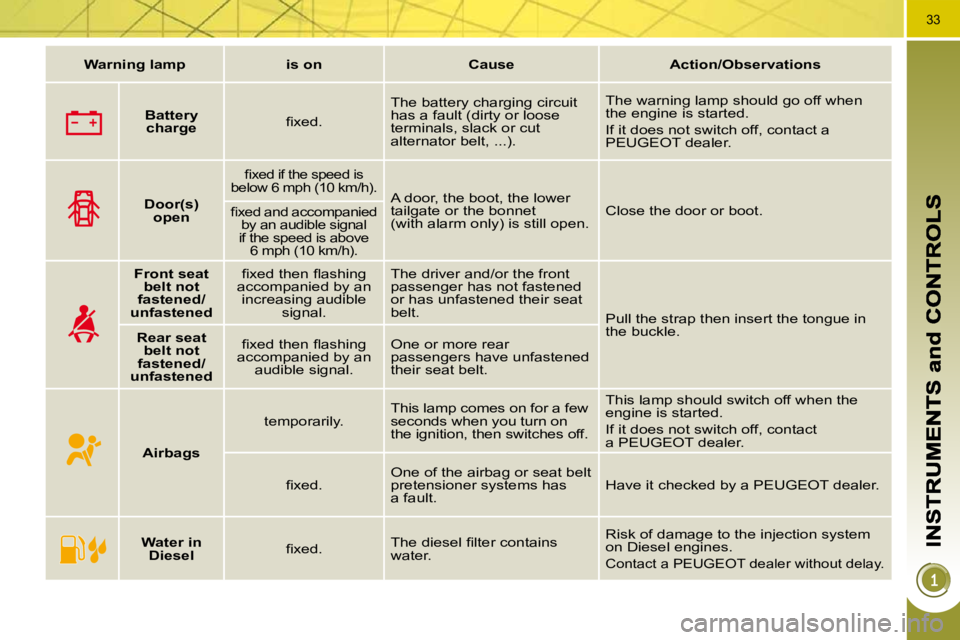

33

Battery
charge fi xed. The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut
alternator belt, ...). The warning lamp should go off when
the engine is started.
If it does not switch off, contact a
PEUGEOT dealer.

Warning lamp is on Cause Action/Observations

Front seat
belt not
fastened/
unfastened fi xed then fl ashing
accompanied by an increasing audible signal. The driver and/or the front
passenger has not fastened
or has unfastened their seat
belt.
Pull the strap then insert the tongue in
the buckle.

Rear seat
belt not
fastened/
unfastened fi xed then fl ashing
accompanied by an audible signal. One or more rear
passengers have unfastened
their seat belt.

Door(s)
open
fi xed if the speed is
below 6 mph (10 km/h).
A door, the boot, the lower
tailgate or the bonnet
(with alarm only) is still open. Close the door or boot. fi xed and accompanied
by an audible signal
if the speed is above 6 mph (10 km/h).


Airbags temporarily.
This lamp comes on for a few
seconds when you turn on
the ignition, then switches off. This lamp should switch off when the
engine is started.
If it does not switch off, contact
a PEUGEOT dealer.
fi xed. One of the airbag or seat belt
pretensioner systems has
a fault. Have it checked by a PEUGEOT dealer.

Water in
Diesel fi xed. The diesel fi lter contains
water. Risk of damage to the injection system
on Diesel engines.
Contact a PEUGEOT dealer without delay.

34
Coolant temperature indicator
With the engine running, when the needle
is:
- in zone A , the temperature is correct,
- in zone B , the temperature is too
high; the max temperature warning
lamp 1 and the central STOP warn-
ing lamp come on, accompanied by
an audible signal and a message in
the multifunction screen. After driving for a few minutes, the tem-
perature and pressure in the cooling
system increase.
To top up the level:

 wait for the engine to cool,

 unscrew the cap by two turns to al-
low the pressure to drop,

 when the pressure has dropped, re-
move the cap,

 top up the level to the "MAX" mark.

You
must
stop as soon as it is safe
to do so.
Wait a few minutes before switching off
the engine.
Consult a PEUGEOT dealer.

Warning lamp is on Cause Action/Observations

Directional
headlamps fl ashing. The directional headlamps
system is faulty. Have it checked by a PEUGEOT dealer.

Under-
infl ated tyre fi xed. The pressure in one or more
wheels is too low. Check the pressure of the tyres as soon
as possible.
This check should preferably be carried
out when the tyres are cold.
