2009 TOYOTA LAND CRUISER Owners Manual

153
2-1. Driving procedures
2
When driving
L/C200_U (OM60D97U)
■
When the steering lock cannot be released
■ If the engine does not start
The engine immobilizer system may not have been deactivated. ( P. 95)
■ When the “ENGINE START STOP” switch indicator flashes in amber
The system may be malfunctioning. Have the vehicle inspected by your
Toyota dealer immediately.
■ Auto power off function
If the vehicle is left in ACCESSORY mode for more than an hour with the
shift lever in “P”, the “ENGINE START STOP” switch will automatically turn
off.
■ Electronic key battery depletion
 P. 3 2
■ When the electronic key battery is discharged
 P. 494
■ Conditions aff ecting operation
 P. 3 0
■ Note for the smart key system
 P. 3 3
The green indicator light on the “ENGINE
START STOP” switch will flash and a
message will be shown on the multi-infor-
mation display. Press the “ENGINE
START STOP” switch again while turning
the steering wheel left and right.

154 2-1. Driving procedures
L/C200_U (OM60D97U)

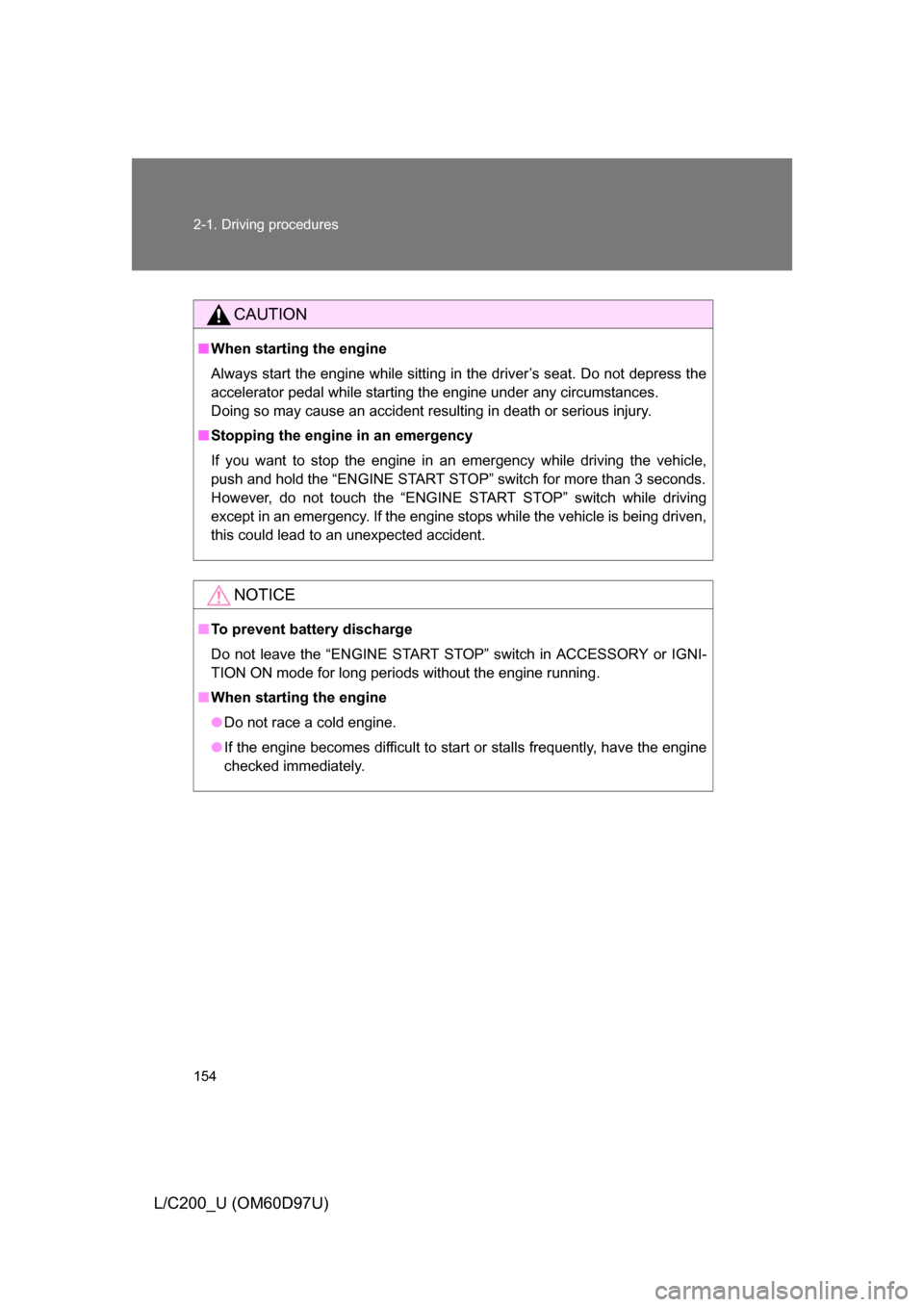

CAUTION
■When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■ Stopping the engine in an emergency
If you want to stop the engine in an emergency while driving the vehicle,
push and hold the “ENGINE START STOP” switch for more than 3 seconds.
However, do not touch the “ENGINE START STOP” switch while driving
except in an emergency. If the engine stops while the vehicle is being driven,
this could lead to an unexpected accident.
NOTICE
■To prevent battery discharge
Do not leave the “ENGINE START STOP” switch in ACCESSORY or IGNI-
TION ON mode for long periods without the engine running.
■ When starting the engine
● Do not race a cold engine.
● If the engine becomes difficult to start or stalls frequently, have the engine
checked immediately.

155
2-1. Driving procedures
2
When driving
L/C200_U (OM60D97U)
Automatic transmission
Select a shift position appropriate for the driving conditions.
■Shifting the shift lever
While the “ENGINE START STOP” switch is in IGNITION
ON mode, depress the brake pedal and move the shift
lever.

156 2-1. Driving procedures
L/C200_U (OM60D97U)
■Shift position uses
*1: To improve fuel consumption and reduce noises, set the shift lever in
the “D” position for normal driving.
*2: By selecting shift ranges using “S” mode, you can control engine brak-ing forces.
Shift positionFunction
PParking the vehicle or starting the engine
RReversing
NNeutral
DNormal driving*1
S“S” mode driving *2

157
2-1. Driving procedures
2
When driving
L/C200_U (OM60D97U)
■

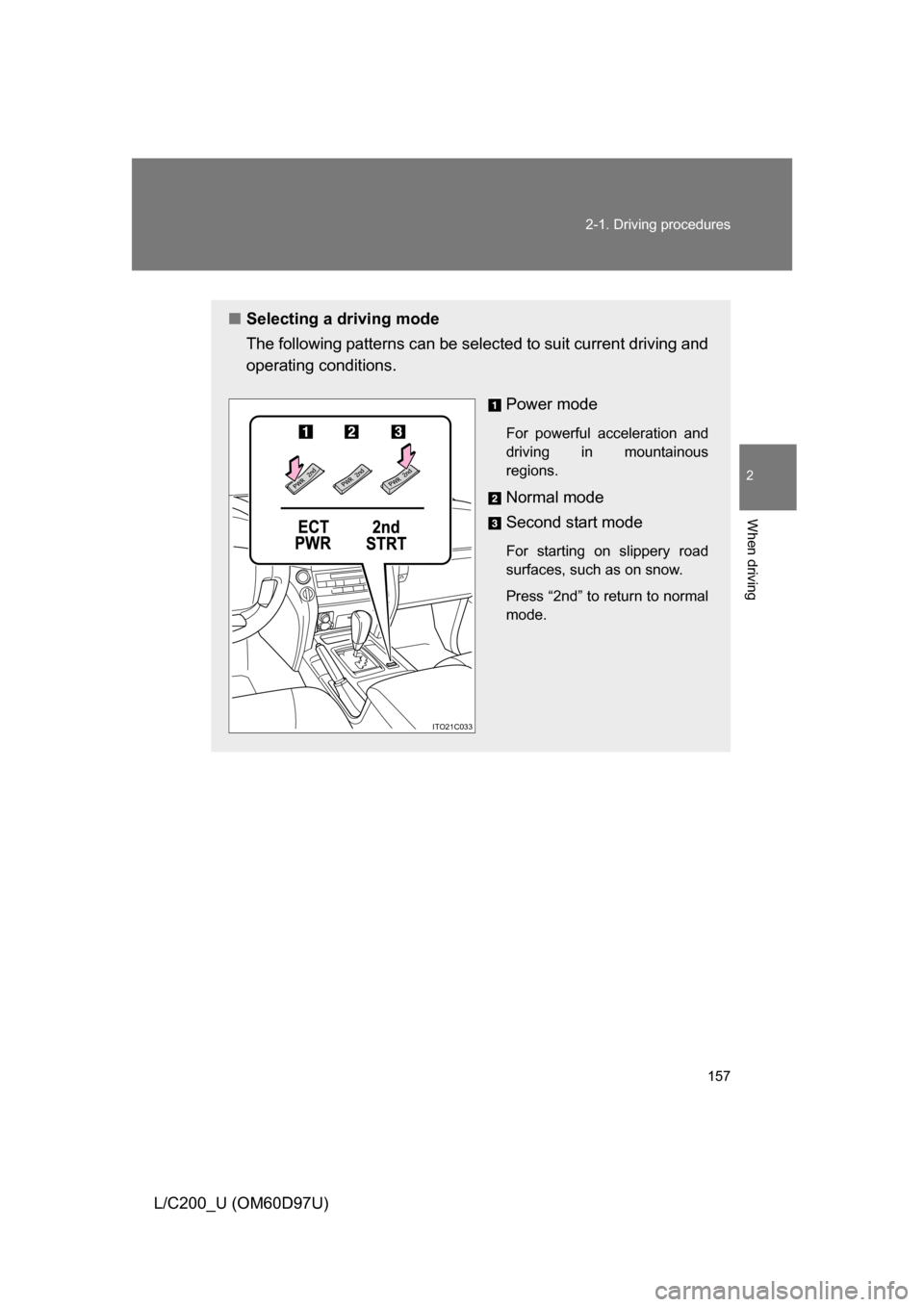

Selecting a driving mode
The following patterns can be selected to suit current driving and
operating conditions.
Power mode
For powerful acceleration and
driving in mountainous
regions.
Normal mode
Second start mode
For starting on slippery road
surfaces, such as on snow.
Press “2nd” to return to normal
mode.
ITO21C033

158 2-1. Driving procedures
L/C200_U (OM60D97U)

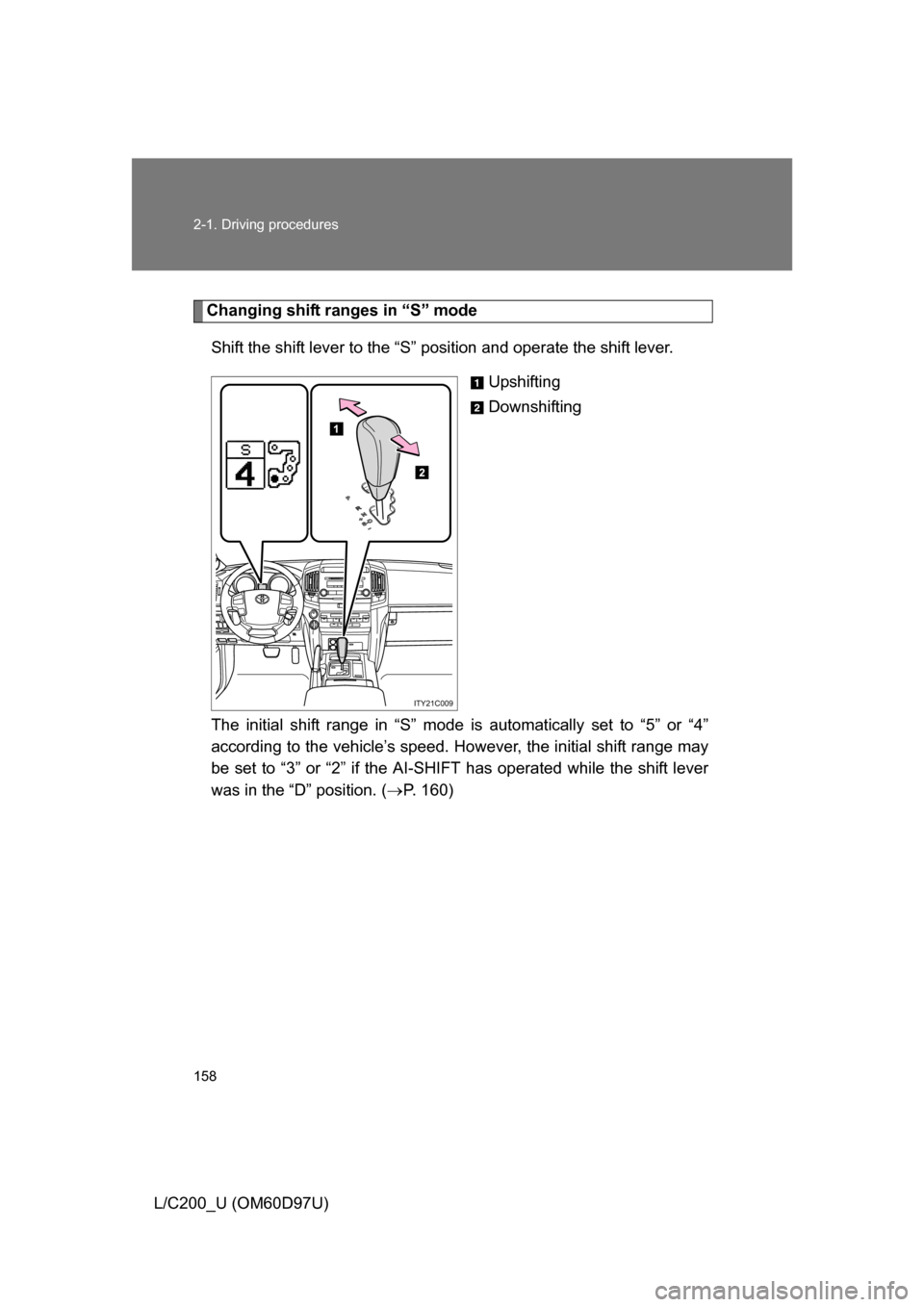

Changing shift ranges in “S” modeShift the shift lever to the “S” position and operate the shift lever. Upshifting
Downshifting
The initial shift range in “S” mode is automatically set to “5” or “4”
according to the vehicle’s speed. However, the initial shift range may
be set to “3” or “2” if the AI-SHIFT has operated while the shift lever
was in the “D” position. ( P. 160)
P
R
N
+
-S-D
ITY21C009

159
2-1. Driving procedures
2
When driving
L/C200_U (OM60D97U)
■

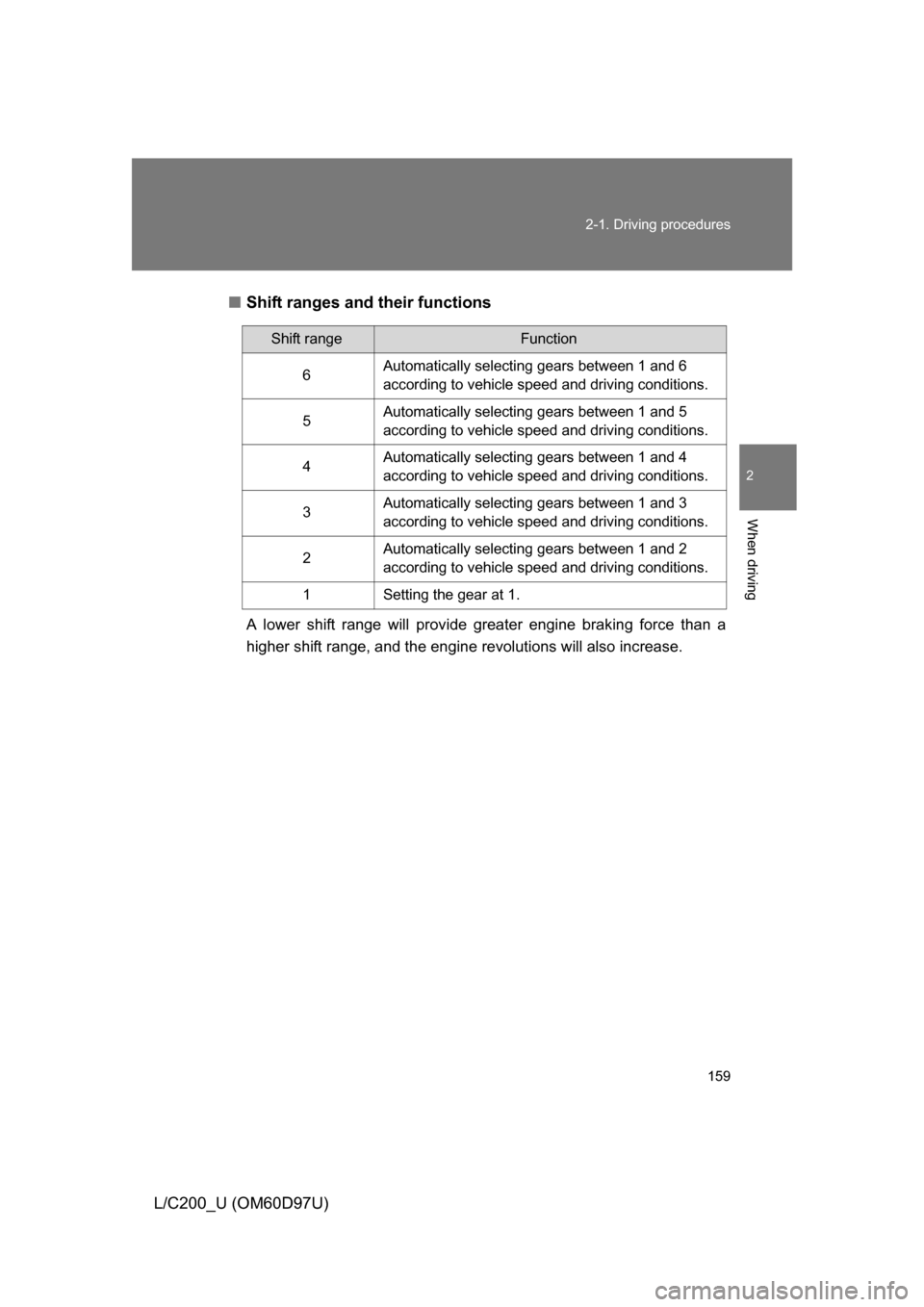

Shift ranges and their functions
A lower shift range will provide great er engine braking force than a
higher shift range, and the engine revolutions will also increase.
Shift rangeFunction
6Automatically selecting gears between 1 and 6
according to vehicle speed and driving conditions.
5Automatically selecting gears between 1 and 5
according to vehicle speed and driving conditions.
4Automatically selecting gears between 1 and 4
according to vehicle speed and driving conditions.
3Automatically selecting gears between 1 and 3
according to vehicle speed and driving conditions.
2Automatically selecting gears between 1 and 2
according to vehicle speed and driving conditions.
1Setting the gear at 1.

160 2-1. Driving procedures
L/C200_U (OM60D97U)
■“S” mode
When the shift range is “5” or lower, holding the shift lever toward “+” sets
the shift range to “6”.
■ Downshifting restrictions warning buzzer (in the “S” mode)
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever is operated. (The warning buzzer will
sound twice.)
■ When driving with the cruise control system
The engine brake will not operate in t he “S” mode, even when downshifting
to “5” or “4”. ( P. 188)
■ Second start mode au tomatic deactivation
Second start mode is automatically deactivated if the engine is turned off
after driving in second start mode.
■ If the shift lever cannot be shifted from “P”
P. 4 9 1
■If the “S” indicator does not come on even after shifting the shift lever
to “S”
This may indicate a malfunction in the automatic transmission system. Have
the vehicle inspected by your Toyota dealer immediately.
(In this situation, the vehicle will operate as if the shift lever is in “D”.)
■ AI-SHIFT
The AI-SHIFT automatically shifts the gear to the optimal position according
to the driver performance and driving conditions.
The AI-SHIFT automatically operates when the shift lever is in the “D” posi-
tion. (Shifting the shift lever to the “S” position cancels the function.)
