2009 TOYOTA LAND CRUISER Owners Manual

193
2-4. Using other
driving systems
2
When driving
L/C200_U (OM60D97U)
■Multi-information display
Front corner sensor detec-
tion
Rear corner sensor detec-
tion
Back sensor detection
■ Touch screen (with navigation system)
When the vehicle is moving
forward
The graphic is automatically
displayed when an obstacle is
detected. The screen can be
set so that the graphic is not
displayed. (P. 198)
When the vehicle is moving
backward (insert display)
A simplified image is dis-
played on the touch screen
when an obstacle is detected.
ITY24C017

194 2-4. Using other driving systems
L/C200_U (OM60D97U)

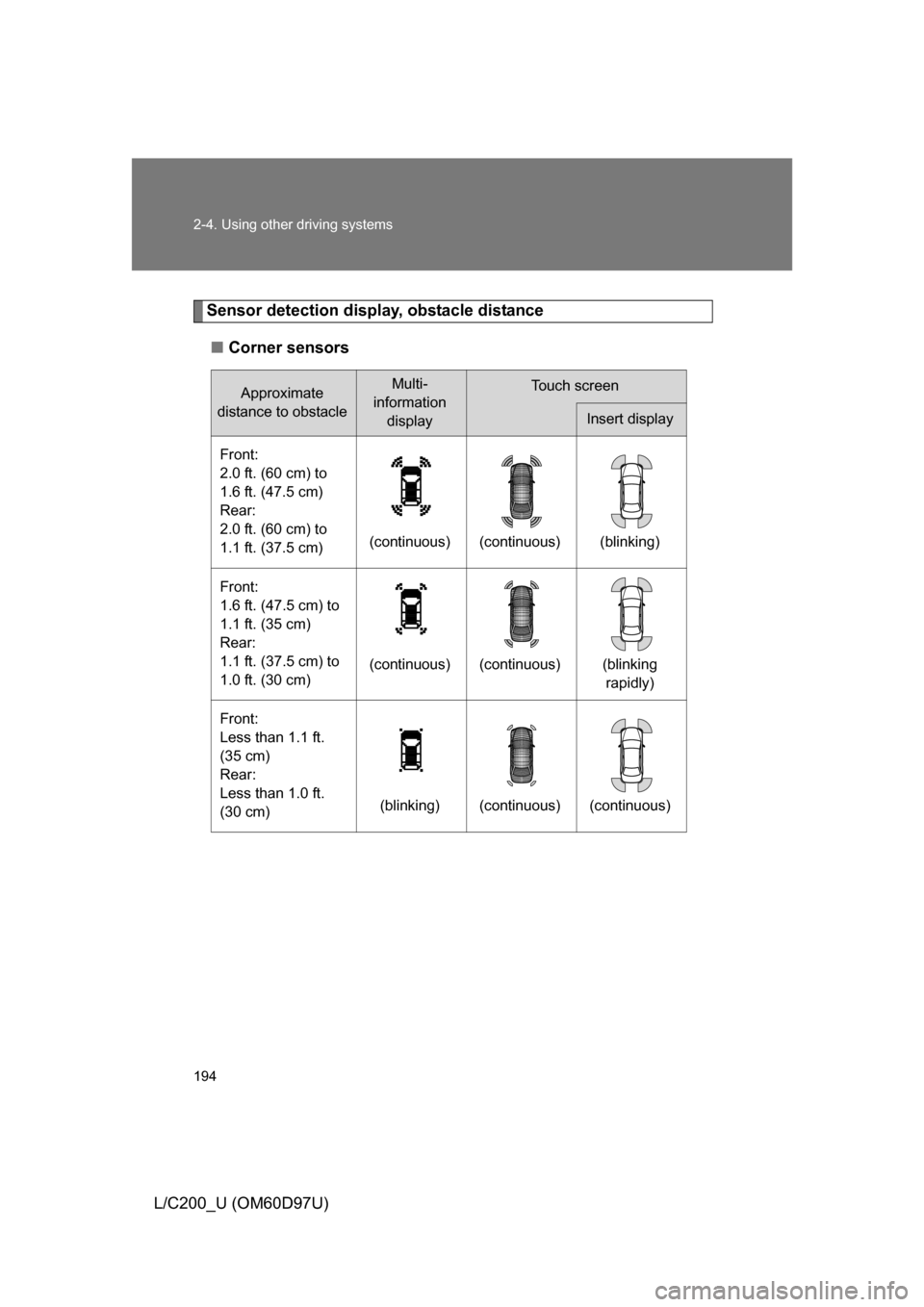

Sensor detection display, obstacle distance■ Corner sensors
Approximate
distance to obstacleMulti-
information displayTouch screen
Insert display
Front:
2.0 ft. (60 cm) to
1.6 ft. (47.5 cm)
Rear:
2.0 ft. (60 cm) to
1.1 ft. (37.5 cm) (continuous) (continuous) (blinking)
Front:
1.6 ft. (47.5 cm) to
1.1 ft. (35 cm)
Rear:
1.1 ft. (37.5 cm) to
1.0 ft. (30 cm) (continuous) (continuous) (blinking
rapidly)
Front:
Less than 1.1 ft.
(35 cm)
Rear:
Less than 1.0 ft.
(30 cm) (blinking) (continuous) (continuous)

195
2-4. Using other
driving systems
2
When driving
L/C200_U (OM60D97U)■

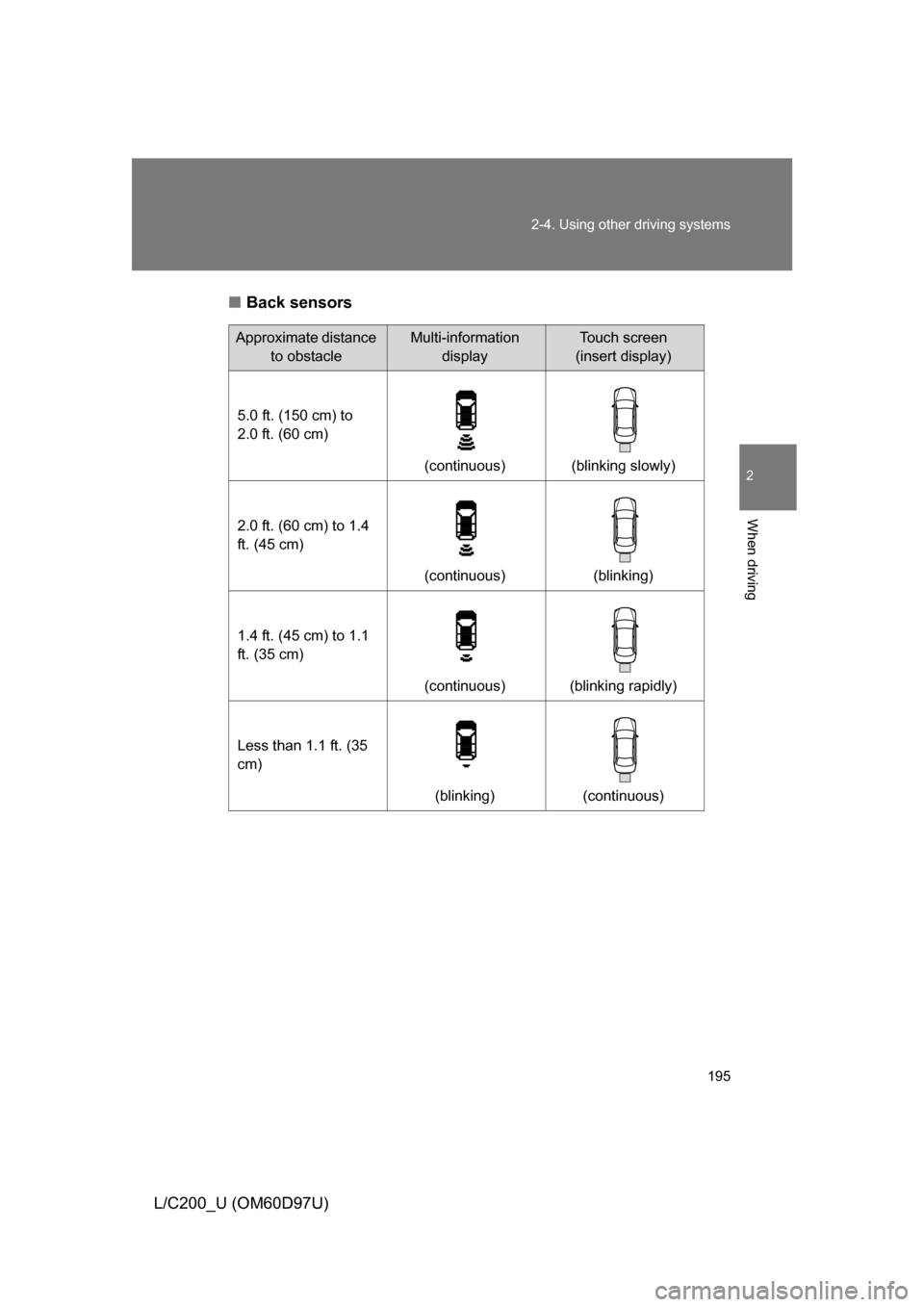

Back sensors
Approximate distance
to obstacleMulti-information displayTouch screen
(insert display)
5.0 ft. (150 cm) to
2.0 ft. (60 cm) (continuous) (blinking slowly)
2.0 ft. (60 cm) to 1.4
ft. (45 cm) (continuous) (blinking)
1.4 ft. (45 cm) to 1.1
ft. (35 cm) (continuous) (blinking rapidly)
Less than 1.1 ft. (35
cm) (blinking) (continuous)

196 2-4. Using other driving systems
L/C200_U (OM60D97U)
Beeps and obstacle distanceA beep sounds when the corner sensors and back sensors are oper-
ating.
● The beep sounds faster as the vehicle approaches an obstacle.
When the vehicle comes within the following distance of the obsta-
cle, the beep sounds continuously.
• Front corner and back sensors: Approximately 1.1 ft. (35 cm)
• Rear corner sensors: Approximately 1.0 ft. (30 cm)
● When two or more obstacles are detected simultaneously, the
beep system responds to the nearest obstacle. If one or both come
within the above distances, the beep will repeat a long tone, fol-
lowed by fast beeps.
● You can change the volume of the warning beeps. ( P. 198)

197
2-4. Using other
driving systems
2
When driving
L/C200_U (OM60D97U)
Obstacle detection range
About 1.8 ft. (60 cm)
About 5.0 ft. (150 cm)
The detection area of the sensors
is shown to the left. If obstacles
move too close to the sensors,
they will not be detected.
The range of the sensors may
change depending on the shape
of the object etc.
Warning beep volume and touch screen settings (vehicles with
navigation system only)
You can change the warning beep volume and touch screen operat-
ing conditions. Press to display the “Information” screen.
To u c h .
ITY24C018
STEP1
STEP2

198 2-4. Using other driving systems
L/C200_U (OM60D97U)■
Changing the warning beep volume
To u c h .
Adjust the beep volume, then touch .
■ Changing display and alert settings
To u c h .
Touch to change the dist ance for the back sensors
display and tone indication, then touch .
■ Display off setting
To u c h .
When an obstacle is detected while the rear view monitor is in use, the
warning indicator will appear in the top right of the screen even
has been selected.
■The Toyota park assist syst em can be operated when
● Front corner sensors:
• The “ENGINE START STOP” switch is in IGNITION ON mode.
• The shift lever is in a position other than “P”.
• The vehicle speed is less than about 6 mph (10 km/h).
● Rear corner and back sensors:
• The “ENGINE START STOP” switch is in IGNITION ON mode.
• The shift lever is in “R”.
STEP1
STEP2
STEP1
STEP2

199
2-4. Using other
driving systems
2
When driving
L/C200_U (OM60D97U)
■Sensor detection information
● Certain vehicle conditions and the surrounding environment may affect
the ability of the sensor to correctly detect obstacles. Particular instances
where this may occur are listed below.
• There is dirt, snow or ice on the sensor. (Wiping the sensor will resolve
this problem.)
• The sensor is frozen. (Thawing the sensor will resolve this problem.)
• The sensor is covered in any way.
• In harsh sunlight or intense cold weather.
• When driving on bumpy, sloped or gravel roads, or over grass.
• If there is something producing ultrasonic waves nearby, such as another vehicle’s horn, motorcycle engine noise, air braking sound
from heavy-duty vehicles, or another vehicle using the park assist sys-
tem.
• In heavy rain, or if water is splashed on the sensors.
• The vehicle is leaning considerably to one side.
• If a commercial fender pole or radio antenna is installed.
• If moving towards a high curb or a curb corner.
• If towing eyelet is installed on your vehicle.
• The bumper or sensor receives a strong impact.
• A non-genuine Toyota suspension (lowered suspension etc.) is installed.
In addition to the examples above, there are instances in which, because of
their shapes, signs and other objects may be judged by the sensor to be
closer than they are.
● The shape of the obstacle may prevent the sensor from detecting it. Pay
particular attention to the following obstacles.
• Thin objects such as wire, fencing or rope.
• Objects that absorb sound waves, such as cotton or snow.
• Objects with sharp corners.
• Low objects.
• Objects where the upper section projects out over the lower section.

200 2-4. Using other driving systems
L/C200_U (OM60D97U)

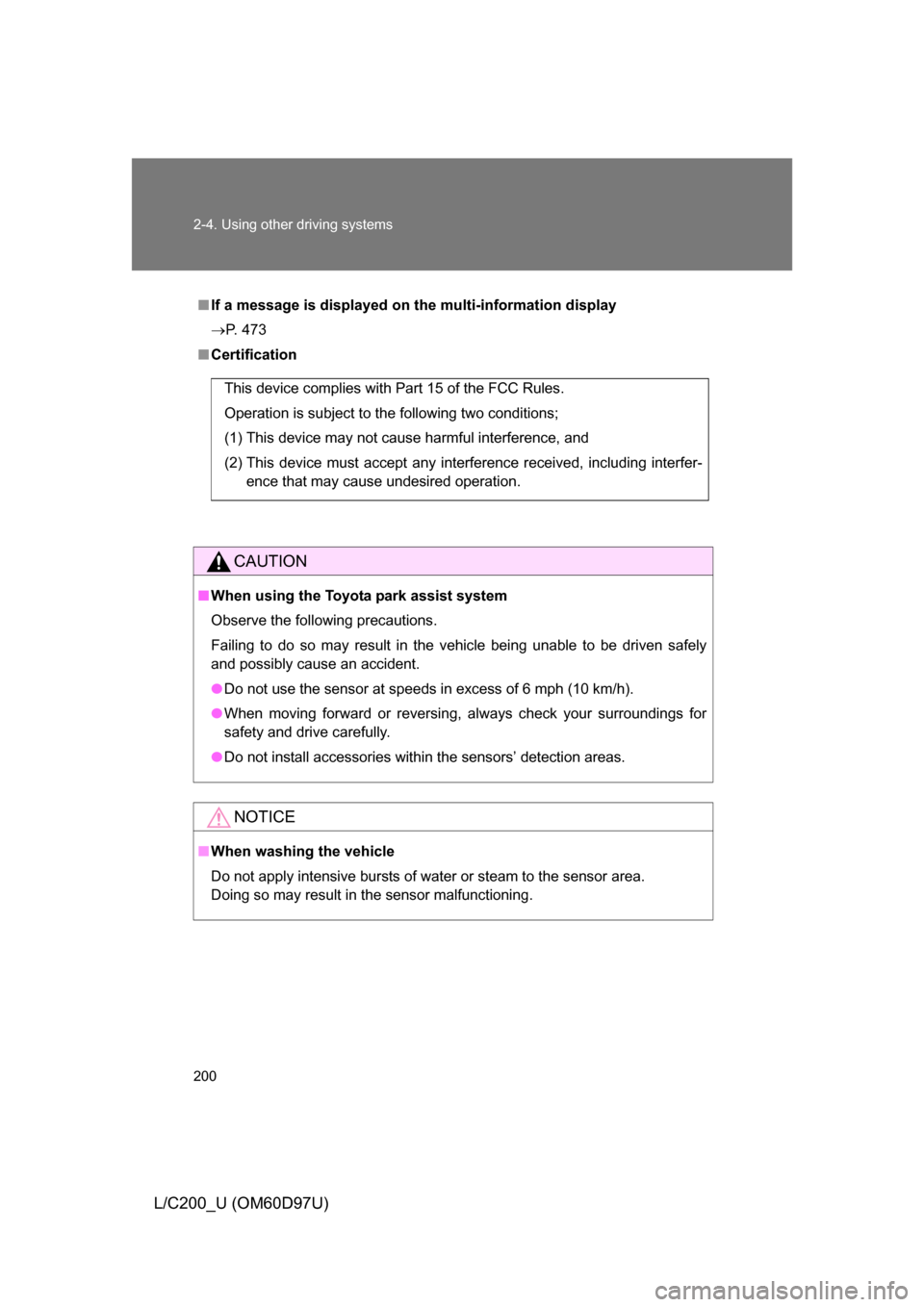

■If a message is displayed on the multi-information display
 P. 473
■ Certification
CAUTION
■When using the Toyota park assist system
Observe the following precautions.
Failing to do so may result in the vehicle being unable to be driven safely
and possibly cause an accident.
● Do not use the sensor at speeds in excess of 6 mph (10 km/h).
● When moving forward or reversing, always check your surroundings for
safety and drive carefully.
● Do not install accessories within the sensors’ detection areas.
NOTICE
■When washing the vehicle
Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in the sensor malfunctioning.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions;
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interfer-
ence that may cause undesired operation.
