2009 TOYOTA LAND CRUISER Owners Manual

249
2-5. Driving information
2
When driving
L/C200_U (OM60D97U)
CAUTION
■
Hitches
● Lubricate the hitch ball with a light coat of grease.
● If using a weight distributing hitch when towing, keep your vehicle level
with the ground.
■ When towing a trailer
● If the gross trailer weight exceeds 1000 lb. (453 kg), trailer brakes are
required. Toyota recommends trailers wi th brakes that conform to all appli-
cable federal and state/provincial regulations.
● Never tap into your vehicle’s hydraulic system, as this will lower the vehi-
cle’s braking effectiveness.
● Never tow a trailer without using a safety chain securely attached to both
the trailer and the vehicle. If damage occurs to the coupling unit or hitch
ball, there is danger of the trailer wandering into another lane.
NOTICE
■When installing a trailer hitch
● Use only the position recommended by your Toyota dealer. Do not install
the trailer hitch on the bumper; this may cause body damage.
● Do not use axle-mounted hitches, as they can cause damage to the axle
housing, wheel bearings, wheels or tires.
■ Safety chain
A safety chain must always be used between the towing vehicle and the
trailer. Leave sufficient slack in the chain for turns. The chain should cross
under the trailer tongue to prevent the tongue from dropping to the ground in
the case that it becomes damaged or separated. For the correct safety chain
installation procedure, ask your Toyota dealer.
■ Do not directly splice trailer lights
Directly splicing trailer lights may damage your vehicle’s electrical system
and cause a malfunction.

250
2-5. Driving information
L/C200_U (OM60D97U)

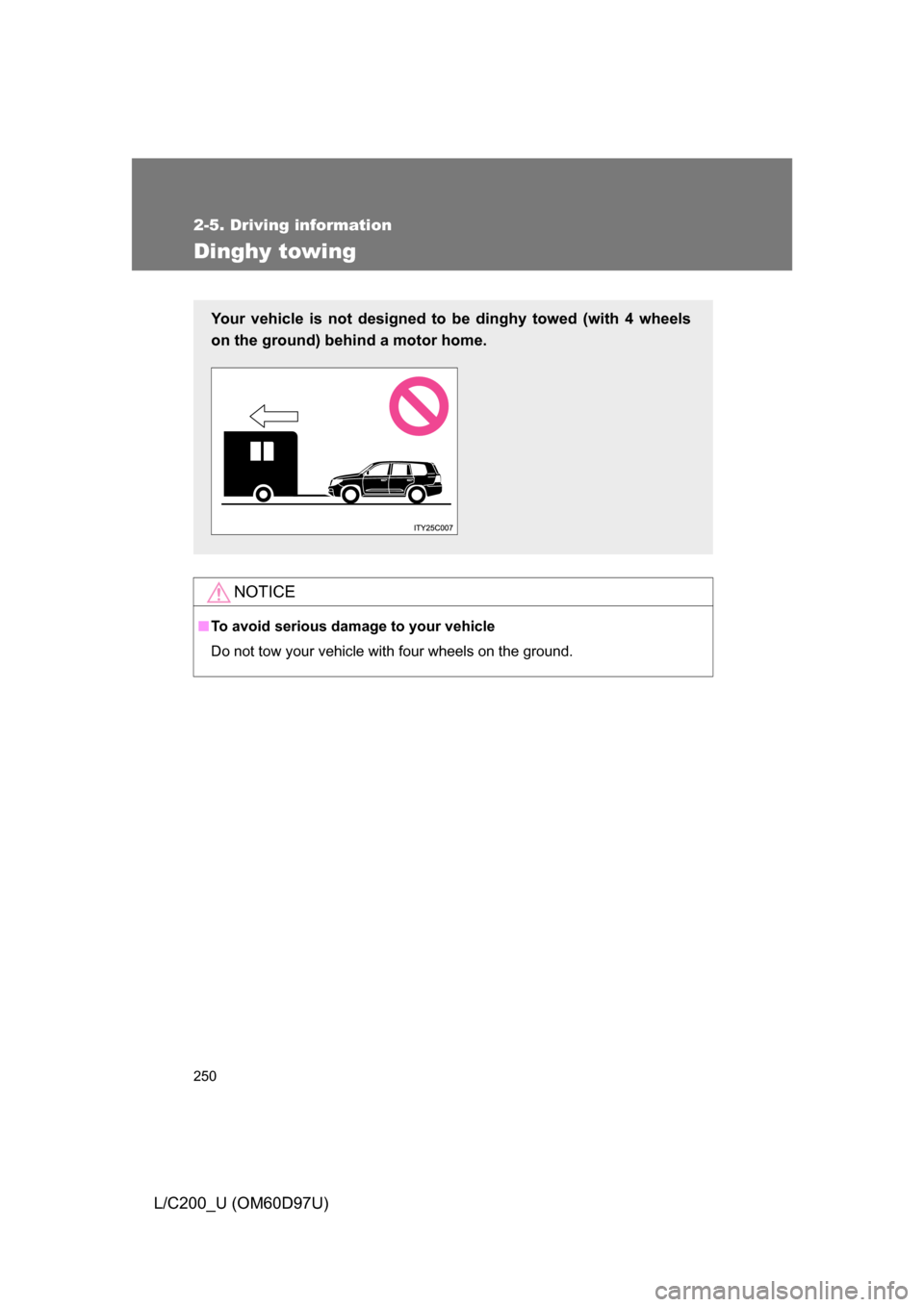

Dinghy towing
NOTICE
■To avoid serious damage to your vehicle
Do not tow your vehicle with four wheels on the ground.
Your vehicle is not designed to be dinghy towed (with 4 wheels
on the ground) behind a motor home.

251
2-5. Driving information
2
When driving
L/C200_U (OM60D97U)

252
L/C200_U (OM60D97U)
3-1. Using the air conditioning system and
defogger ....................... 254
Front air conditioning system ........................... 254
Rear air conditioning system ........................... 264
Rear window and outside rear view
mirror defoggers ............ 268
Windshield wiper de-icer ............................ 269
3-2. Using the audio system .......................... 270
Audio system type............ 270
Using the radio ................. 272
Using the CD player ......... 277
Playing back MP3 and WMA discs ..................... 285
Optimal use of the audio system ........................... 293
Using the AUX adapter .... 295
Using the steering switches ......................... 296

Interior features3
253
L/C200_U (OM60D97U)
3-3. Using the rear seat entertainment
system .......................... 298
Rear seat entertainment system features ............. 298
Using the radio ................. 305
Using the DVD changer .......................... 306
Playing an audio CD/CD text..................... 307
Playing WMA/MP3 discs............................... 308
Playing DVD video/audio .................... 309
Playing a video CD .......... 323
DVD player and DVD video disc information .... 327
Using the video mode ...... 334
Changing other settings .......................... 336
3-4. Using the interior lights ............................. 338
Interior lights list ............... 338
• Interior lights .................. 339
• Personal lights ............... 340 3-5. Using the storage
features ......................... 341
List of storage features .... 341
• Glove box....................... 342
• Console box ................... 343
• Overhead console .......... 344
• Cup holders ................... 345
• Bottle holders ................. 346
• Card holders .................. 348
• Auxiliary box .................. 348
3-6. Other interior features ......................... 349
Cool box ........................... 349
Sun visors ........................ 351
Vanity mirror..................... 352
Clock ................................ 353
Outside temperature display............................ 354
Ashtrays ........................... 355
Cigarette lighter................ 357
Power outlets ................... 358
Seat heaters..................... 360
Armrest ............................ 362
Floor mats ........................ 363
Luggage compartment features .......................... 364
Garage door opener......... 366

254
L/C200_U (OM60D97U)
3-1. Using the air conditioning system and defogger
Front air conditioning system
Airflow and outlets are automatically adjusted according to the tem-
perature setting.
With navigation system
Owners of models equipped with a navigation system should
refer to the “Navigation System Owner’s Manual”.
Without navig ation system
Vehicles with windshield wiper de-icer
Vehicles without windshield wiper de-icer
*: The front air conditioning system cannot be switched off while the cool box is on. ( P. 349)
Driver’s side temperature control
Changes the air outlets used Off *Airflow display
Fan speed display
Fan speed
Airflow display
Passenger’s side
temperature
setting display Passenger’s side temperature control
Changes the air
outlets usedOutside air or
recirculated
air mode
Outside air
mode Recirculated
air mode
Rear air conditioning operation mode Micro dust and pollen filter
Air conditioning on/off switch
4-zone operation switch
Windshield
defogger
Automatic
mode
Driver’s side
temperature
setting display
A
B

255
3-1. Using the air conditioning system
and defogger
3
Interior features
L/C200_U (OM60D97U)

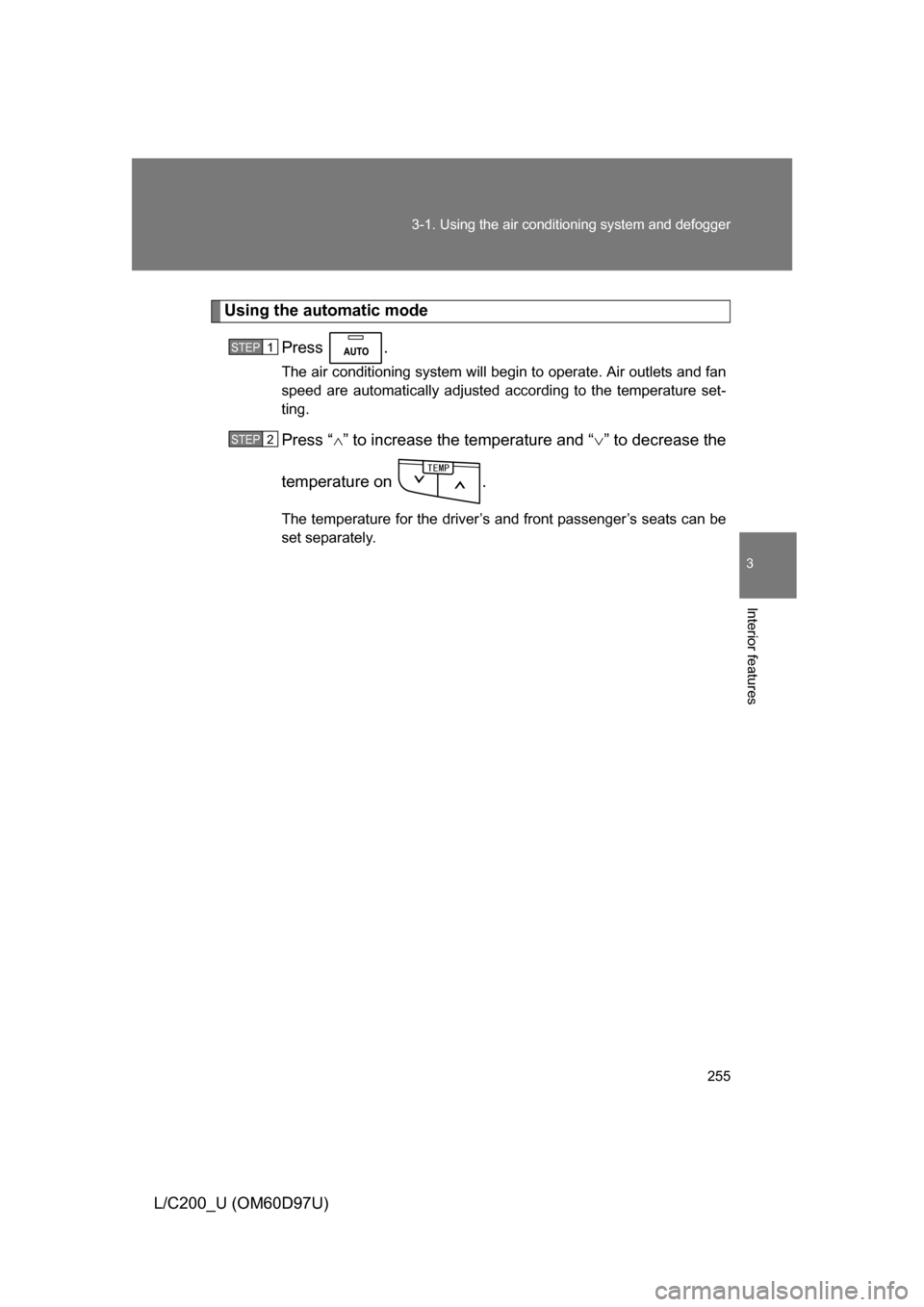

Using the automatic mode
Press .
The air conditioning system will begin to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Press “” to increase the temperature and “ ” to decrease the
temperature on .
The temperature for the driver’s and front passenger’s seats can be
set separately.
STEP1
STEP2
6'/2

256 3-1. Using the air conditioning system and defogger
L/C200_U (OM60D97U)

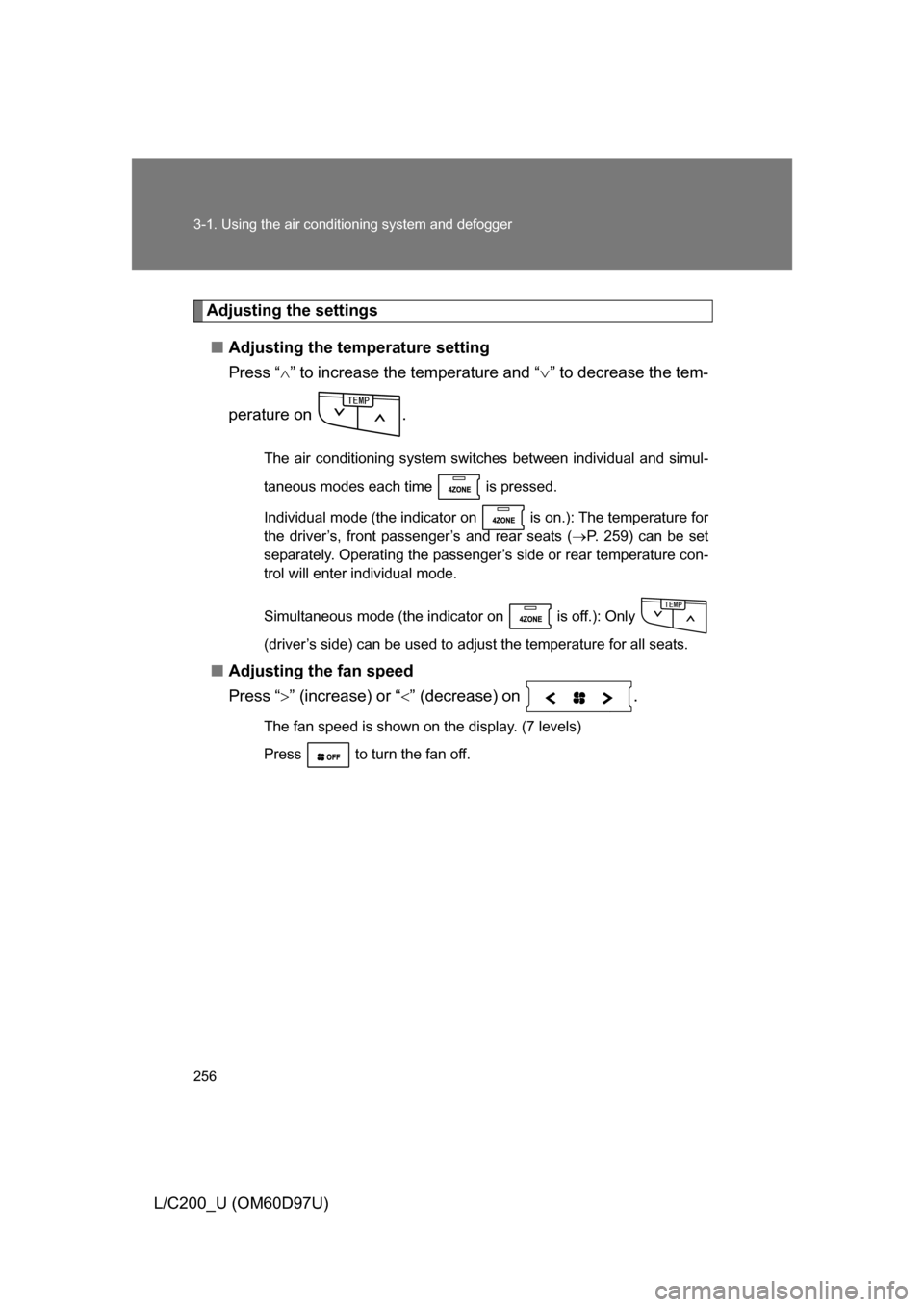

Adjusting the settings
■ Adjusting the temperature setting
Press “ ” to increase the temperature and “ ” to decrease the tem-
perature on .
The air conditioning system switches between individual and simul-
taneous modes each time is pressed.
Individual mode (the indicator on is on.): The temperature for
the driver’s, front passenger’s and rear seats ( P. 259) can be set
separately. Operating the passenger’s side or rear temperature con-
trol will enter individual mode.
Simultaneous mode (the indicator on is off.): Only
(driver’s side) can be used to adjust the temperature for all seats.
■ Adjusting the fan speed
Press “ ” (increase) or “ ” (decrease) on .
The fan speed is shown on the display. (7 levels)
Press to turn the fan off.
6'/2
6'/2
