2009 TOYOTA LAND CRUISER Owners Manual

5
When trouble arises
473
5-2. Steps to take in an emergency
L/C200_U (OM60D97U)
If a warning message is displayed
Messages and warningsThe warning lights and warning buzzers operate as follows depend-
ing on the content of the message. If a message indicates the need
for inspection by a dealer, have th e vehicle inspected immediately by
your Toyota dealer.
The multi-information display shows warnings of system malfunc-
tions, incorrectly performed op erations, or shows messages that
indicate a need for maintenance. When a message is shown, perform
the correction procedure appropriate to the message.
Master warning light
The master warning light
comes on or flashes when a
message is being shown on
the multi-information display.
Multi-information display
If any of the warning messages is shown again after its correction
procedure has been performed, contact your Toyota dealer.

474 5-2. Steps to take in an emergency
L/C200_U (OM60D97U)
*: A buzzer sounds first time a message is shown on the multi-information dis-play.
System
warning lightWarning buzzer
*Warning
Comes on Sounds Indicates an important situation,
such as when a system related to
driving is malfunctioning or that
danger may result if the correction
procedure is not performed.
 Comes
on or
flashes Sounds Indicates an important situation,
such as when the system shown
on the multi-information display
may be malfunctioning.
Comes on Does not
sound Indicates a condition, such as
malfunction of electrical compo-
nents, their condition, or indicates
the need for maintenance.
Flashes Does not
sound Indicates a situation, such as
when an operation has been per-
formed incorrectly, or indicates
how to perform an operation cor-
rectly.

5
When trouble arises
475
5-2. Steps to take in an emergency
L/C200_U (OM60D97U)
■
Resetting the tire pressure warning data
After adjusting the tire inflation pressure, be sure to initialize the data.
(P. 406)
If the message remains on, the system may have malfunctioned. Have the
vehicle inspected by your Toyota dealer as soon as possible.
■ Warning messages in th e cruise control mode
In the following instances, there is a possibility that the approach warning will
not illuminate even when vehicle-to-vehicle distance is closing.
● When the speed of the vehicle ahead matches or exceeds your vehicle’s
speed.
● When the vehicle ahead is traveling at an extremely slow speed.
● Immediately after the cruise control speed has been set.
● At the instant the accelerator is applied.
NOTICE
■Engine oil maintenance message
The warning message is based on the projected driving range after engine
oil maintenance message is reset.
The system does not monitor the purity of the engine oil.

476
5-2. Steps to take in an emergency
L/C200_U (OM60D97U)

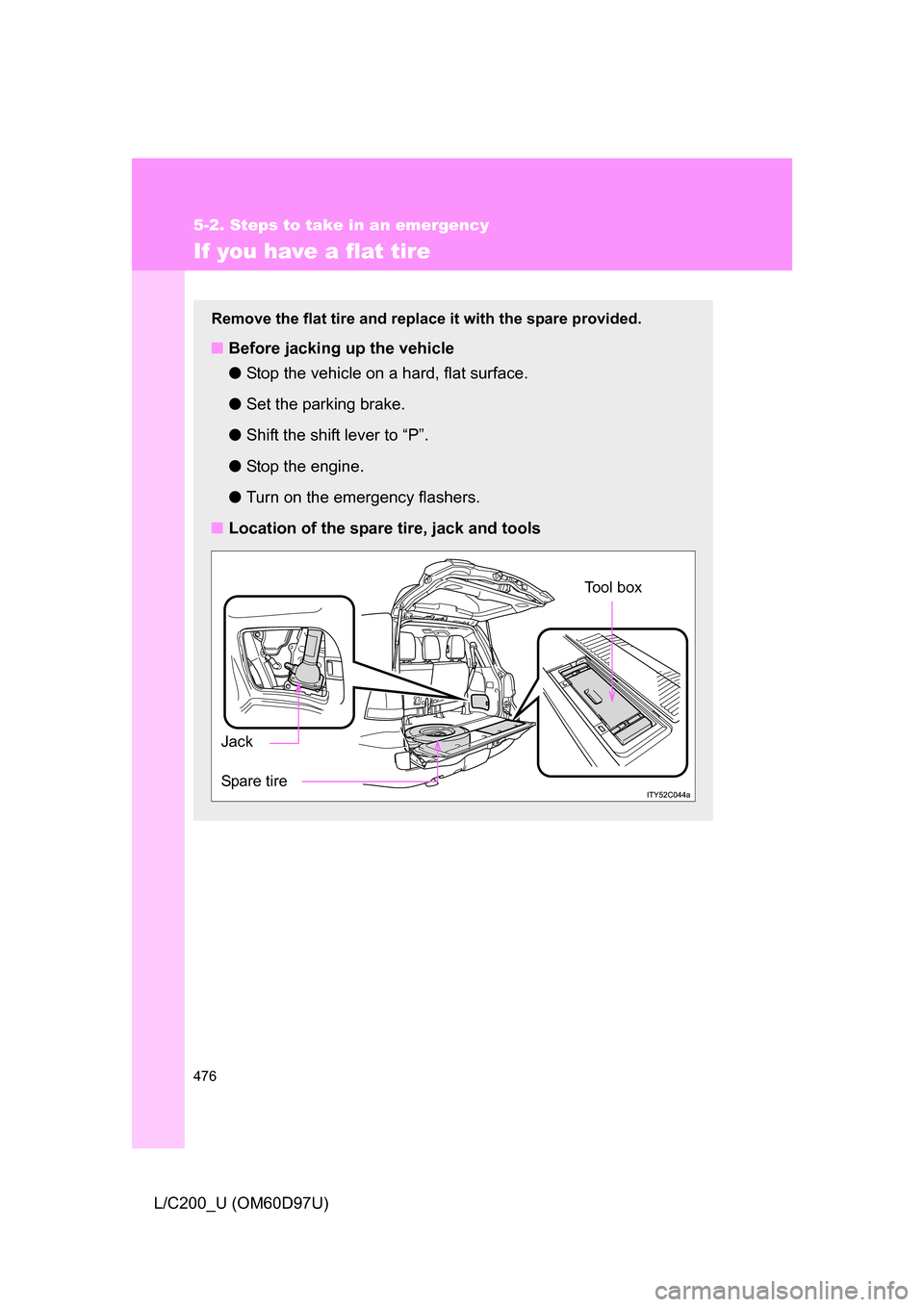

If you have a flat tire
Remove the flat tire and replace it with the spare provided.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to “P”.
● Stop the engine.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
Tool box
Spare tire Jack

5
When trouble arises
477
5-2. Steps to take in an emergency
L/C200_U (OM60D97U)

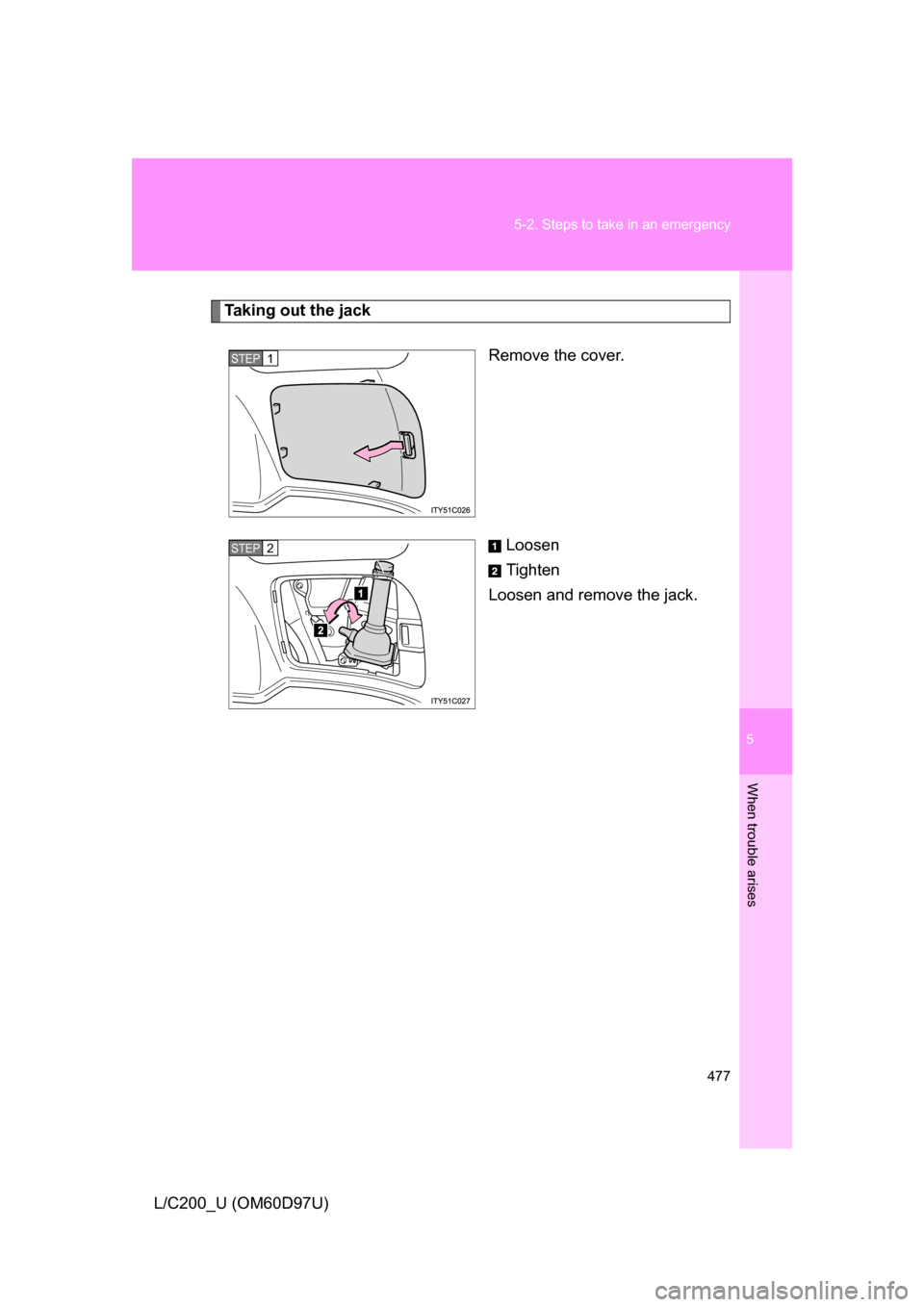

Taking out the jack
Remove the cover.
Loosen
Tighten
Loosen and remove the jack.
STEP1
STEP2

478 5-2. Steps to take in an emergency
L/C200_U (OM60D97U)

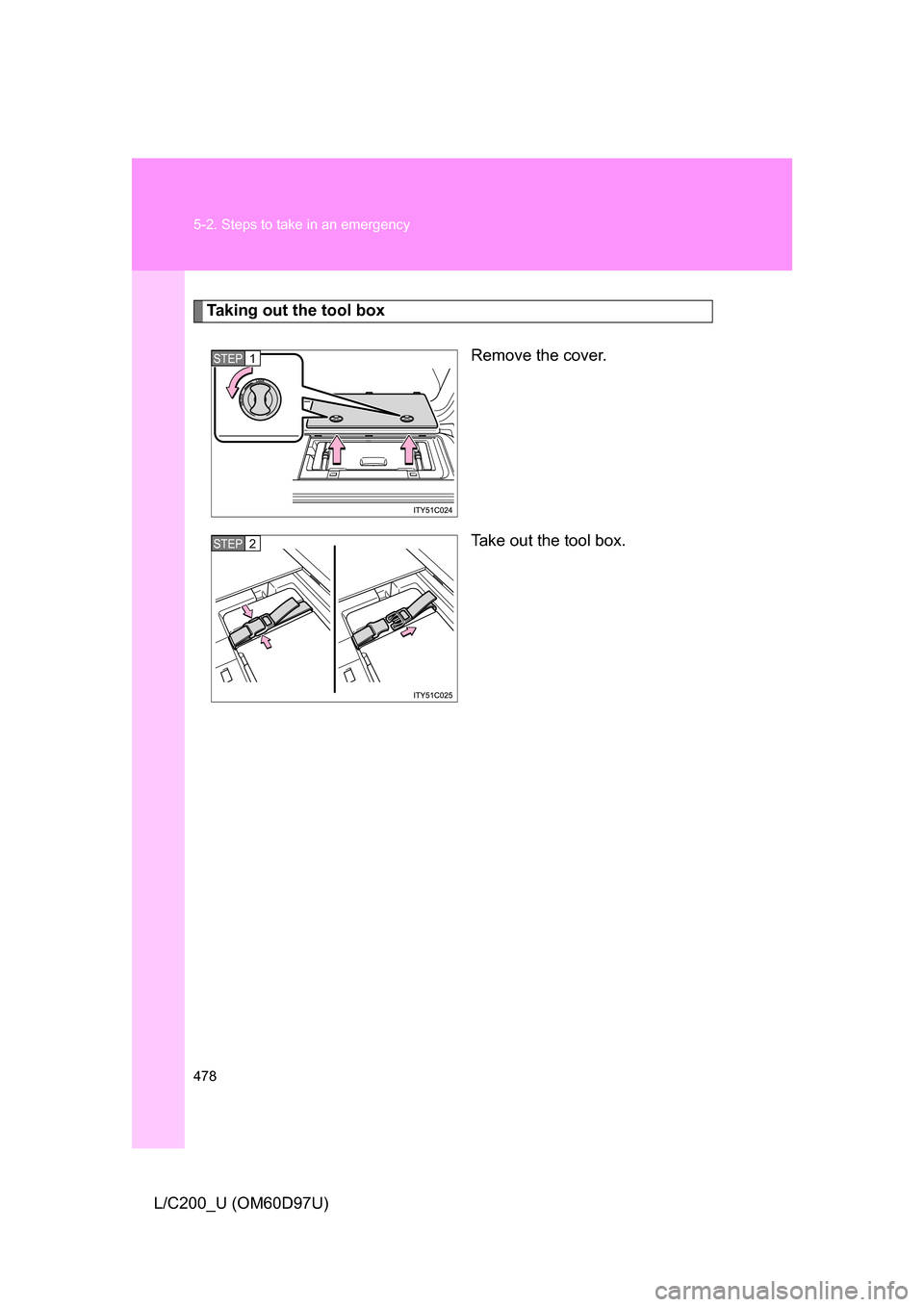

Taking out the tool boxRemove the cover.
Take out the tool box.
STEP1
STEP2

5
When trouble arises
479
5-2. Steps to take in an emergency
L/C200_U (OM60D97U)
Assemble the jack handle (in the tool box)
Assemble the jack handle exten-
sion as shown. Be sure to tighten
each bolt securely.
Taking out the spare tire
Remove the cover.
Insert the jack handle extension
into the lowering screw.Lower
Raise
Place a rag under the jack handle
extension to protect the back
door.
STEP1
ITY51C030
STEP2

480 5-2. Steps to take in an emergency

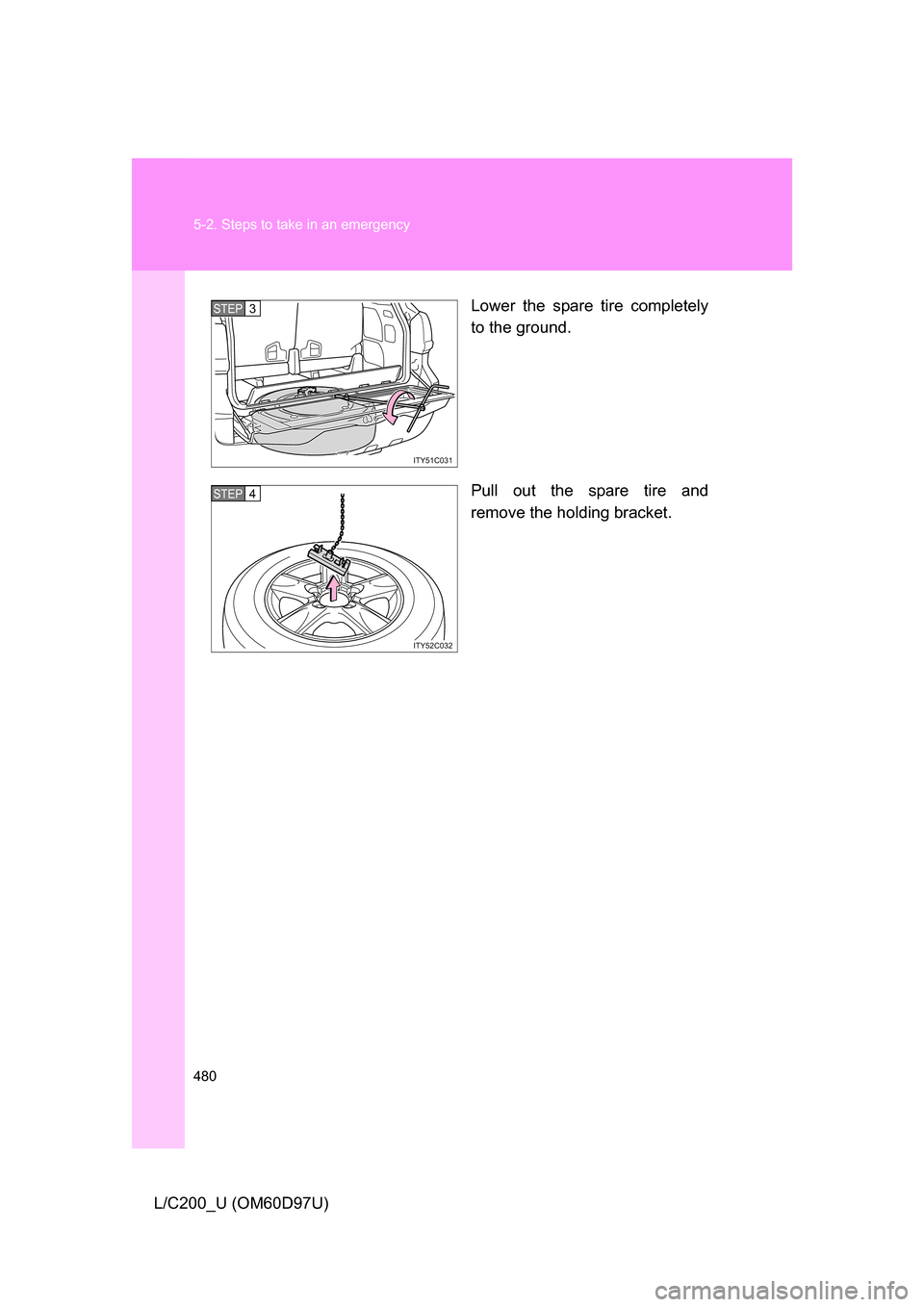

L/C200_U (OM60D97U)Lower the spare tire completely
to the ground.
Pull out the spare tire and
remove the holding bracket.
ITY51C031
STEP3
ITY52C032
STEP4
