2009 TOYOTA LAND CRUISER instrument panel

12
L/C200_U (OM60D97U)

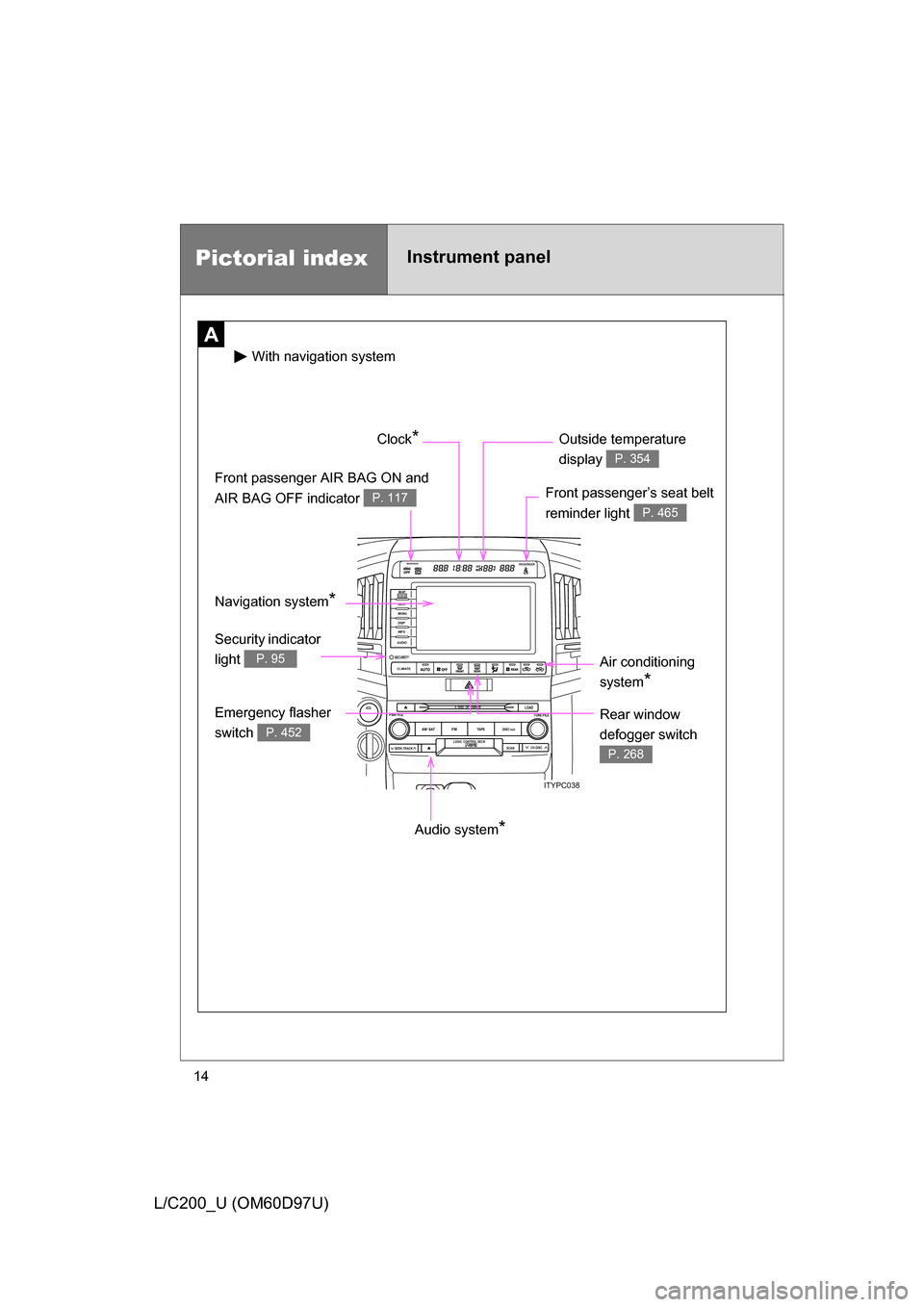

Pictorial indexInstrument panel
Headlight switch
Turn signal lever
Fog light switch P. 174
P. 161
P. 177
Windshield wipers and washer switch
Rear window wiper and washer switch P. 179, 182
P. 185
Gauges and meters P. 164
Glove box
P. 342
Fuel filler door opener P. 91
Hood opener P. 388
SRS knee airbags P. 102
Tire pressure warning
reset switch
P. 405
Cup holders P. 345
Multi-information display P. 170
Audio remote controls (steering switches) P. 296
Bottle holder P. 346
Horn P. 163

14
L/C200_U (OM60D97U)
Pictorial indexInstrument panel
A
LOADTUNE·FILE
CH-DISC
FMnTAPEPWR·VOL
SEEK-TRACK
DISC·AUXSAT
AM
4 DISC OF OWNER
SCAN
LOGIC CONTROL DECK
SECURITYCLIMATE
DEST MAVOICEP
MENU
DISP
INFO
AUDIO
ITYPC038
Audio system*
Front passenger’s seat belt
reminder light
P. 465
Front passenger AIR BAG ON and
AIR BAG OFF indicator
P. 117
Clock* Outside temperature
display
P. 354
Air conditioning
system
*
Emergency flasher
switch
P. 452
Security indicator
light
P. 95
With naviga tion system
Rear window
defogger switch

P. 268
Navigation system*

16
L/C200_U (OM60D97U)

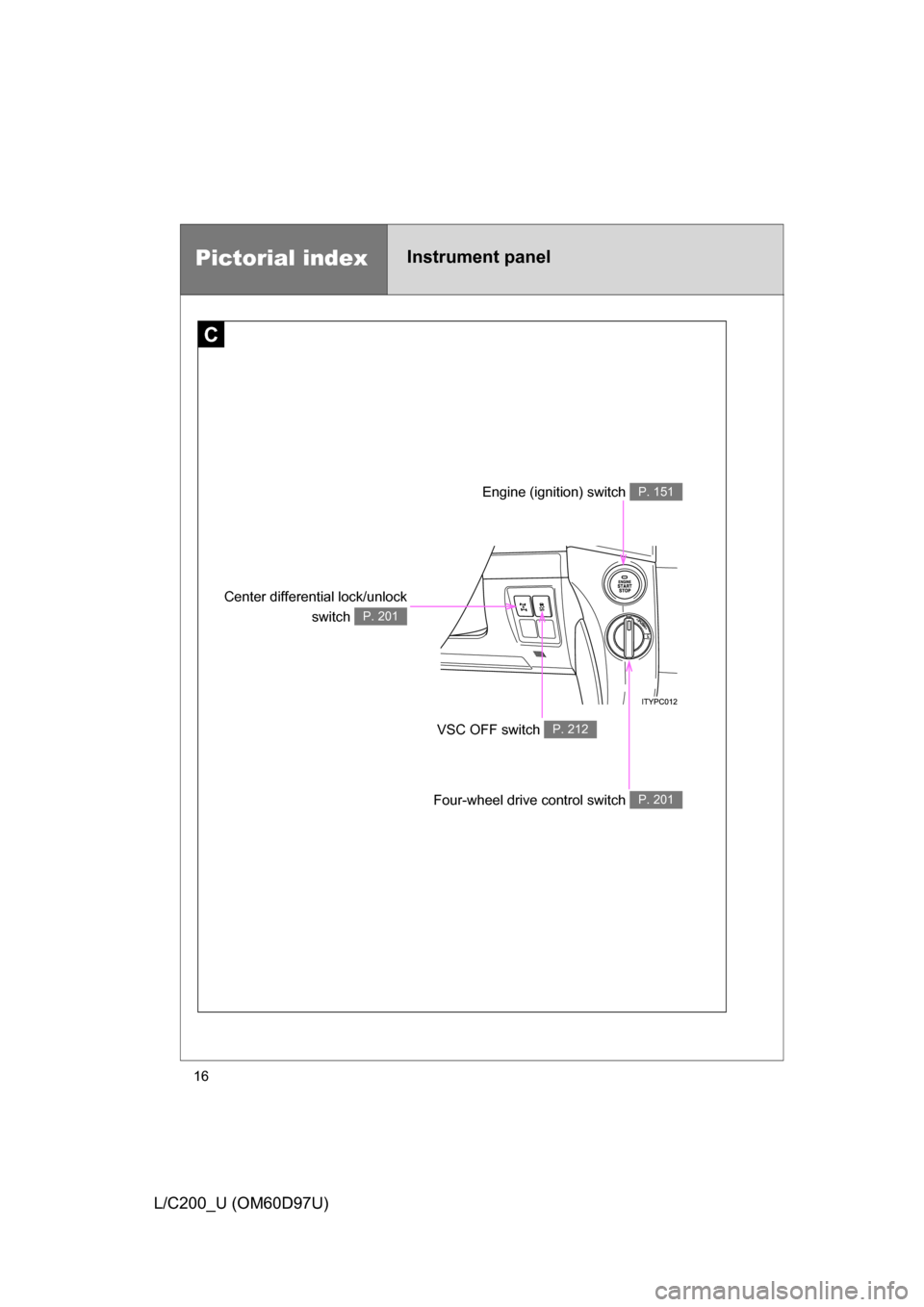

Pictorial indexInstrument panel
C
Engine (ignition) switch P. 151
VSC OFF switch P. 212
Four-wheel drive control switch P. 201
Center differential lock/unlockswitch
P. 201

17
L/C200_U (OM60D97U)
D
Roll sensing of curtain shield
airbags off switch
P. 116
Headlight cleaner switch P. 187
Power outlet main switch P. 358
Outside rear view mirror control switches P. 268
Toyota park assist system switch P. 192
: If equipped
Instrument panel light control knob P. 165
Odometer/trip meter and trip meter
reset button
P. 164
Tilt and telescopic steering
control switch
P. 79
Card holder P. 348

33

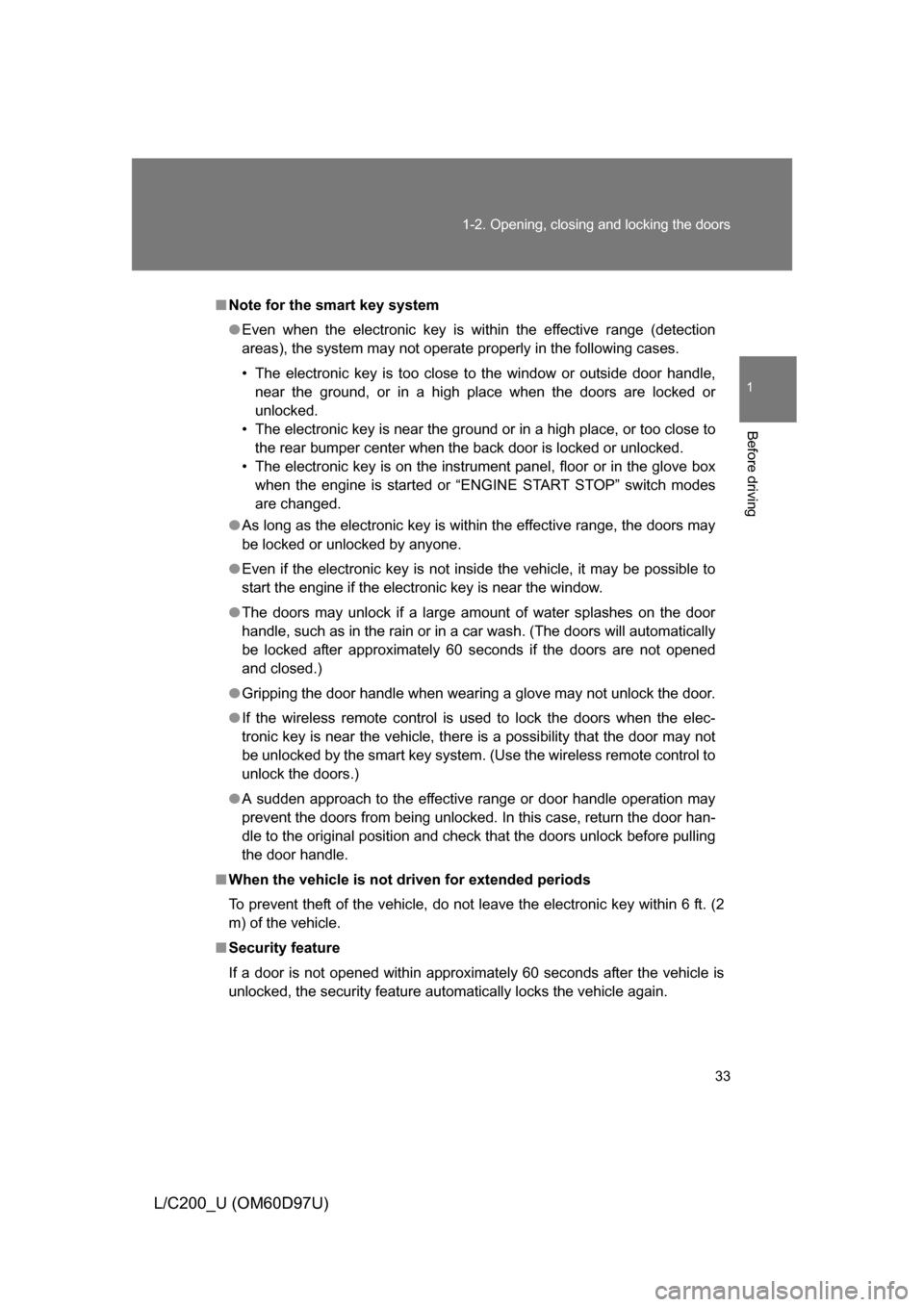

1-2. Opening, closing and locking the doors
1
Before driving
L/C200_U (OM60D97U)
■
Note for the smart key system
● Even when the electronic key is within the effective range (detection
areas), the system may not operate properly in the following cases.
• The electronic key is too close to the window or outside door handle,
near the ground, or in a high place when the doors are locked or
unlocked.
• The electronic key is near the ground or in a high place, or too close to the rear bumper center when the back door is locked or unlocked.
• The electronic key is on the instrument panel, floor or in the glove box when the engine is started or “ENGINE START STOP” switch modes
are changed.
● As long as the electronic key is within the effective range, the doors may
be locked or unlocked by anyone.
● Even if the electronic key is not inside the vehicle, it may be possible to
start the engine if the electronic key is near the window.
● The doors may unlock if a large amount of water splashes on the door
handle, such as in the rain or in a car wash. (The doors will automatically
be locked after approximately 60 seconds if the doors are not opened
and closed.)
● Gripping the door handle when wearing a glove may not unlock the door.
● If the wireless remote control is used to lock the doors when the elec-
tronic key is near the vehicle, there is a possibility that the door may not
be unlocked by the smart key system. (Use the wireless remote control to
unlock the doors.)
● A sudden approach to the effective range or door handle operation may
prevent the doors from being unlocked. In this case, return the door han-
dle to the original position and check that the doors unlock before pulling
the door handle.
■ When the vehicle is not dr iven for extended periods
To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2
m) of the vehicle.
■ Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.

90 1-4. Opening and closing the windows and moon roof
L/C200_U (OM60D97U)

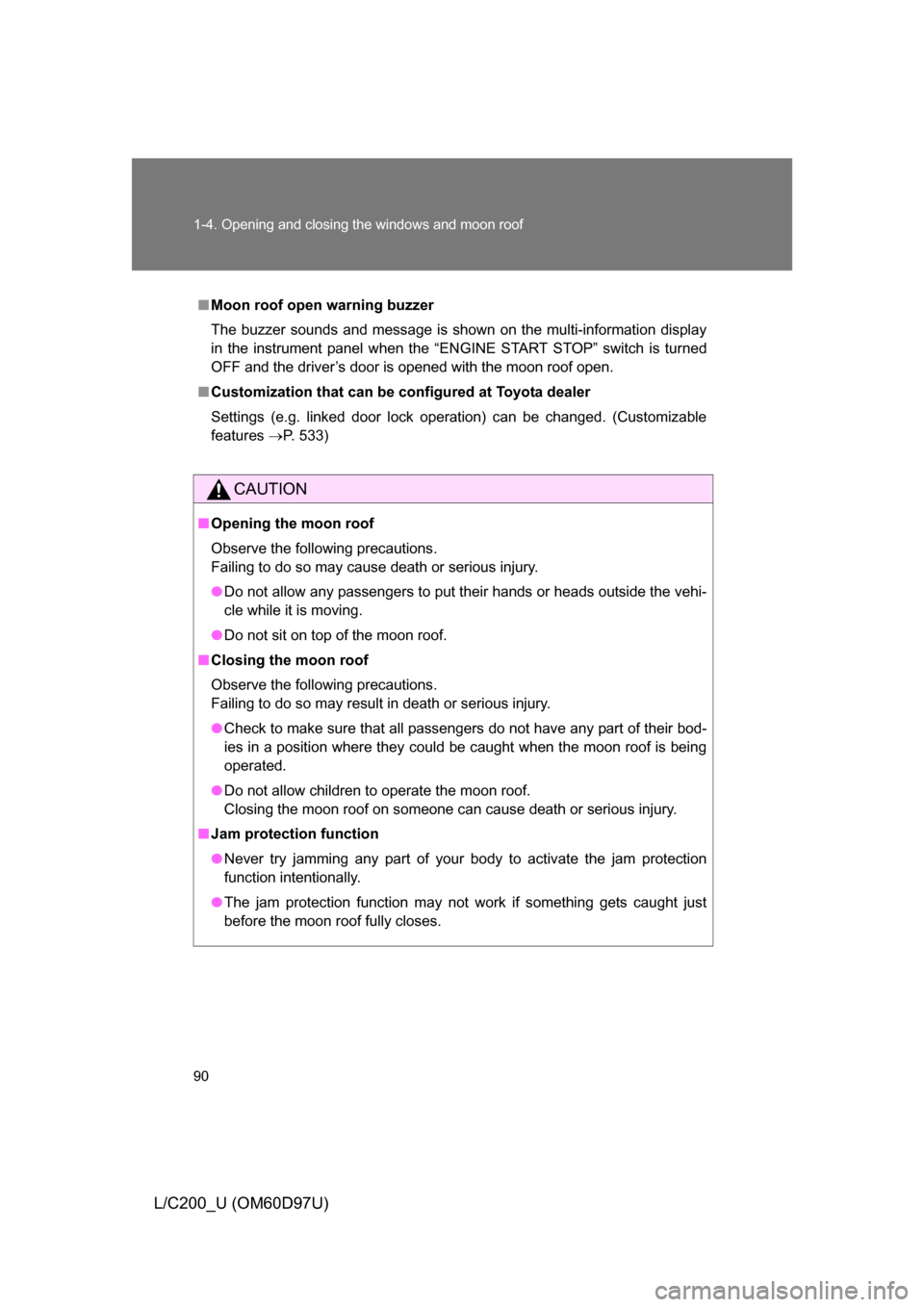

■Moon roof open warning buzzer
The buzzer sounds and message is shown on the multi-information display
in the instrument panel when the “E NGINE START STOP” switch is turned
OFF and the driver’s door is opened with the moon roof open.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. linked door lock operation) can be changed. (Customizable
features P. 533)
CAUTION
■Opening the moon roof
Observe the following precautions.
Failing to do so may cause death or serious injury.
● Do not allow any passengers to put their hands or heads outside the vehi-
cle while it is moving.
● Do not sit on top of the moon roof.
■ Closing the moon roof
Observe the following precautions.
Failing to do so may result in death or serious injury.
● Check to make sure that all passengers do not have any part of their bod-
ies in a position where they could be caught when the moon roof is being
operated.
● Do not allow children to operate the moon roof.
Closing the moon roof on someone can cause death or serious injury.
■ Jam protection function
● Never try jamming any part of your body to activate the jam protection
function intentionally.
● The jam protection function may not work if something gets caught just
before the moon roof fully closes.

109
1-7. Safety information
1
Before driving
L/C200_U (OM60D97U)
■

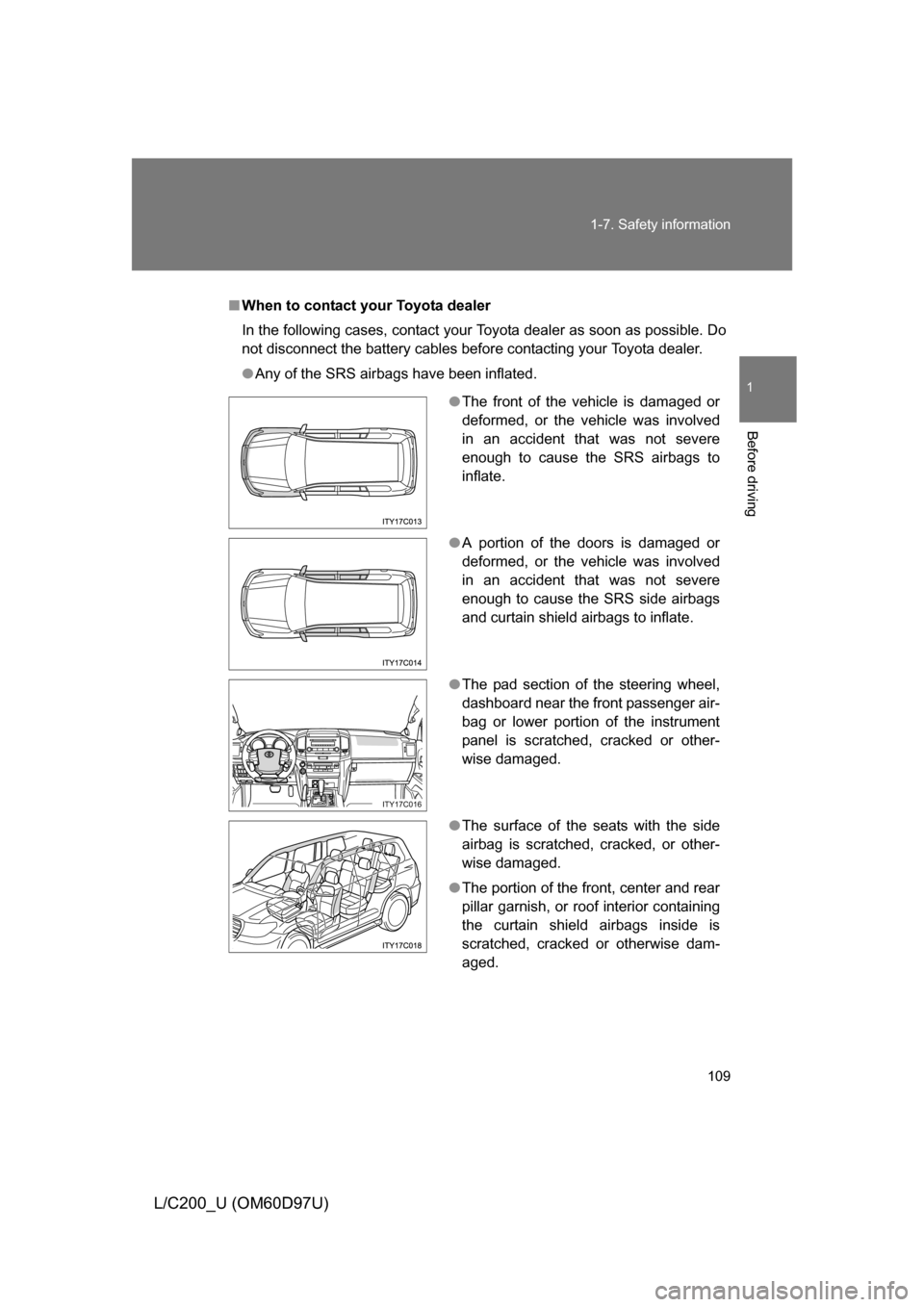

When to contact y our Toyota dealer
In the following cases, contact your Toyota dealer as soon as possible. Do
not disconnect the battery cables before contacting your Toyota dealer.
● Any of the SRS airbags have been inflated.
●The front of the vehicle is damaged or
deformed, or the vehicle was involved
in an accident that was not severe
enough to cause the SRS airbags to
inflate.
● A portion of the doors is damaged or
deformed, or the vehicle was involved
in an accident that was not severe
enough to cause the SRS side airbags
and curtain shield airbags to inflate.
● The pad section of the steering wheel,
dashboard near the front passenger air-
bag or lower portion of the instrument
panel is scratched, cracked or other-
wise damaged.
● The surface of the seats with the side
airbag is scratched, cracked, or other-
wise damaged.
● The portion of the front, center and rear
pillar garnish, or roof interior containing
the curtain shield airbags inside is
scratched, cracked or otherwise dam-
aged.
ITY17C016

110 1-7. Safety information
L/C200_U (OM60D97U)

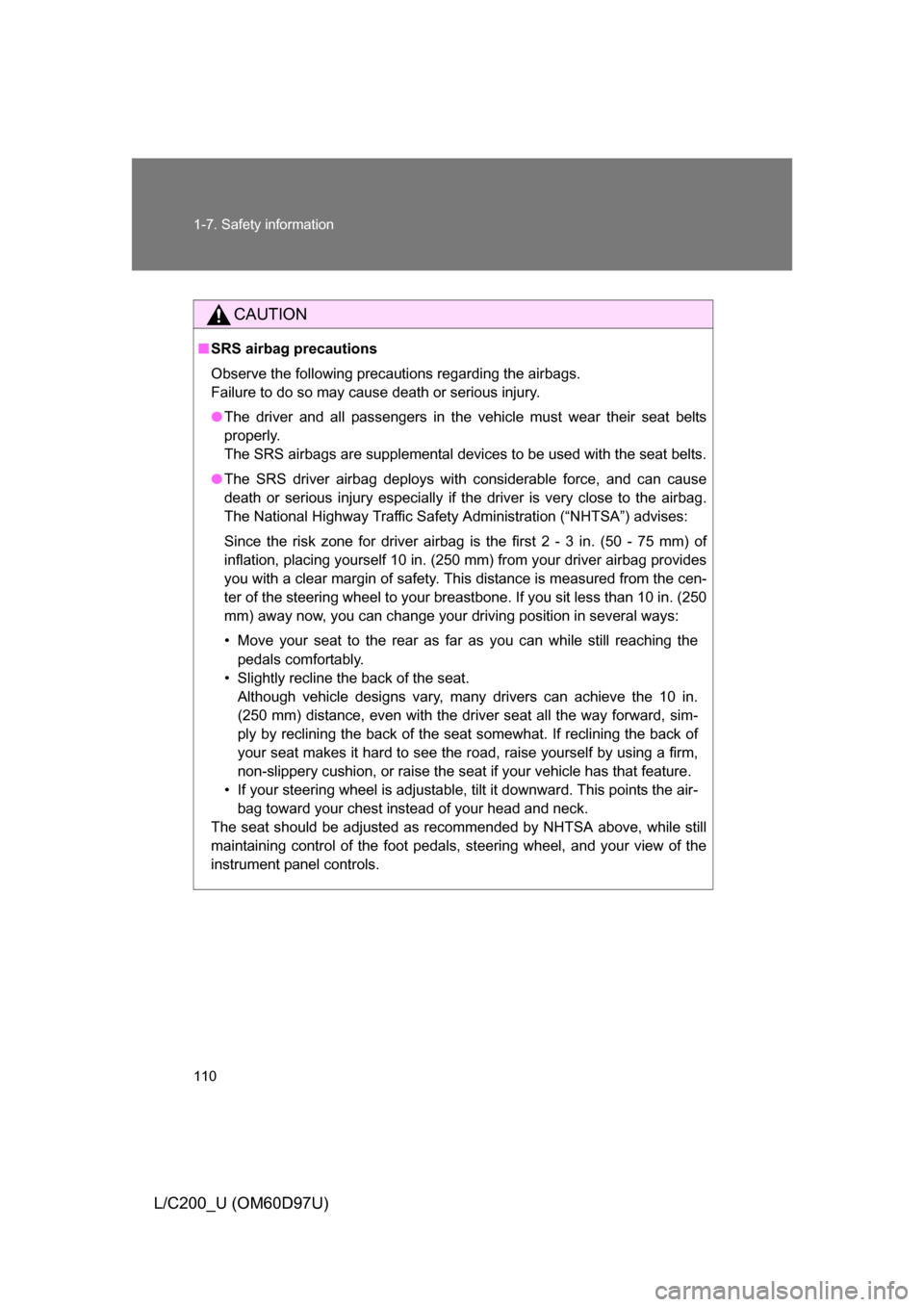

CAUTION
■SRS airbag precautions
Observe the following precautions regarding the airbags.
Failure to do so may cause death or serious injury.
● The driver and all passengers in the vehicle must wear their seat belts
properly.
The SRS airbags are supplemental devices to be used with the seat belts.
● The SRS driver airbag deploys with considerable force, and can cause
death or serious injury especially if the driver is very close to the airbag.
The National Highway Traffic Safety Administration (“NHTSA”) advises:
Since the risk zone for driver airbag is the first 2 - 3 in. (50 - 75 mm) of
inflation, placing yourself 10 in. (250 mm) from your driver airbag provides
you with a clear margin of safety. This distance is measured from the cen-
ter of the steering wheel to your breastbone. If you sit less than 10 in. (250
mm) away now, you can change your driving position in several ways:
• Move your seat to the rear as far as you can while still reaching the pedals comfortably.
• Slightly recline the back of the seat. Although vehicle designs vary, many drivers can achieve the 10 in.
(250 mm) distance, even with the driver seat all the way forward, sim-
ply by reclining the back of the seat somewhat. If reclining the back of
your seat makes it hard to see the road, raise yourself by using a firm,
non-slippery cushion, or raise the seat if your vehicle has that feature\
.
• If your steering wheel is adjustable, tilt it downward. This points the air- bag toward your chest instead of your head and neck.
The seat should be adjusted as recommended by NHTSA above, while still
maintaining control of the foot pedals, steering wheel, and your view of the
instrument panel controls.
