12
L/C200_U (OM60D97U)
Pictorial indexInstrument panel
Headlight switch
Turn signal lever
Fog light switch P. 174
P. 161
P. 177
Windshield wipers and washer switch
Rear window wiper and washer switch P. 179, 182
P. 185
Gauges and meters P. 164
Glove box
P. 342
Fuel filler door opener P. 91
Hood opener P. 388
SRS knee airbags P. 102
Tire pressure warning
reset switch
P. 405
Cup holders P. 345
Multi-information display P. 170
Audio remote controls (steering switches) P. 296
Bottle holder P. 346
Horn P. 163

17
L/C200_U (OM60D97U)
D
Roll sensing of curtain shield
airbags off switch
P. 116
Headlight cleaner switch P. 187
Power outlet main switch P. 358
Outside rear view mirror control switches P. 268
Toyota park assist system switch P. 192
: If equipped
Instrument panel light control knob P. 165
Odometer/trip meter and trip meter
reset button
P. 164
Tilt and telescopic steering
control switch
P. 79
Card holder P. 348

62
1-3. Adjustable components (seats, mirrors, steering wheel)
L/C200_U (OM60D97U)
Driving position memor y system
Your preferred driving position (the position of the driver’s seat,
steering wheel and outside rear view mirrors) can be entered into the
computer’s memory and recalled with the touch of a button. It is also
possible to set this function to activate automatically when the
doors are unlocked.
Three different driving positions can be entered into memory.
■ Entering a position to memory
Check that the shift lever is set in “P”.
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Adjust the driver’s seat, steering wheel, and outside rear
view mirrors to the desired positions. While pressing the “SET” but-
ton, press button “1”, “2” or “3”
until the signal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
STEP1
STEP2
1SET23
1SET23
ITY13C036
STEP3STEP3

64 1-3. Adjustable components (seats, mirrors, steering wheel)

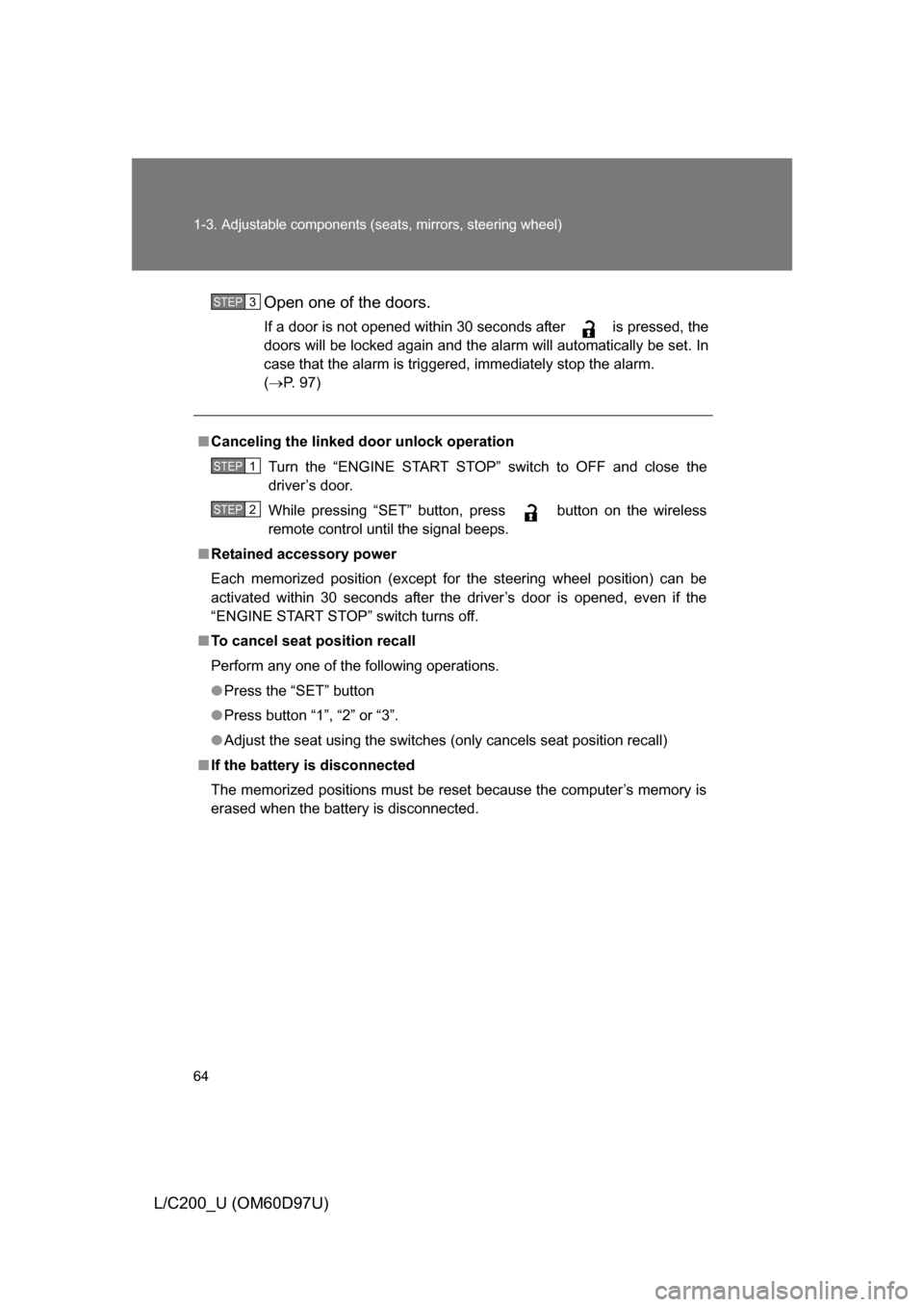

L/C200_U (OM60D97U)Open one of the doors.
If a door is not opened within 30 seconds after is pressed, the
doors will be locked again and the alarm will automatically be set. In
case that the alarm is triggered, immediately stop the alarm.
(
P. 97)
■ Canceling the linked door unlock operation
Turn the “ENGINE START STOP” switch to OFF and close the
driver’s door.
While pressing “SET” button, press button on the wireless
remote control until the signal beeps.
■ Retained accessory power
Each memorized position (except for the steering wheel position) can be
activated within 30 seconds after the driver’s door is opened, even if the
“ENGINE START STOP” switch turns off.
■ To cancel seat position recall
Perform any one of the following operations.
● Press the “SET” button
● Press button “1”, “2” or “3”.
● Adjust the seat using the switches (only cancels seat position recall)
■ If the battery is disconnected
The memorized positions must be reset because the computer’s memory is
erased when the battery is disconnected.
STEP3
STEP1
STEP2

165
2-2. Instrument cluster
2
When driving
L/C200_U (OM60D97U)
Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
Odometer and trip meter
Odometer: Displays the total distance the vehicle has been driven.
Trip meter: Displays the distance the vehicle has been driven since the
meter was last reset. Trip meters A and B can be used to record and
display different distances independently.
Engine oil pressure gauge
Displays the engine oil pressure.
Odometer/trip meter and trip meter reset button
Switches between odometer and trip meter displays. Pushing and hold-
ing the button will reset the trip meter when the trip meter is being dis-
played.

190 2-4. Using other driving systems
L/C200_U (OM60D97U)
■Cruise control can be set when
● The shift lever is in the “D” or “4”, “5” or “6” range of “S”.
● Vehicle speed is more than approximately 25 mph (40 km/h).
■ Accelerating
The vehicle can be accelerated normally. After acceleration, the set speed
resumes.
■ Automatic cruise control cancelation
The set speed is automatically canceled in any of the following situations.
● Actual vehicle speed falls more than 10 mph (16 km/h) below the preset
vehicle speed.
At this time, the memorized set speed is not retained.
● Actual vehicle speed is below 25 mph (40 km/h).
● VSC is activated.
■ If the cruise control indicator light flashes
Turn the “ON-OFF” button off once, and then reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels
immediately after being activated, there may be a malfunction in the cruise
control system. Contact your Toyota dealer, and have your Toyota inspected.

273
3-2. Using the audio system
3
Interior features
L/C200_U (OM60D97U)
Setting station presets
Search for desired stations by turning or pressing “ ” or
“  ” on .
Press and hold the button (from to ) the sta-
tion is to be set to, and you hear a beep.
Scanning radio stations
■ Scanning the preset radio stations
Press and hold until you hear a beep.
Preset stations will be played for a few seconds each.
When the desired station is reached, press once
again.
■ Scanning all radio stations within range
Press .
“SCAN” appears on the display and all stations with reception
will be played for a few seconds each.
When the desired station is reached, press once
again.
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2

275
3-2. Using the audio system
3
Interior features
L/C200_U (OM60D97U)
■

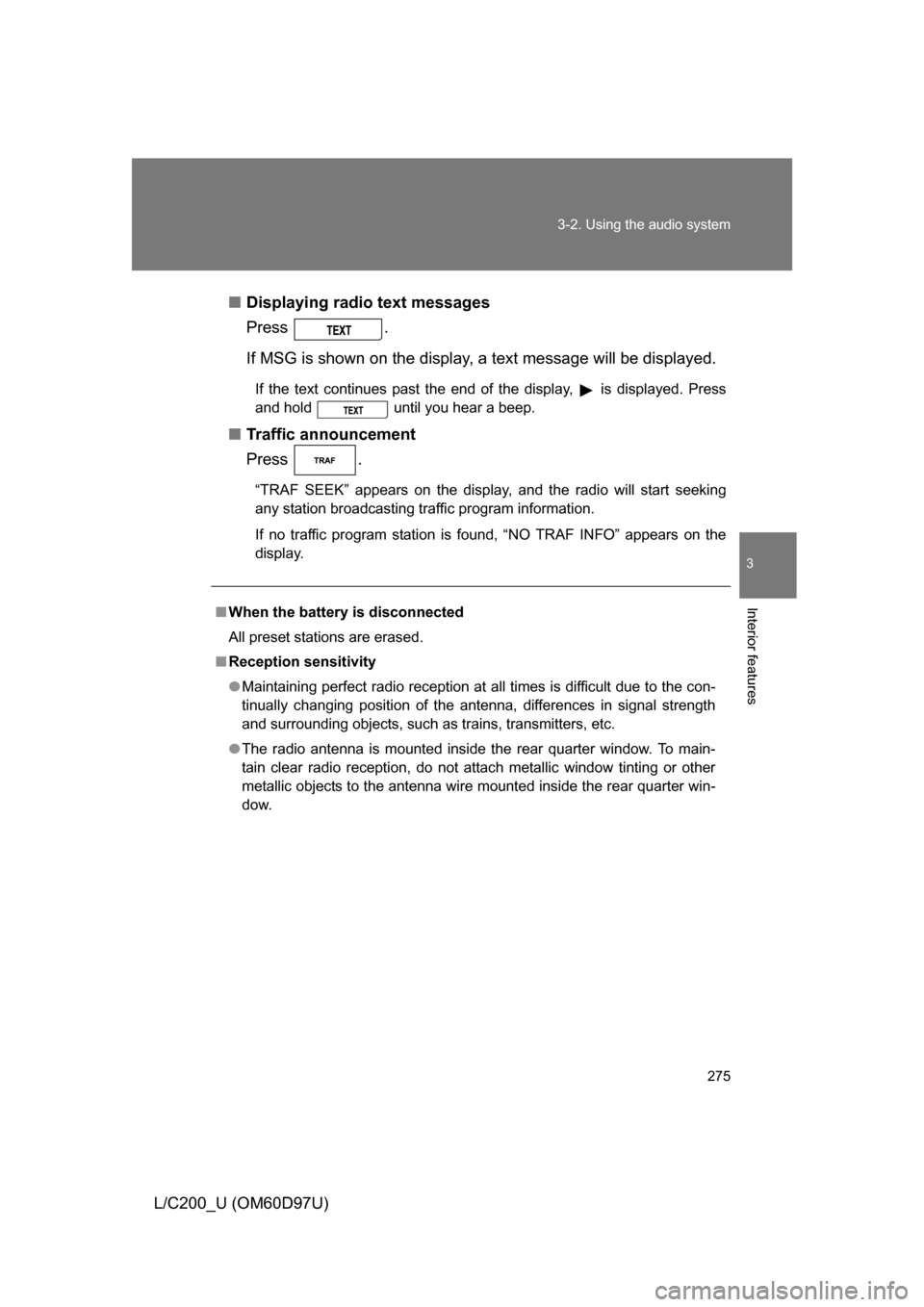

Displaying radio text messages
Press .
If MSG is shown on the display, a text message will be displayed.
If the text continues past the end of the display, is displayed. Press
and hold until you hear a beep.
■Traffic announcement
Press .
“TRAF SEEK” appears on the display, and the radio will start seeking
any station broadcasting traffic program information.
If no traffic program station is found, “NO TRAF INFO” appears on the
display.
■ When the battery is disconnected
All preset stations are erased.
■ Reception sensitivity
● Maintaining perfect radio reception at all times is difficult due to the con-
tinually changing position of the antenna, differences in signal strength
and surrounding objects, such as trains, transmitters, etc.
● The radio antenna is mounted inside the rear quarter window. To main-
tain clear radio reception, do not attach metallic window tinting or other
metallic objects to the antenna wire mounted inside the rear quarter win-
dow.
