2009 TOYOTA LAND CRUISER warning

TABLE OF CONTENTSIndex
2
L/C200_U (OM60D97U)
1-1. Key information .................. 24Keys ..................................... 24
1-2. Opening, closing and
locking the doors ............. 26
Smart key system................. 26
Wireless remote control ....... 40
Side doors ............................ 43
Back door ............................. 48
1-3. Adjustable components
(seats, mirrors,
steering wheel) ................. 51
Front seats ........................... 51
Rear seats ............................ 53
Driving position memory system ................................ 62
Head restraints ..................... 66
Seat belts ............................. 70
Steering wheel ..................... 79
Inside rear view mirror.......... 81
Outside rear view mirrors ..... 82
1-4. Opening and clos ing
the windows and
moon roof ......................... 85
Power windows .................... 85
Moon roof ............................. 88
1-5. Refueling ............................. 91 Opening the fuel tank cap .... 91 1-6. Theft deterrent system ....... 95
Engine immobilizer system ................................ 95
Alarm .................................... 97
Theft prevention labels ......... 99
1-7. Safety information ............ 100 Correct driving posture ....... 100
SRS airbags ....................... 102
Front passenger occupant classification system ......... 117
Child restraint systems ....... 123
Installing child restraints ..... 127
2-1. Driving procedures........... 142 Driving the vehicle .............. 142
Engine (ignition) switch....... 151
Automatic transmission ...... 155
Turn signal lever ................. 161
Parking brake ..................... 162
Horn .................................... 163
2-2. Instrument cluster ............ 164 Gauges and meters ............ 164
Indicators and warning lights ................................. 167
Multi-information display ..... 170
1Before driving
2When driving

1
2
3
4
5
6
7
5
L/C200_U (OM60D97U)
5-1. Essential information ....... 452Emergency flashers ............ 452
If your vehicle needs to be towed ....................... 453
If you think something is wrong ................................ 458
Fuel pump shut off system .............................. 459
Event data recorder ............ 460
5-2. Steps to take in an emergency ....................... 462
If a warning light turns on or a warning sounds.............. 462
If a warning message is displayed........................... 473
If you have a flat tire............ 476
If the engine will not start .... 489
If the shift lever cannot be shifted from P.................... 491
If you lose your keys ........... 492
If you cannot operate back door opener ...................... 493
If the electronic key does not operate properly................ 494
If the battery is discharged ........................ 497
If your vehicle overheats ..... 501
If the vehicle becomes stuck ................................. 504 6-1. Specifications ................... 508
Maintenance data (fuel, oil level, etc.) ........... 508
Fuel information.................. 518
Tire information .................. 521
6-2. Customization................... 533 Customizable features........ 533
6-3. Initialization....................... 537 Items to initialize ................. 537
Reporting safety defects for U.S. owners ................ 540
Abbreviation list ............... 542
Alphabetical index............ 544
What to do if...................... 552
5When trouble arises6Vehicle specifications
7For U.S. owners
Index

12
L/C200_U (OM60D97U)
Pictorial indexInstrument panel
Headlight switch
Turn signal lever
Fog light switch P. 174
P. 161
P. 177
Windshield wipers and washer switch
Rear window wiper and washer switch P. 179, 182
P. 185
Gauges and meters P. 164
Glove box
P. 342
Fuel filler door opener P. 91
Hood opener P. 388
SRS knee airbags P. 102
Tire pressure warning
reset switch
P. 405
Cup holders P. 345
Multi-information display P. 170
Audio remote controls (steering switches) P. 296
Bottle holder P. 346
Horn P. 163

21
L/C200_U (OM60D97U)

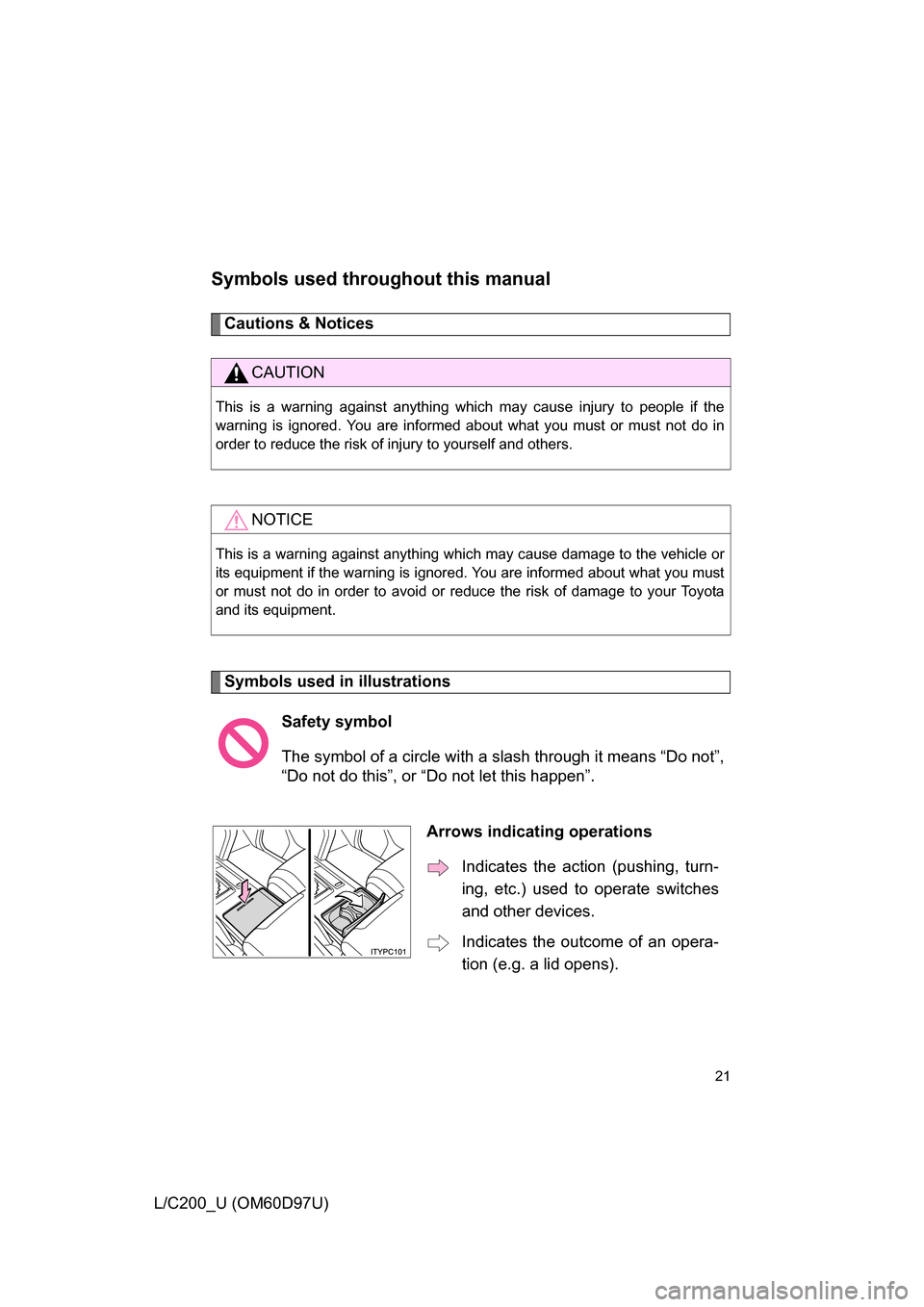

Symbols used throughout this manual
Cautions & Notices
Symbols used in illustrations
CAUTION
This is a warning against anything which may cause injury to people if the
warning is ignored. You are informed about what you must or must not do in
order to reduce the risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause damage to the vehicle or
its equipment if the warning is ignored. You are informed about what you must
or must not do in order to avoid or reduce the risk of damage to your Toyota
and its equipment.
Safety symbol
The symbol of a circle with a slash through it means “Do not”,
“Do not do this”, or “Do not let this happen”.
Arrows indicating operations
Indicates the action (pushing, turn-ing, etc.) used to operate switches
and other devices.
Indicates the outcome of an opera- tion (e.g. a lid opens).

34 1-2. Opening, closing and locking the doors
L/C200_U (OM60D97U)
■Alarms and warning indicators
A combination of exterior and interior alarms as well as warnings displayed
on the multi-information display are used to prevent theft of the vehicle and
unforeseeable accidents resulting from erroneous operation. Perform the
appropriate correction procedure de scribed in the following table.
AlarmSituationCorrection procedure
Exterior alarm
sounds once for
2 seconds An attempt was made to
lock the doors using the
entry function while the
electronic key was still
inside the passenger com-
partment Retrieve the elec-
tronic key from the
passenger compart-
ment and lock the
doors again
Exterior alarm
sounds once for
60 seconds An attempt was made to
exit the vehicle and lock
the doors without first turn-
ing the “ENGINE START
STOP” switch OFF Turn the “ENGINE
START STOP” switch
OFF and lock the
doors again
Exterior alarm
sounds once for
10 seconds An attempt was made to
lock the vehicle while a
door is open Close all of the doors
and lock the doors
again
Interior alarm
pings continu-
ously
*1
The “ENGINE START
STOP” switch was turned
to ACCESSORY mode
while the driver’s door was
open (or the driver’s door
was opened while the
“ENGINE START STOP”
switch was in ACCES-
SORY mode) Turn the “ENGINE
START STOP” switch
OFF and close the
driver’s door
The “ENGINE START
STOP” switch was turned
OFF while the driver’s door
was open Close the driver’s
door

37
1-2. Opening, closing and locking the doors
1
Before driving
L/C200_U (OM60D97U)
■
Certification for the smart key system
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
FCC ID:NI4TMLF-5

42 1-2. Opening, closing and locking the doors
L/C200_U (OM60D97U)
■Certification for wir eless remote control
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTICE:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. How-
ever, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
● Consult the dealer or an experienc ed radio/TV technician for help.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
FCC ID:HYQ14AAB
FCC ID:HYQ13BZS

90 1-4. Opening and closing the windows and moon roof
L/C200_U (OM60D97U)
■Moon roof open warning buzzer
The buzzer sounds and message is shown on the multi-information display
in the instrument panel when the “E NGINE START STOP” switch is turned
OFF and the driver’s door is opened with the moon roof open.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. linked door lock operation) can be changed. (Customizable
features P. 533)
CAUTION
■Opening the moon roof
Observe the following precautions.
Failing to do so may cause death or serious injury.
● Do not allow any passengers to put their hands or heads outside the vehi-
cle while it is moving.
● Do not sit on top of the moon roof.
■ Closing the moon roof
Observe the following precautions.
Failing to do so may result in death or serious injury.
● Check to make sure that all passengers do not have any part of their bod-
ies in a position where they could be caught when the moon roof is being
operated.
● Do not allow children to operate the moon roof.
Closing the moon roof on someone can cause death or serious injury.
■ Jam protection function
● Never try jamming any part of your body to activate the jam protection
function intentionally.
● The jam protection function may not work if something gets caught just
before the moon roof fully closes.
