2009 TOYOTA LAND CRUISER warning

204 2-4. Using other driving systems
L/C200_U (OM60D97U)Shift the four-wheel drive control switch to “L4”, then shift to
“H4” again.
When shifting the four-wheel drive control switch, push the switch
down while turning it.
The low speed four-wheel drive indicator light will flash slowly (turns
on and off every 2 seconds).
Shift the shift lever to “P”.
Shifting to the neutral position is completed with above procedure.
The unengaged “Park” warning light will turn on when the shift lever
is shifted to the “P” position.
To return to “H4” when the vehicle is in this condition, carry out the
following procedure.
■
Shifting from neutral position to “H4”
Stop the vehicle completely.
Make sure the vehicle is stopped in a safe place while carrying out
the following procedure.
Set the parking brake firmly.
Turn the “ENGINE START STOP” switch to the IGNITION ON
mode.
Do not start the engine at this time.
Depress the brake pedal firmly.
Keep the brake pedal depressed till the end of the procedure.
Shift the shift lever to “N”.
Shift the four-wheel drive control switch to “L4”, and then shift
to “H4” again.
When shifting the four-wheel drive control switch, push the switch
down while turning it.
The low speed four-wheel drive indicator light will turn off.
Shifting to “H4” is completed when the low speed four-wheel drive
indicator light turns off.
STEP9
STEP10
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6

210 2-4. Using other driving systems
L/C200_U (OM60D97U)
■Automatic system cancelation
In the following situations, the system is canceled automatically, and the
Crawl Control indicator will turn off:
● When the shift lever is moved to “P”.
● When the four-wheel drive control switch is in “H4”.
In the following situations, it is possible to descend a slope at a fixed low
speed, however when traveling the system is canceled automatically, and
the crawl indicator will turn off.
● When the shift lever is moved to “N”.
● When the vehicle speed exceeds 6 mph (10 km/h).
● When the brake pedal is depressed firmly.
● When the parking brake is engaged.
● If the driver’s door is opened.
● When the driving mode is set to second start mode.
■ If the brake system overheats
The system will cease operation and a buzzer will sound to alert the driver.
Stop the vehicle in a safe place. (There is no problem with continuing normal
driving.)
■ If the automatic transmission system overheats
The system will cease operation, a buzzer will sound and a warning mes-
sage will be displayed to alert the driver. Stop the vehicle in a safe place until
the warning message turns off.

218 2-4. Using other driving systems
L/C200_U (OM60D97U)
CAUTION
■When the VSC is activated
The slip indicator light flashes and a warning buzzer sounds. Always drive
carefully.
Reckless driving may cause an accident. Exercise particular care when the
indicator light flashes and a buzzer sounds.
■ Replacing tires
Make sure that all tires are of the same size, brand, tread pattern and total
load capacity. In addition, make sure that the tires are inflated to the speci-
fied tire pressure level.
The Multi Terrain ABS and VSC will not function correctly if different tires are
fitted on the vehicle.
Contact your Toyota dealer for further information when replacing tires or
wheels.
NOTICE
■ KDSS
In the following situations, there is the possibility that a system malfunction
has occurred, and drive comfort and the vehicle’s ability to travel on poor
road surfaces may be reduced. Take the vehicle to your Toyota dealer imme-
diately.
● When turning a corner, the vehicle’s body seems to roll further than nor-
mal.
● If after the vehicle has been left in a slanted position for a long time, for
example with the wheels of one side parked on a curb, the vehicle does
not return to level when driving (the vehicle remains slanted to one side
after returning the vehicle to level ground).

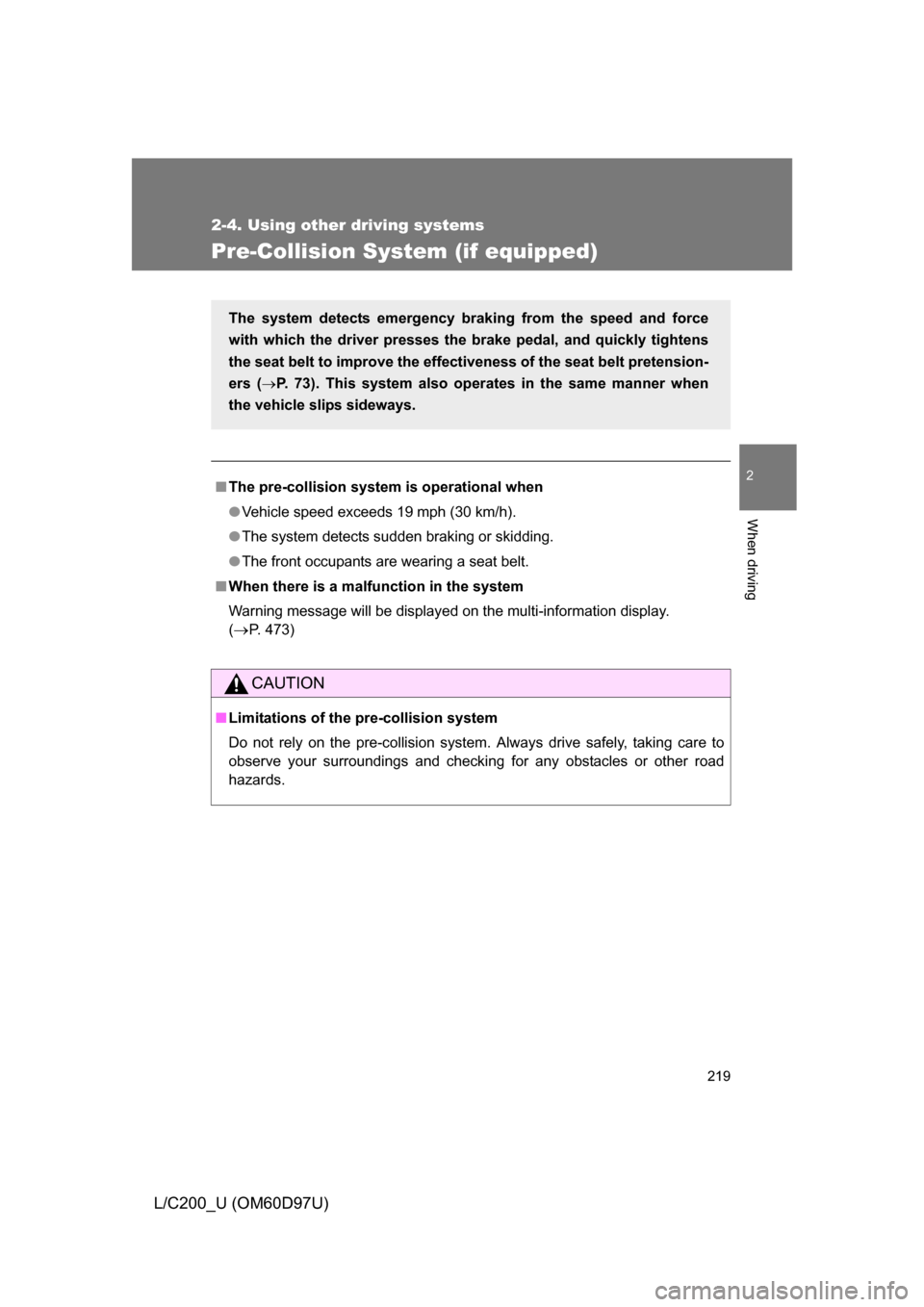

219
2-4. Using other driving systems
2
When driving
L/C200_U (OM60D97U)
Pre-Collision System (if equipped)
■The pre-collision system is operational when
● Vehicle speed exceeds 19 mph (30 km/h).
● The system detects sudden braking or skidding.
● The front occupants are wearing a seat belt.
■ When there is a malfunction in the system
Warning message will be displayed on the multi-information display.
(
P. 473)
CAUTION
■Limitations of the pre-collision system
Do not rely on the pre-collision system. Always drive safely, taking care to
observe your surroundings and checki ng for any obstacles or other road
hazards.
The system detects emergency braking from the speed and force
with which the driver presses the brake pedal, and quickly tightens
the seat belt to improve the effectiveness of the seat belt pretension-
ers ( P. 73). This system also oper ates in the same manner when
the vehicle slips sideways.

237
2-5. Driving information
2
When driving
L/C200_U (OM60D97U)
NOTICE
■Repairing or replacing snow tires
Request repairs of and obtain replac
ement snow tires from Toyota deal-
ers or legitimate tire retailers.
This is because the removal and atta chment of snow tires affects the
operation of the tire pressure warning valves and transmitters.
■Fitting tire chains
The tire pressure warning valves and transmitters may not function cor-
rectly when tire chains are fitted.

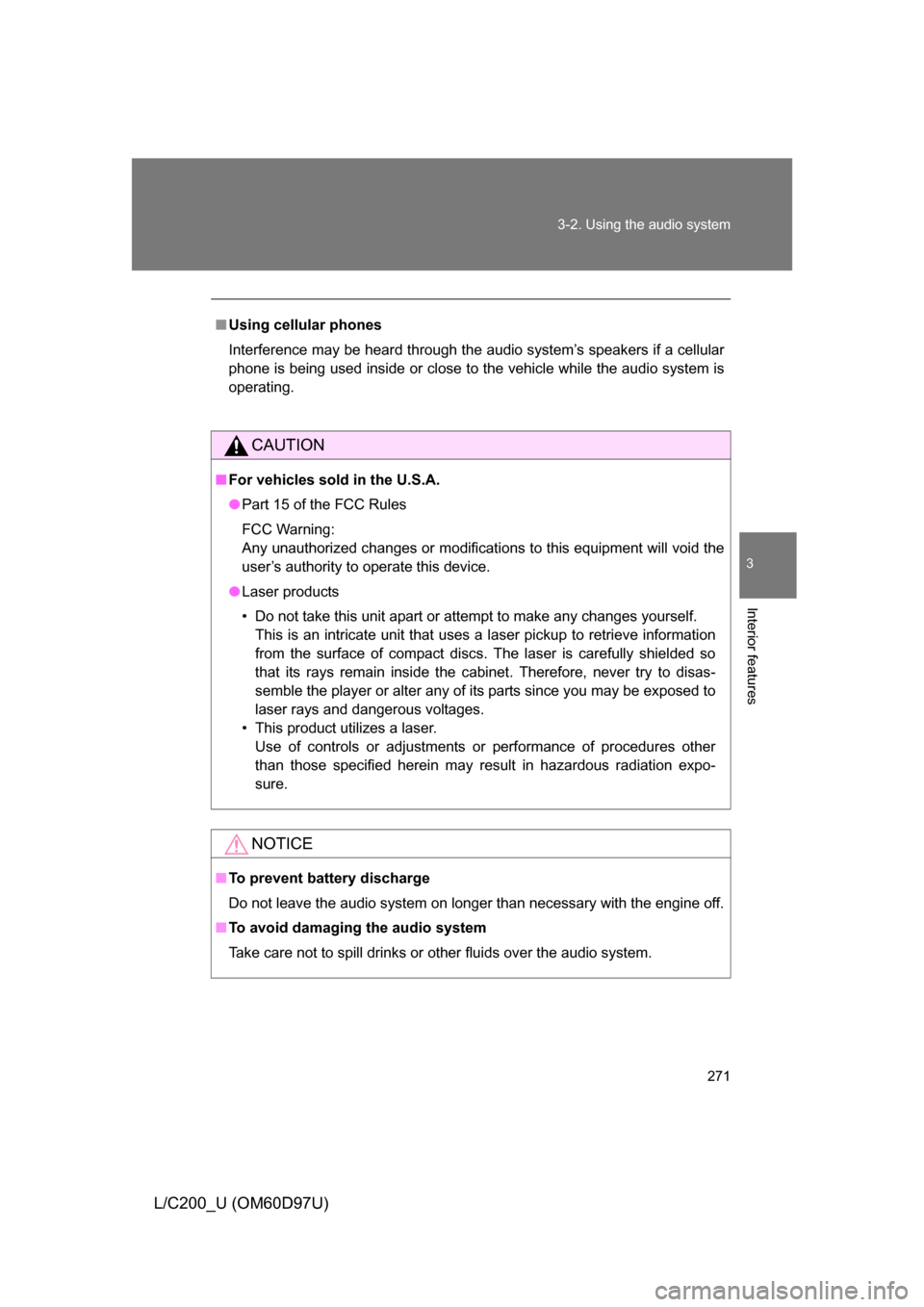

271
3-2. Using the audio system
3
Interior features
L/C200_U (OM60D97U)
■
Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio syste\
m is
operating.
CAUTION
■For vehicles sold in the U.S.A.
● Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifications to this equipment will void the
user’s authority to operate this device.
● Laser products
• Do not take this unit apart or attempt to make any changes yourself.
This is an intricate unit that uses a laser pickup to retrieve information
from the surface of compact discs. The laser is carefully shielded so
that its rays remain inside the cabinet. Therefore, never try to disas-
semble the player or alter any of its parts since you may be exposed to
laser rays and dangerous voltages.
• This product utilizes a laser. Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation expo-
sure.
NOTICE
■To prevent battery discharge
Do not leave the audio system on longer than necessary with the engine o\
ff.
■ To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.

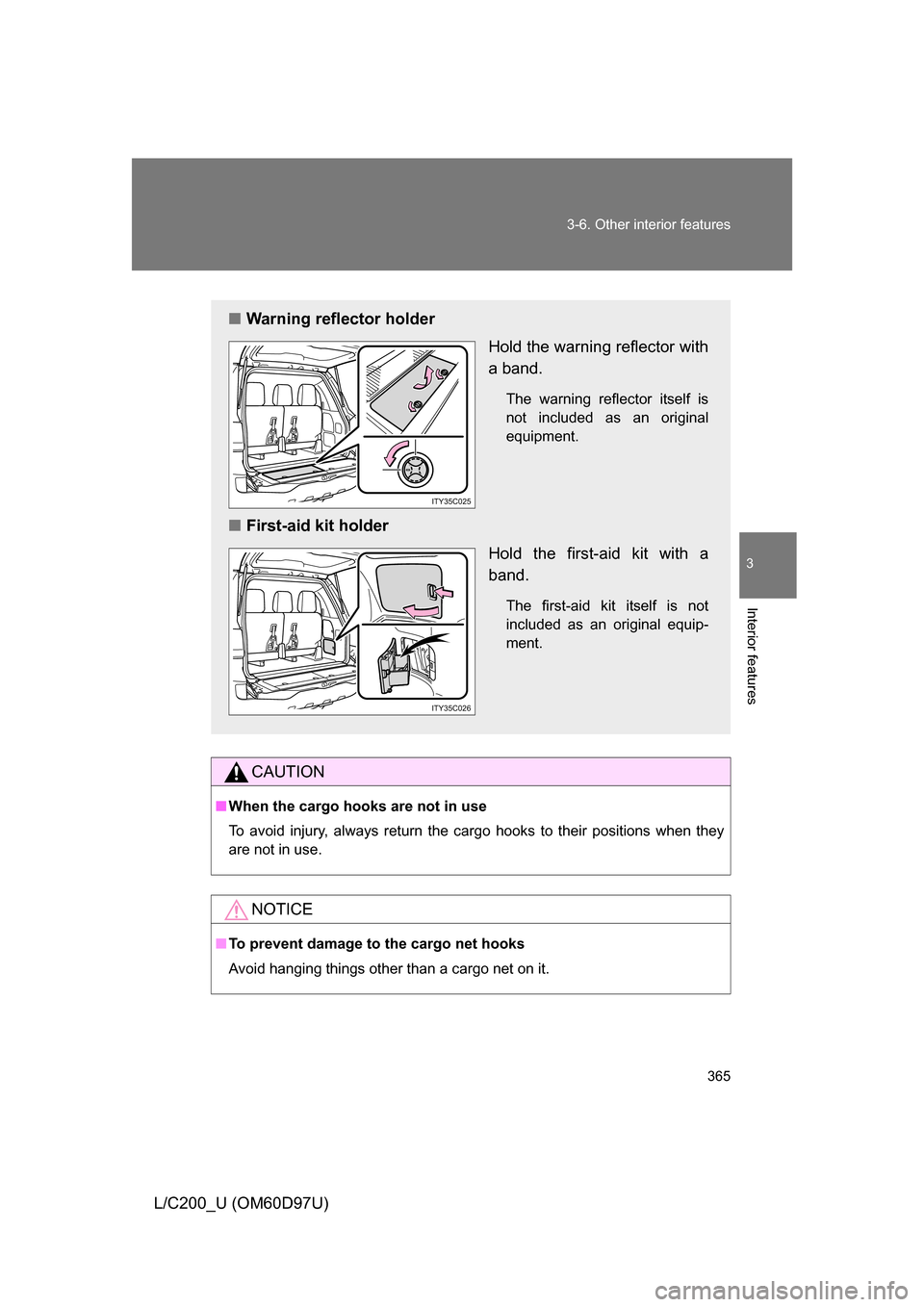

365
3-6. Other interior features
3
Interior features
L/C200_U (OM60D97U)
CAUTION
■
When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
NOTICE
■To prevent damage to the cargo net hooks
Avoid hanging things other than a cargo net on it.
■ Warning reflector holder
Hold the warning reflector with
a band.
The warning reflector itself is
not included as an original
equipment.
■First-aid kit holder
Hold the first-aid kit with a
band.
The first-aid kit itself is not
included as an original equip-
ment.
ITY35C025
ITY35C026

372 3-6. Other interior features
L/C200_U (OM60D97U)
■Before programming
● Install a new battery in the remote control transmitter.
● The battery side of the remote control transmitter must be pointed away
from the HomeLink
 button.
■ Certification for the garage door opener
This device complies with Part 15 of the FCC Rules and with RSS-210 of the
IC Rules.
Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
WARNING: This transmitter has been tested and complies with FCC and IC
rules. Changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate the device.
CAUTION
■When programming a garage door or other remote control devices
The garage door or other devices may operate, so ensure people and
objects are out of danger to prevent potential harm.
■ Conforming to federal safety standards
Do not use the HomeLink
 compatible transceiver with any garage door
opener or device that lacks safety stop and reverse features as required by
federal safety standards.
This includes any garage door that cannot detect an interfering object. A
door or device without these features increases the risk of death or serious
injury.
