4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 517)
■ Remove the engine compartment cover.
P. 390
■ Front bulb locations
ITY43C074
Front side marker light
Parking light
Front fog light
Headlight
high beam Headlight low beam
Front turn signal light

440 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)

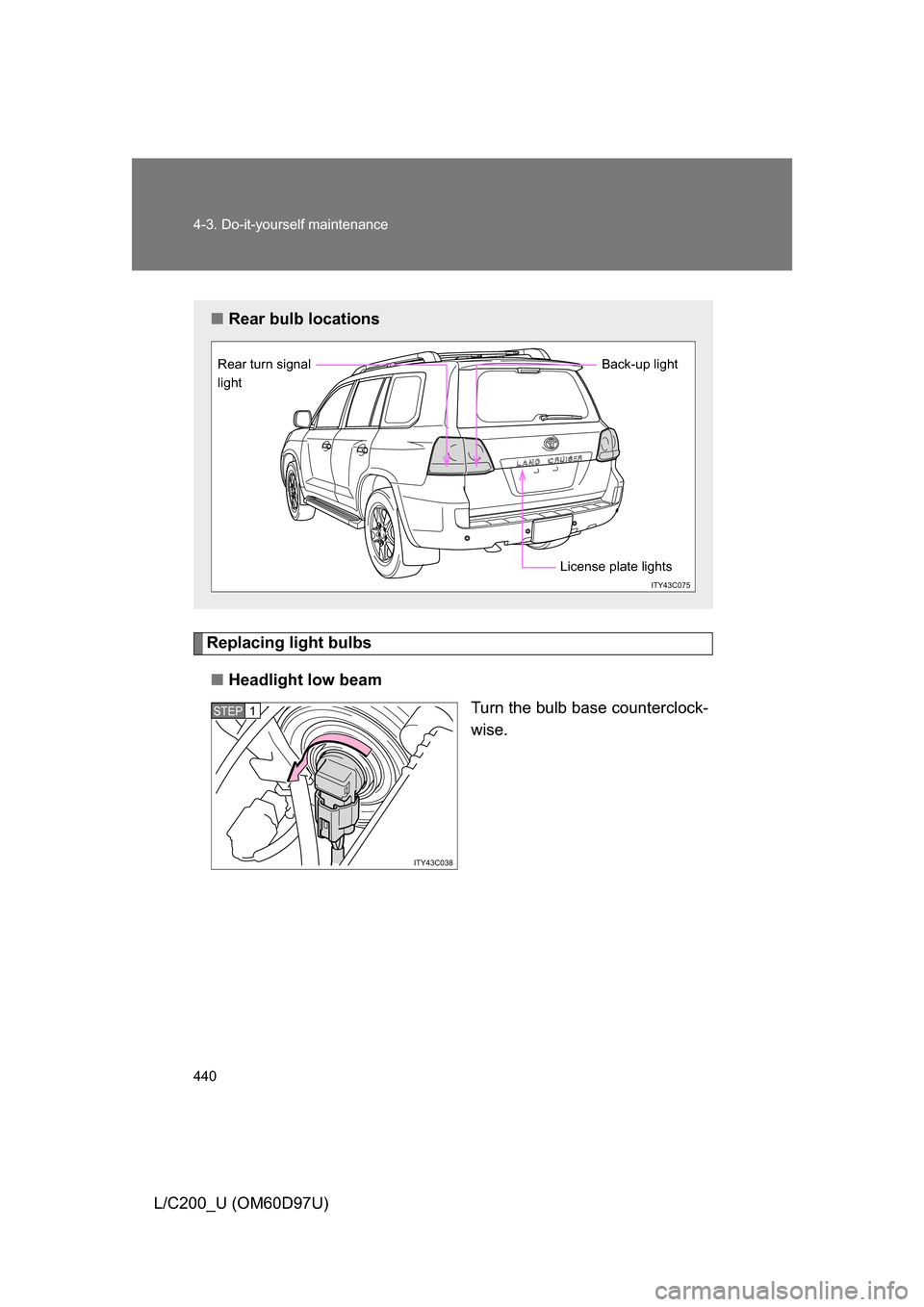

Replacing light bulbs■ Headlight low beam
Turn the bulb base counterclock-
wise.
■Rear bulb locations
ITY43C075
License plate lights
Rear turn signal
light
Back-up light
ITY43C038
STEP1

441
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)
Unplug the connector while
depressing the lock release.

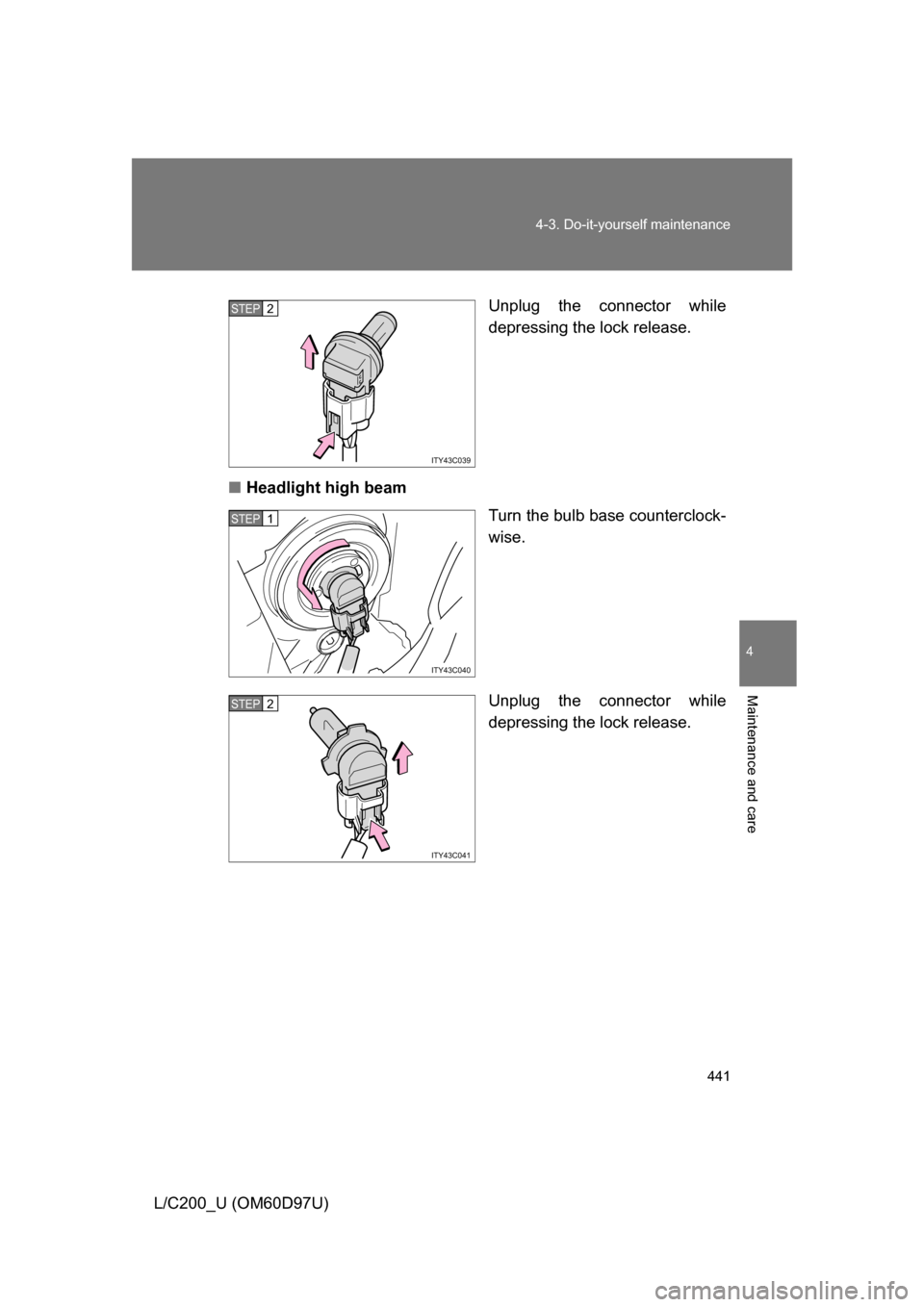

■ Headlight high beam
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
ITY43C039
STEP2
ITY43C040
STEP1
ITY43C041
STEP2

449
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)
■

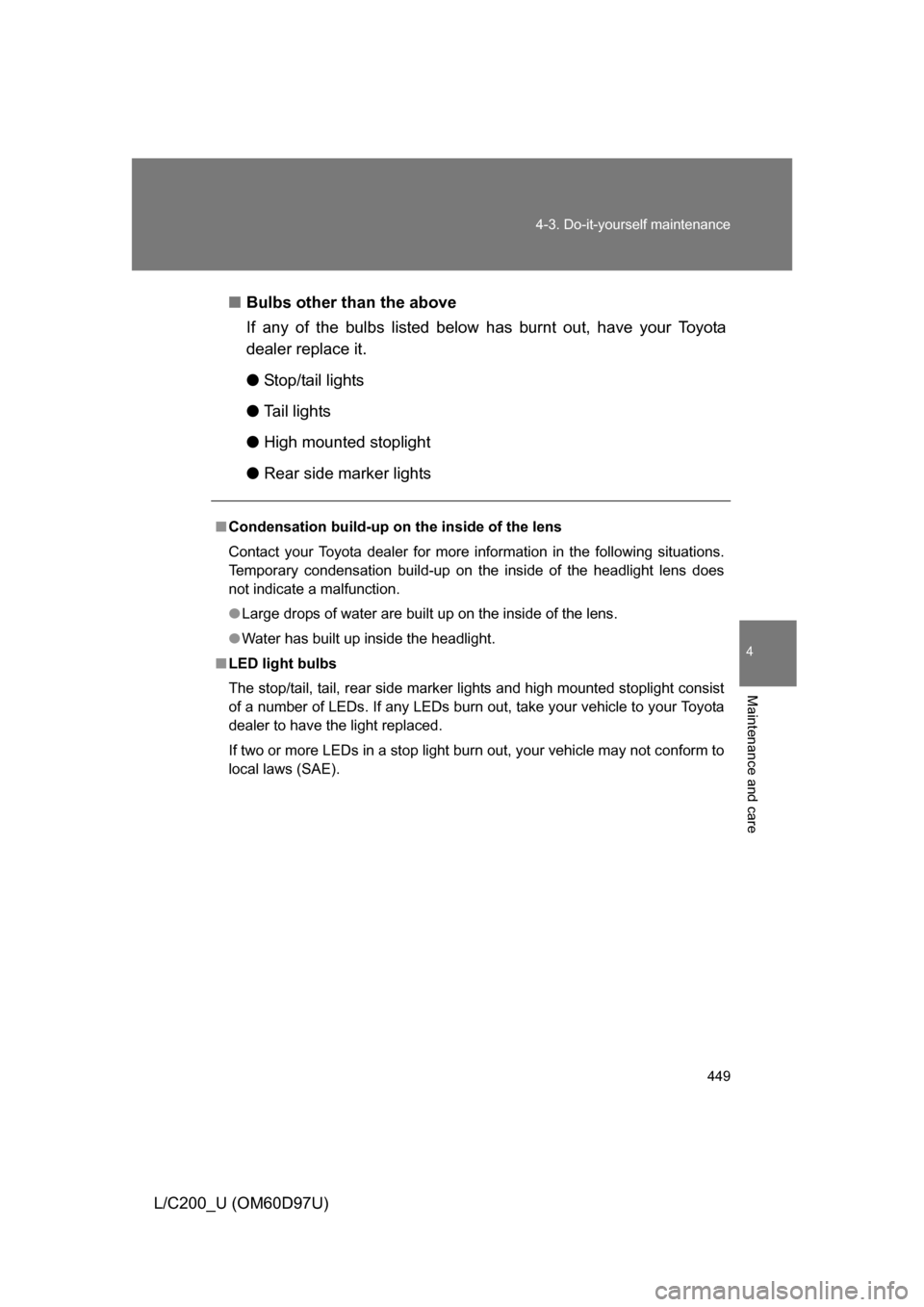

Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Toyota
dealer replace it.
● Stop/tail lights
● Tail lights
● High mounted stoplight
● Rear side marker lights
■Condensation build-up on th e inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ LED light bulbs
The stop/tail, tail, rear side marker lights and high mounted stoplight consist
of a number of LEDs. If any LEDs burn out, take your vehicle to your Toyota
dealer to have the light replaced.
If two or more LEDs in a stop light burn out, your vehicle may not conform to
local laws (SAE).

450 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)

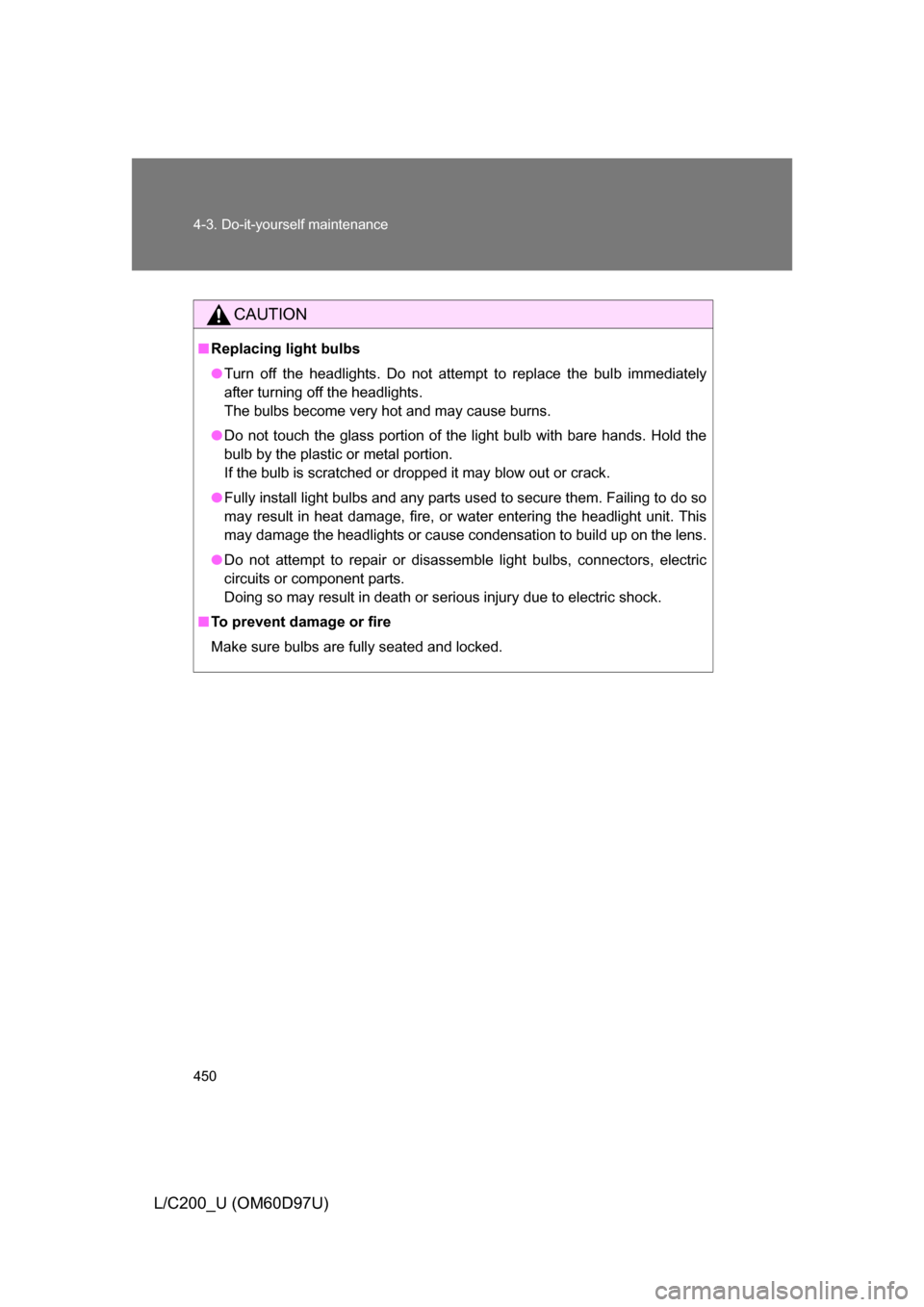

CAUTION
■Replacing light bulbs
● Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

517
6-1. Specifications
6
Vehicle specifications
L/C200_U (OM60D97U)

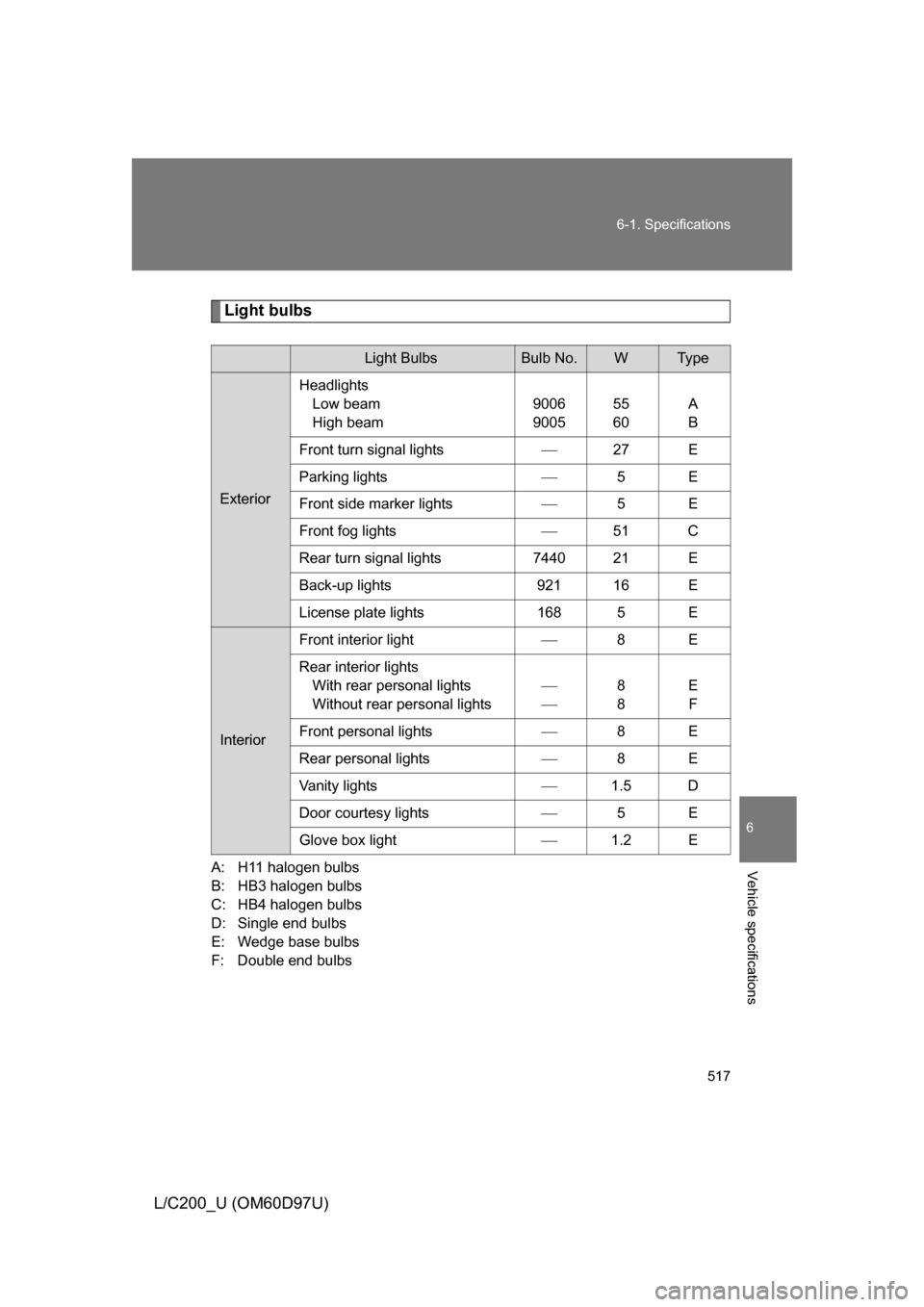

Light bulbs
A: H11 halogen bulbs
B: HB3 halogen bulbs
C: HB4 halogen bulbs
D: Single end bulbs
E: Wedge base bulbs
F: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior
Headlights
Low beam
High beam
9006
900555
60A
B
Front turn signal lights27E
Parking lights5E
Front side marker lights5E
Front fog lights51C
Rear turn signal lights744021E
Back-up lights92116E
License plate lights1685E
Interior
Front interior light8E
Rear interior lightsWith rear personal lights
Without rear personal lights

8
8EF
Front personal lights8E
Rear personal lights8E
Vanity lights1.5D
Door courtesy lights5E
Glove box light1.2E

547
