389
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)

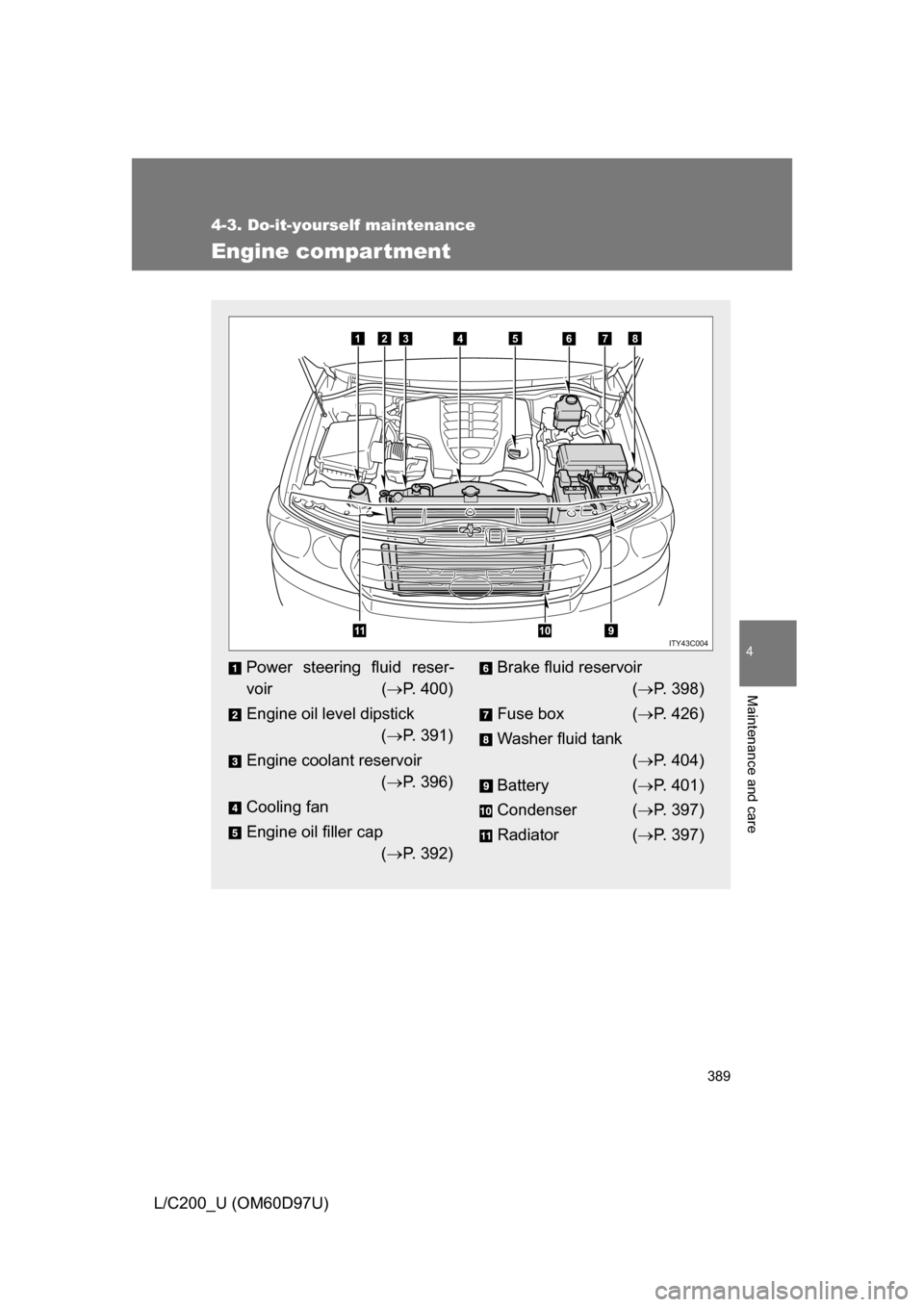

Engine compar tment
Power steering fluid reser-
voir (P. 400)
Engine oil level dipstick ( P. 391)
Engine coolant reservoir ( P. 396)
Cooling fan
Engine oil filler cap ( P. 392)Brake fluid reservoir
( P. 398)
Fuse box ( P. 426)
Washer fluid tank ( P. 404)
Battery ( P. 401)
Condenser ( P. 397)
Radiator ( P. 397)
51234678
911 1 0ITY43C004
396 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)

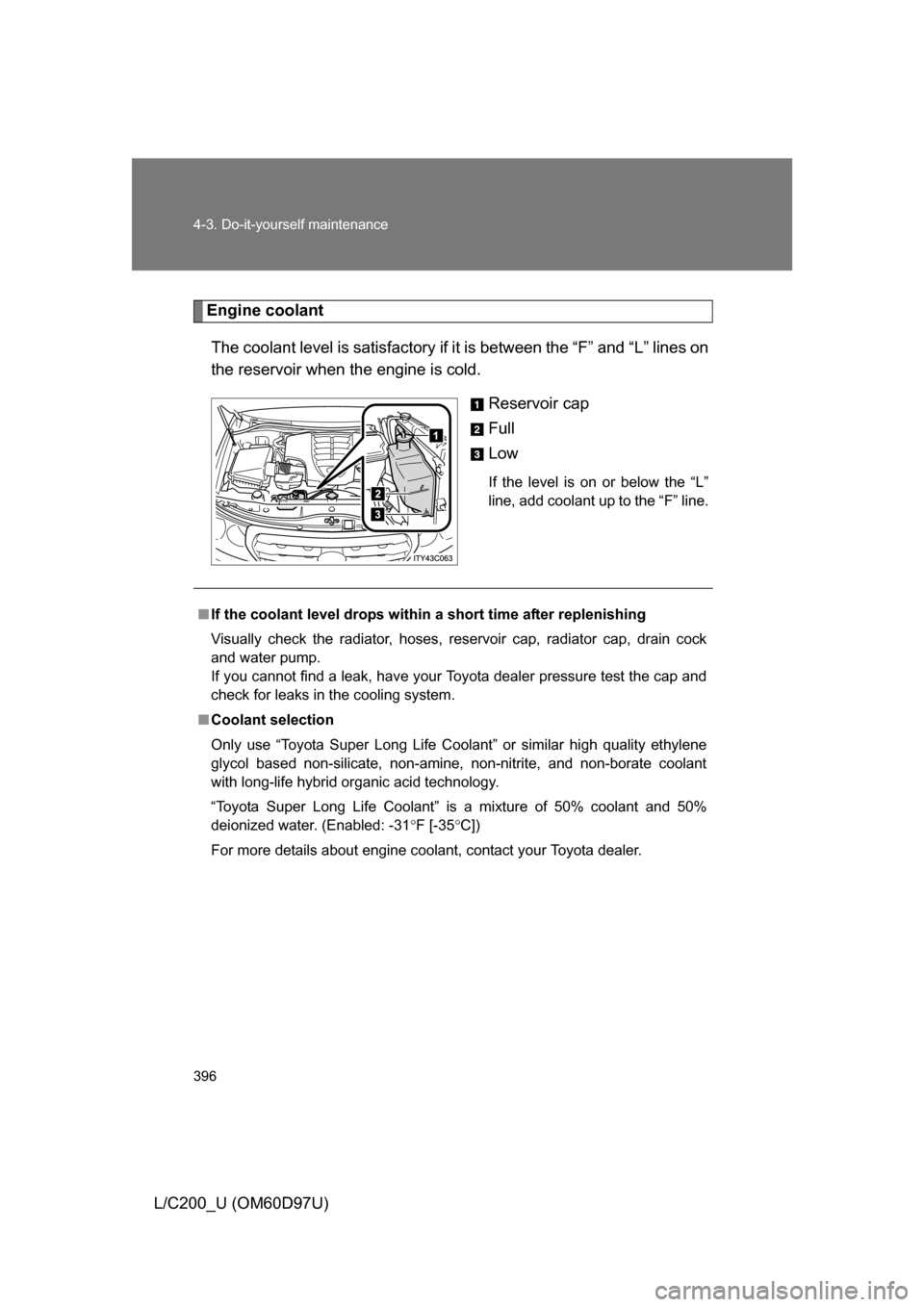

Engine coolantThe coolant level is sati sfactory if it is between the “F” and “L” lines on
the reservoir when the engine is cold.
Reservoir cap
Full
Low
If the level is on or below the “L”
line, add coolant up to the “F” line.
■If the coolant level drops within a short time after replenishing
Visually check the radiator, hoses, reservoir cap, radiator cap, drain cock
and water pump.
If you cannot find a leak, have your Toyota dealer pressure test the cap and
check for leaks in the cooling system.
■ Coolant selection
Only use “Toyota Super Long Life Coolant” or similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant
with long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50%
deionized water. (Enabled: -31 F [-35 C])
For more details about engine coolant, contact your Toyota dealer.
