2009 TOYOTA LAND CRUISER warning

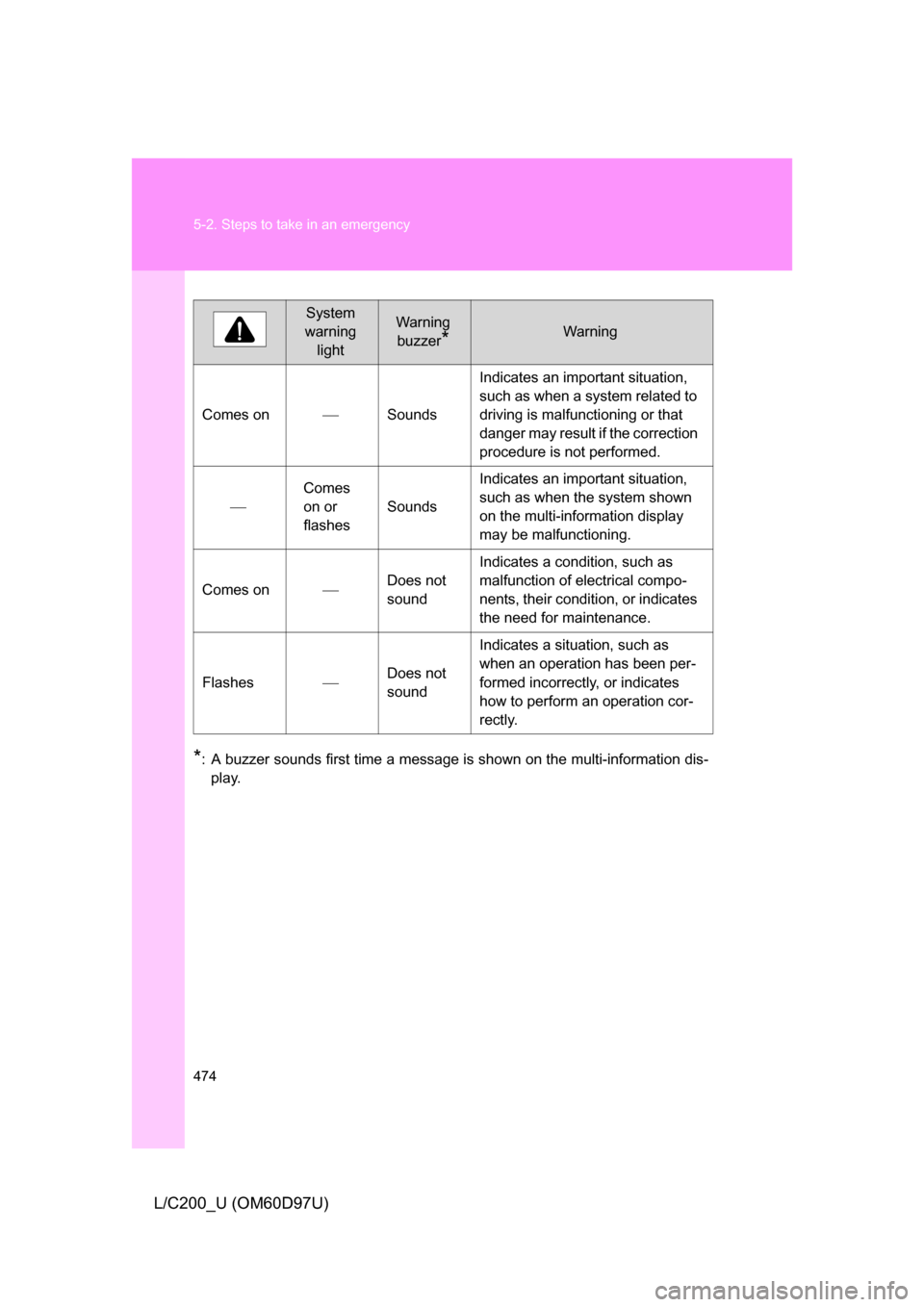

474 5-2. Steps to take in an emergency
L/C200_U (OM60D97U)
*: A buzzer sounds first time a message is shown on the multi-information dis-play.
System
warning lightWarning buzzer
*Warning
Comes on Sounds Indicates an important situation,
such as when a system related to
driving is malfunctioning or that
danger may result if the correction
procedure is not performed.
 Comes
on or
flashes Sounds Indicates an important situation,
such as when the system shown
on the multi-information display
may be malfunctioning.
Comes on Does not
sound Indicates a condition, such as
malfunction of electrical compo-
nents, their condition, or indicates
the need for maintenance.
Flashes Does not
sound Indicates a situation, such as
when an operation has been per-
formed incorrectly, or indicates
how to perform an operation cor-
rectly.

5
When trouble arises
475
5-2. Steps to take in an emergency
L/C200_U (OM60D97U)
■
Resetting the tire pressure warning data
After adjusting the tire inflation pressure, be sure to initialize the data.
(P. 406)
If the message remains on, the system may have malfunctioned. Have the
vehicle inspected by your Toyota dealer as soon as possible.
■ Warning messages in th e cruise control mode
In the following instances, there is a possibility that the approach warning will
not illuminate even when vehicle-to-vehicle distance is closing.
● When the speed of the vehicle ahead matches or exceeds your vehicle’s
speed.
● When the vehicle ahead is traveling at an extremely slow speed.
● Immediately after the cruise control speed has been set.
● At the instant the accelerator is applied.
NOTICE
■Engine oil maintenance message
The warning message is based on the projected driving range after engine
oil maintenance message is reset.
The system does not monitor the purity of the engine oil.

486 5-2. Steps to take in an emergency
L/C200_U (OM60D97U)
■After completing the tire change
The tire pressure warning system must be reset. ( P. 406)
CAUTION
■Using the tire jack
Improper use of the tire jack may lead to death or injuries due to the
vehicle suddenly fa lling off the jack.
●Do not use the tire jack for any pu rpose other than replacing tires or
installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Do not raise the vehicle while someone is in it.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a hei ght greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●Do not put any part of your body under the vehicle supported by a jack.
●Do not start or run the engine while your vehicle is supported by the
jack.
Take particular care when lowering the vehicle to ensure that no one
working on or near the vehicle may be injured.
■Using the jack handle
Tighten all the jack handle bolts securely using a Phillips-head screw-
driver, to prevent the extension pa rts from coming apart unexpectedly.

488 5-2. Steps to take in an emergency
L/C200_U (OM60D97U)
NOTICE
■Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
■When stowing the flat tire
Ensure that there is no object caught between the tire and the vehicle
underbody.
■When replacing the tires
●When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Toyota dealer as the tire pressure
warning valve and transmitter may be damaged if not handled cor-
rectly.
●Replace the grommets for the tire pressure warning valves and trans-
mitters as well.
■To avoid damaging the tire pressure warning valves and transmit-
ters
Do not use liquid sealants on flat tires.

525
6-1. Specifications
6
Vehicle specifications
L/C200_U (OM60D97U)
■
Treadwear
The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a speci-
fied government test course.
For example, a tire graded 150 would wear one and a half (1 - 1/2)
times as well on the government course as a tire graded 100.
The relative performance of tires depends upon the actual conditions
of their use, however, and may depart significantly from the norm due
to variations in driving habits, service practices and differences in
road characteristics and climate.
■ Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C,
and they represent the tire’s ab ility to stop on wet pavement as
measured under controlled cond itions on specified government
test surfaces of asphalt and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking
(straight ahead) traction tests and does not include cornering (turn-
ing) traction.
■ Temperature A, B, C
The temperature grades are A (the highest), B, and C, represent-
ing the tire’s resistance to the generation of heat and its ability to
dissipate heat when tested under controlled conditions on a speci-
fied indoor laboratory test wheel.
Sustained high temperature can cause the material of the tire to
degenerate and reduce tire life, and excessive temperature can lead
to sudden tire failure.
The grade C corresponds to a level of performance which all passen-
ger car tires must meet under the Federal Motor Vehicle Safety Stan-
dard No. 109.
Grades B and A represent higher levels of performance on the labo-
ratory test wheel than the minimum required by law.

526 6-1. Specifications
L/C200_U (OM60D97U)
Warning: The temperature grades for this tire are established for a
tire that is properly inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either sepa-
rately or in combination, can cause heat buildup and possible tire fail-
ure.
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation
pressure Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressure The maximum cold inflated
pressure to which a
tire may be inflated, s hown on the sidewall of
the tire
Recommended
inflation pressure Cold tire inflation pressure recommended by a
manufacturer.
Accessory weight The combined weight (in excess of those stan-
dard items which may be replaced) of trans-
mission, power steering, power brakes, power
windows, power seats, radio and heater, to the
extent that these items are available as factory-
installed equipment (whether installed or not)
Curb weight The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded
vehicle weight The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

533
6
Vehicle specifications
L/C200_U (OM60D97U)

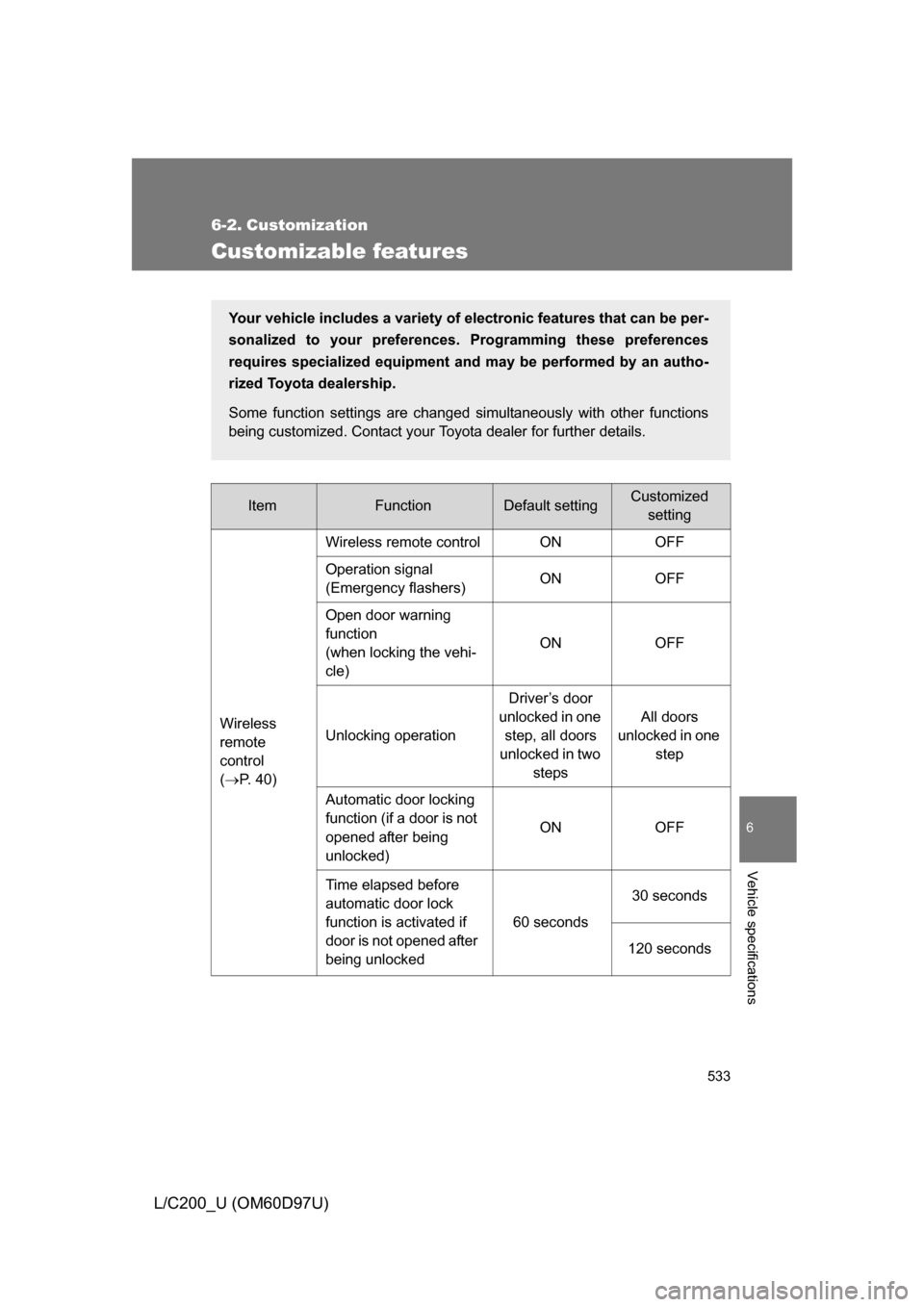

6-2. Customization
Customizable features
ItemFunctionDefault settingCustomizedsetting
Wireless
remote
control
( P. 40) Wireless remote control ON OFF
Operation signal
(Emergency flashers)
ON OFF
Open door warning
function
(when locking the vehi-
cle) ON OFF
Unlocking operation Driver’s door
unlocked in one step, all doors
unlocked in two steps All doors
unlocked in one step
Automatic door locking
function (if a door is not
opened after being
unlocked) ON OFF
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked 60 seconds
30 seconds
120 seconds
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences. Programming these preferences
requires specialized equipment and may be performed by an autho-
rized Toyota dealership.
Some function settings are changed simultaneously with other functions
being customized. Contact your Toyota dealer for further details.

537
6
Vehicle specifications
L/C200_U (OM60D97U)
6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Engine oil mainte-
nance data After changing engine oil P. 394
Tire pressure warning
system • When rotating the tires on vehicles
differing with front and rear tire infla-
tion pressures.
• When changing the tire inflation pressure by changing traveling
speed or load weight, etc.
• When changing the tire size. P. 406
The following items must be init
ialized for normal system operation
in cases such as after the battery is reconnected, or maintenance is
performed on the vehicle.
