2009 TOYOTA LAND CRUISER wipers

1
2
3
4
5
6
7
3
L/C200_U (OM60D97U)

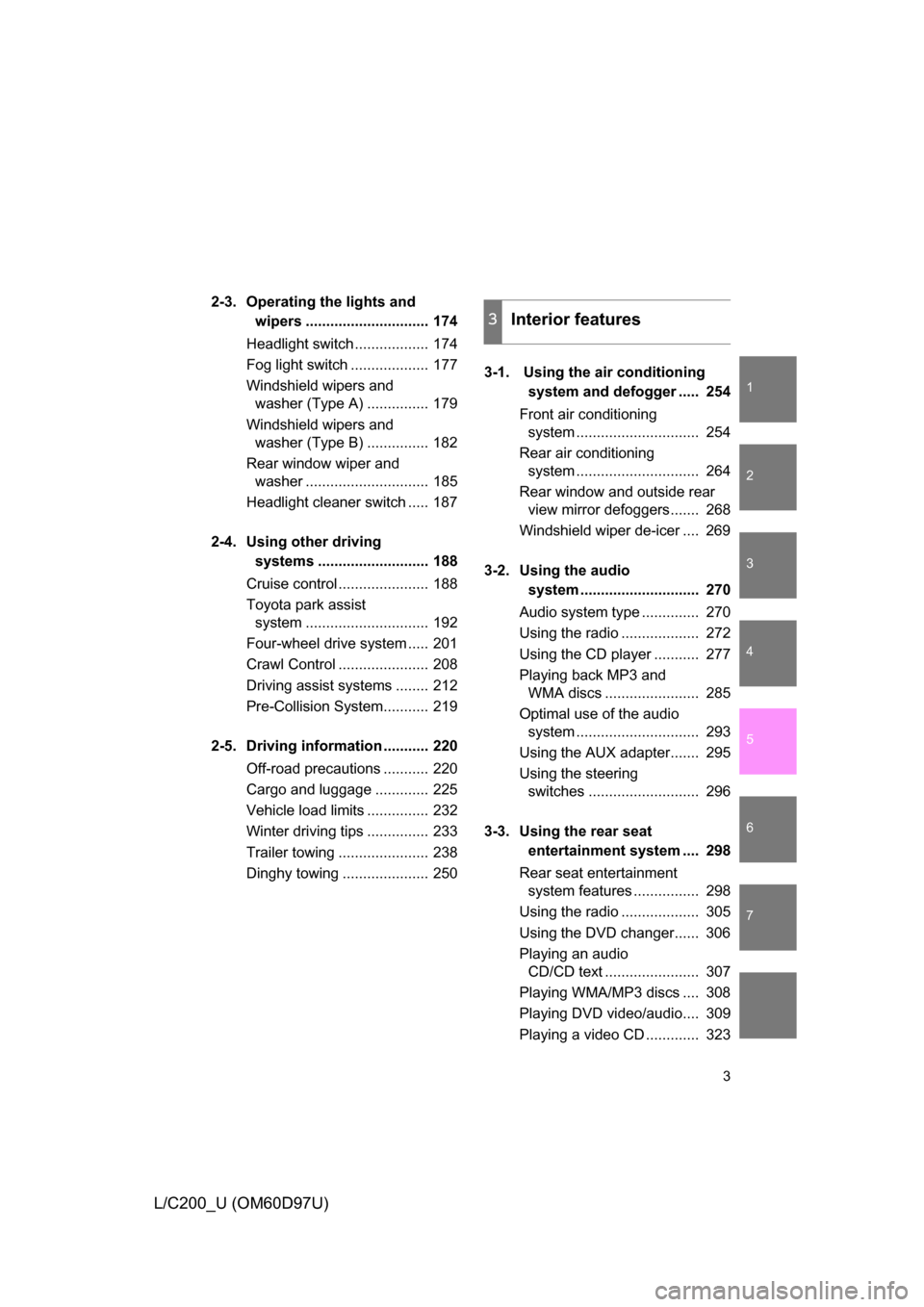

2-3. Operating the lights and wipers .............................. 174
Headlight switch .................. 174
Fog light switch ................... 177
Windshield wipers and washer (Type A) ............... 179
Windshield wipers and washer (Type B) ............... 182
Rear window wiper and washer .............................. 185
Headlight cleaner switch ..... 187
2-4. Using other driving systems ........................... 188
Cruise control ...................... 188
Toyota park assist system .............................. 192
Four-wheel drive system ..... 201
Crawl Control ...................... 208
Driving assist systems ........ 212
Pre-Collision System........... 219
2-5. Driving information ........... 220 Off-road precautions ........... 220
Cargo and luggage ............. 225
Vehicle load limits ............... 232
Winter driving tips ............... 233
Trailer towing ...................... 238
Dinghy towing ..................... 250 3-1. Using the air conditioning
system and defogger ..... 254
Front air conditioning system .............................. 254
Rear air conditioning system .............................. 264
Rear window and outside rear view mirror defoggers....... 268
Windshield wiper de-icer .... 269
3-2. Using the audio system ............................. 270
Audio system type .............. 270
Using the radio ................... 272
Using the CD player ........... 277
Playing back MP3 and WMA discs ....................... 285
Optimal use of the audio system .............................. 293
Using the AUX adapter....... 295
Using the steering switches ........................... 296
3-3. Using the rear seat entertainment system .... 298
Rear seat entertainment system features ................ 298
Using the radio ................... 305
Using the DVD changer...... 306
Playing an audio CD/CD text ....................... 307
Playing WMA/MP3 discs .... 308
Playing DVD video/audio.... 309
Playing a video CD ............. 323
3Interior features

6
L/C200_U (OM60D97U)

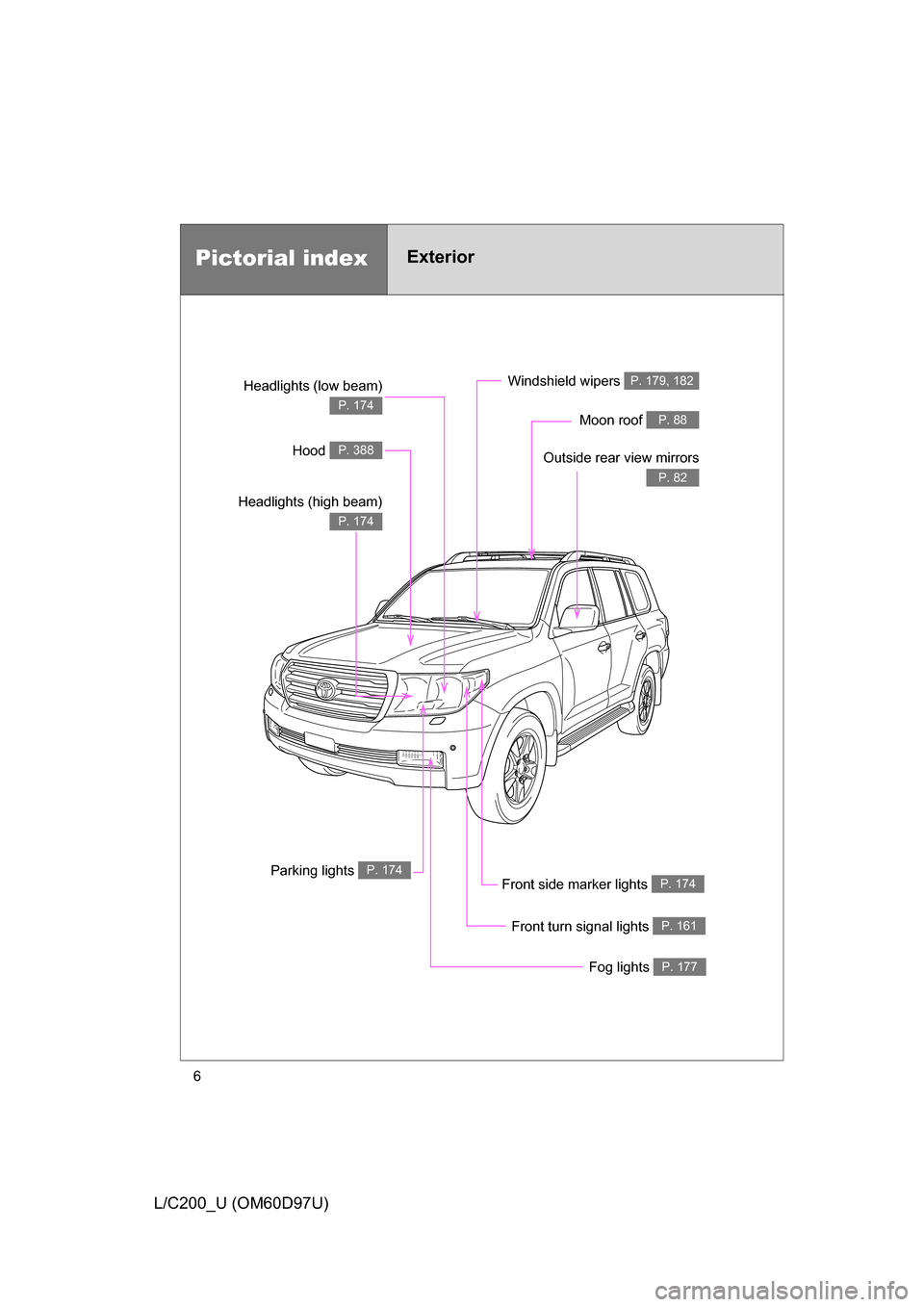

Pictorial indexExterior
Fog lights P. 177
Front turn signal lights P. 161
Parking lights P. 174
Headlights (low beam)
P. 174
Hood P. 388
Windshield wipers P. 179, 182
Moon roof P. 88
Outside rear view mirrors
P. 82
Headlights (high beam)
P. 174
Front side marker lights P. 174

12
L/C200_U (OM60D97U)

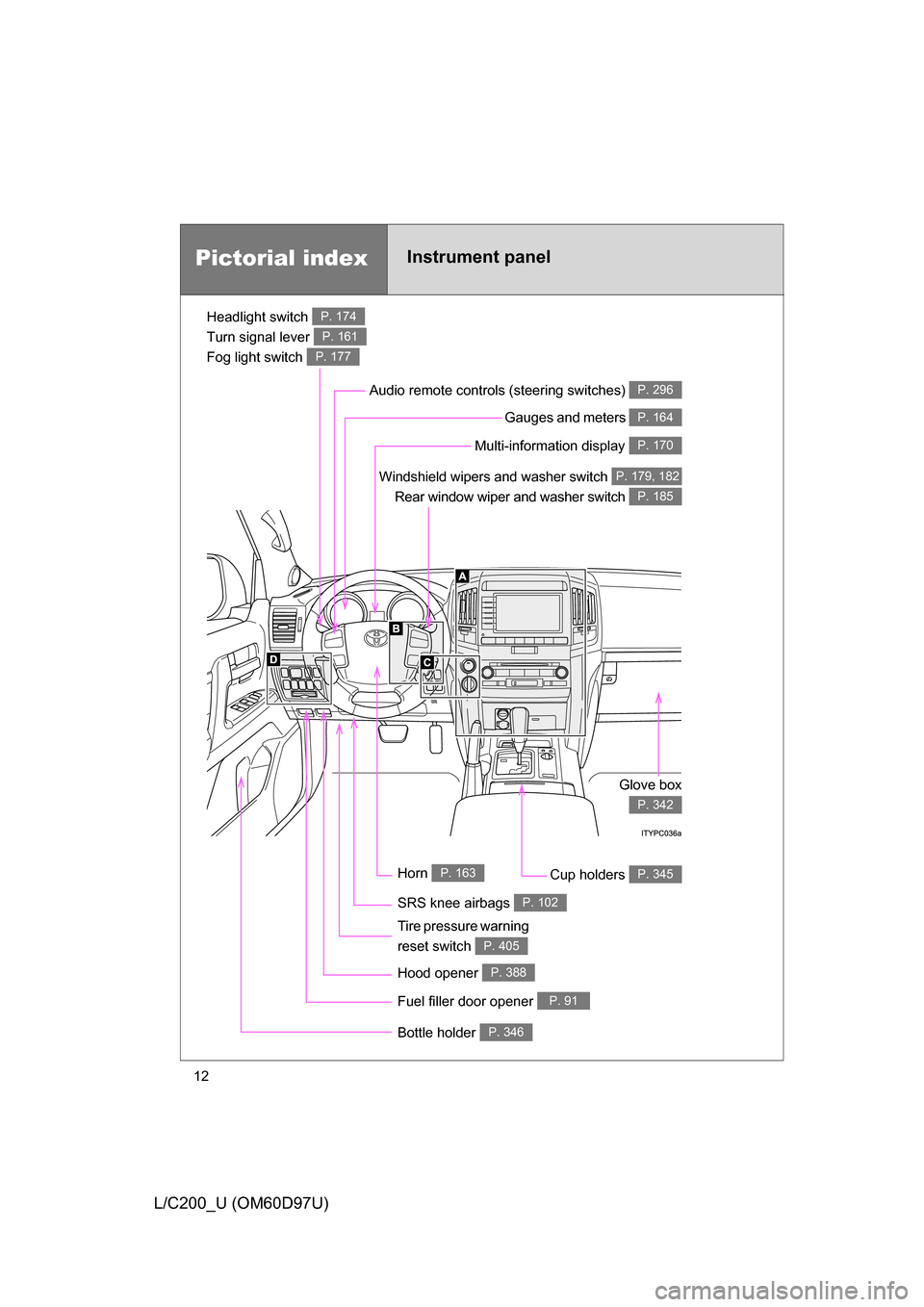

Pictorial indexInstrument panel
Headlight switch
Turn signal lever
Fog light switch P. 174
P. 161
P. 177
Windshield wipers and washer switch
Rear window wiper and washer switch P. 179, 182
P. 185
Gauges and meters P. 164
Glove box
P. 342
Fuel filler door opener P. 91
Hood opener P. 388
SRS knee airbags P. 102
Tire pressure warning
reset switch
P. 405
Cup holders P. 345
Multi-information display P. 170
Audio remote controls (steering switches) P. 296
Bottle holder P. 346
Horn P. 163

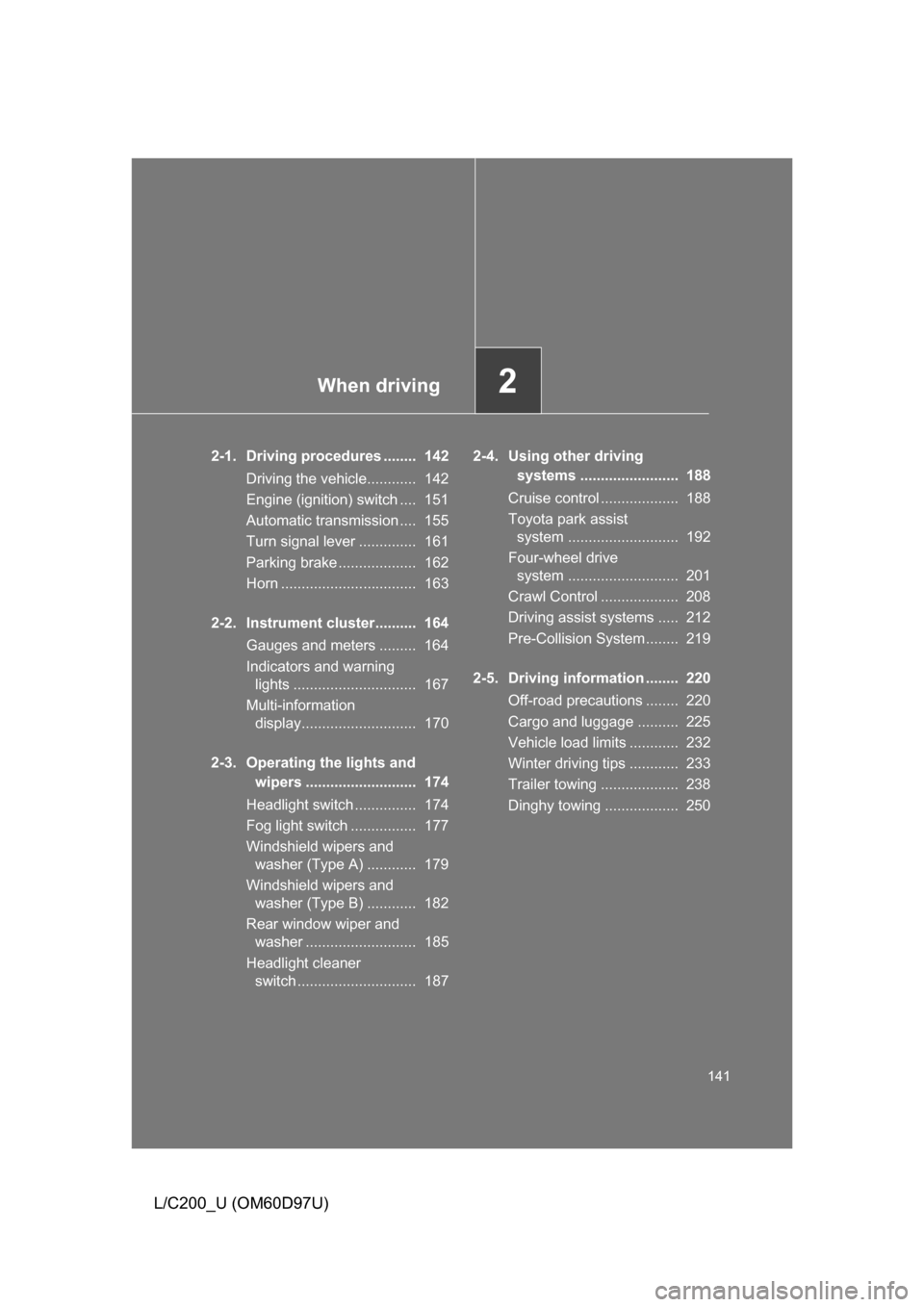

When driving2
141
L/C200_U (OM60D97U)
2-1. Driving procedures ........ 142Driving the vehicle............ 142
Engine (ignition) switch .... 151
Automatic transmission .... 155
Turn signal lever .............. 161
Parking brake ................... 162
Horn ................................. 163
2-2. Instrument cluster.......... 164 Gauges and meters ......... 164
Indicators and warning lights .............................. 167
Multi-information display............................ 170
2-3. Operating the lights and wipers ........................... 174
Headlight switch ............... 174
Fog light switch ................ 177
Windshield wipers and washer (Type A) ............ 179
Windshield wipers and washer (Type B) ............ 182
Rear window wiper and washer ........................... 185
Headlight cleaner switch ............................. 187 2-4. Using other driving
systems ........................ 188
Cruise control ................... 188
Toyota park assist system ........................... 192
Four-wheel drive system ........................... 201
Crawl Control ................... 208
Driving assist systems ..... 212
Pre-Collision System........ 219
2-5. Driving information ........ 220 Off-road precautions ........ 220
Cargo and luggage .......... 225
Vehicle load limits ............ 232
Winter driving tips ............ 233
Trailer towing ................... 238
Dinghy towing .................. 250

174
L/C200_U (OM60D97U)
2-3. Operating the lights and wipers

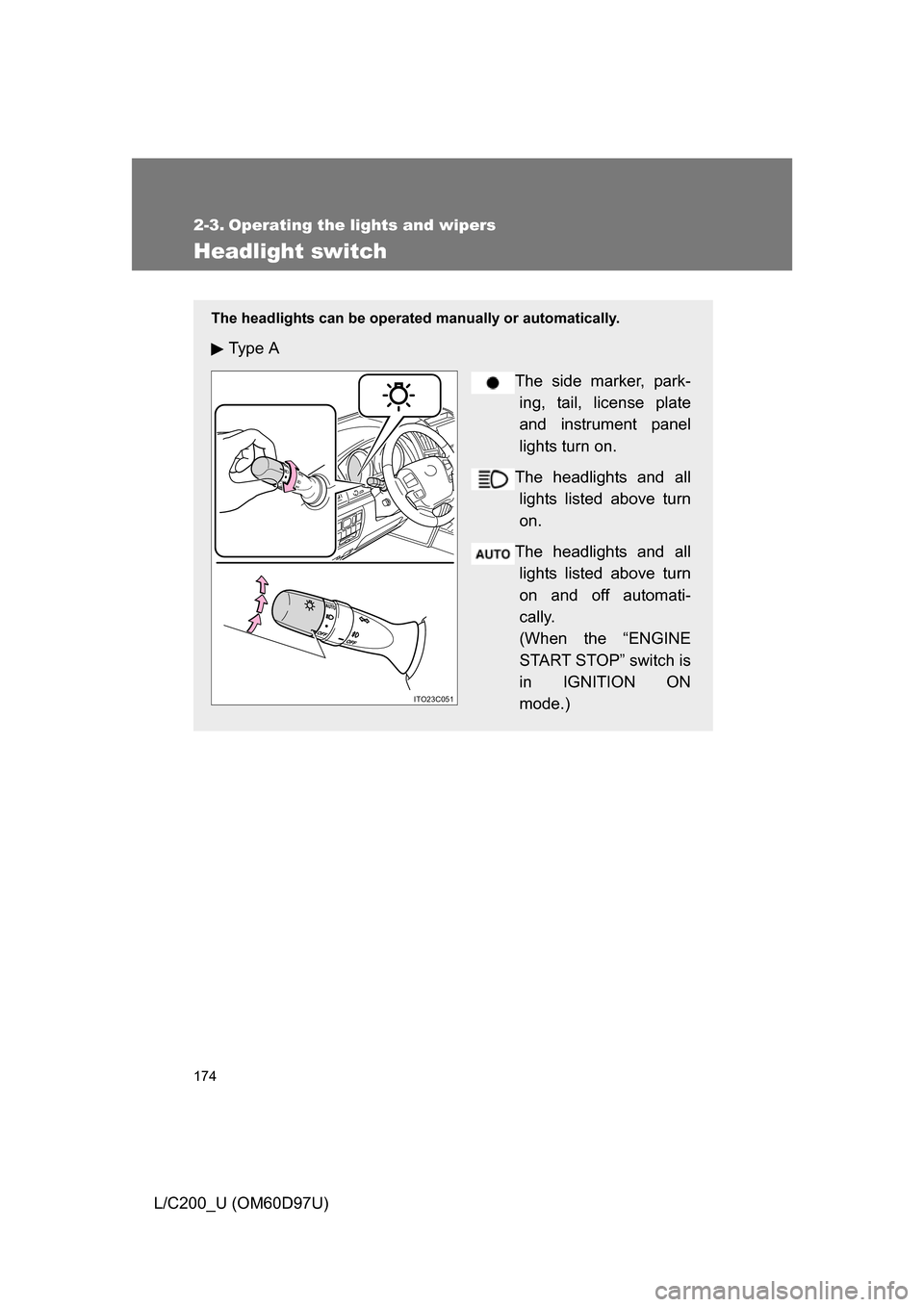

Headlight switch
The headlights can be operated manually or automatically.
Ty p e A
The side marker, park-ing, tail, license plate
and instrument panel
lights turn on.
The headlights and all lights listed above turn
on.
The headlights and all lights listed above turn
on and off automati-
cally.
(When the “ENGINE
START STOP” switch is
in IGNITION ON
mode.)
ITO23C051

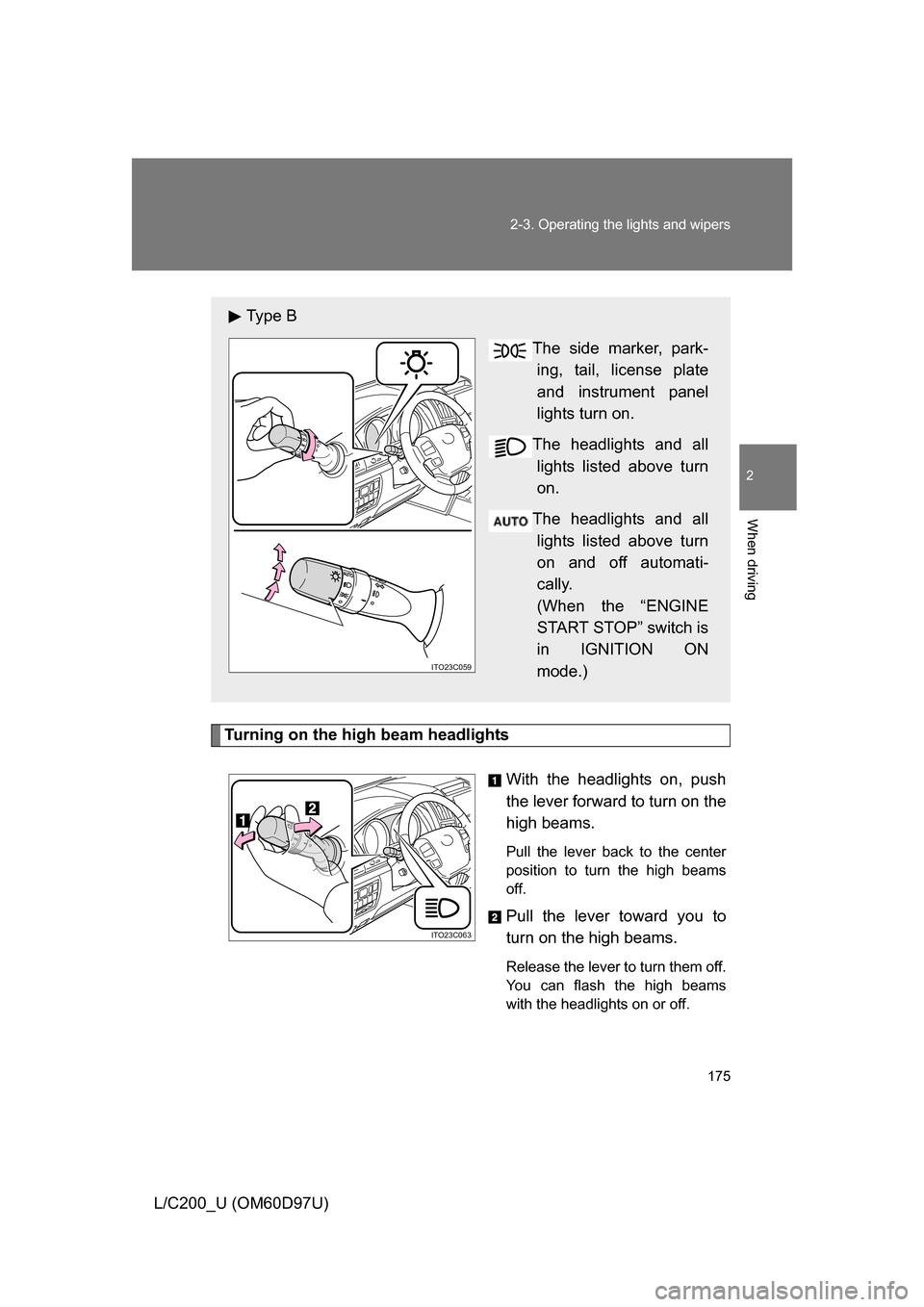

175
2-3. Operating the lights and wipers
2
When driving
L/C200_U (OM60D97U)
Turning on the high beam headlights
With the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release the lever to turn them off.
You can flash the high beams
with the headlights on or off.
Ty p e B The side marker, park-ing, tail, license plate
and instrument panel
lights turn on.
The headlights and all lights listed above turn
on.
The headlights and all lights listed above turn
on and off automati-
cally.
(When the “ENGINE
START STOP” switch is
in IGNITION ON
mode.)
ITO23C059
ITO23C063

176 2-3. Operating the lights and wipers
L/C200_U (OM60D97U)

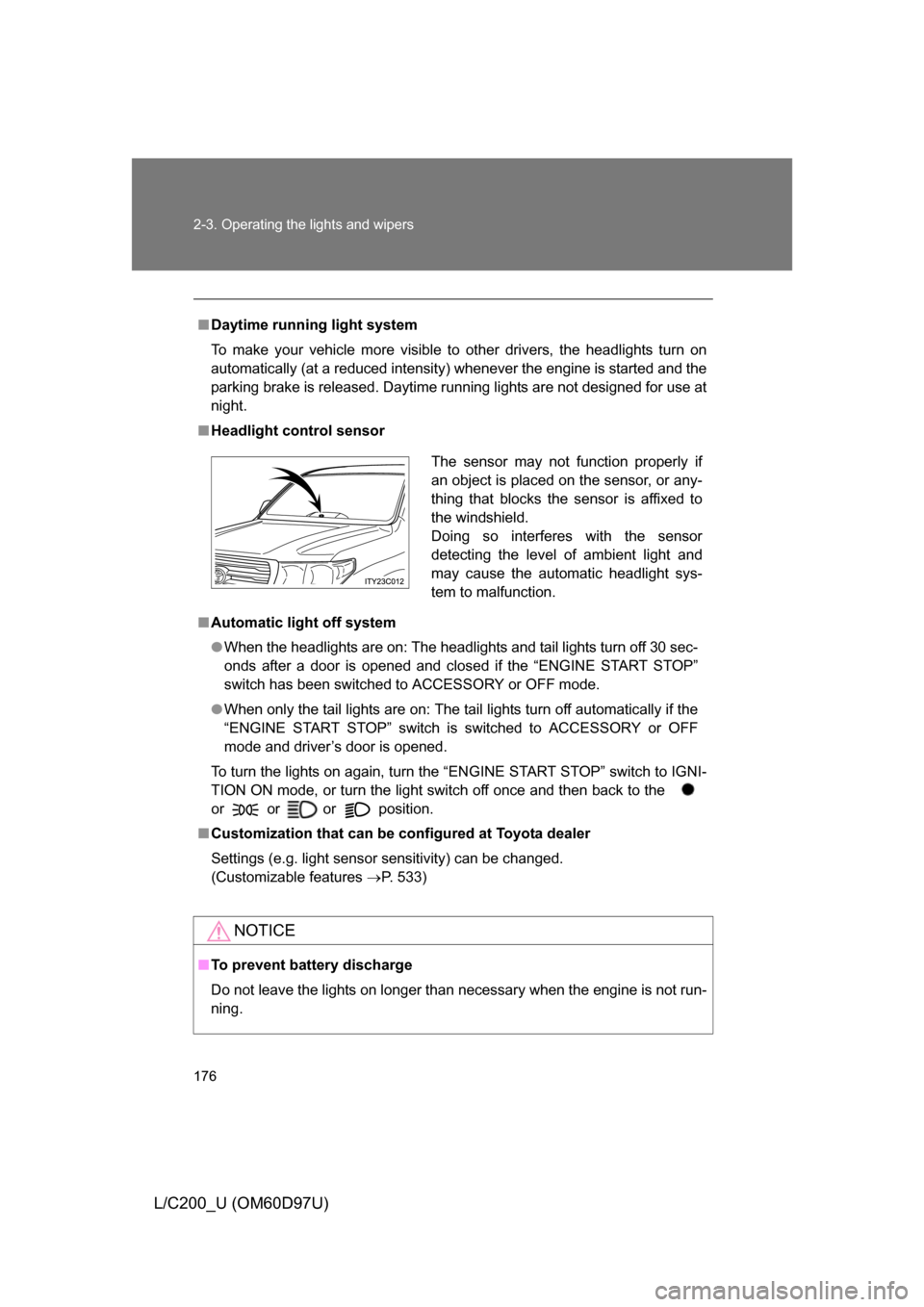

■Daytime running light system
To make your vehicle more visible to other drivers, the headlights turn on
automatically (at a reduced intensity) whenever the engine is started and the
parking brake is released. Daytime running lights are not designed for use at
night.
■ Headlight control sensor
■ Automatic light off system
● When the headlights are on: The headlights and tail lights turn off 30 sec-
onds after a door is opened and closed if the “ENGINE START STOP”
switch has been switched to ACCESSORY or OFF mode.
● When only the tail lights are on: The tail lights turn off automatically if the
“ENGINE START STOP” switch is switched to ACCESSORY or OFF
mode and driver’s door is opened.
To turn the lights on again, turn the “ENGINE START STOP” switch to IGNI-
TION ON mode, or turn the light switch off once and then back to the

or or or position.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features P. 533)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

177
2-3. Operating the lights and wipers
2
When driving
L/C200_U (OM60D97U)

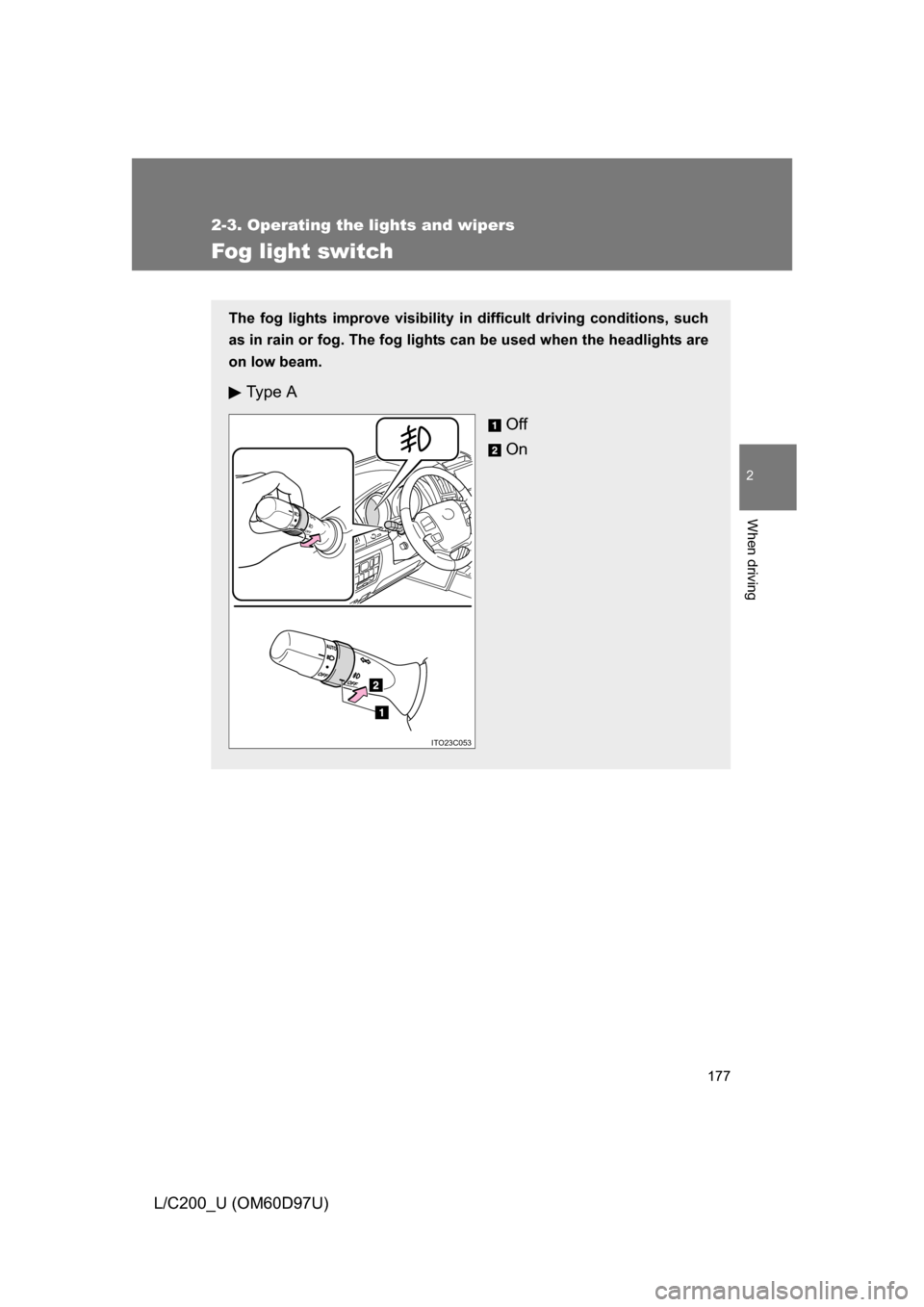

Fog light switch
The fog lights improve visibility in difficult driving conditions, such
as in rain or fog. The fog lights can be used when the headlights are
on low beam.
Ty p e A
Off
On
ITO23C053
