2009 TOYOTA LAND CRUISER wipers

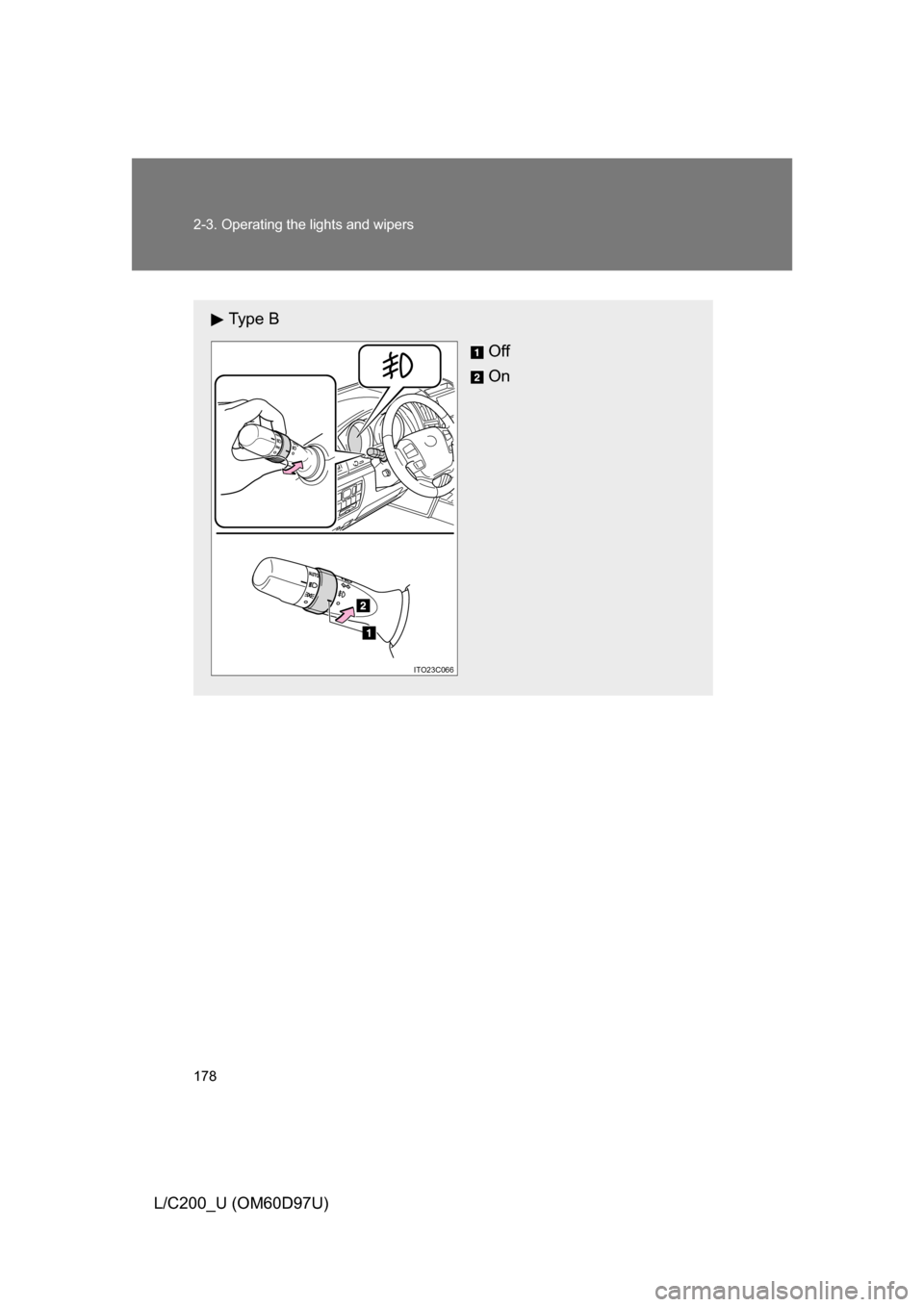

178 2-3. Operating the lights and wipers
L/C200_U (OM60D97U)
Ty p e BOff
On
ITO23C066

179
2-3. Operating the lights and wipers
2
When driving
L/C200_U (OM60D97U)

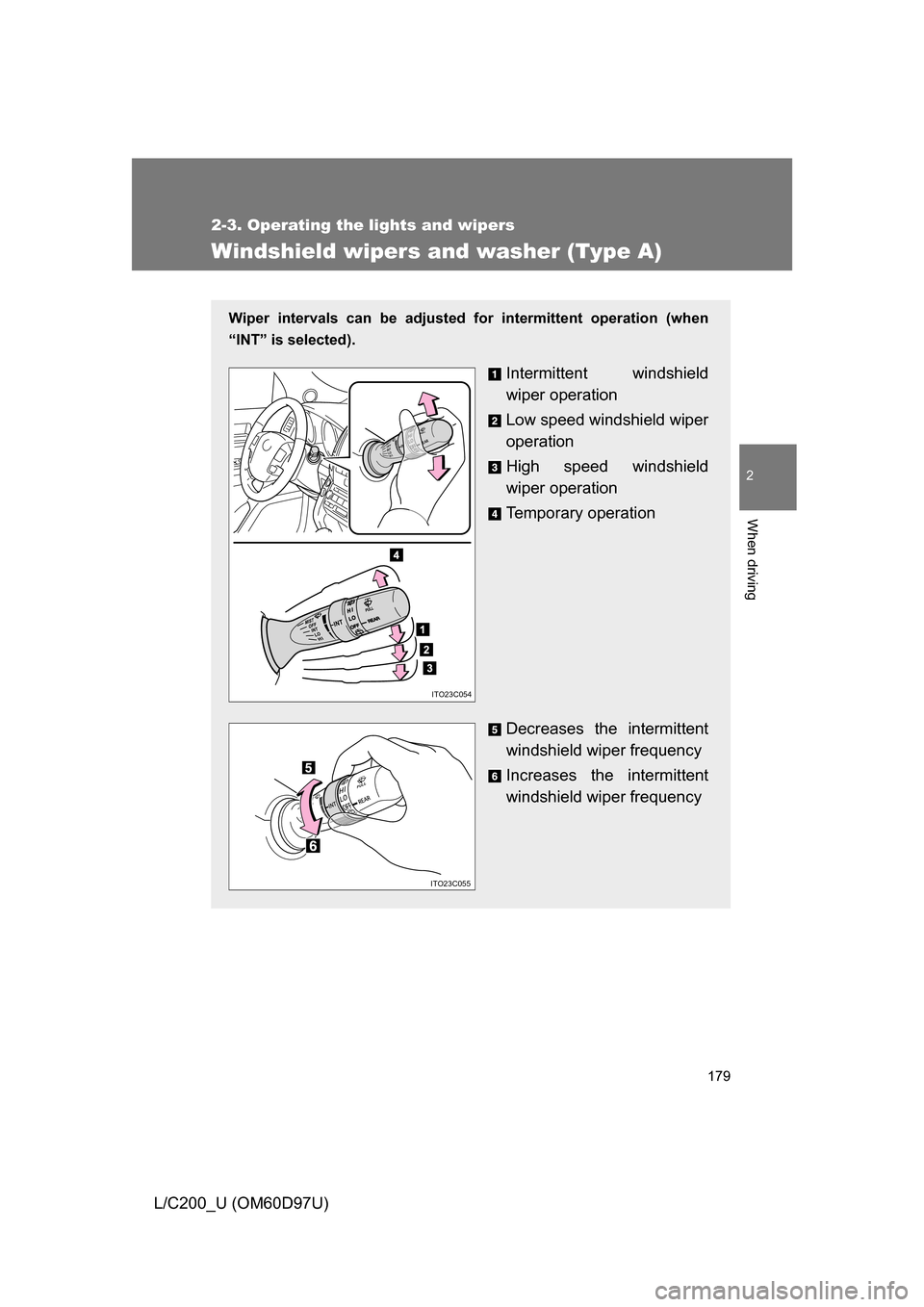

Windshield wipers and washer (Type A)
Wiper intervals can be adjusted for intermittent operation (when
“INT” is selected).
Intermittent windshield
wiper operation
Low speed windshield wiper
operation
High speed windshield
wiper operation
Temporary operation
Decreases the intermittent
windshield wiper frequency
Increases the intermittent
windshield wiper frequency
ITO23C054
ITO23C055

180 2-3. Operating the lights and wipers
L/C200_U (OM60D97U)
■The windshield wiper and washer can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
■ In extremely hot or cold weather
The system will turn off if the windshield gets extremely hot (at more than
176 F [80 C]) or cold (at less than -14 F [-10 C]).
■ Windshield wiper features
The rear window and outside rear view mirror defoggers automatically turn
on when you operate the wipers.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. drip prevention function) can be changed.
(Customizable features P. 533)
Washer/wiper dual opera-
tion
Wipers operate automatically.
ITO23C056

181
2-3. Operating the lights and wipers
2
When driving
L/C200_U (OM60D97U)
NOTICE
■
When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
■ When a nozzle becomes block
Do not try to clear it with a pin or other object. The nozzle will be damaged.

182
2-3. Operating the lights and wipers
L/C200_U (OM60D97U)

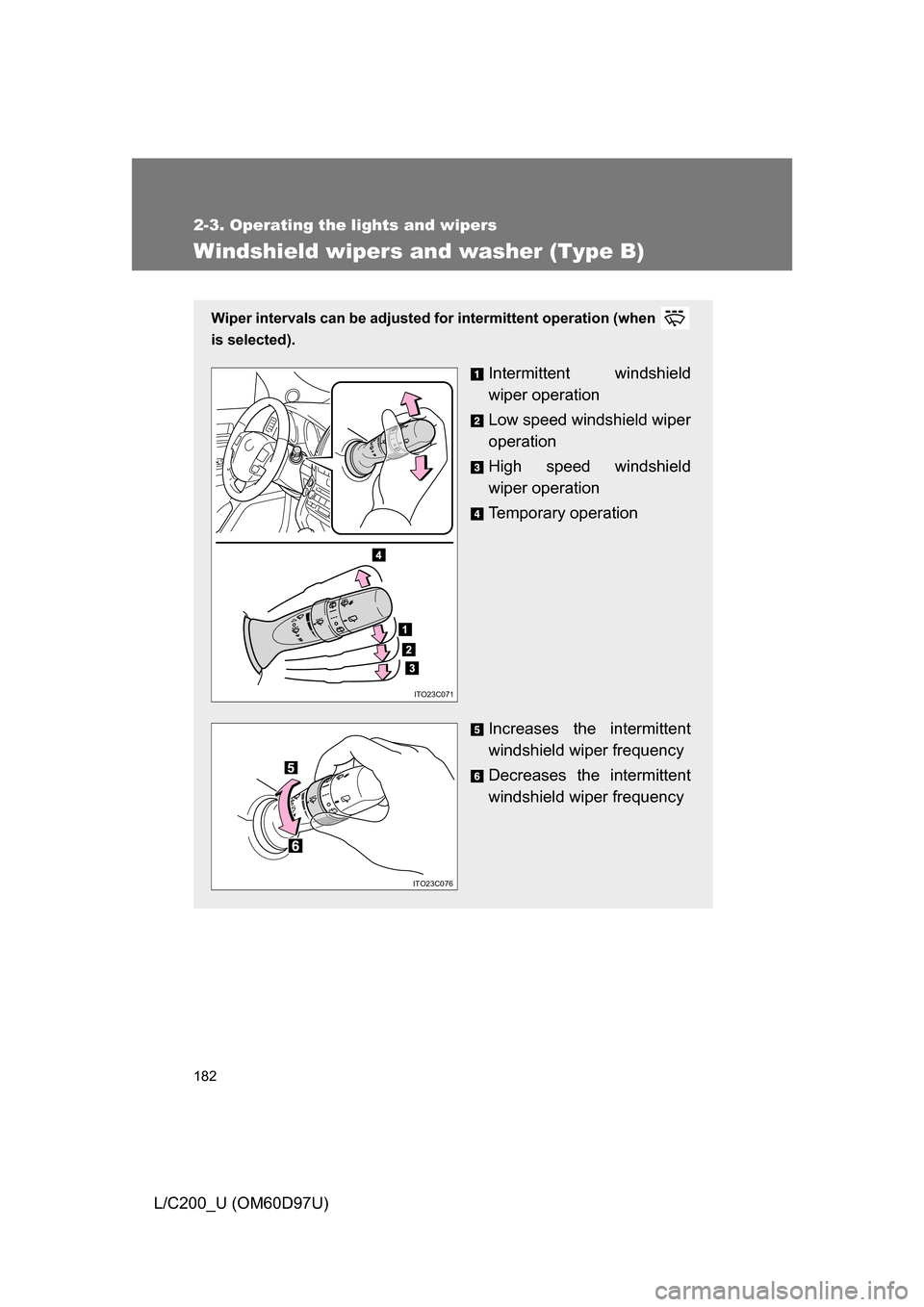

Windshield wipers and washer (Type B)
Wiper intervals can be adjusted for intermittent operation (when
is selected).
Intermittent windshield
wiper operation
Low speed windshield wiper
operation
High speed windshield
wiper operation
Temporary operation
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency
ITO23C071
ITO23C076

183
2-3. Operating the lights and wipers
2
When driving
L/C200_U (OM60D97U)
■
The windshield wiper and washer can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
■ In extremely hot or cold weather
The system will turn off if the windshield gets extremely hot (at more than
176 F [80 C]) or cold (at less than -14 F [-10 C]).
■ Windshield wiper features
The rear window and outside rear view mirror defoggers automatically turn
on when you operate the wipers.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. drip prevention function) can be changed.
(Customizable features P. 533)
Washer/wiper dual opera-
tion
Wipers operate automatically.
ITO23C081

184 2-3. Operating the lights and wipers
L/C200_U (OM60D97U)

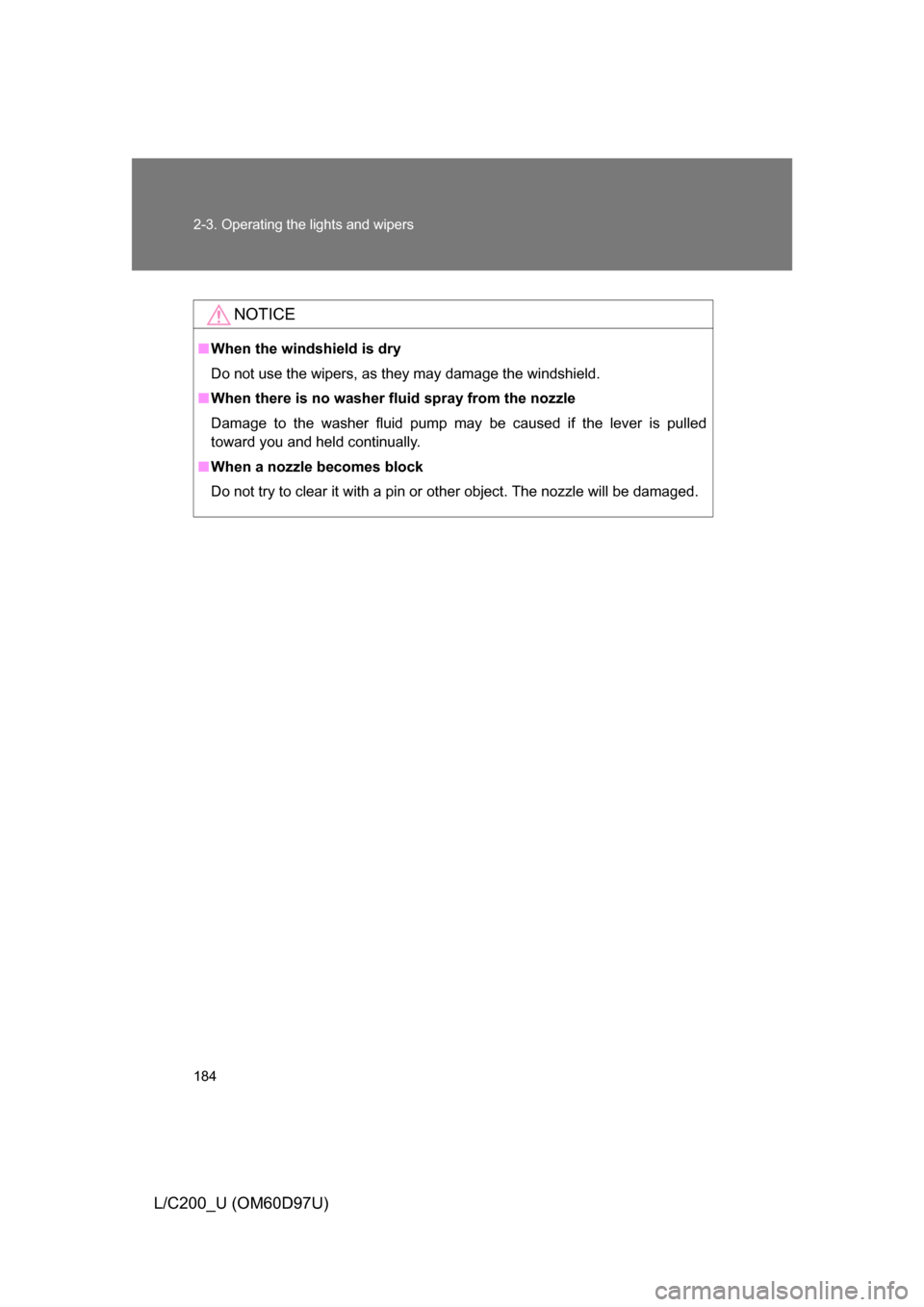

NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
■ When a nozzle becomes block
Do not try to clear it with a pin or other object. The nozzle will be damaged.

185
2-3. Operating the lights and wipers
2
When driving
L/C200_U (OM60D97U)

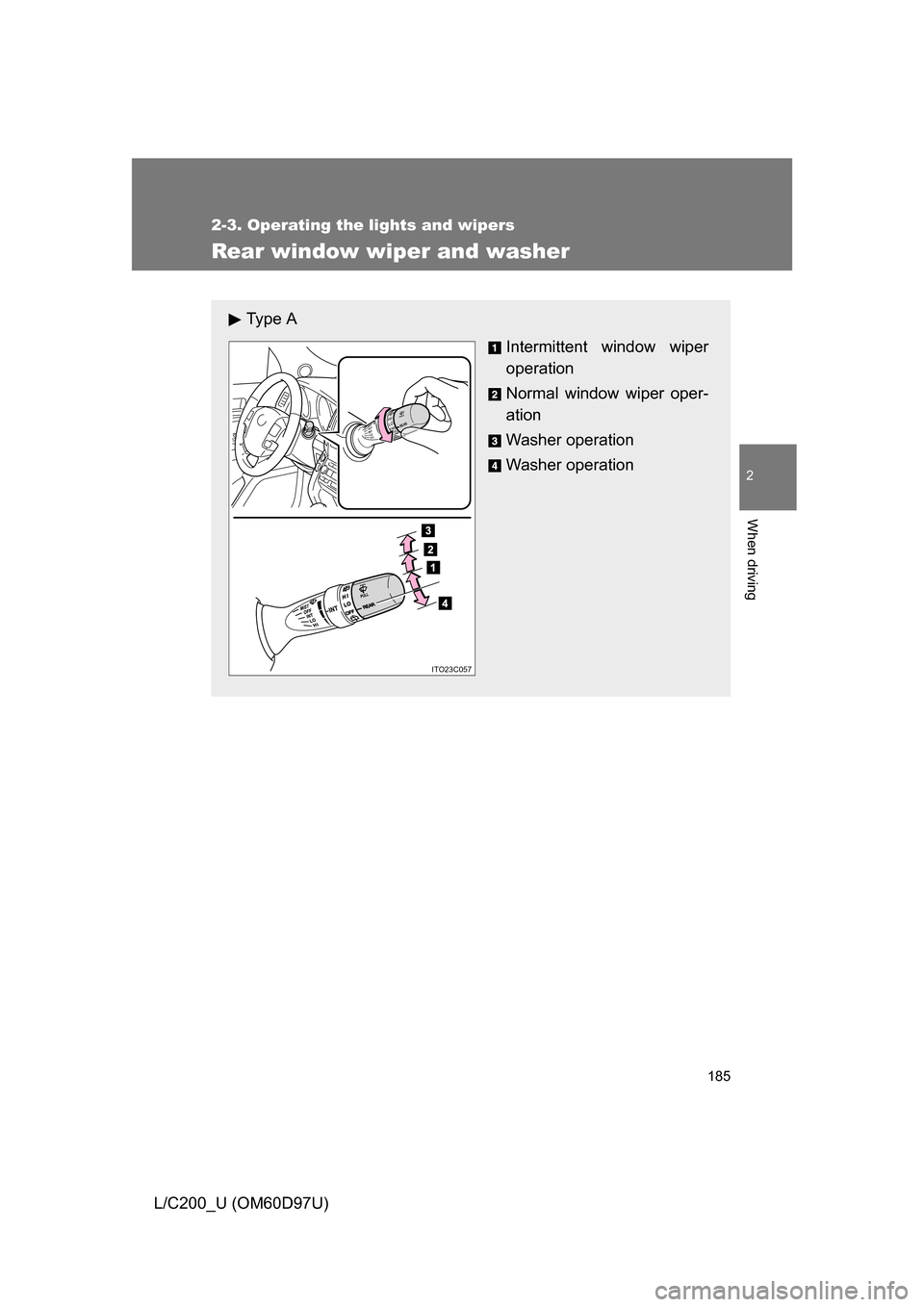

Rear window wiper and washer
Ty p e AIntermittent window wiper
operation
Normal window wiper oper-
ation
Washer operation
Washer operation
ITO23C057
