2009 TOYOTA LAND CRUISER instrument panel

358
3-6. Other interior features
L/C200_U (OM60D97U)

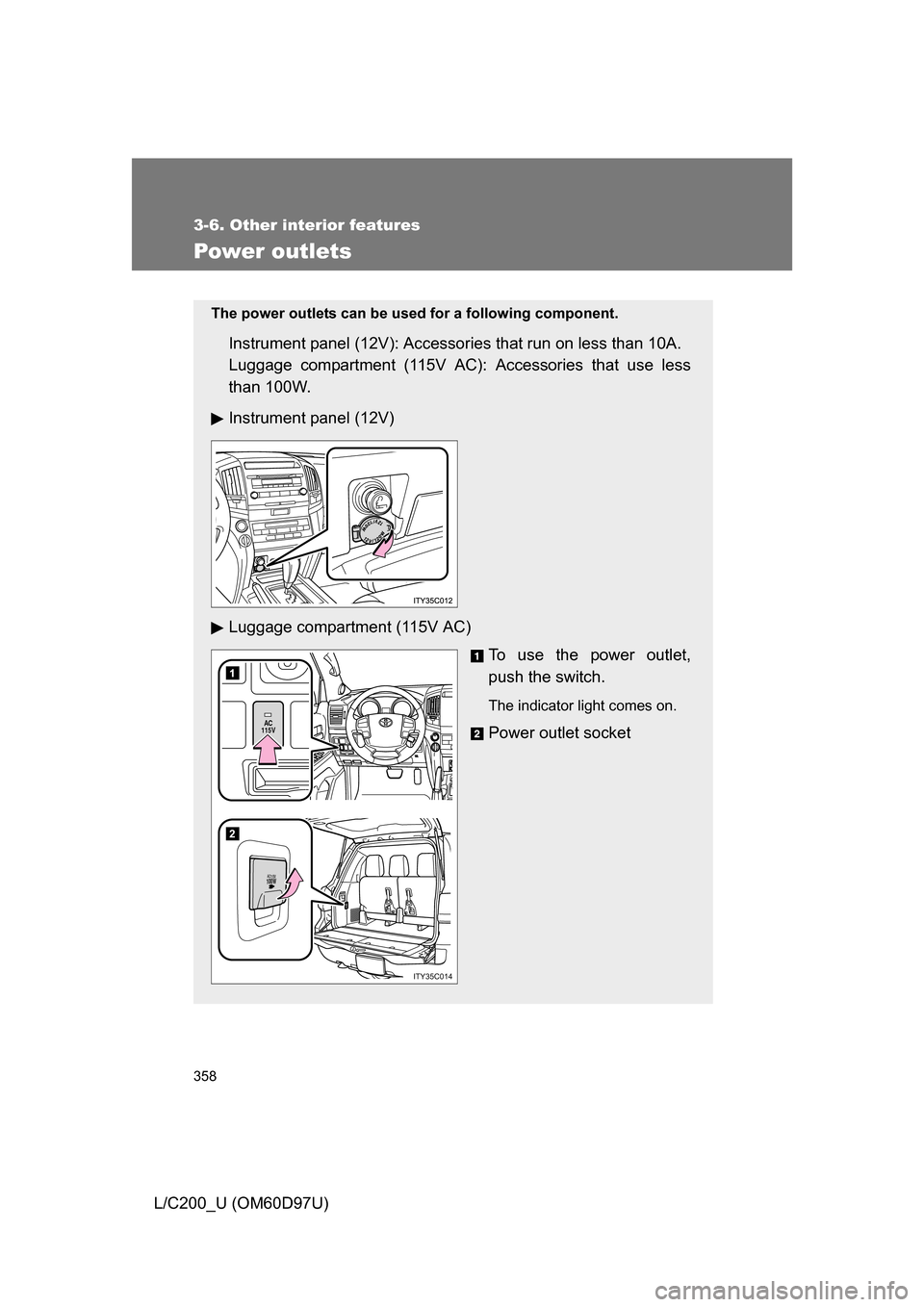

Power outlets
The power outlets can be used for a following component.
Instrument panel (12V): Accessor ies that run on less than 10A.
Luggage compartment (115V AC): Accessories that use less
than 100W.
Instrument panel (12V)
Luggage compartment (115V AC)
To use the power outlet,
push the switch.
The indicator light comes on.
Power outlet socketAC
115V
A C1 15V100W
2
1
ITY35C014

426
4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch off.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Driver’s side instrument panel Remove the lid.STEP1
STEP2
ITY43C073
ITY43C032

427
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)
Passenger’s side instrument panel
Remove the cover.
Remove the lid.
After a system failure, see “Fuse layout and amperage rat-
ings” ( P. 430) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
ITY43C033
ITY43C034
STEP3
ITY42C027
STEP4

434 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)■
Driver’s side instrument panel
FuseAmpereCircuit
1CIG15 A Cigarette lighter
2BK/UP LP10 A Back-up lights, trailer
3ACC7.5 A Stereo component amplifier
assembly, multi-display
assembly, gateway ECU, radio
receiver assembly, main body
ECU, mirror ECU, rear seat
entertainment, smart key sys-
tem, clock
4PA N E L10 AFour-wheel drive system, ash-
tray, cigarette lighter, brake
controller, cool box, cruise con-
trol, center differential lock,
DAC, multi-display assembly,
seat heater, air conditioning
system, glove box light, emer-
gency flasher, radio receiver
assembly, headlight cleaner,
inverter, driving position mem-
ory system, mirror ECU, over-
head module, roll sensing of
curtain shield airbags off
switch, shift lever switch, steer-
ing switches, VSC, console
switch

437
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)
■
Passenger’s side instrument panel
FuseAmpereCircuit
1RSF LH30 A No circuit
2B/DR CLSR RH30 A No circuit
3B/DR CLSR LH30 A No circuit
4RSF RH30 A No circuit
5DOOR DL15 A No circuit
6AHC-B20 A No circuit
7AHC-B NO.210 A No circuit
8ECU-IG NO.45 A Tire pressure warning system
9SEAT-A/C FAN10 A No circuit
10SEAT-HTR20 A Seat heater
11AFS5 A No circuit
12ECU-IG NO.35 A No circuit
13TV10 A Multi-display assembly
ITN42C018

509
6-1. Specifications
6
Vehicle specifications
L/C200_U (OM60D97U)

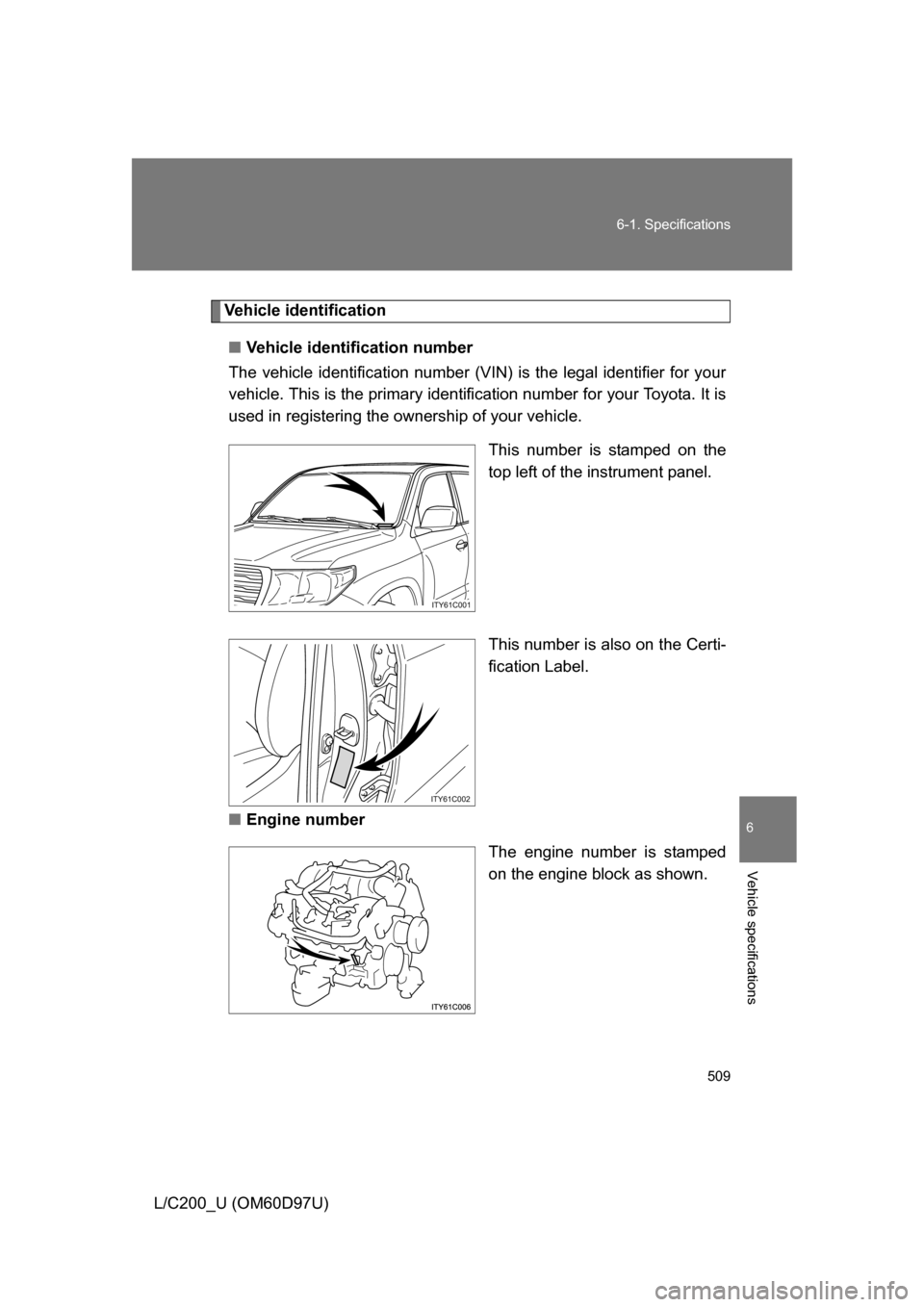

Vehicle identification
■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label.
■ Engine number
The engine number is stamped
on the engine block as shown.
ITY61C001
ITY61C002

547
Alphabetical index
L/C200_U (OM60D97U)
Wattage ................................ 517
Front passenger’s seat belt reminder light ........................ 465
Front seats Adjustment ............................. 51
Driving position memory ......... 62
Front side marker light Replacing light bulbs ............ 439
Wattage ................................ 517
Front turn signal lights Replacing light bulbs ............ 439
Wattage ................................ 517
Fuel Capacity ............................... 510
Fuel gauge ........................... 164
Fuel pump shut off system ... 459
Gas station information ........ 556
Information ........................... 518
Refueling ................................ 91
Type ..................................... 518
Fuel door .................................... 91
Fuel filler door ........................... 91
Fuel pump shut off system ................................... 459
Fuses ........................................ 426
Garage door opener ................ 366
Gas station information .......... 556
Gauges ..................................... 164
Glove box ................................. 342
Glove box light ........................ 342
Head restraints
Adjusting................................. 66
Headlight cleaner .................... 187
Headlights
Replacing light bulbs ............ 439
Switch ................................... 174
Wattage ................................ 517
Heaters Seat heaters ......................... 360 Hill-start assist control ............212
Hood ..........................................388
Hooks
Cargo hook............................364
Tie-down hooks .....................364
Horn...........................................163
I/M test.......................................384
Identification
Engine ...................................509
Vehicle ..................................509
Ignition Engine switch ........................151
Keys ........................................24
Ignition switch........................151
Ignition switch ..........................151
Illuminated entry system .........338
Indicator lights .........................167
Initialization
Items to initialize....................537
Inside rear view mirror ..............81
Instrument panel light
control ....................................165
Interior lights
Interior lights..........................338
Switch....................................339
Wattage .................................517
Jack Replacing the wheel ..............476
Jack handle ..............................476
KDSS .........................................212
Keyless entry..............................26
Keys Electronic key ..........................24
If you lose your keys .............492
If your electronic key battery is discharged...423, 494
Ignition switch........................151
Keyless entry...........................26
Key number .............................24
G
H
I
J
K

548 Alphabetical index
L/C200_U (OM60D97U)
Keys ........................................24
Mechanical key ....................... 24
Wireless remote control key .... 40
Language Multi-information display.........................170, 536
Licence plate lights
Replacing light bulbs ............. 439
Wattage .................................517
Light bulbs
Replacing ..............................439
Wattage .................................517
Lights
Door courtesy lights ..............338
Fog light switch ..................... 177
Headlights switch .................. 174
Interior light switch ................339
Personal light switch ............. 340
Replacing light bulbs ............. 439
Turn signal lever.................... 161
Vanity lights ...........................352
Wattage .................................517
Load capacity ...........................232
Maintenance
Do-it-yourself maintenance ...385
General maintenance ............381
Maintenance data.................. 508
Maintenance requirements....379
Meter Instrument panel light
control .................................165
Meters ...................................164
Micro dust and pollen filter ..... 260
Mirrors
Inside rear view mirror.............81
Side mirror heater .................268
Side mirrors .............................82
Vanity mirrors ........................352 Moon roof ................................... 88
MP3 disc ................................... 285
Multi-information display ........ 170
Odometer .................................. 164
Off-road precautions ............... 220
Oil
Engine oil .............................. 391
Opener Fuel filler door ......................... 91
Hood ..................................... 388
Outside rear view mirrors Adjusting and folding............... 82
Mirror position memory ........... 62
Outside temperature display .................................... 354
Overhead console.................... 344
Overheating, Engine ................ 501
Parking brake ........................... 162
Parking lights
Replacing light bulbs ............. 439
Switch ................................... 174
Wattage................................. 517
Personal lights Personal lights ...................... 340
Switch ................................... 340
Wattage................................. 517
Power outlet ............................. 358
Power steering
Fluid ...................................... 400
Power windows .......................... 85
Radiator .................................... 397
Radio ......................................... 272
RDS ........................................... 274
Rear seats
Adjustment .............................. 53
Tumbling second seats ........... 54
Tumbling third seats................ 57
