2009 TOYOTA LAND CRUISER Owners Manual

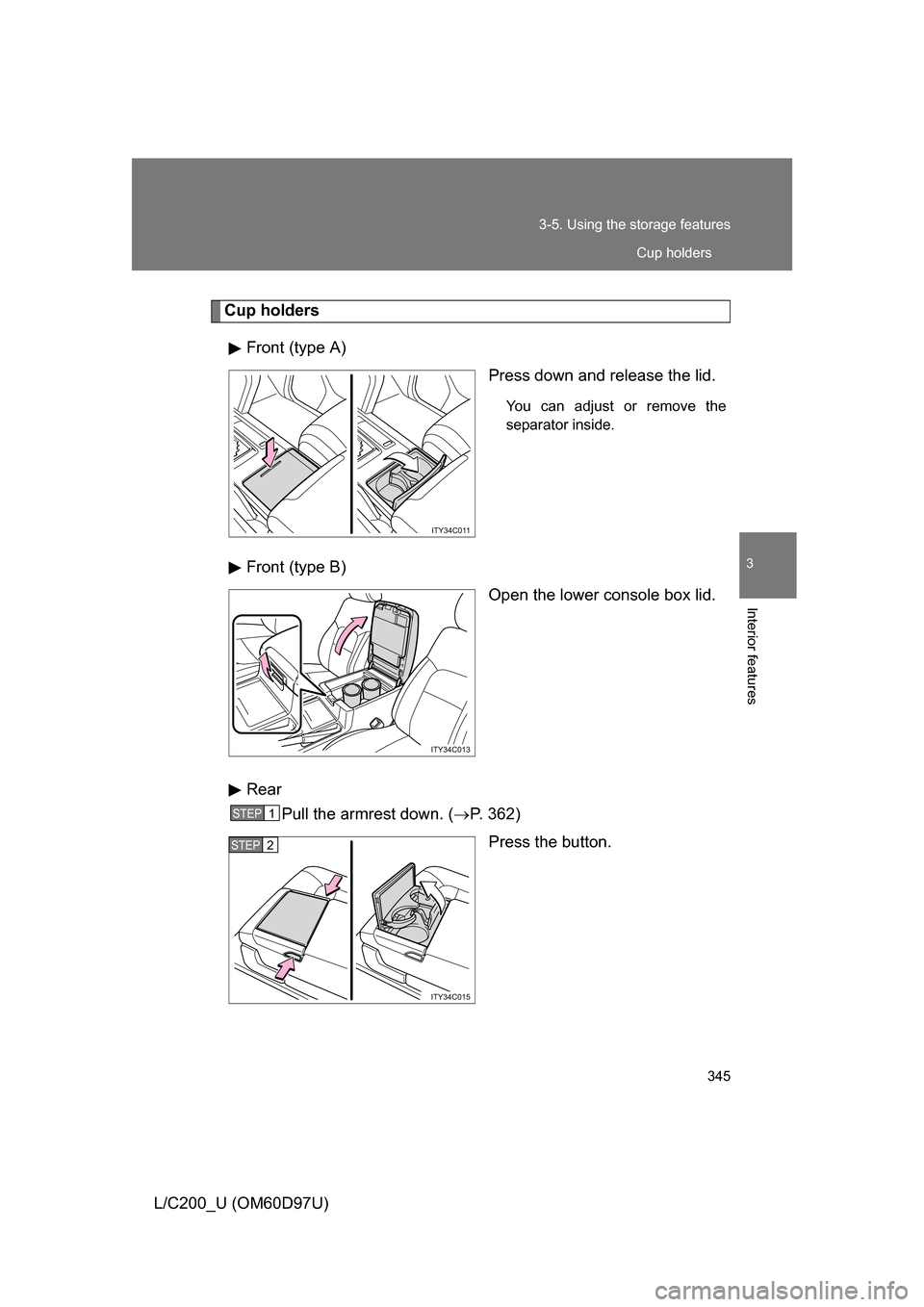

345
3-5. Using the
storage features
3
Interior features
L/C200_U (OM60D97U)
Cup holders
Front (type A) Press down and release the lid.
You can adjust or remove the
separator inside.
Front (type B)Open the lower console box lid.
Rear Pull the armrest down. ( P. 362)
Press the button.
ITY34C011
ITY34C013
STEP1
ITY34C015
STEP2
Cup holders

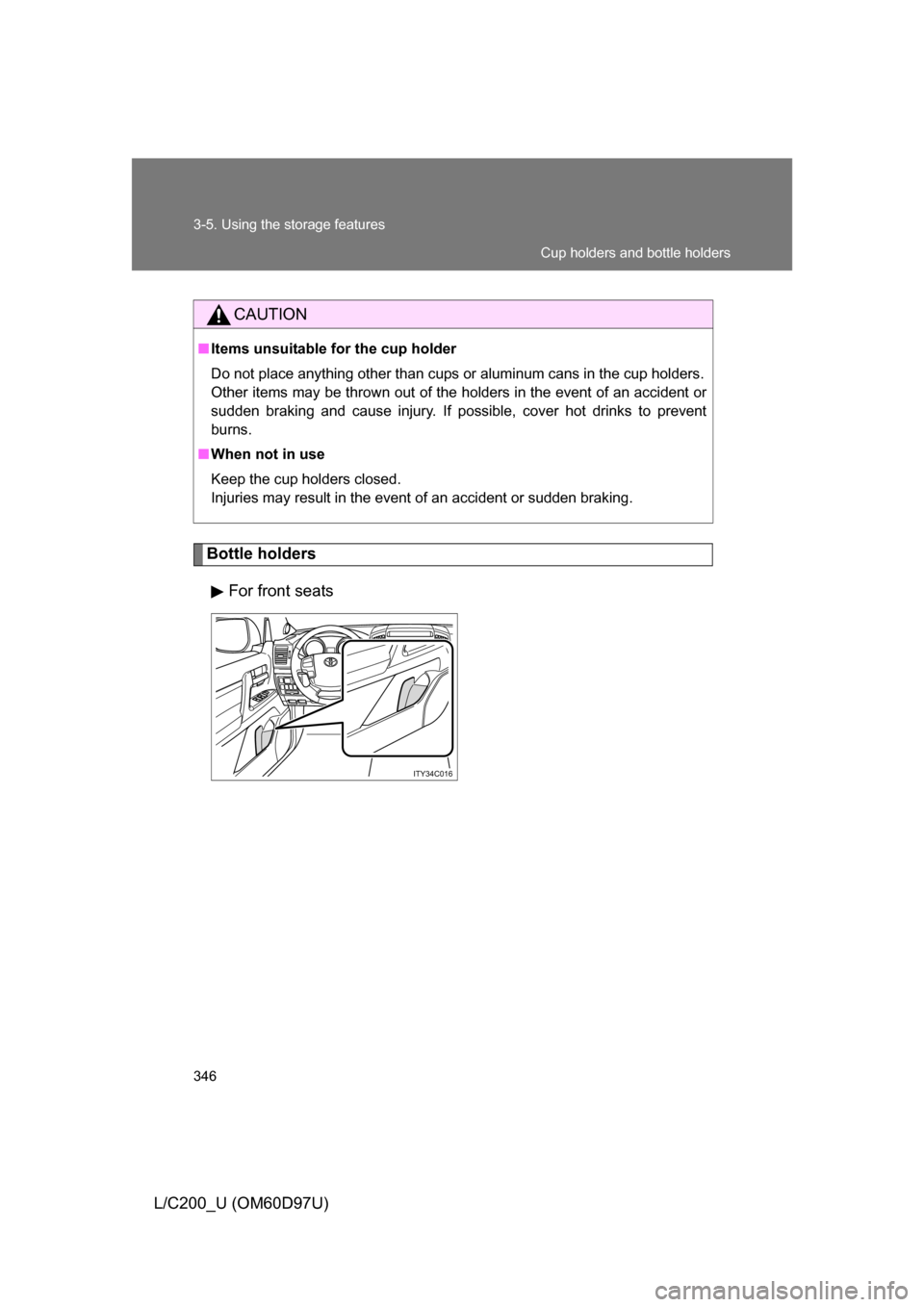

346 3-5. Using the storage features
L/C200_U (OM60D97U)
Bottle holdersFor front seats
CAUTION
■Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury. If possible, cover hot drinks to prevent
burns.
■ When not in use
Keep the cup holders closed.
Injuries may result in the event of an accident or sudden braking.
ITY34C016
Cup holders and bottle holders

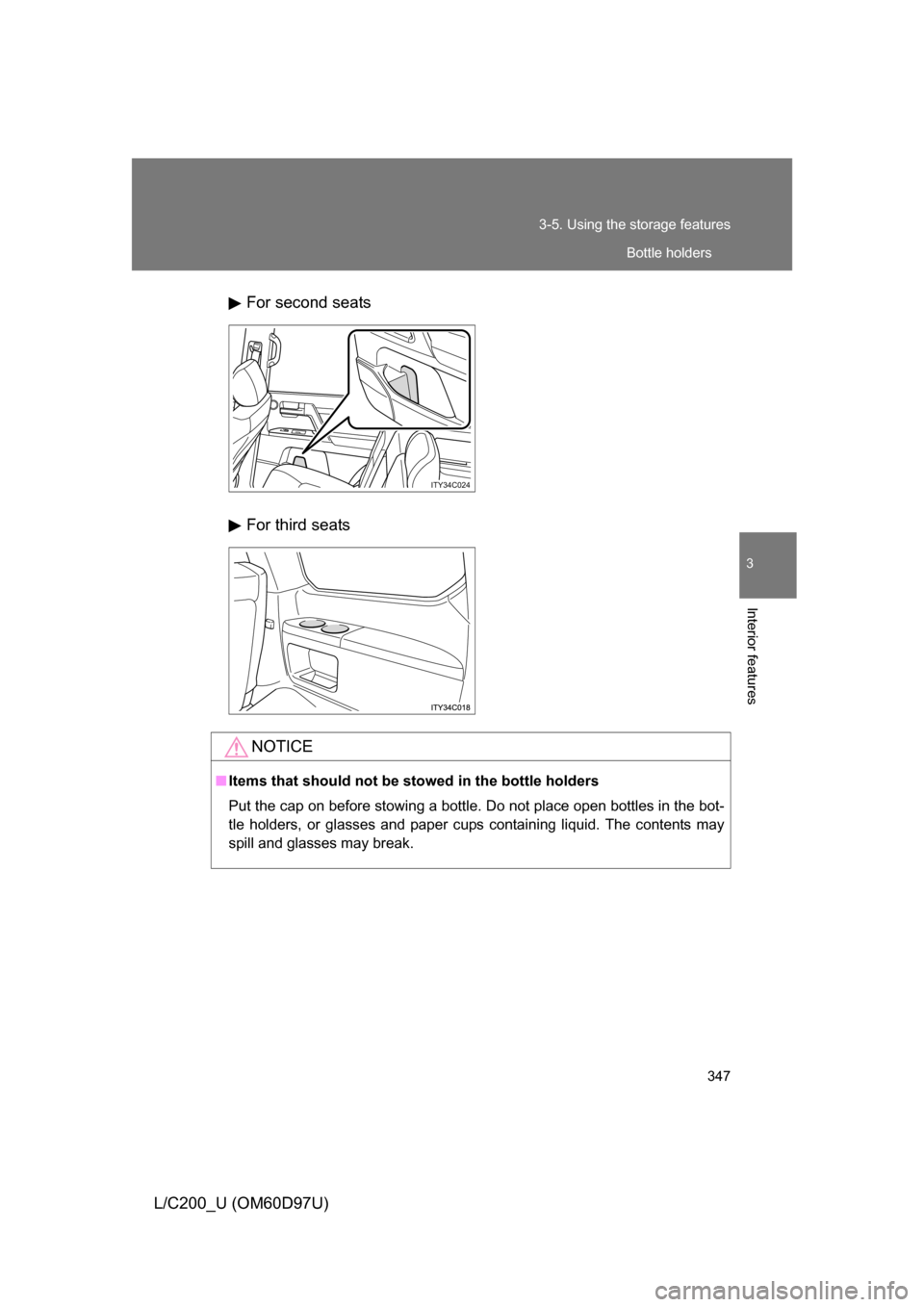

347
3-5. Using the
storage features
3
Interior features
L/C200_U (OM60D97U)For second seats
For third seats
ITY34C024
NOTICE
■
Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
Bottle holders

348 3-5. Using the storage features
L/C200_U (OM60D97U)
Card holdersSun visor
Instrument panel
Auxiliary box
ITY34C023
Card holders and auxiliary box

349
3
Interior features
L/C200_U (OM60D97U)
3-6. Other interior features
Cool box (if equipped)
■While the cool box is on
The front air conditioning system cannot be turned off.
■ When the outside temperature is 0°C or below
The cool box may not operate.
While the engine is running, the co ol box, which is cooled by the air
conditioning, can be used.
Lift the lever to open.
On/off
When on, the indicator light
comes on.
If the front air conditioning sys-
tem is not in use, the front air
conditioning system is auto-
matically turned on when the
cool box is turned on.
ITY34C029
STEP1
COOLBOX
PWR
ITY34C027
STEP2

350 3-6. Other interior features
L/C200_U (OM60D97U)
CAUTION
■While driving
Keep the cool box closed.
Injuries may result in the event of an accident or sudden braking.
NOTICE
■To prevent battery discharge
Do not leave the cool box on longer than necessary when the engine is
stopped.

351
3-6. Other interior features
3
Interior features
L/C200_U (OM60D97U)
Sun visors
Main sun visorForward position:
Flip down.
Side position:
Flip down, unhook, and
swing to the side.
Side extender:
Place in side position, then
slide backwards.
Sub-sun visor
Flip down with the main sun
visor in position or .

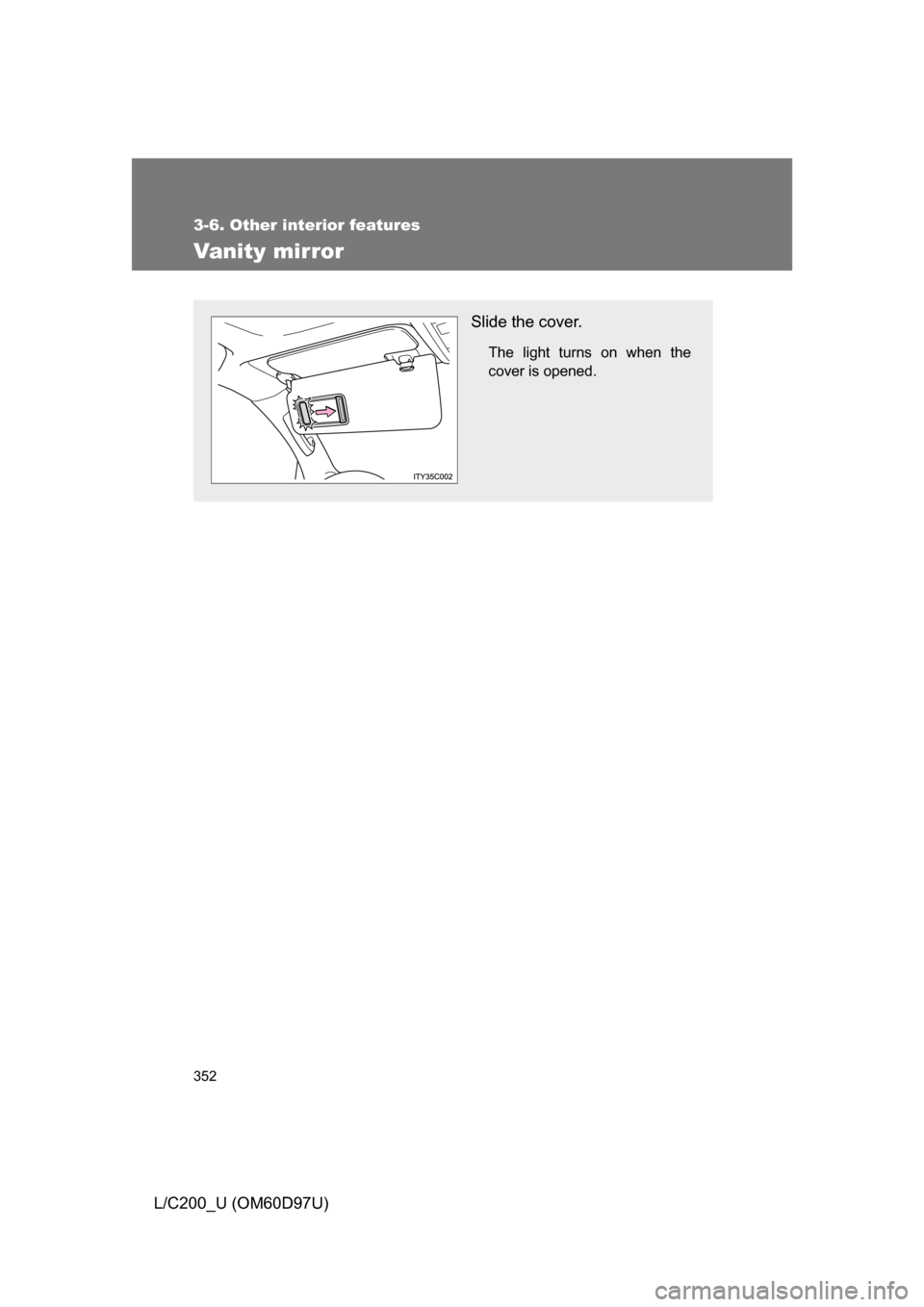

352
3-6. Other interior features
L/C200_U (OM60D97U)
Vanity mirror
Slide the cover.
The light turns on when the
cover is opened.
