2009 TOYOTA LAND CRUISER Owners Manual

97
1
1-6. Theft deterrent system
Before driving
L/C200_U (OM60D97U)
Alarm
The system sounds the alarm and flashes lights when forcible entry
is detected.
■ Triggering of the alarm
The alarm is triggered in the following situations.
●A locked door is unlocked or opened in any way other than
using the smart key system, t he wireless remote control or
using the mechanical key. (The doors will lock again automat-
ically)
● The hood is opened while t he vehicle is locked.
● The battery is reconnected.
■ Setting the alarm system
Close the doors and hood,
and lock all doors.
The system will be set auto-
matically after 30 seconds.
The indicator light changes
from being on to flashing when
the system is set.
SECURITY
SECURITY
SECURITY
ITY16C015

98 1-6. Theft deterrent system
L/C200_U (OM60D97U)
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure
of the following.
● Nobody is in the vehicle.
● The windows and moon roof are closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.
■ Triggering of the alarm
The alarm may be triggered in the following situations.
(Stopping the alarm deactivates the alarm system.)
● A person inside the vehicle opens a door or hood.
● The battery is recharged or replaced when the vehicle is locked.
■ Panic mode
■ Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
●Unlock the doors using the smart key system or the wireless
remote control.
● Start the engine. (The alarm will be deactivated or stopped
after a few seconds.)
When is pressed for longer than
about one second, the headlights/tail
lights/emergency flashers will flash, the
front and rear interior lights will come on,
and an alarm will sound for about 60 sec-
onds to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on
the wireless remote control.

99
1
1-6. Theft deterrent system
Before driving
L/C200_U (OM60D97U)

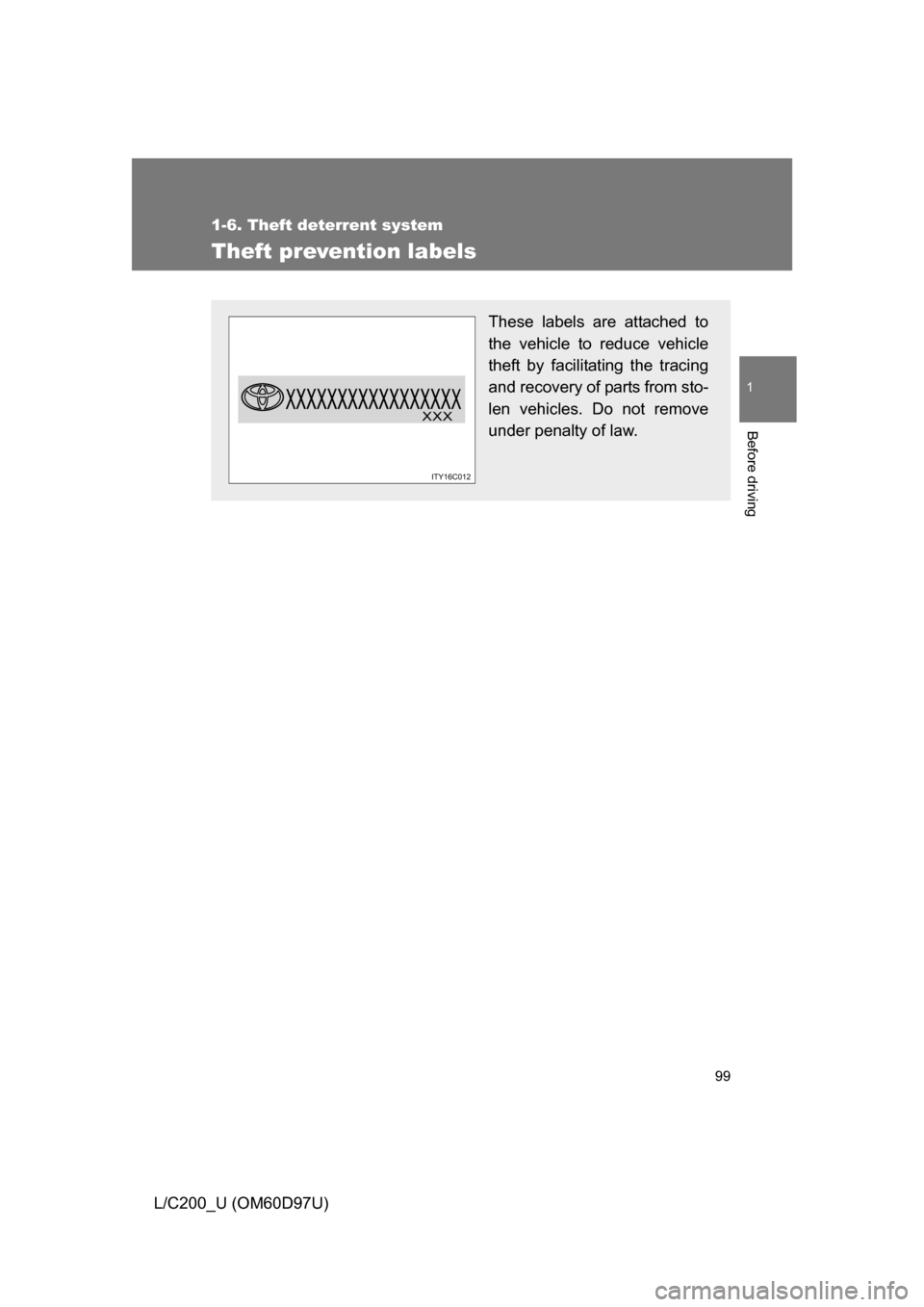

Theft prevention labels
These labels are attached to
the vehicle to reduce vehicle
theft by facilitating the tracing
and recovery of parts from sto-
len vehicles. Do not remove
under penalty of law.
ITY16C012
XXXXX

100
L/C200_U (OM60D97U)
1-7. Safety information
Correct driving posture
Drive with a good posture as follows:
Sit upright and well back in
the seat. (P. 5 1 )
Adjust the position of the
seat forward or backward to
ensure the pedals can be
reached and easily
depressed to the extent
required. ( P. 51)
Adjust the seatback so that
the controls are easily oper-
able.
Adjust the tilt and telescopic
positions of the steering
wheel downward so the air-
bag is facing your chest.
(  P. 79)
Lock the head restraint in
place with the center of the
head restraint closest to the
top of your ears. ( P. 66)
Wear the seat belt correctly.
(  P. 70)
ITY17C002

101
1-7. Safety information
1
Before driving
L/C200_U (OM60D97U)

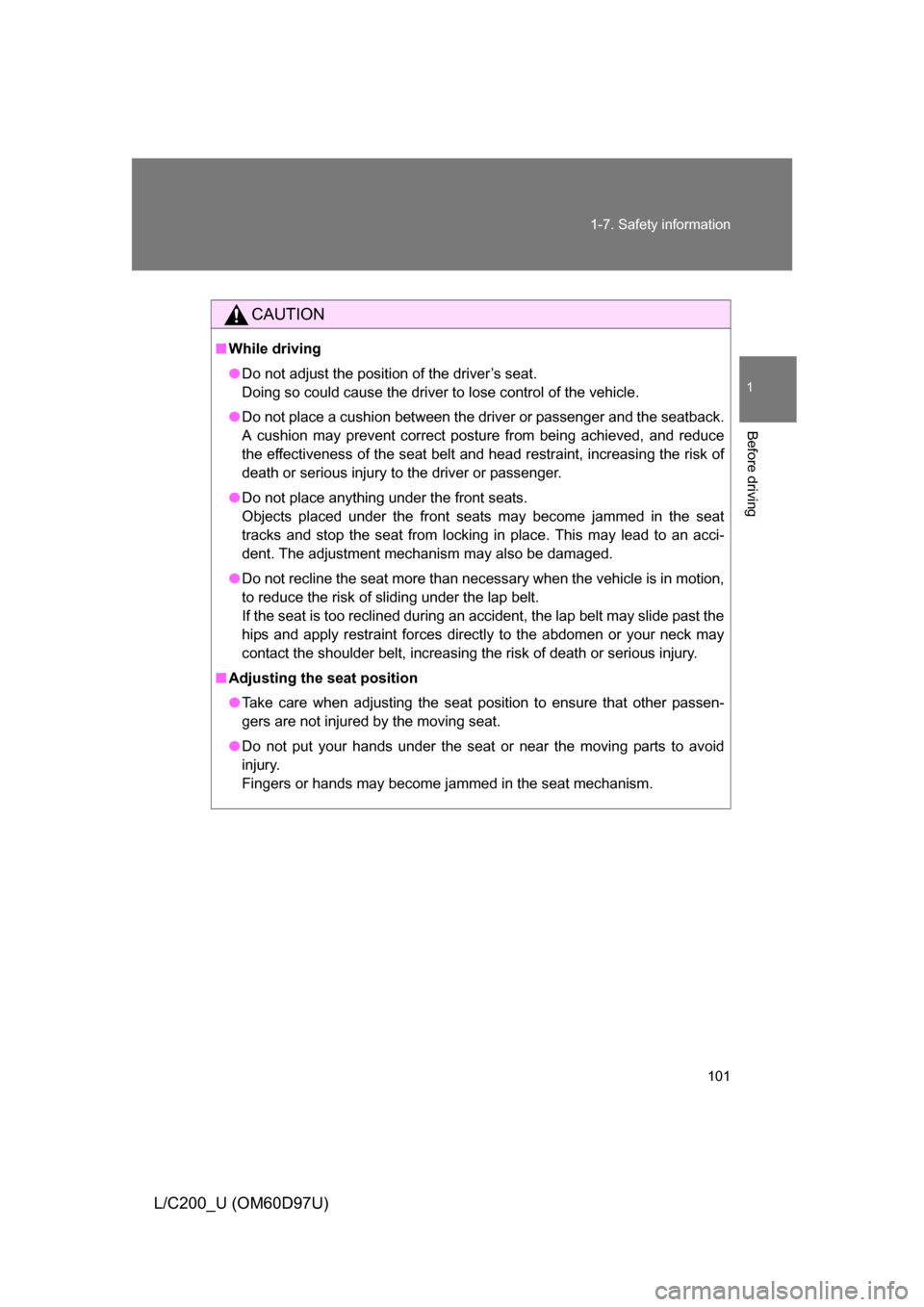

CAUTION
■
While driving
● Do not adjust the position of the driver’s seat.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint, increasing the risk of
death or serious injury to the driver or passenger.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent. The adjustment mechanism may also be damaged.
● Do not recline the seat more than necessary when the vehicle is in motion,
to reduce the risk of sliding under the lap belt.
If the seat is too reclined during an accident, the lap belt may slide past the
hips and apply restraint forces directly to the abdomen or your neck may
contact the shoulder belt, increasing the risk of death or serious injury.
■ Adjusting the seat position
● Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
● Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.

102
1-7. Safety information
L/C200_U (OM60D97U)

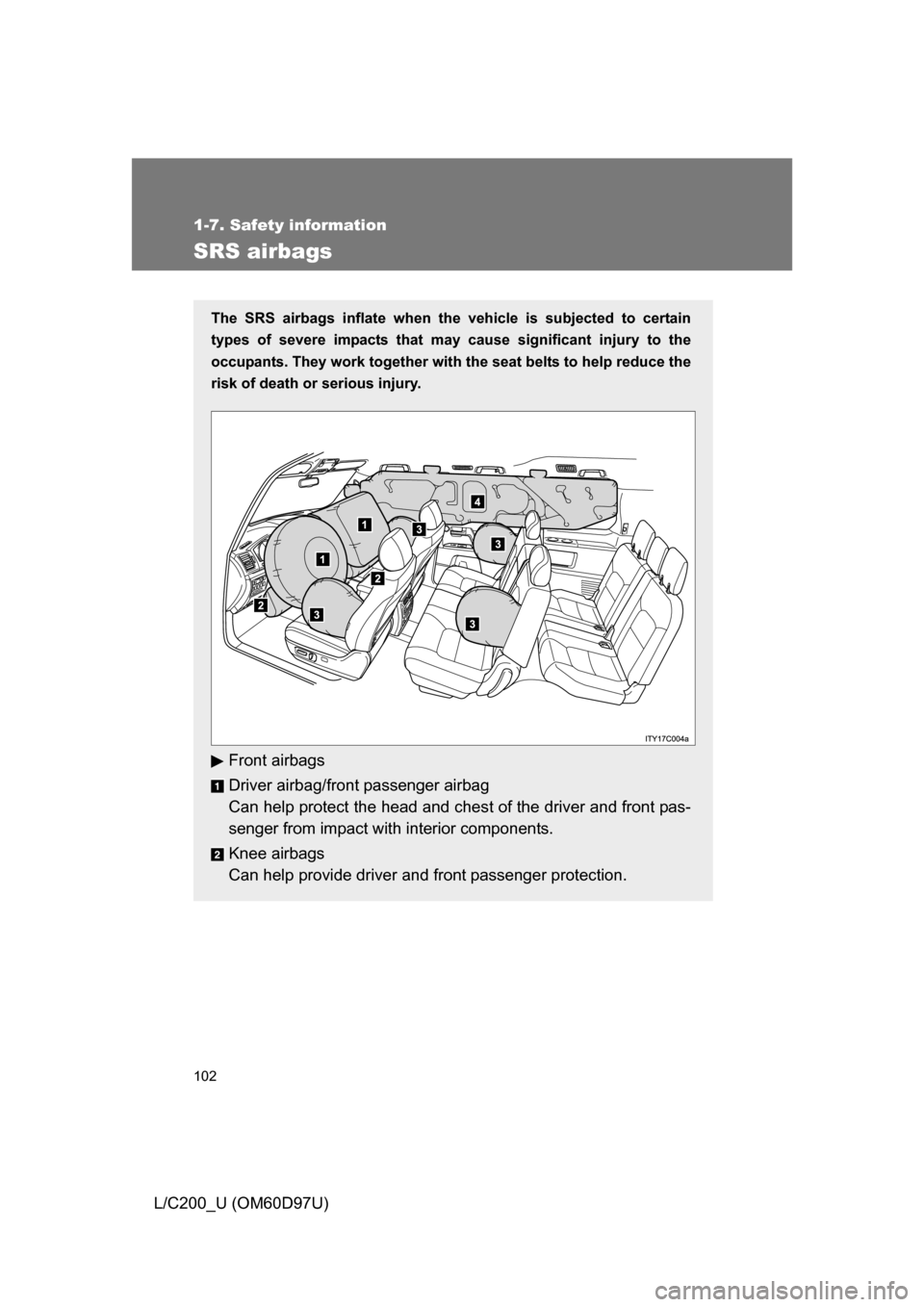

SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain
types of severe impacts that may cause significant injury to the
occupants. They work together with the seat belts to help reduce the
risk of death or serious injury.
Front airbags
Driver airbag/front passenger airbag
Can help protect the head and ches t of the driver and front pas-
senger from impact with interior components.
Knee airbags
Can help provide driver and front passenger protection.

103
1-7. Safety information
1
Before driving
L/C200_U (OM60D97U)

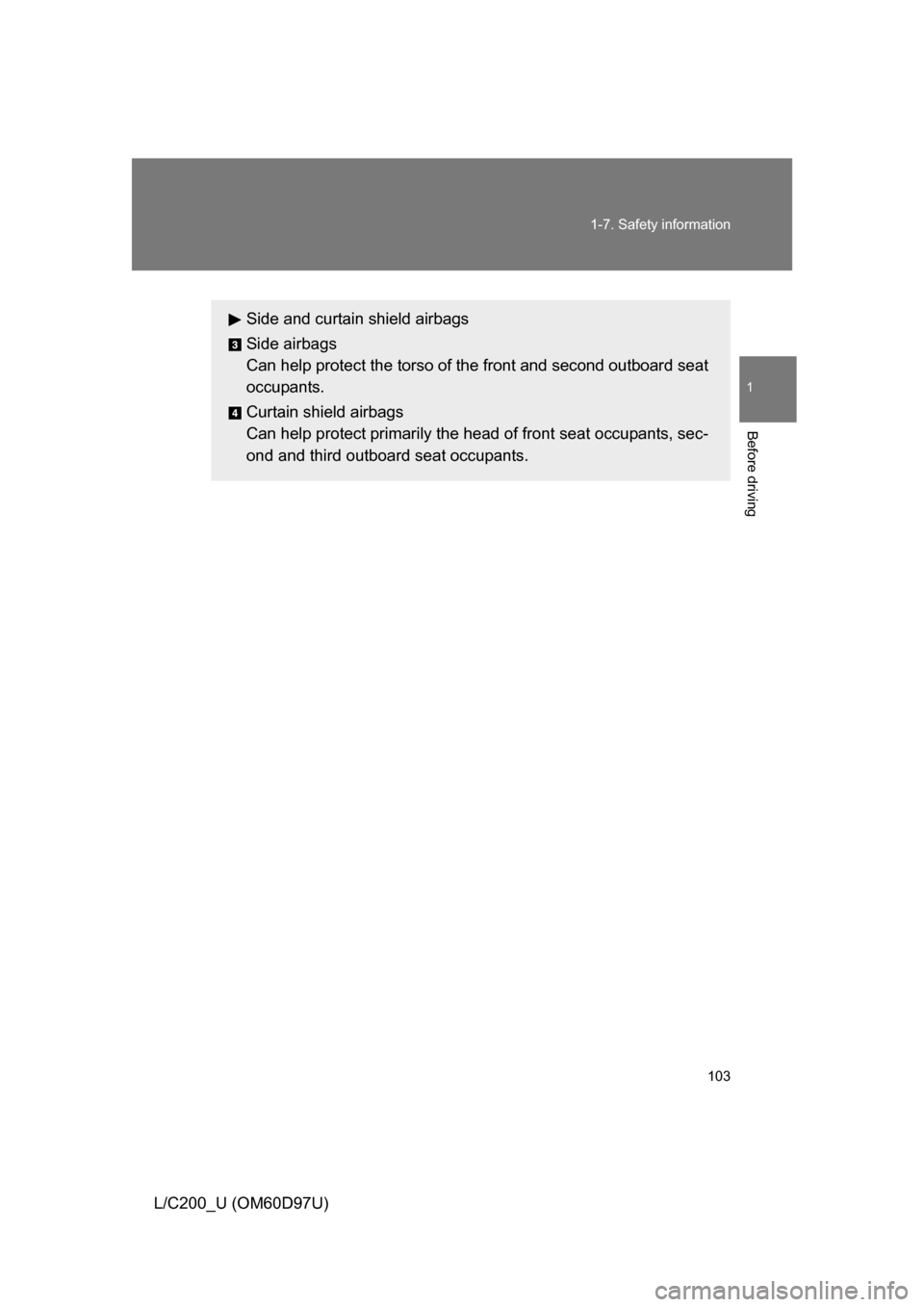

Side and curtain shield airbags
Side airbags
Can help protect the torso of the front and second outboard seat
occupants.
Curtain shield airbags
Can help protect primarily the head of front seat occupants, sec-
ond and third outboard seat occupants.

104 1-7. Safety information
L/C200_U (OM60D97U)
Airbag system componentsOccupant detection sensor
Knee airbag
Curtain shield airbag
Front passenger airbag
Front passenger occupant
classification indicator light
Side and curtain shield airbag
sensor
Side airbag (front seat)
SRS warning light and
“RSCA OFF” indicator light
Curtain shield airbag sensor Side airbag
(second outboard seat)
Driver airbag
Driver’s seat position sensor
Driver’s seat belt buckle
switch
Floor sensor
Roll sensing of curtain shield
airbags off switch
Airbag sensor assembly
Front airbag sensor
Front passenger’s seat belt
buckle switch
