2009 TOYOTA LAND CRUISER Owners Manual

5
When trouble arises

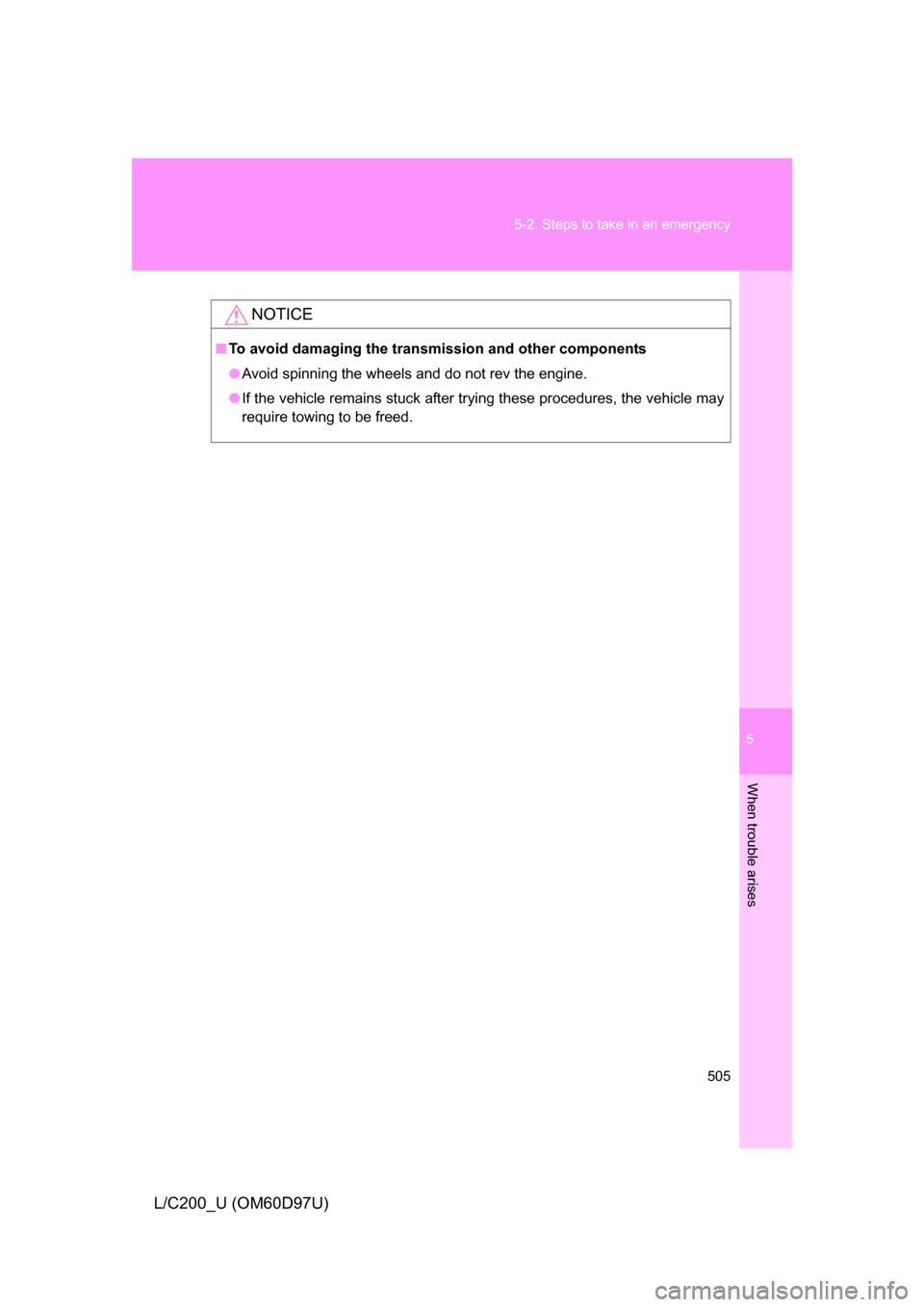

505
5-2. Steps to take in an emergency
L/C200_U (OM60D97U)
NOTICE
■
To avoid damaging the transmission and other components
● Avoid spinning the wheels and do not rev the engine.
● If the vehicle remains stuck after trying these procedures, the vehicle may
require towing to be freed.

506 5-2. Steps to take in an emergency
L/C200_U (OM60D97U)

Vehicle specifications6
507
L/C200_U (OM60D97U)
6-1. Specifications................. 508Maintenance data (fuel, oil level, etc.) ......... 508
Fuel information ............... 518
Tire information ................ 521
6-2. Customization ................ 533 Customizable features ..... 533
6-3. Initialization .................... 537 Items to initialize .............. 537

508
L/C200_U (OM60D97U)
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*:Unladen vehicle
Overall length194.9 in. (4950 mm)
Overall width77.6 in. (1970 mm)
Overall height *74.0 in. (1880 mm)
Wheelbase112.2 in. (2850 mm)
TreadFront64.6 in. (1640 mm)
Rear64.4 in. (1635 mm)
Vehicle capacity weight
(Occupants + luggage)1235 lb. (560 kg)
Towing capacity
(trailer weight + cargo weight)8500 lb. (3856 kg)

509
6-1. Specifications
6
Vehicle specifications
L/C200_U (OM60D97U)
Vehicle identification
■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label.
■ Engine number
The engine number is stamped
on the engine block as shown.
ITY61C001
ITY61C002

510 6-1. Specifications
L/C200_U (OM60D97U)
Engine
Fuel
Model3UR-FE
Ty p e8-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  4.02 in. (94.0  102.0 mm)
Displacement345.6 cu.in. (5663 cm3)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel typeUnleaded gasoline only
Octane rating87 (Research octane number 91) or higher
Fuel tank capacity24.6 gal. (93 L, 20.5 lmp.gal)

511
6-1. Specifications
6
Vehicle specifications
L/C200_U (OM60D97U)
Lubrication system
Oil viscosity:
● The 0W portion of the oil viscosity rating indicates the characteristic
of the oil which allows cold startab ility. Oils with a lower value before
the W allow for easier starting of the engine in cold weather.
● The 20 in 0W-20 indicates the oil visc osity when the oil is as its oper-
ating temperature. An oil with a higher viscosity may be better suited
if the vehicle is operated at high speeds, or under extreme load con-
dition.
Oil capacity
Drain and refill
(Reference)
With filter
Without filter7.4 qt. (7.0 L, 6.2 lmp.qt.)
7.0 qt. (6.6 L, 5.8 lmp.qt.)
Oil gradeILSAC multigrade engine oil
Recommended oil
viscosity
Use Toyota approved “Toyota Genuine Motor Oil”
or equivalent to satisfy the above grade and vis-
cosity.
Outside temperature

512 6-1. Specifications
L/C200_U (OM60D97U)
Cooling system
Ignition system
Capacity16.3 qt. (15.4 L, 13.6 lmp.qt.)
Coolant type
Use either of the following:• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
Spark plug
Make DENSO
GapSK20HR11
0.043 in. (1.1 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
