2009 TOYOTA LAND CRUISER Owners Manual

201
2-4. Using other driving systems
2
When driving
L/C200_U (OM60D97U)
Four-wheel drive system
Use the four-wheel drive control switch and center differential lock/
unlock switch to select the following transfer and center differential
modes.
■ Four-wheel drive control switch
“H4” (high speed position)
Normal driving on all types of
roads.
“L4” (low speed position)
Driving requiring maximum
power and traction such as
climbing or descending steep
hills, off-road driving, and hard
pulling in sand or mud, etc.
■Center differential lock/unlock switch
Lock the center differential
when your vehicle’s wheels
get stuck in a ditch or when
driving on a slippery or bumpy
surface.
Unlock the center differential
after the wheels have been
freed, or after moving to a flat,
non-slippery surface.
4
4
ITY24C024
ITO24C065

202 2-4. Using other driving systems
L/C200_U (OM60D97U)
Shifting between “H4”and “L4”■ Shifting from “H4” to “L4”
Stop the vehicle completely.
Shift the shift lever to “N”.
Push and turn the four-wheel drive control switch fully clock-
wise.
Maintain this condition until the low speed four-wheel drive indica-
tor light turns on.
■Shifting from “L4” to “H4”
Stop the vehicle completely.
Shift the shift lever to “N”.
Turn the four-wheel drive control switch fully counterclock-
wise.
Maintain this condition until the low speed four-wheel drive indica-
tor light turns off.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3

203
2-4. Using other
driving systems
2
When driving
L/C200_U (OM60D97U)
Neutral position
Shifting to the neutral position cuts drive power to the wheels.
■ Shifting from “H4” to the neutral position
Stop the vehicle completely.
Make sure the vehicle is stopped in a safe place while carrying out
the following procedure.
Confirm the following:
●The four wheel-drive control switch is in “H4”. (The low speed four-
wheel drive indicator light is not illuminated.)
If the switch is in “L4”, turn it to “H4”. ( P. 201)
● The center differential is unlocked. (The center differential lock
indicator light is not illuminated.)
If the center differential is locked, press the center differential lock/
unlock switch to unlock the center differential. ( P. 201)
Set the parking brake firmly and put the shift lever in “N”.
Turn the engine off if the engine is running, then turn the
“ENGINE START STOP” switch to the IGNITION ON mode.
Do not start the engine till the end of the procedure.
Shift the shift lever to “P”.
Depress and release the brake pedal 3 times.
Depress the pedal firmly each time, then keep the pedal depressed
the third time.
Shift the shift lever to “N”.
Depress and release the brake pedal 3 times.
Release the brake pedal once and then depress and release the
brake pedal 3 times.
Depress the pedal firmly each time, then keep the pedal depressed
the third time.
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
STEP7
STEP8

204 2-4. Using other driving systems
L/C200_U (OM60D97U)Shift the four-wheel drive control switch to “L4”, then shift to
“H4” again.
When shifting the four-wheel drive control switch, push the switch
down while turning it.
The low speed four-wheel drive indicator light will flash slowly (turns
on and off every 2 seconds).
Shift the shift lever to “P”.
Shifting to the neutral position is completed with above procedure.
The unengaged “Park” warning light will turn on when the shift lever
is shifted to the “P” position.
To return to “H4” when the vehicle is in this condition, carry out the
following procedure.
■
Shifting from neutral position to “H4”
Stop the vehicle completely.
Make sure the vehicle is stopped in a safe place while carrying out
the following procedure.
Set the parking brake firmly.
Turn the “ENGINE START STOP” switch to the IGNITION ON
mode.
Do not start the engine at this time.
Depress the brake pedal firmly.
Keep the brake pedal depressed till the end of the procedure.
Shift the shift lever to “N”.
Shift the four-wheel drive control switch to “L4”, and then shift
to “H4” again.
When shifting the four-wheel drive control switch, push the switch
down while turning it.
The low speed four-wheel drive indicator light will turn off.
Shifting to “H4” is completed when the low speed four-wheel drive
indicator light turns off.
STEP9
STEP10
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6

205
2-4. Using other
driving systems
2
When driving
L/C200_U (OM60D97U)
■The four-wheel drive control switch can be operated when
● The “ENGINE START STOP” switch is in IGNITION ON mode.
● The shift lever is in the “N” position.
● The vehicle is stopped completely.
■ The low speed four-wheel drive indicator light
The indicator light blinks while shifting between “H4” and “L4”.
■ Advice for driving on slippery roads
● If you shift the four-wheel drive control switch to “L4” and the shift lever to
the “2” range of “S” while driving in steep off-road areas, the output of the
brake can be controlled effectively by the Active TRAC, which assists the
driver to control the driving power of 4 wheels.
● Use the “1” range of “S” of the shift lever for maximum power and traction
when your wheels get stuck or when driving down a steep incline.
■ The center differential lock indicator light
The indicator light blinks while locking/unlocking the center differential.
■ The center differential lock/unlo ck button can be operated when
● The “ENGINE START STOP” switch is in IGNITION ON mode.
● The vehicle speed is less than 60 mph (100 km/h).
■ Locking/unlocking the center differential
● When the center differential is locked, VSC (vehicle stability control) is
automatically turned off. (The center differential lock and “VSC OFF” indi-
cator lights come on.)
● If the operation is not completed, the center differential lock indicator
blinks. If the indicator light does not turn off when unlocking the center
differential, drive straight ahead while accelerating or decelerating, or
drive in reverse.
● If the center differential lock/unlock is not completed within 5 seconds
while the cruise control system is on, cancel the cruise control system.

206 2-4. Using other driving systems
L/C200_U (OM60D97U)
■If the low speed four-wheel drive in dicator light or the center differen-
tial lock indicator light blinks
● If the low speed four-wheel drive indicator light continues to blink when
using the four-wheel drive control switch, stop the vehicle completely,
move the shift lever to “N” and operate the switch again.
● If the shift lever is moved before the low speed four-wheel drive indicator
light has turned on/off, a beep sounds and the transfer position may not
successfully change. In this case, stop the vehicle completely, return the
shift lever to “N” and operate the switch again.
● If the engine coolant temperature is too low, the four-wheel drive control
system may not be able to shift. When the engine is warmer press the
switch again.
If the low speed four-wheel drive indicator light or the center differential lock
indicator light continues to blink even after attempting the above, there may
be a malfunction in the engine, the brake system or the four-wheel drive sys-
tem. In this case, you may not be able to shift between “H4” and “L4”, and
the center differential lock may not be operable. Have the vehicle inspected
by your Toyota dealer immediately.

207
2-4. Using other
driving systems
2
When driving
L/C200_U (OM60D97U)
CAUTION
■While driving
Never move the four-wheel drive control switch if the wheels have lost trac-
tion. Doing so may cause an accident resulting in death or serious injury.
NOTICE
■To prevent damage to the center differential
● For normal driving on dry and hard surface roads, unlock the center differ-
ential.
● Unlock the center differential after the wheels are out of the ditch or off the
slippery or bumpy surface.
● Do not push the center differential lock/unlock button when the vehicle is
turning or when its wheels are spinning freely off the ground.

208
2-4. Using other driving systems
L/C200_U (OM60D97U)

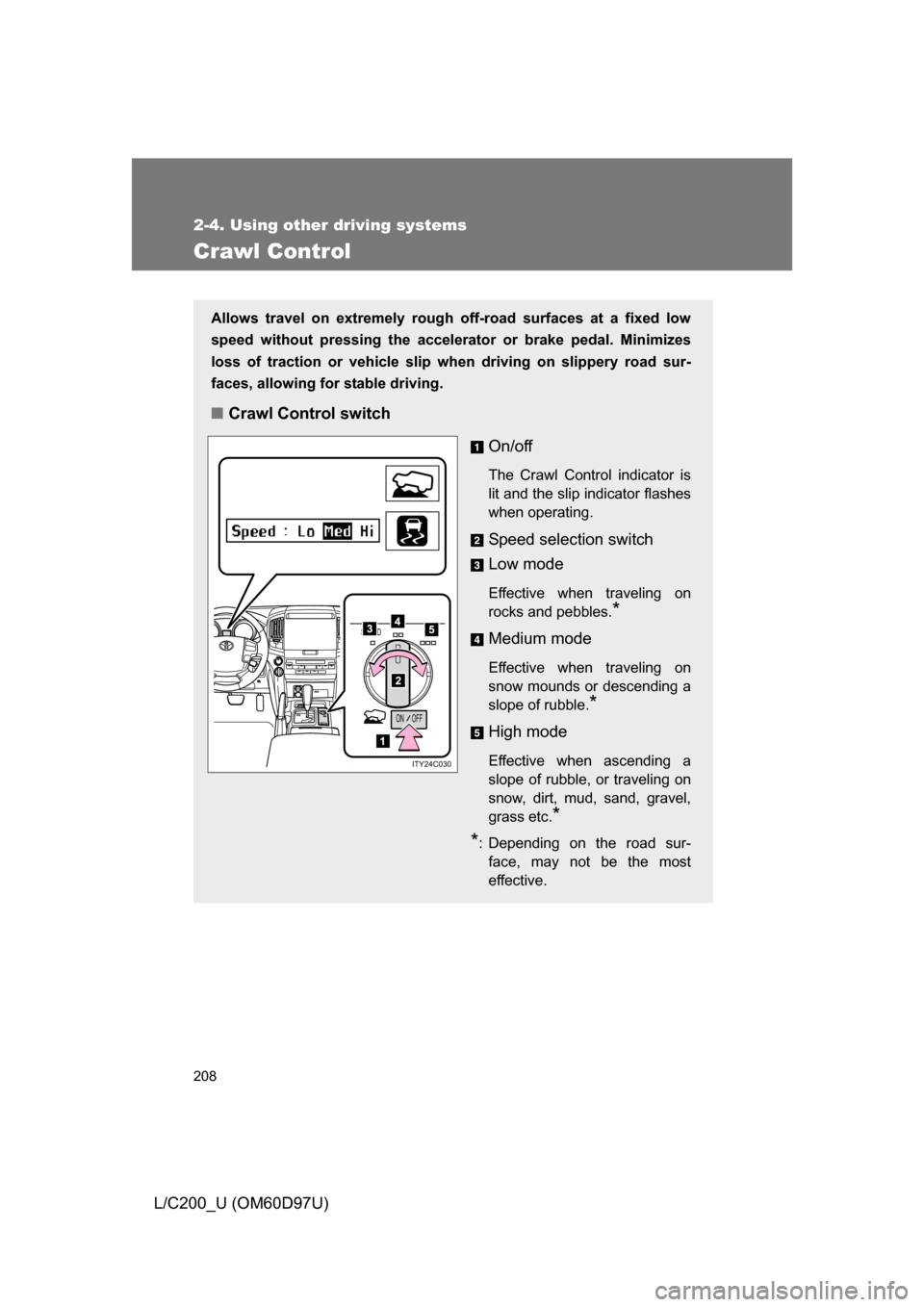

Crawl Control
Allows travel on extremely rough off-road surfaces at a fixed low
speed without pressing the accelerat or or brake pedal. Minimizes
loss of traction or vehicle slip wh en driving on slippery road sur-
faces, allowing for stable driving.
■ Crawl Control switch
On/off
The Crawl Control indicator is
lit and the slip indicator flashes
when operating.
Speed selection switch
Low mode
Effective when traveling on
rocks and pebbles.
*
Medium mode
Effective when traveling on
snow mounds or descending a
slope of rubble.
*
High mode
Effective when ascending a
slope of rubble, or traveling on
snow, dirt, mud, sand, gravel,
grass etc.
*
*
: Depending on the road sur- face, may not be the most
effective.
ON
SPEED
OFF
ITY24C030
