2009 TOYOTA LAND CRUISER Owners Manual

337
3-3. Using the rear seat entertainment system
3
Interior features
L/C200_U (OM60D97U)
Automatic closing of the rear display
Press .
If is on, the display
will automatically close when the
“ENGINE START STOP” switch is
turned to OFF mode.
The display will automatically
open when the “ENGINE START
STOP” switch is turned to
ACCESSORY or IGNITION ON
mode.
Displaying the map screen
Press .
The map screen will appear.

338
L/C200_U (OM60D97U)
3-4. Using the interior lights
Interior lights list
Your Toyota is equipped with the illuminated entry system to assist
in entering the vehicle. Owing to the function of the system, the
lights shown in the following illust ration automatically turn on/off
according to the presence of the el ectronic key, whether the doors
are locked/unlocked, whether the doors are opened/closed, and the
“ENGINE START STOP” switch mode.
Rear interior lights ( P. 339)
Rear personal lights ( P. 340)
Front interior light ( P. 339)
Front personal lights ( P. 340)
“ENGINE START STOP” switch light
Door courtesy lights
12
1
2
4
3
4
5
66

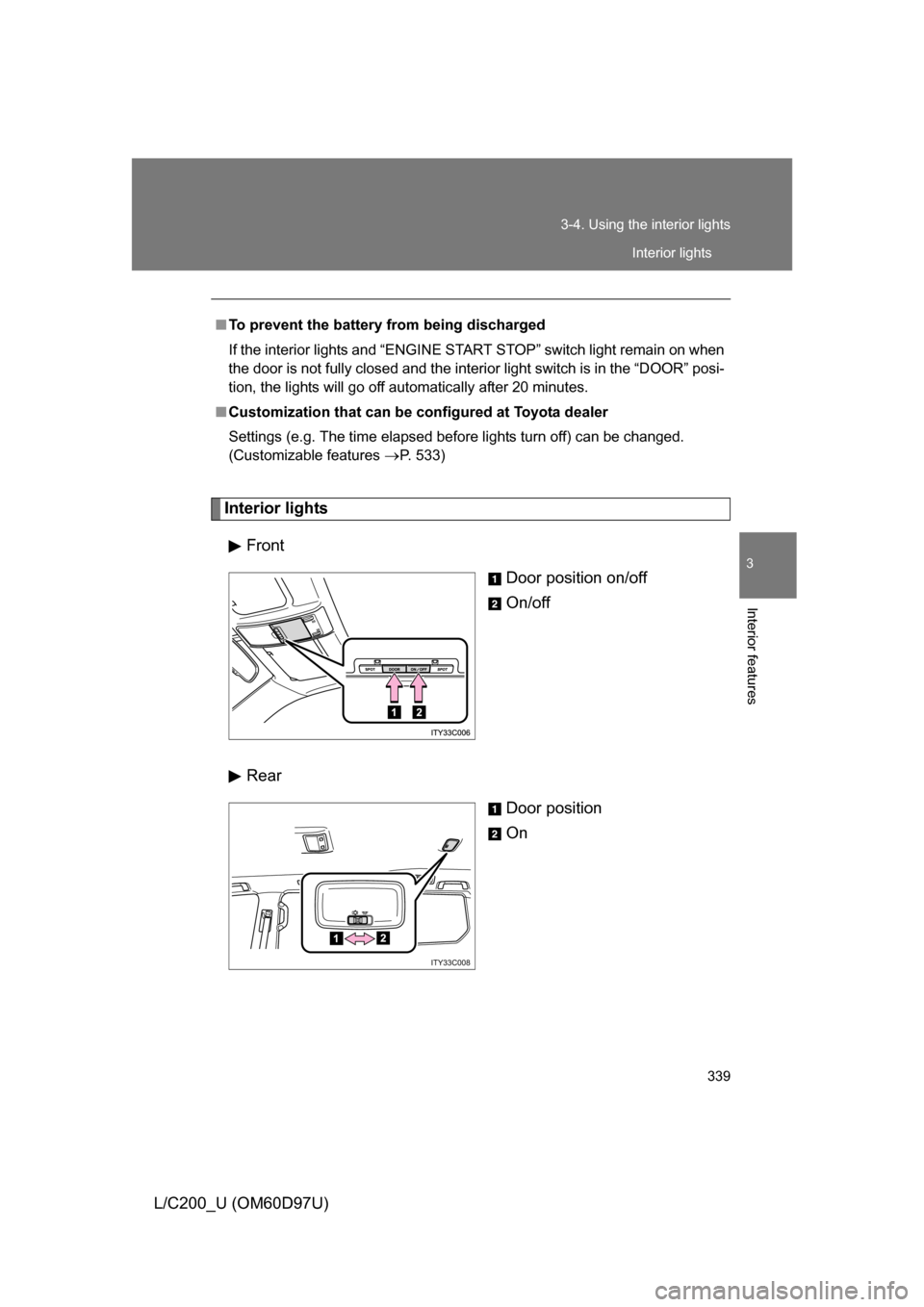

339
3-4. Using the interior lights
3
Interior features
L/C200_U (OM60D97U)
Interior lights
Front Door position on/off
On/off
Rear Door position
On
■To prevent the battery from being discharged
If the interior lights and “ENGINE START STOP” switch light remain on when
the door is not fully closed and the interior light switch is in the “DOOR” posi-
tion, the lights will go off automatically after 20 minutes.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features
P. 533)
ITY33C008
Interior lights

340 3-4. Using the interior lights
L/C200_U (OM60D97U)
Personal lightsFront On/off
Rear (type A) On/off
Rear (type B) On/off
ITY33C014
Personal lights

341
3
Interior features
L/C200_U (OM60D97U)
3-5. Using the storage features
List of storage features
Card holders
Overhead console
Glove box
Bottle holders
Door pockets
Auxiliary box
Console box/cool box
Cup holders
411234545
67845
ITY34C001

342 3-5. Using the storage features
L/C200_U (OM60D97U)
Glove boxOpen (push button)
Lock with the mechanical key
Unlock with the mechanical
key
ITY34C003
■Glove box light
The glove box light turns on when the tail lights are on.
CAUTION
■While driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
Glove box

343
3-5. Using the
storage features
3
Interior features
L/C200_U (OM60D97U)
Console box
Your vehicle is equipped with either a lower console box or cool box.
For vehicles with the cool box, refer to P. 349.
Upper console box Press the tab to open.
Lower console box (if equipped) Lift the lever to open.
Remove the tray.
ITY34C005
ITY34C006
STEP1
ITY34C033
STEP2
Console box

344 3-5. Using the storage features
L/C200_U (OM60D97U)
Overhead consolePress the button.
The overhead console is useful
for temporarily storing small
items.
CAUTION
■While driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
ITY34C009
CAUTION
■Items that should not be le ft in the overhead console
Do not leave glasses or lighters in the console.
If the interior of the vehicle becomes hot, lighters may explode and glasses
may warp or become cracked.
■ While driving
Do not leave the overhead console open. Items may fall out and cause
injury.
Console box and overhead console
