L/C200_U (OM60D97U)
2-3. Operating the lights and wipers .............................. 174
Headlight switch .................. 174
Fog light switch ................... 177
Windshield wipers and washer (Type A) ............... 179
Windshield wipers and washer (Type B) ............... 182
Rear window wiper and washer .............................. 185
Headlight cleaner switch ..... 187
2-4. Using other driving systems ........................... 188
Cruise control ...................... 188
Toyota park assist system .............................. 192
Four-wheel drive system ..... 201
Crawl Control ...................... 208
Driving assist systems ........ 212
Pre-Collision System........... 219
2-5. Driving information ........... 220 Off-road precautions ........... 220
Cargo and luggage ............. 225
Vehicle load limits ............... 232
Winter driving tips ............... 233
Trailer towing ...................... 238
Dinghy towing ..................... 250 3-1. Using the air conditioning
system and defogger ..... 254
Front air conditioning system .............................. 254
Rear air conditioning system .............................. 264
Rear window and outside rear view mirror defoggers....... 268
Windshield wiper de-icer .... 269
3-2. Using the audio system ............................. 270
Audio system type .............. 270
Using the radio ................... 272
Using the CD player ........... 277
Playing back MP3 and WMA discs ....................... 285
Optimal use of the audio system .............................. 293
Using the AUX adapter....... 295
Using the steering switches ........................... 296
3-3. Using the rear seat entertainment system .... 298
Rear seat entertainment system features ................ 298
Using the radio ................... 305
Using the DVD changer...... 306
Playing an audio CD/CD text ....................... 307
Playing WMA/MP3 discs .... 308
Playing DVD video/audio.... 309
Playing a video CD ............. 323
3Interior features

19
L/C200_U (OM60D97U)
Installation of a mobile two-way radio systemAs the installation of a mobile two- way radio system in your vehicle
could affect electronic systems such as the multiport fuel injection
system/sequential multiport fuel injection system, cruise control sys-
tem, anti-lock brake system, SRS airbag system and seat belt preten-
sioner system, be sure to check with your Toyota dealer for
precautionary measures or special instructions regarding installation.
Scrapping of your Toyota
The SRS airbag and seat belt pret ensioner devices in your Toyota
contain explosive chemic als. If the vehicle is scrapped with the air-
bags and seat belt pretensioners left as they are, this may cause an
accident such as fire. Be sure to have the systems of the SRS airbag
and seat belt pretensioner removed and disposed of by a qualified
service shop or by your Toyota dealer before you scrap your vehicle.
Perchlorate Material
Special handling may apply,
See www.dtsc.ca.gov/hazar douswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These
components may include airbag, seat belt pretensioners, and wire-
less remote control batteries.

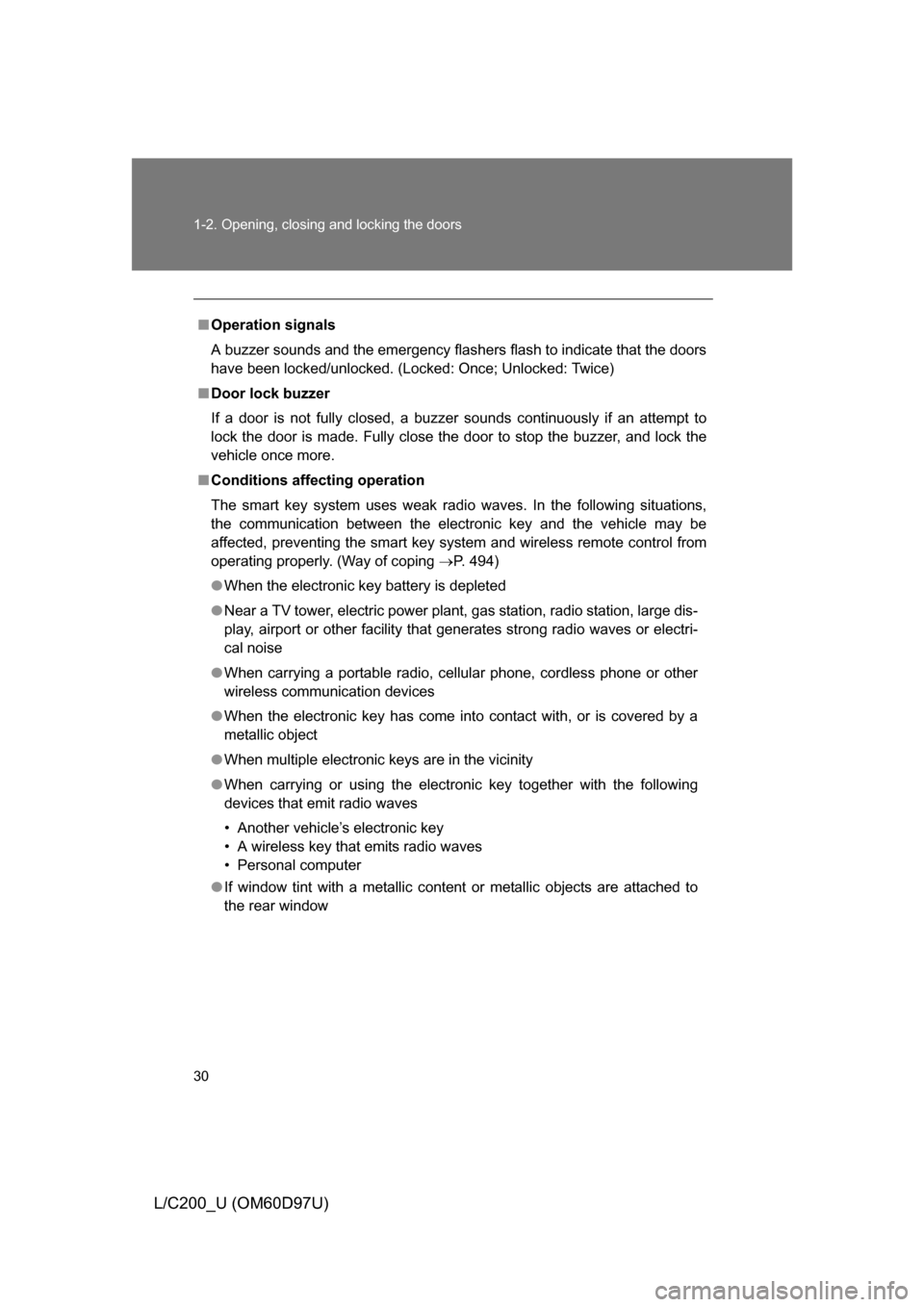

30 1-2. Opening, closing and locking the doors
L/C200_U (OM60D97U)
■Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
■ Door lock buzzer
If a door is not fully closed, a buzzer sounds continuously if an attempt to
lock the door is made. Fully close the door to stop the buzzer, and lock the
vehicle once more.
■ Conditions affecting operation
The smart key system uses weak radio waves. In the following situations,
the communication between the electronic key and the vehicle may be
affected, preventing the smart key system and wireless remote control from
operating properly. (Way of coping P. 494)
● When the electronic key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise
● When carrying a portable radio, ce llular phone, cordless phone or other
wireless communication devices
● When the electronic key has come into contact with, or is covered by a
metallic object
● When multiple electronic keys are in the vicinity
● When carrying or using the electronic key together with the following
devices that emit radio waves
• Another vehicle’s electronic key
• A wireless key that emits radio waves
• Personal computer
● If window tint with a metallic content or metallic objects are attached to
the rear window

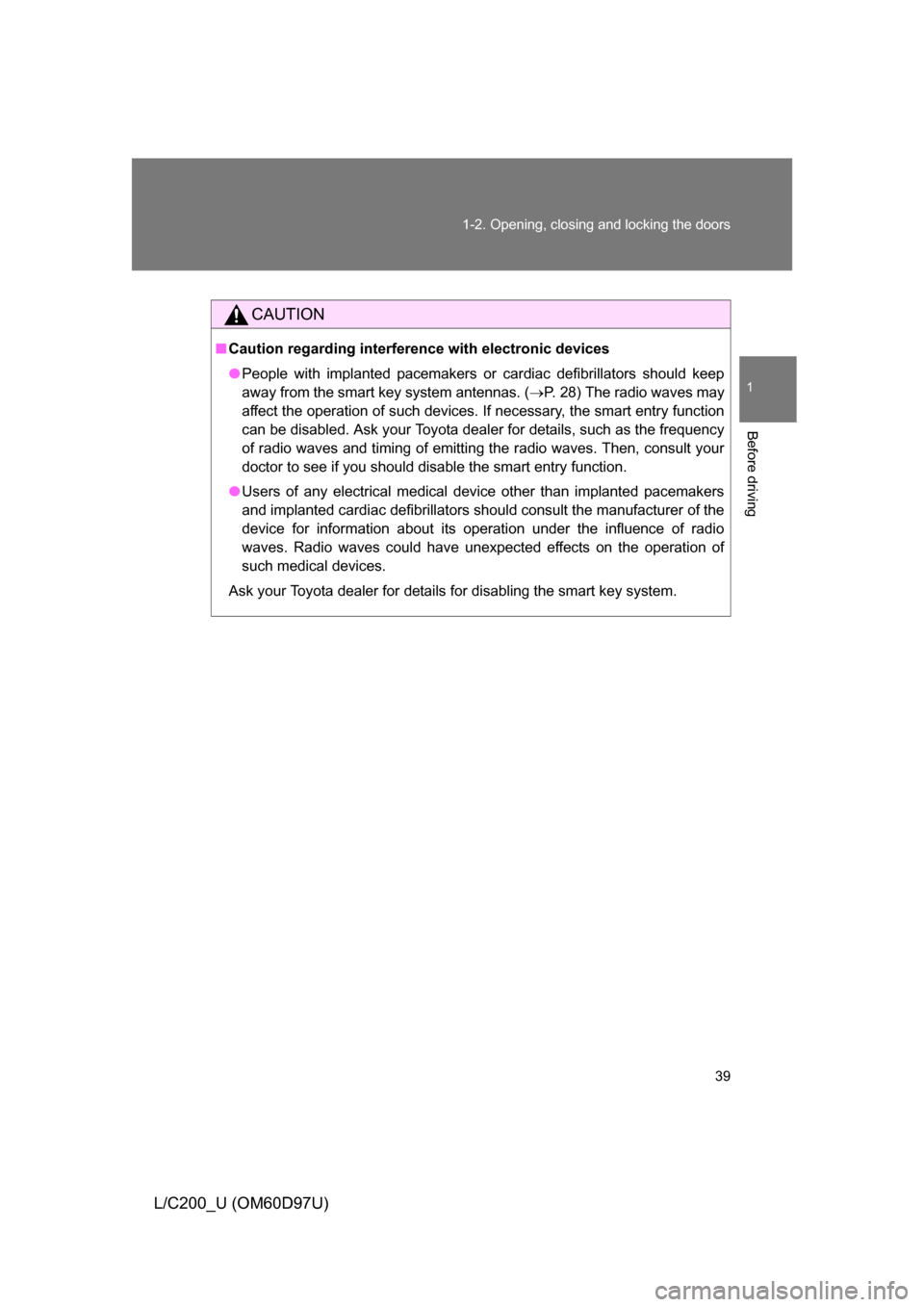

39
1-2. Opening, closing and locking the doors
1
Before driving
L/C200_U (OM60D97U)
CAUTION
■
Caution regarding interfer ence with electronic devices
● People with implanted pacemakers or cardiac defibrillators should keep
away from the smart key system antennas. ( P. 28) The radio waves may
affect the operation of such devices. If necessary, the smart entry function
can be disabled. Ask your Toyota dealer for details, such as the frequency
of radio waves and timing of emitting the radio waves. Then, consult your
doctor to see if you should disable the smart entry function.
● Users of any electrical medical device other than implanted pacemakers
and implanted cardiac defibrillators should consult the manufacturer of the
device for information about its operation under the influence of radio
waves. Radio waves could have unexpected effects on the operation of
such medical devices.
Ask your Toyota dealer for details for disabling the smart key system.

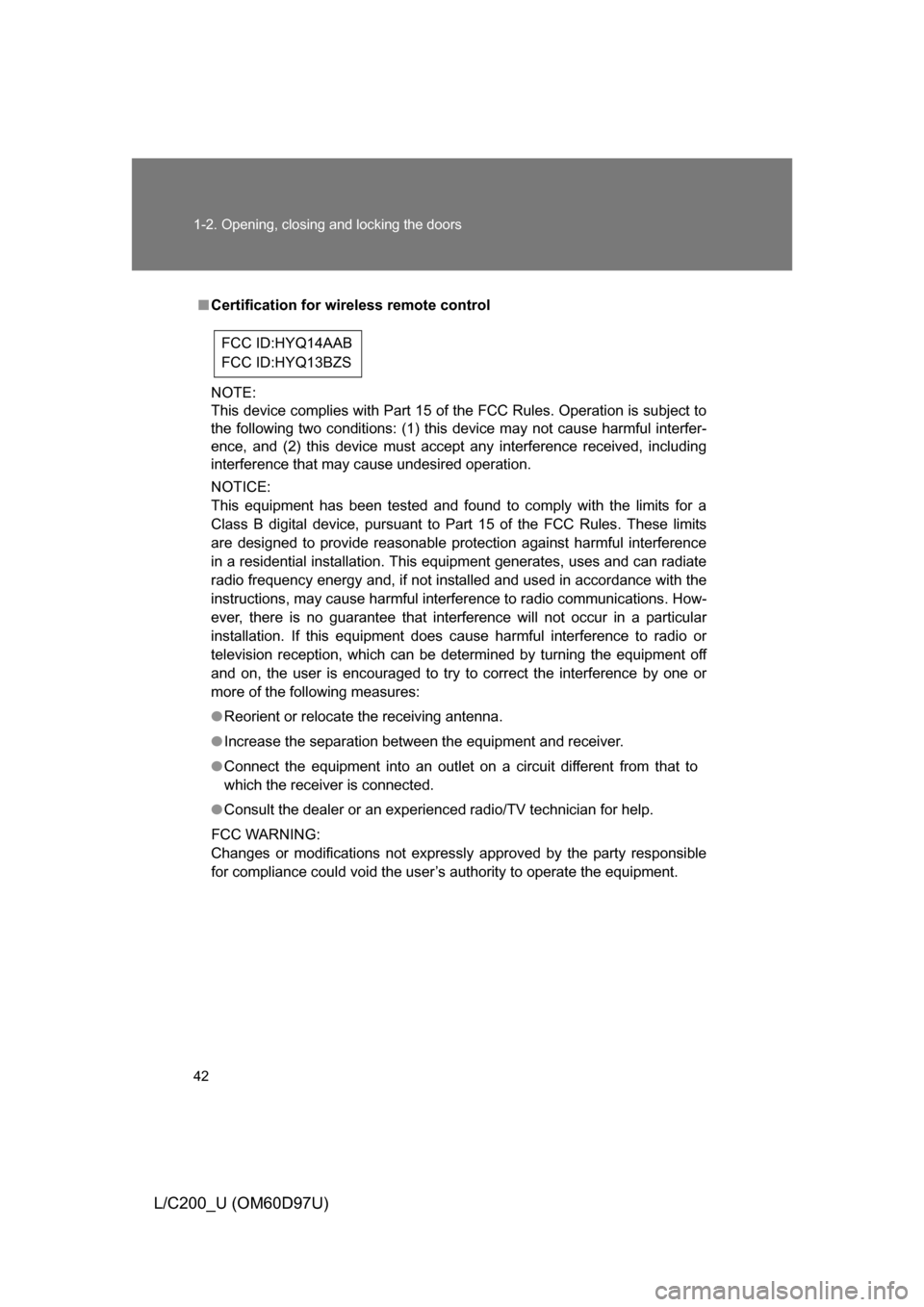

42 1-2. Opening, closing and locking the doors
L/C200_U (OM60D97U)
■Certification for wir eless remote control
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTICE:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. How-
ever, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
● Consult the dealer or an experienc ed radio/TV technician for help.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
FCC ID:HYQ14AAB
FCC ID:HYQ13BZS

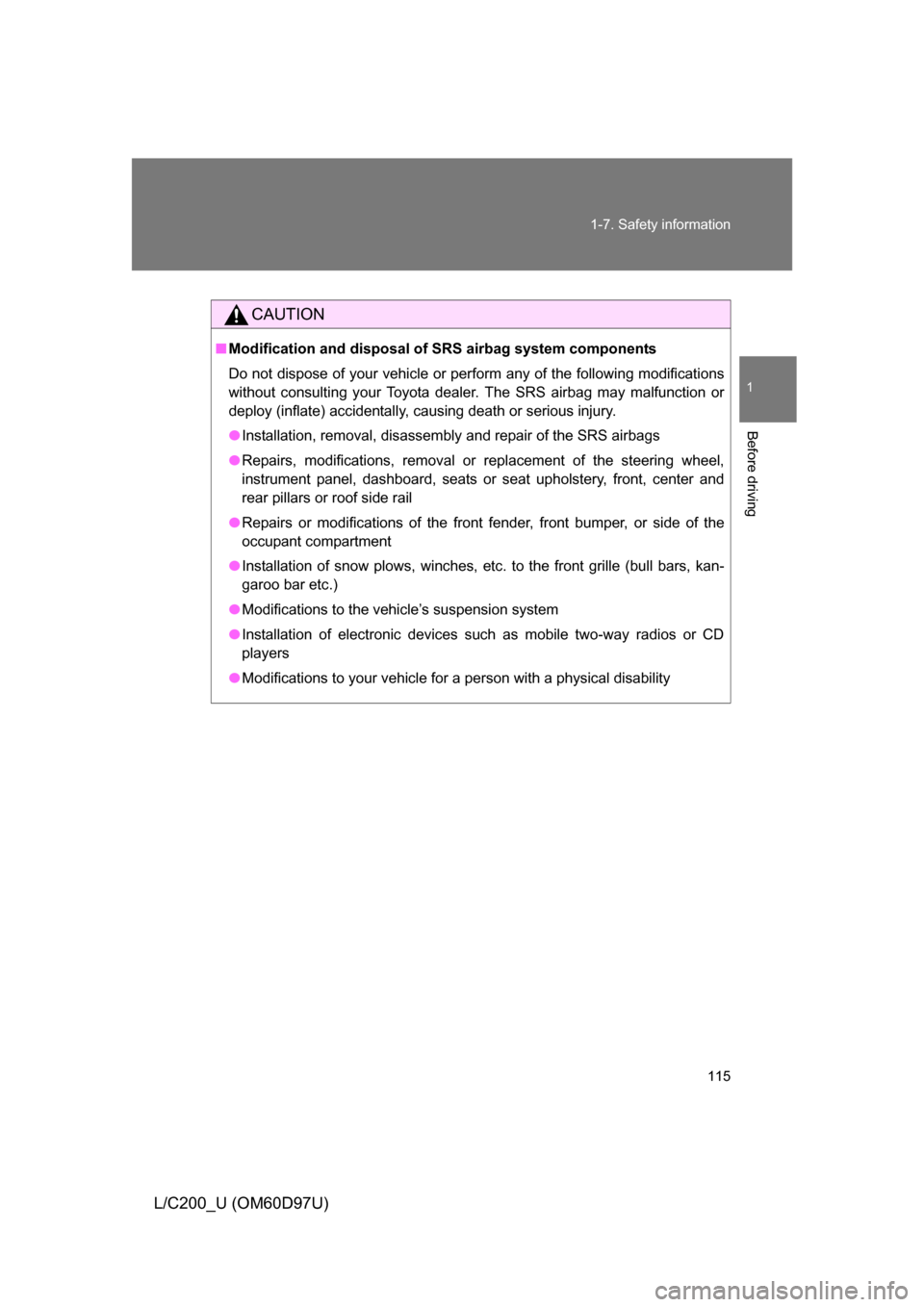

115
1-7. Safety information
1
Before driving
L/C200_U (OM60D97U)
CAUTION
■
Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or per form any of the following modifications
without consulting your Toyota dealer. The SRS airbag may malfunction or
deploy (inflate) accidentally, causing death or serious injury.
● Installation, removal, disassembly and repair of the SRS airbags
● Repairs, modifications, removal or replacement of the steering wheel,
instrument panel, dashboard, seats or seat upholstery, front, center and
rear pillars or roof side rail
● Repairs or modifications of the front fender, front bumper, or side of the
occupant compartment
● Installation of snow plows, winches, etc. to the front grille (bull bars, kan-
garoo bar etc.)
● Modifications to the vehicle’s suspension system
● Installation of electronic devices such as mobile two-way radios or CD
players
● Modifications to your vehicle for a person with a physical disability

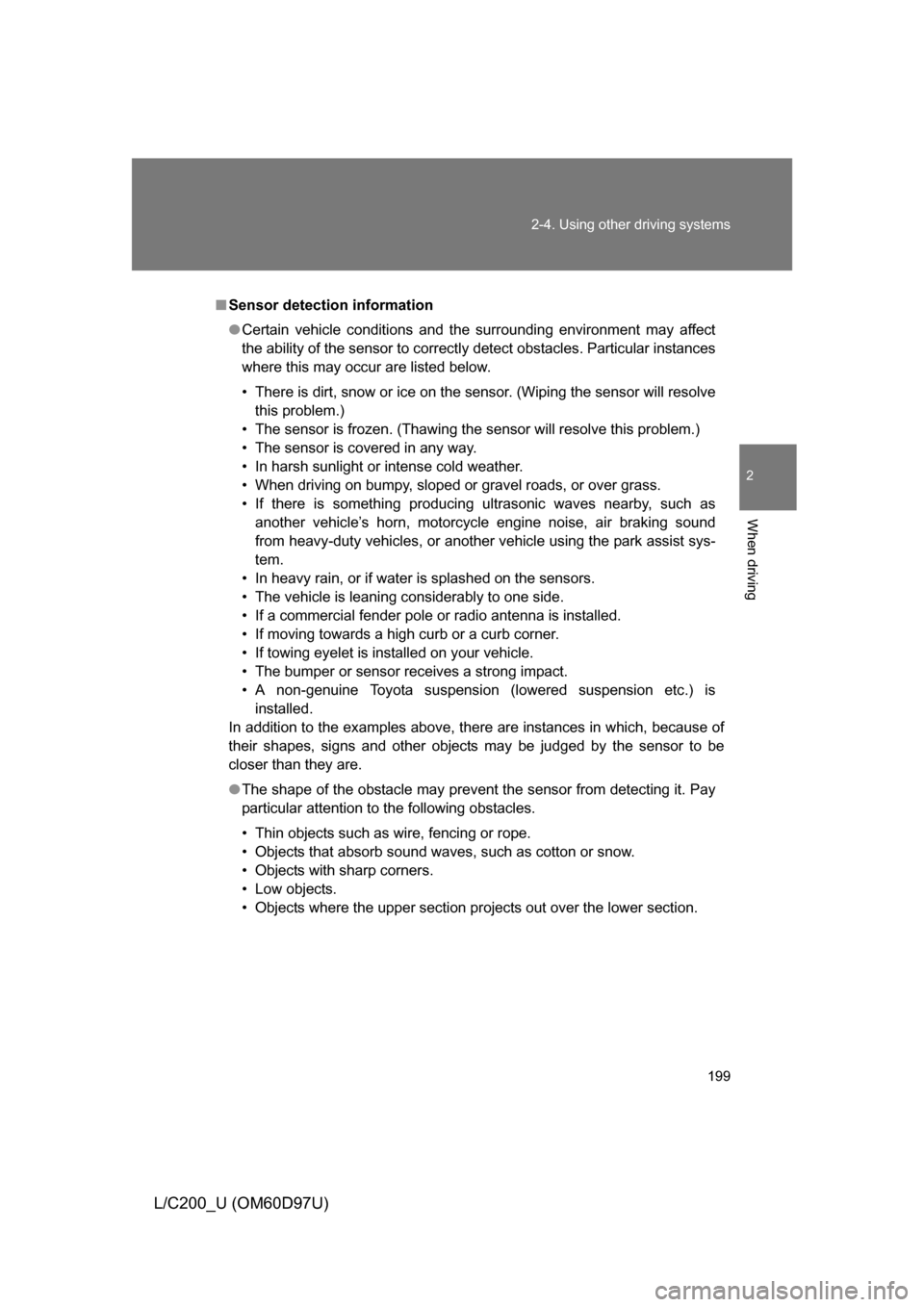

199
2-4. Using other
driving systems
2
When driving
L/C200_U (OM60D97U)
■Sensor detection information
● Certain vehicle conditions and the surrounding environment may affect
the ability of the sensor to correctly detect obstacles. Particular instances
where this may occur are listed below.
• There is dirt, snow or ice on the sensor. (Wiping the sensor will resolve
this problem.)
• The sensor is frozen. (Thawing the sensor will resolve this problem.)
• The sensor is covered in any way.
• In harsh sunlight or intense cold weather.
• When driving on bumpy, sloped or gravel roads, or over grass.
• If there is something producing ultrasonic waves nearby, such as another vehicle’s horn, motorcycle engine noise, air braking sound
from heavy-duty vehicles, or another vehicle using the park assist sys-
tem.
• In heavy rain, or if water is splashed on the sensors.
• The vehicle is leaning considerably to one side.
• If a commercial fender pole or radio antenna is installed.
• If moving towards a high curb or a curb corner.
• If towing eyelet is installed on your vehicle.
• The bumper or sensor receives a strong impact.
• A non-genuine Toyota suspension (lowered suspension etc.) is installed.
In addition to the examples above, there are instances in which, because of
their shapes, signs and other objects may be judged by the sensor to be
closer than they are.
● The shape of the obstacle may prevent the sensor from detecting it. Pay
particular attention to the following obstacles.
• Thin objects such as wire, fencing or rope.
• Objects that absorb sound waves, such as cotton or snow.
• Objects with sharp corners.
• Low objects.
• Objects where the upper section projects out over the lower section.

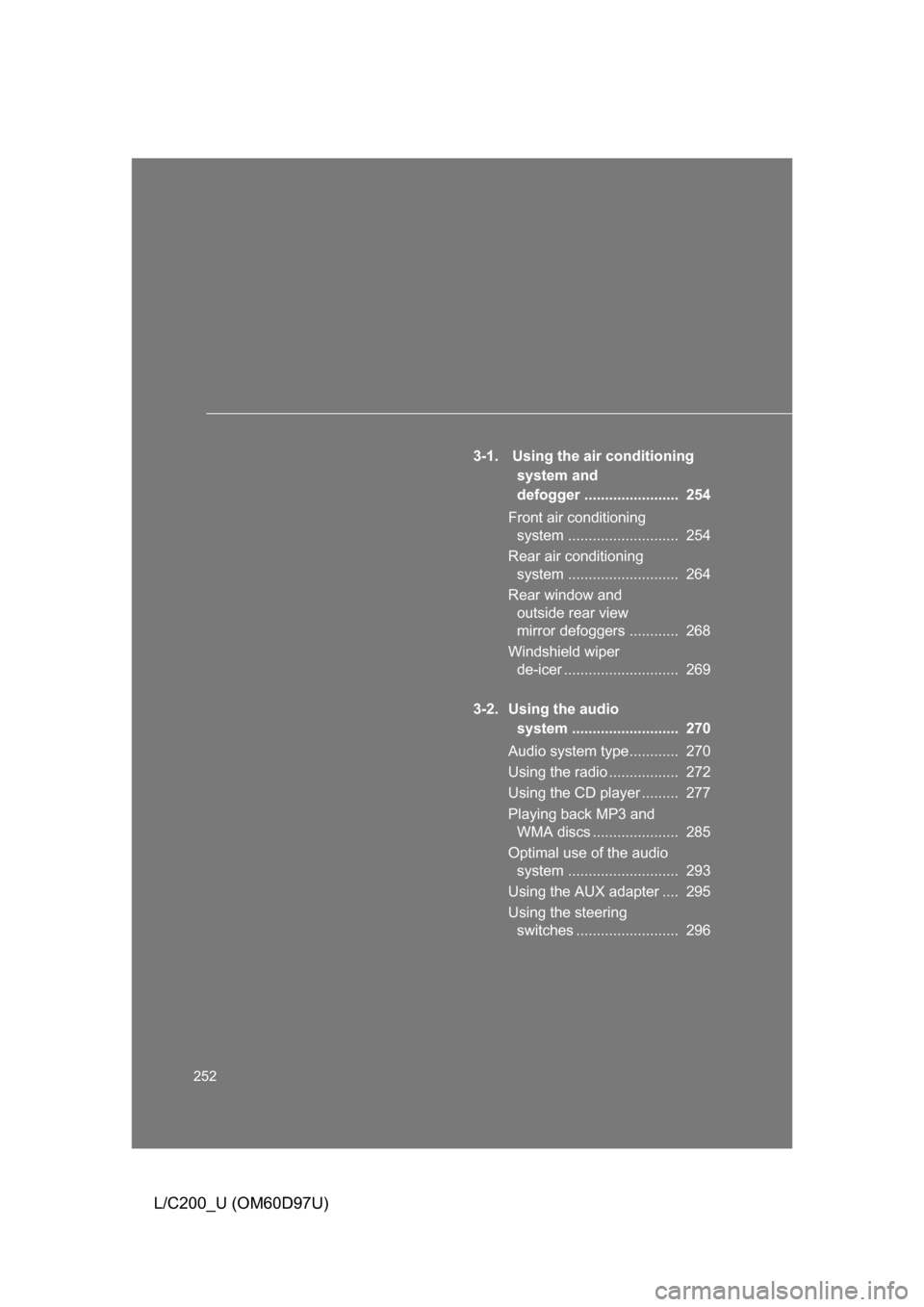

252
L/C200_U (OM60D97U)
3-1. Using the air conditioning system and
defogger ....................... 254
Front air conditioning system ........................... 254
Rear air conditioning system ........................... 264
Rear window and outside rear view
mirror defoggers ............ 268
Windshield wiper de-icer ............................ 269
3-2. Using the audio system .......................... 270
Audio system type............ 270
Using the radio ................. 272
Using the CD player ......... 277
Playing back MP3 and WMA discs ..................... 285
Optimal use of the audio system ........................... 293
Using the AUX adapter .... 295
Using the steering switches ......................... 296
