Engine (ignition) switch P. 151
VSC OFF switch P. 212
Four-wheel drive control switch P. 201
Center differential lock/unlockswitch
P. 201

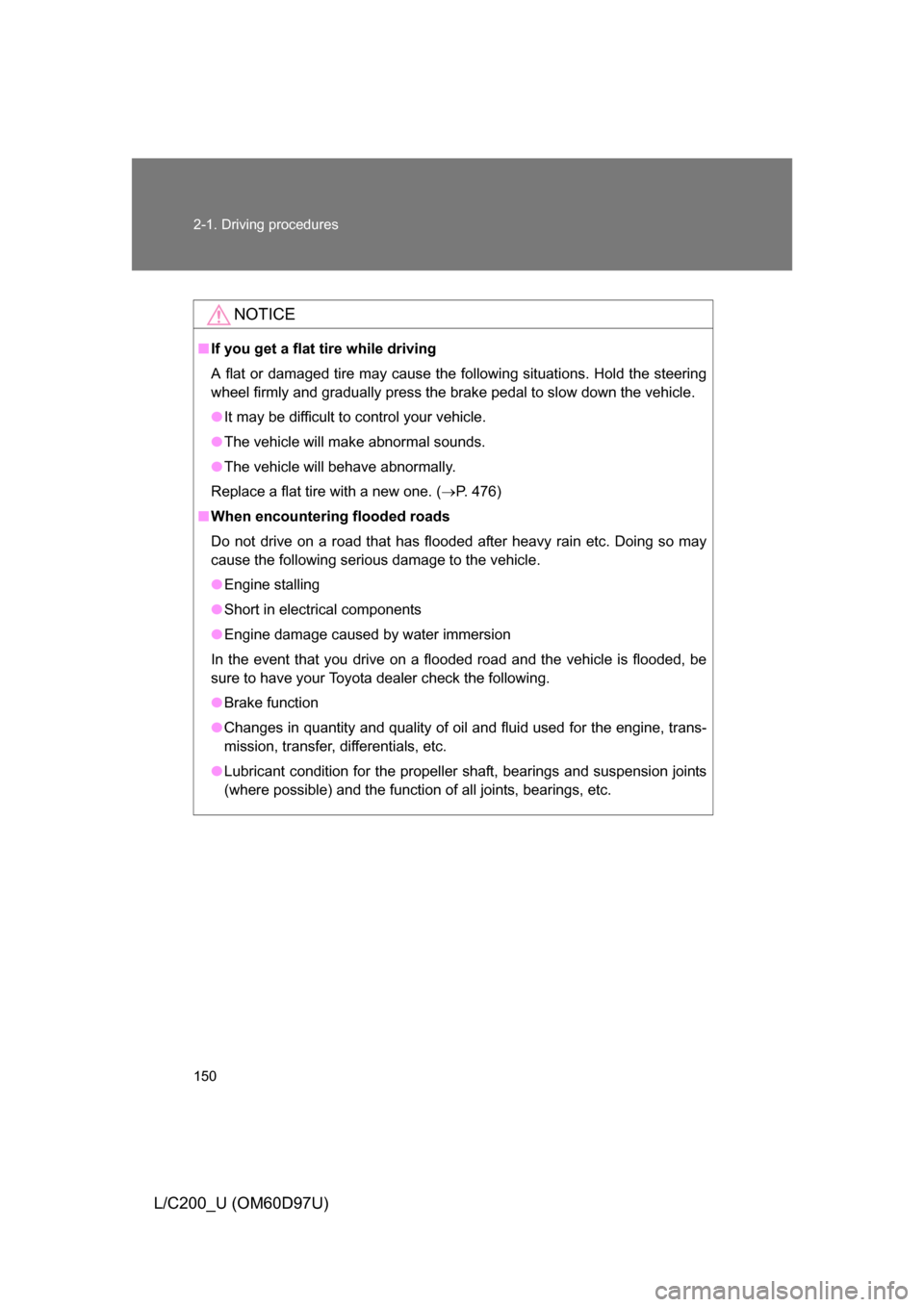

150 2-1. Driving procedures
L/C200_U (OM60D97U)
NOTICE
■If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering
wheel firmly and gradually press the brake pedal to slow down the vehicle.
● It may be difficult to control your vehicle.
● The vehicle will make abnormal sounds.
● The vehicle will behave abnormally.
Replace a flat tire with a new one. ( P. 476)
■ When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may
cause the following serious damage to the vehicle.
● Engine stalling
● Short in electrical components
● Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be
sure to have your Toyota dealer check the following.
● Brake function
● Changes in quantity and quality of oil and fluid used for the engine, trans-
mission, transfer, differentials, etc.
● Lubricant condition for the propeller shaft, bearings and suspension joints
(where possible) and the function of all joints, bearings, etc.

168 2-2. Instrument cluster
L/C200_U (OM60D97U)
■Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 161)Roll sensing of curtain
shield airbags off indica-
tor ( P. 116)
Headlight high beam
indicator ( P. 175)“PWR” mode indicator
(P. 157)
Headlight indicator
( P. 174)Automatic transmission
second start indicator
(P. 157)
Fog light indicator
(P. 177) Low speed four-wheel
drive indicator light
(P. 201)
Cruise control indicator
( P. 188)Center differential lock
indicator ( P. 214)
Slip indicator ( P. 213)“AIR BAG ON/OFF”
indicator (P. 117)
Crawl Control indicator
(P. 208)
*1
*1*1
*1

201
2-4. Using other driving systems
2
When driving
L/C200_U (OM60D97U)
Four-wheel drive system
Use the four-wheel drive control switch and center differential lock/
unlock switch to select the following transfer and center differential
modes.
■ Four-wheel drive control switch
“H4” (high speed position)
Normal driving on all types of
roads.
“L4” (low speed position)
Driving requiring maximum
power and traction such as
climbing or descending steep
hills, off-road driving, and hard
pulling in sand or mud, etc.
■Center differential lock/unlock switch
Lock the center differential
when your vehicle’s wheels
get stuck in a ditch or when
driving on a slippery or bumpy
surface.
Unlock the center differential
after the wheels have been
freed, or after moving to a flat,
non-slippery surface.
4
4
ITY24C024
ITO24C065

203
2-4. Using other
driving systems
2
When driving
L/C200_U (OM60D97U)
Neutral position
Shifting to the neutral position cuts drive power to the wheels.
■ Shifting from “H4” to the neutral position
Stop the vehicle completely.
Make sure the vehicle is stopped in a safe place while carrying out
the following procedure.
Confirm the following:
●The four wheel-drive control switch is in “H4”. (The low speed four-
wheel drive indicator light is not illuminated.)
If the switch is in “L4”, turn it to “H4”. ( P. 201)
● The center differential is unlocked. (The center differential lock
indicator light is not illuminated.)
If the center differential is locked, press the center differential lock/
unlock switch to unlock the center differential. ( P. 201)
Set the parking brake firmly and put the shift lever in “N”.
Turn the engine off if the engine is running, then turn the
“ENGINE START STOP” switch to the IGNITION ON mode.
Do not start the engine till the end of the procedure.
Shift the shift lever to “P”.
Depress and release the brake pedal 3 times.
Depress the pedal firmly each time, then keep the pedal depressed
the third time.
Shift the shift lever to “N”.
Depress and release the brake pedal 3 times.
Release the brake pedal once and then depress and release the
brake pedal 3 times.
Depress the pedal firmly each time, then keep the pedal depressed
the third time.
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
STEP7
STEP8

205
2-4. Using other
driving systems
2
When driving
L/C200_U (OM60D97U)
■The four-wheel drive control switch can be operated when
● The “ENGINE START STOP” switch is in IGNITION ON mode.
● The shift lever is in the “N” position.
● The vehicle is stopped completely.
■ The low speed four-wheel drive indicator light
The indicator light blinks while shifting between “H4” and “L4”.
■ Advice for driving on slippery roads
● If you shift the four-wheel drive control switch to “L4” and the shift lever to
the “2” range of “S” while driving in steep off-road areas, the output of the
brake can be controlled effectively by the Active TRAC, which assists the
driver to control the driving power of 4 wheels.
● Use the “1” range of “S” of the shift lever for maximum power and traction
when your wheels get stuck or when driving down a steep incline.
■ The center differential lock indicator light
The indicator light blinks while locking/unlocking the center differential.
■ The center differential lock/unlo ck button can be operated when
● The “ENGINE START STOP” switch is in IGNITION ON mode.
● The vehicle speed is less than 60 mph (100 km/h).
■ Locking/unlocking the center differential
● When the center differential is locked, VSC (vehicle stability control) is
automatically turned off. (The center differential lock and “VSC OFF” indi-
cator lights come on.)
● If the operation is not completed, the center differential lock indicator
blinks. If the indicator light does not turn off when unlocking the center
differential, drive straight ahead while accelerating or decelerating, or
drive in reverse.
● If the center differential lock/unlock is not completed within 5 seconds
while the cruise control system is on, cancel the cruise control system.

206 2-4. Using other driving systems
L/C200_U (OM60D97U)
■If the low speed four-wheel drive in dicator light or the center differen-
tial lock indicator light blinks
● If the low speed four-wheel drive indicator light continues to blink when
using the four-wheel drive control switch, stop the vehicle completely,
move the shift lever to “N” and operate the switch again.
● If the shift lever is moved before the low speed four-wheel drive indicator
light has turned on/off, a beep sounds and the transfer position may not
successfully change. In this case, stop the vehicle completely, return the
shift lever to “N” and operate the switch again.
● If the engine coolant temperature is too low, the four-wheel drive control
system may not be able to shift. When the engine is warmer press the
switch again.
If the low speed four-wheel drive indicator light or the center differential lock
indicator light continues to blink even after attempting the above, there may
be a malfunction in the engine, the brake system or the four-wheel drive sys-
tem. In this case, you may not be able to shift between “H4” and “L4”, and
the center differential lock may not be operable. Have the vehicle inspected
by your Toyota dealer immediately.

207
2-4. Using other
driving systems
2
When driving
L/C200_U (OM60D97U)
CAUTION
■While driving
Never move the four-wheel drive control switch if the wheels have lost trac-
tion. Doing so may cause an accident resulting in death or serious injury.
NOTICE
■To prevent damage to the center differential
● For normal driving on dry and hard surface roads, unlock the center differ-
ential.
● Unlock the center differential after the wheels are out of the ditch or off the
slippery or bumpy surface.
● Do not push the center differential lock/unlock button when the vehicle is
turning or when its wheels are spinning freely off the ground.
