2009 TOYOTA LAND CRUISER radio

Interior features3
253
L/C200_U (OM60D97U)
3-3. Using the rear seat entertainment
system .......................... 298
Rear seat entertainment system features ............. 298
Using the radio ................. 305
Using the DVD changer .......................... 306
Playing an audio CD/CD text..................... 307
Playing WMA/MP3 discs............................... 308
Playing DVD video/audio .................... 309
Playing a video CD .......... 323
DVD player and DVD video disc information .... 327
Using the video mode ...... 334
Changing other settings .......................... 336
3-4. Using the interior lights ............................. 338
Interior lights list ............... 338
• Interior lights .................. 339
• Personal lights ............... 340 3-5. Using the storage
features ......................... 341
List of storage features .... 341
• Glove box....................... 342
• Console box ................... 343
• Overhead console .......... 344
• Cup holders ................... 345
• Bottle holders ................. 346
• Card holders .................. 348
• Auxiliary box .................. 348
3-6. Other interior features ......................... 349
Cool box ........................... 349
Sun visors ........................ 351
Vanity mirror..................... 352
Clock ................................ 353
Outside temperature display............................ 354
Ashtrays ........................... 355
Cigarette lighter................ 357
Power outlets ................... 358
Seat heaters..................... 360
Armrest ............................ 362
Floor mats ........................ 363
Luggage compartment features .......................... 364
Garage door opener......... 366

270
L/C200_U (OM60D97U)
3-2. Using the audio system
Audio system type
With navigation system
Owners of models equipped with a navigation system should
refer to the “Navigation System Owner’s Manual”.
Without navig ation system
CD player with changer and AM/FM radio.
TitlePage
Using the radioP. 272
Using the CD playerP. 277
Playing back MP3 and WMA discs P. 285
Optimal use of the audio systemP. 293
Using the AUX adapter P. 295
Using the steering switchesP. 296

272
3-2. Using the audio system
L/C200_U (OM60D97U)
Using the radio
Press or to choose either an AM or FM band.
LOAD
TYPE·DISCSEEK·TRACK
AM·SATFMDISC·AUXTRAF
12 34 5 6
TUNE·FILE
PUSHAUDIO CONTROL
PWR·VOL
TEXT
SCAN
RAND RPT
1234 56DISCASLSCAN ADS FLD FILE TR TRAFST MSG
ART
FORDER
PWR·VOLSCANPWR·VOLSCAN
ITY32C005
Scanning for receivable stations
Seeking the frequencyStation selector
AM/FM mode buttons Changing the program typeAdjusting the frequency
Power Volume

273
3-2. Using the audio system
3
Interior features
L/C200_U (OM60D97U)
Setting station presets
Search for desired stations by turning or pressing “ ” or
“  ” on .
Press and hold the button (from to ) the sta-
tion is to be set to, and you hear a beep.
Scanning radio stations
■ Scanning the preset radio stations
Press and hold until you hear a beep.
Preset stations will be played for a few seconds each.
When the desired station is reached, press once
again.
■ Scanning all radio stations within range
Press .
“SCAN” appears on the display and all stations with reception
will be played for a few seconds each.
When the desired station is reached, press once
again.
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2

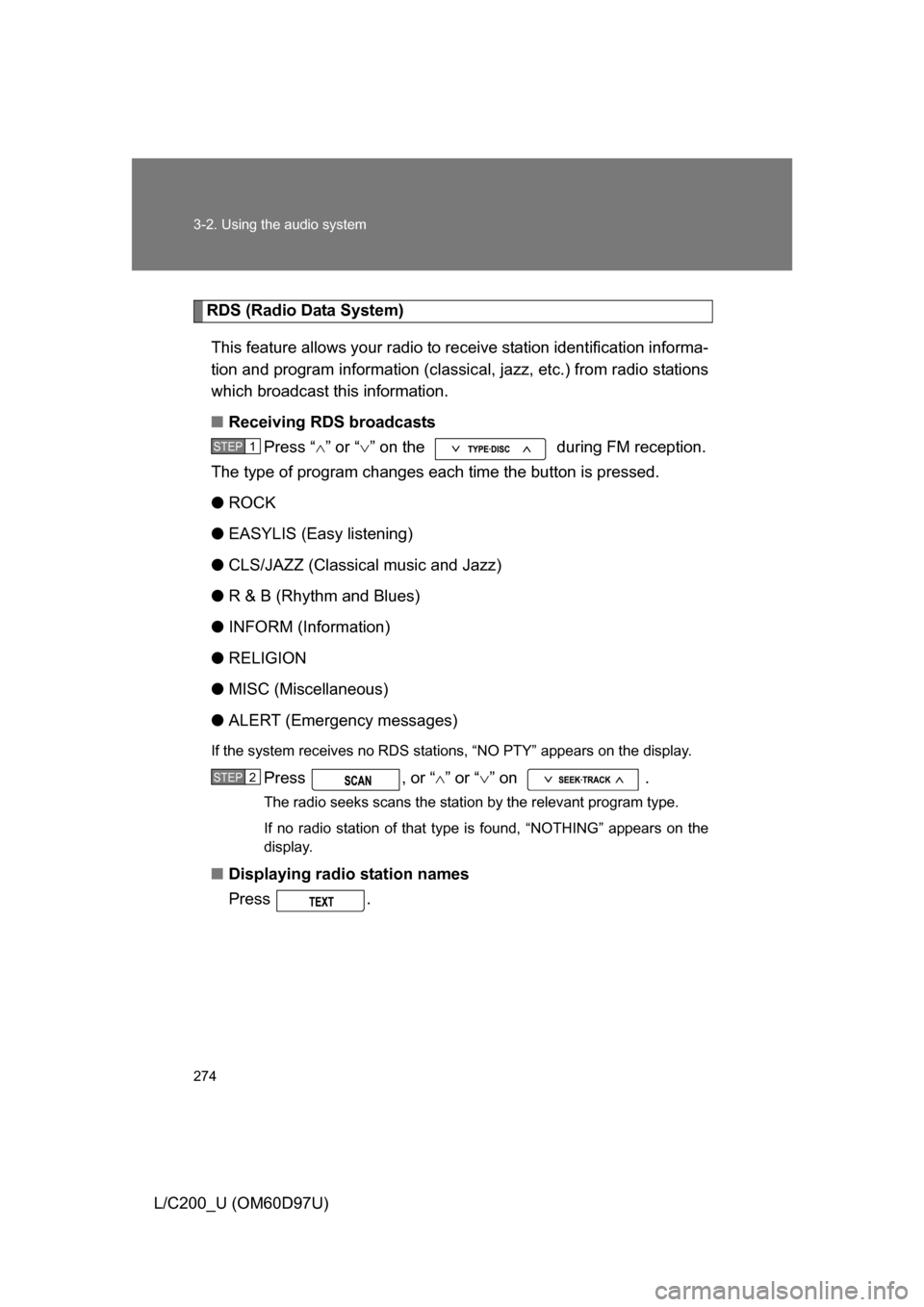

274 3-2. Using the audio system
L/C200_U (OM60D97U)
RDS (Radio Data System)This feature allows your radio to receive station identification informa-
tion and program information (classic al, jazz, etc.) from radio stations
which broadcast this information.
■ Receiving RDS broadcasts
Press “ ” or “ ” on the during FM reception.
The type of program changes each time the button is pressed.
● ROCK
● EASYLIS (Easy listening)
● CLS/JAZZ (Classical music and Jazz)
● R & B (Rhythm and Blues)
● INFORM (Information)
● RELIGION
● MISC (Miscellaneous)
● ALERT (Emergency messages)
If the system receives no RDS stations, “NO PTY” appears on the display.
Press , or “ ” or “ ” on .
The radio seeks scans the station by the relevant program type.
If no radio station of that type is found, “NOTHING” appears on the
display.
■Displaying radio station names
Press .
STEP1
STEP2

275
3-2. Using the audio system
3
Interior features
L/C200_U (OM60D97U)
■
Displaying radio text messages
Press .
If MSG is shown on the display, a text message will be displayed.
If the text continues past the end of the display, is displayed. Press
and hold until you hear a beep.
■Traffic announcement
Press .
“TRAF SEEK” appears on the display, and the radio will start seeking
any station broadcasting traffic program information.
If no traffic program station is found, “NO TRAF INFO” appears on the
display.
■ When the battery is disconnected
All preset stations are erased.
■ Reception sensitivity
● Maintaining perfect radio reception at all times is difficult due to the con-
tinually changing position of the antenna, differences in signal strength
and surrounding objects, such as trains, transmitters, etc.
● The radio antenna is mounted inside the rear quarter window. To main-
tain clear radio reception, do not attach metallic window tinting or other
metallic objects to the antenna wire mounted inside the rear quarter win-
dow.

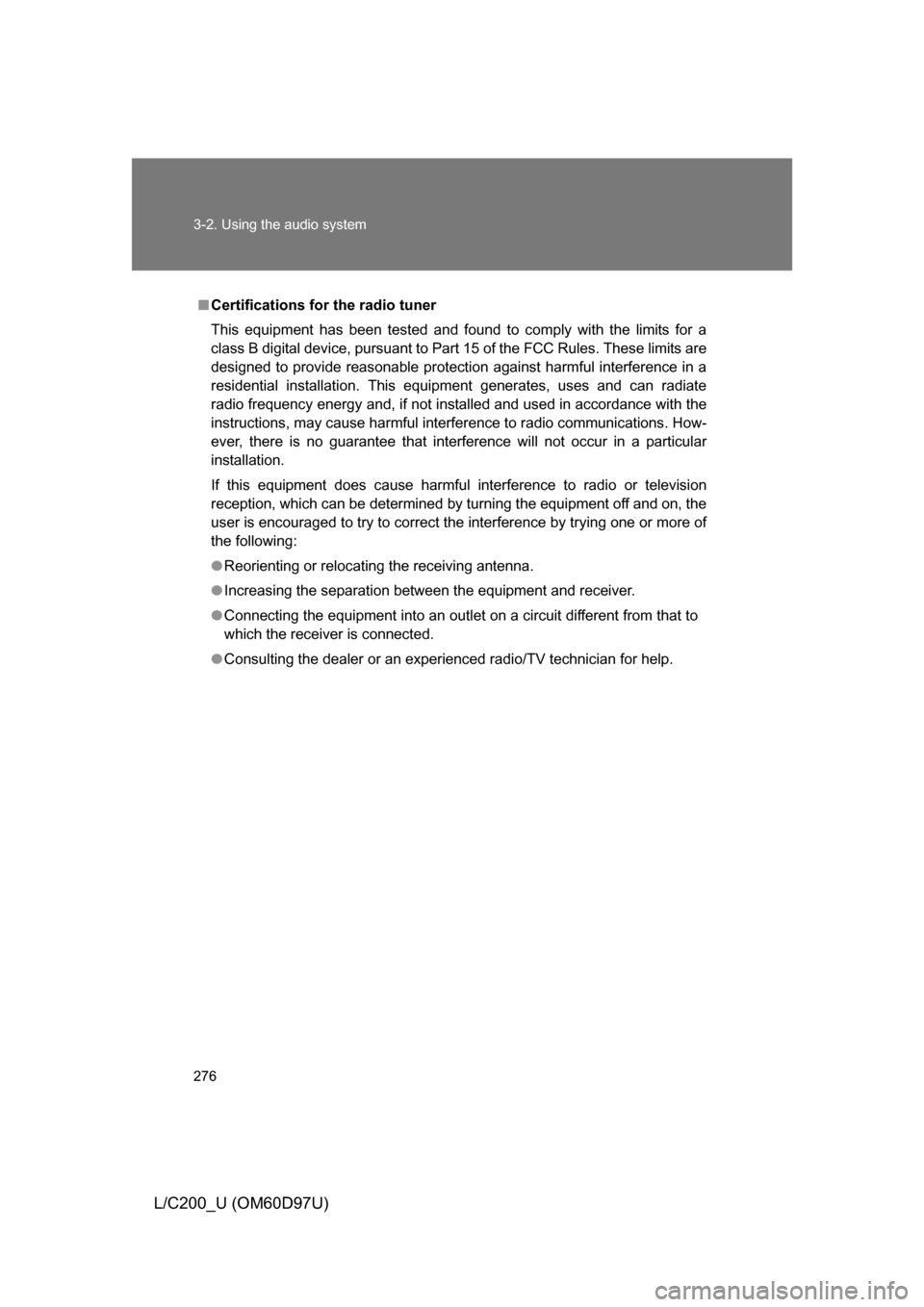

276 3-2. Using the audio system
L/C200_U (OM60D97U)
■Certifications for the radio tuner
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. How-
ever, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by trying one or more of
the following:
● Reorienting or relocating the receiving antenna.
● Increasing the separation between the equipment and receiver.
● Connecting the equipment into an outlet on a circuit different from that to
which the receiver is connected.
● Consulting the dealer or an experienc ed radio/TV technician for help.

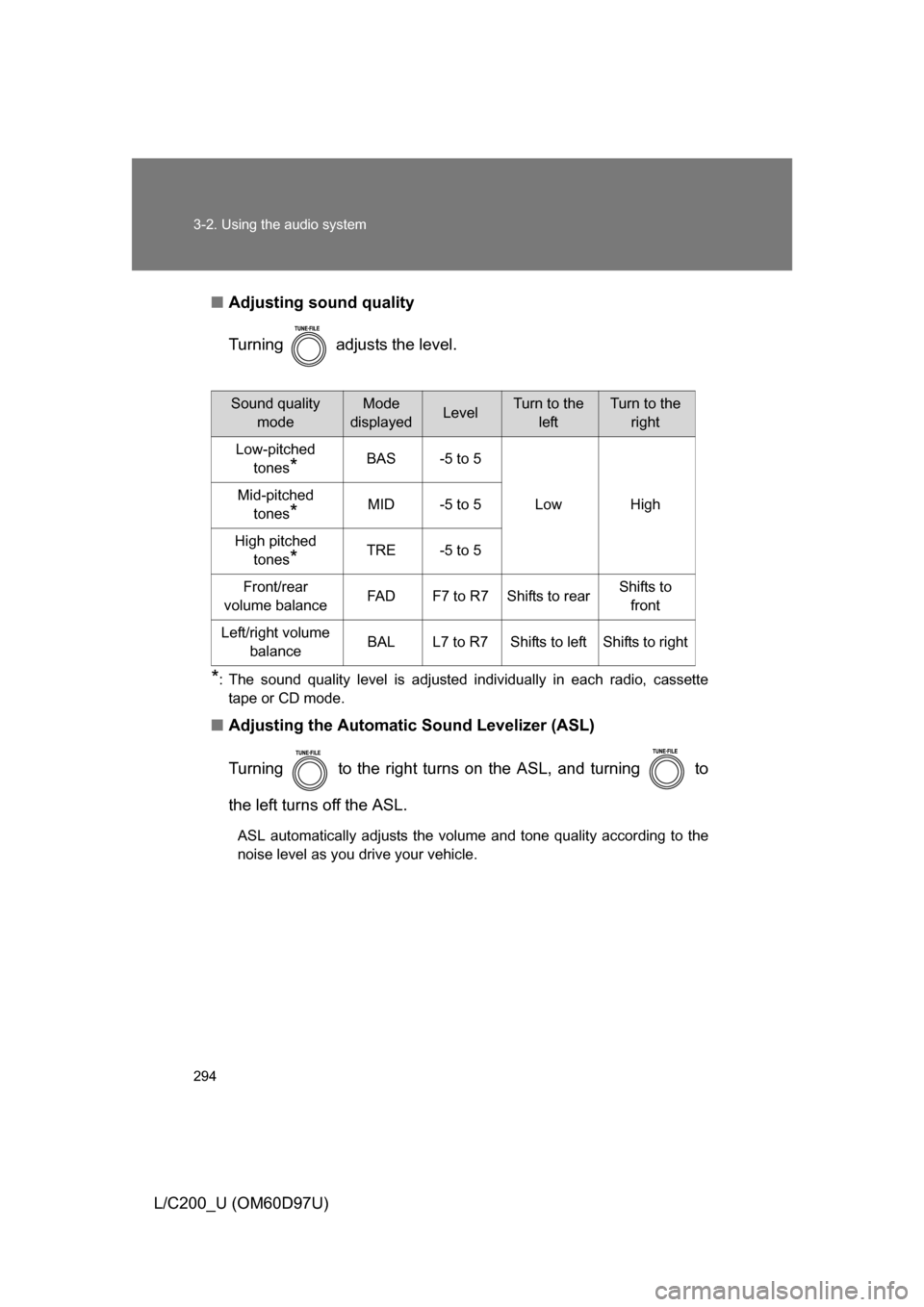

294 3-2. Using the audio system
L/C200_U (OM60D97U)■
Adjusting sound quality
Turning adjusts the level.
*: The sound quality level is adjusted individually in each radio, cassette
tape or CD mode.
■ Adjusting the Automatic Sound Levelizer (ASL)
Turning to the right turns on the ASL, and turning to
the left turns off the ASL.
ASL automatically adjusts the volume and tone quality according to the
noise level as you drive your vehicle.
Sound quality
modeMode
displayedLevelTurn to the leftTurn to the right
Low-pitched tones
*BAS -5 to 5
Low High
Mid-pitched
tones
*MID -5 to 5
High pitched tones
*TRE -5 to 5
Front/rear
volume balance FAD F7 to R7 Shifts to rear Shifts to
front
Left/right volume balance BAL L7 to R7 Shifts to left Shifts to right
