2009 RENAULT TWINGO RS Electrical Equipment Workshop Manual

82B-1
HORN
Audible warning: Removal - Refitting
82B
REMOVAL
I - REMOVAL PREPARATION OPERATION
aRemove the front right-hand wheel arch liner ( (see
Front wheel arch liner: Removal - Refitting) ).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aDisconnect the horn connector (1) .
aRemove:
-the horn bolt (2) ,
-the horn.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
aRefit:
-the horn,
-the horn bolt.
aConnect the horn connector.
II - FINAL OPERATION.
aRefit the front right-hand wheel arch liner ( (see
Front wheel arch liner: Removal - Refitting) ).
119381

83A-1

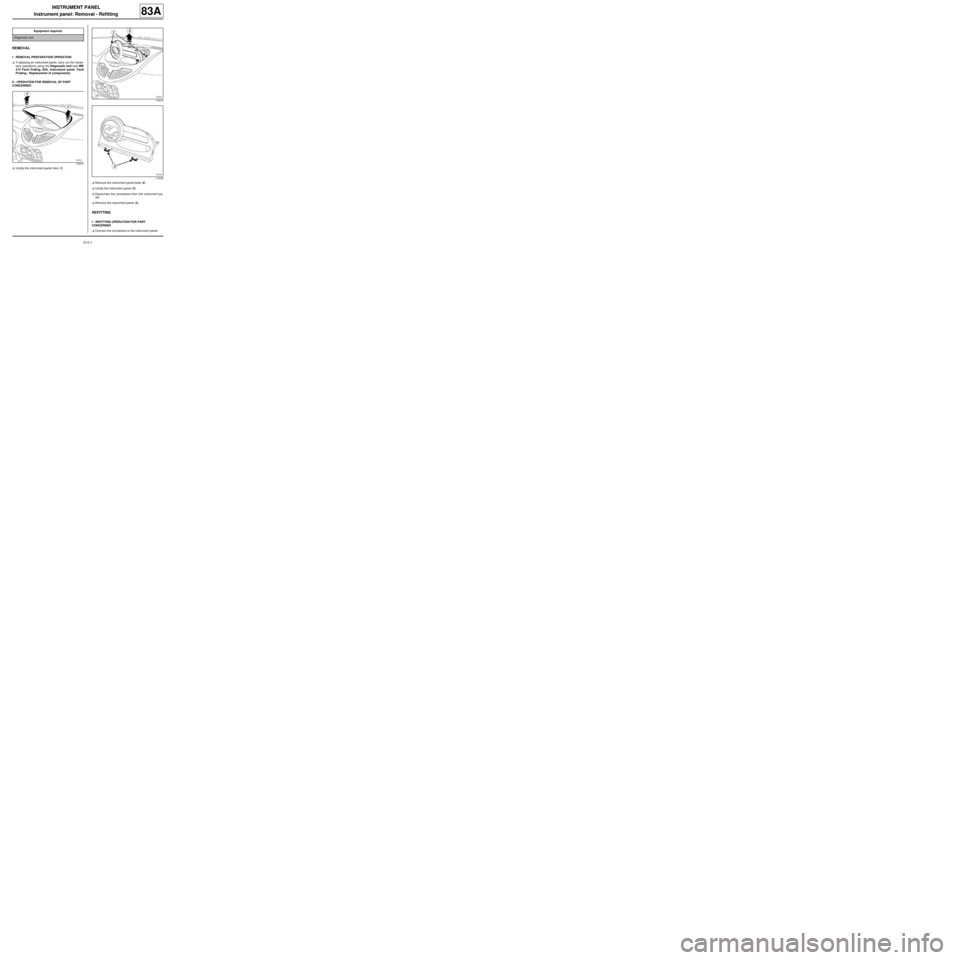

INSTRUMENT PANEL
Instrument panel: Removal - Refitting
83A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aIf replacing an instrument panel, carry out the neces-
sary operations using the Diagnostic tool (see MR
413 Fault finding, 83A, Instrument panel, Fault
Finding - Replacement of components).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aUnclip the instrument panel visor (1) .
aRemove the instrument panel bolts (2) .
aUnclip the instrument panel (3) .
aDisconnect the connectors from the instrument pa-
nel.
aRemove the instrument panel (3) .
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
aConnect the connectors to the instrument panel. Equipment required
Diagnostic tool
119514
119516
119538

83A-2
INSTRUMENT PANEL
Instrument panel: Removal - Refitting
83A
aClip on the instrument panel.
aRefit the instrument panel bolts.
aClip on the instrument panel visor.
II - FINAL OPERATION.
aIf replacing an instrument panel, carry out the neces-
sary operations using the Diagnostic tool (see MR
413 Fault finding, 83A, Instrument panel, Fault
Finding - Replacement of components).

83A-3
INSTRUMENT PANEL
Rev counter: Removal - Refitting
ENGINE REV COUNTER
83A
REMOVAL
OPERATION FOR REMOVAL OF PART
CONCERNED
aUnclip the rear trim (1) from the rev counter.aRemove the nut (2) from the rev counter.
aDisconnect the rev counter connector.
aRemove the rev counter (3) from above.
REFITTING
REFITTING OPERATION FOR PART CONCERNED
aConnect the rev counter connector.
aRefit:
-the rev counter,
-the rev counter nut.
aTorque tighten the rev counter nut (8 Nm).
aClip on the rev counter rear trim. Tightening torquesm
rev counter nut8 Nm
119501
119500

83D-1
CRUISE CONTROL
Cruise control - speed limiter: List and location of components
CRUISE CONTROL
83D
I - LIST OF COMPONENTS
II - LOCATION OF COMPONENTS
1 - Switch2 - Steering column switches
No. Description
(1) Switch
(2) Steering column switches
120278
120275

83D-2
CRUISE CONTROL
Switch: Removal - Refitting
CRUISE CONTROL
83D
REMOVAL
I - REMOVAL PREPARATION OPERATION
aRemove the storage compartment (1) under the
steering wheel.
aUnclip the trim under the steering wheel (2) .
aDisconnect the various connectors from the plate.
aRemove the trim under the steering wheel.II - OPERATION FOR REMOVAL OF PART
CONCERNED
aUnclip the switch (4) from the trim under the steering
wheel by pressing the clips (3) .
REMOVAL
I - REFITTING OPERATION FOR PART
CONCERNED
aClip the switch onto the trim under the steering
wheel.
II - FINAL OPERATION.
aConnect the various connectors.
aRefit the trim under the steering wheel.
aRefit the storage compartment under the steering
wheel.
119506
120279
120277

83D-3
CRUISE CONTROL
Steering wheel switch: Removal - Refitting
CRUISE CONTROL
83D
The steering column switches cannot be separated
from the steering wheel.
In the event of any faults, replace the steering wheel
(see Steering wheel: Removal - Refitting) (MR 411,
36B, Power-assisted steering).

84A-1
CONTROL - SIGNALS
Steering column switch assembly: List and location of components84A
I - LIST OF COMPONENTS
II - LOCATION OF COMPONENTS
1 - UCH
2 - Steering column switch assembly
(2) : Wiper switch (3) : Indicator light switch
(4) : Telephone/radio control satellite
No. Description
(1) UCH
(2) Windscreen wiper switch
(3) Signalling light switch
(4) Telephone/radio control satellite
119507
119494
