2009 RENAULT TWINGO RS Electrical Equipment Workshop Manual

87C-3
OPENING ELEMENT MANAGEMENT
Tailgate opening switch: Removal - Refitting
87C
REMOVAL
OPERATION FOR REMOVAL OF PART
CONCERNED
aUnclip the tailgate opening switch at (1) using a
small flat-blade screwdriver, protecting the tailgate
with masking tape.
aExtract the tailgate opening switch.
aDisconnect the tailgate opening switch connector.
aRemove the tailgate opening switch.
REFITTING
REFITTING OPERATION FOR PART CONCERNED
aConnect the tailgate opening switch connector.
aRefit the tailgate opening switch.
120162
101922

87D-1
ELECTRIC WINDOWS - SUNROOF
Electric window: List and location of components
ELECTRIC FRONT WINDOW or ONE-TOUCH ELECTRIC PASSENGER WINDOW CONTROL
87D
I - LIST OF COMPONENTS
II - POSITION OF THE COMPONENTS
1 - UCH2 - Driver's window lift switch board
3 - Passenger window lift switch board No. Description
(1) UCH
(2) Driver's window lift switch board
(3) Passenger window lift switch board
119507
120163
120164

87D-2
ELECTRIC WINDOWS - SUNROOF
Electric sunroof: List and location of components
OPENING ROOF
87D
I - LIST OF COMPONENTS
II - LOCATION OF COMPONENTS
1 - UCH
The UCH is located in the dashboard, above the pas-
senger compartment relay unit; to remove it (see 87B,
Passenger compartment connection unit, UCH: Re-
moval - Refitting, page 87B-1) .2 - Passenger compartment relay unit
3 - Sunroof switch No. Description
(1) UCH
(2) Passenger compartment fuse and relay
box
(3) Sunroof switch
(4) Sunroof moving panel
(5) Sunroof motor - computer
119507
119504
121391

87D-3
ELECTRIC WINDOWS - SUNROOF
Electric sunroof: List and location of components
OPENING ROOF
87D
4 - Sunroof moving panel
To remove it (see Sunroof mobile panel: Removal -
Refitting) (MR 412, 52A, Non-side opening elements
mechanism).
5 - Sunroof motor - computer
The “sunroof computer - motor” assembly is located
under the headlining, at the rear of the vehicle.
121153
121396

87D-4
ELECTRIC WINDOWS - SUNROOF
Front electric window switches on driver's door: Removal - Refitting
ELECTRIC FRONT WINDOW or ONE-TOUCH ELECTRIC PASSENGER WINDOW CONTROL
87D
REMOVAL
I - REMOVAL PREPARATION OPERATION
aRemove the driver's front side door trim (see Front
side door trim: Removal - Refitting) (MR 412,
72A, Side opening element trim).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aRemove the electric window switches by pressing
on the clips (1) .
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
aRefit the electric window switches on the driver's
electric window plate.
II - FINAL OPERATION.
aRefit the driver's front side door trim (see Front side
door trim: Removal - Refitting) (MR 412, 72A,
Side opening element trim).
119513

87D-5
ELECTRIC WINDOWS - SUNROOF
Front electric window switch on passenger door: Removal - Refitting
ELECTRIC FRONT WINDOW or ONE-TOUCH ELECTRIC PASSENGER WINDOW CONTROL
87D
REMOVAL
I - REMOVAL PREPARATION OPERATION
aRemove the passenger's front side door trim ( (see
Front side door trim: Removal - Refitting) ).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aRemove the electric window switch by pressing the
clips (1) .
REMOVAL
I - REFITTING OPERATION FOR PART
CONCERNED
aRefit the electric window switch on the driver's elec-
tric window plate.
II - FINAL OPERATION.
aRefit the passenger's front side door trim ( (see
Front side door trim: Removal - Refitting) ).
119508
119512

87D-6
ELECTRIC WINDOWS - SUNROOF

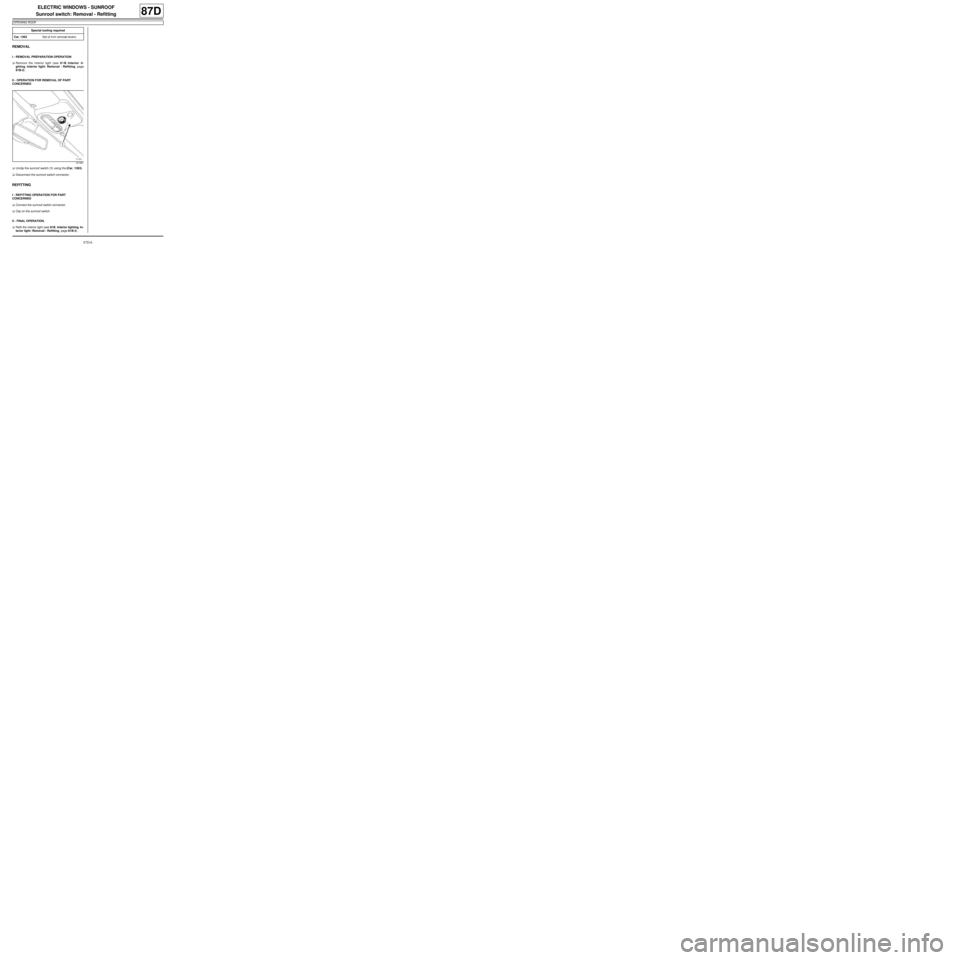

Sunroof switch: Removal - Refitting
OPENING ROOF
87D
REMOVAL
I - REMOVAL PREPARATION OPERATION
aRemove the interior light (see 81B, Interior li-
ghting, Interior light: Removal - Refitting, page
81B-2) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aUnclip the sunroof switch (1) using the (Car. 1363).
aDisconnect the sunroof switch connector.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
aConnect the sunroof switch connector.
aClip on the sunroof switch.
II - FINAL OPERATION.
aRefit the interior light (see 81B, Interior lighting, In-
terior light: Removal - Refitting, page 81B-2) . Special tooling required
Car. 1363Set of tr im removal levers.
121391

87D-7
ELECTRIC WINDOWS - SUNROOF
Sunroof opening motor: Removal - Refitting
OPENING ROOF
87D
REMOVAL
I - REMOVAL PREPARATION OPERATION
aDisconnect the battery (see 80A, Battery, Battery:
Removal - Refitting, page 80A-2) .
aRemove:
-the upper bolt from the front seat belts (see Front
seat belt: Removal - Refitting) (MR 412, 59A, Sa-
fety equipment),
-the upper bolt from the rear seat belts (see Rear
seat belt: Removal - Refitting) (MR 412, 59A, Sa-
fety equipment),
-the sun visors (see Sun visor: Removal - Refit-
ting) (MR 412, 57A, Interior equipment),
-the interior rear-view mirror covers (see Interior
rear-view mirror: Removal - Refitting) (MR 412,
57A, Interior equipment),
-the A-pillar trims (see Windscreen pillar trim: Re-
moval - Refitting) (MR 412, 71A, Body internal
trim),
-the rear parcel shelf side trim panels (see Rear
parcel shelf side trim: Removal - Refitting) (MR
412, 71A, Body internal trim),
-the rear panel trims (see Rear panel lining: Re-
moval - Refitting) (MR 412, 71A, Body internal
trim),
-the rear quarter panel trims (see Quarter panel
trim: Removal - Refitting) (MR 412, 71A, Body in-
ternal trim),
-the B-pillar upper trims (see B-pillar upper trim:
Removal - Refitting) (MR 412, 71A, Body internal
trim).
-the headlining (see Headlining: Removal - Refit-
ting) (MR 412, 71A, Body internal trim).II - OPERATION FOR REMOVAL OF PART
CONCERNED
aRemove:
-the sunroof computer mounting bolts (1) ,
-the “sunroof computer - computer mounting” as-
sembly (2) .
aDisconnect the supply connector (3) from the sun-
roof motor.
121396
