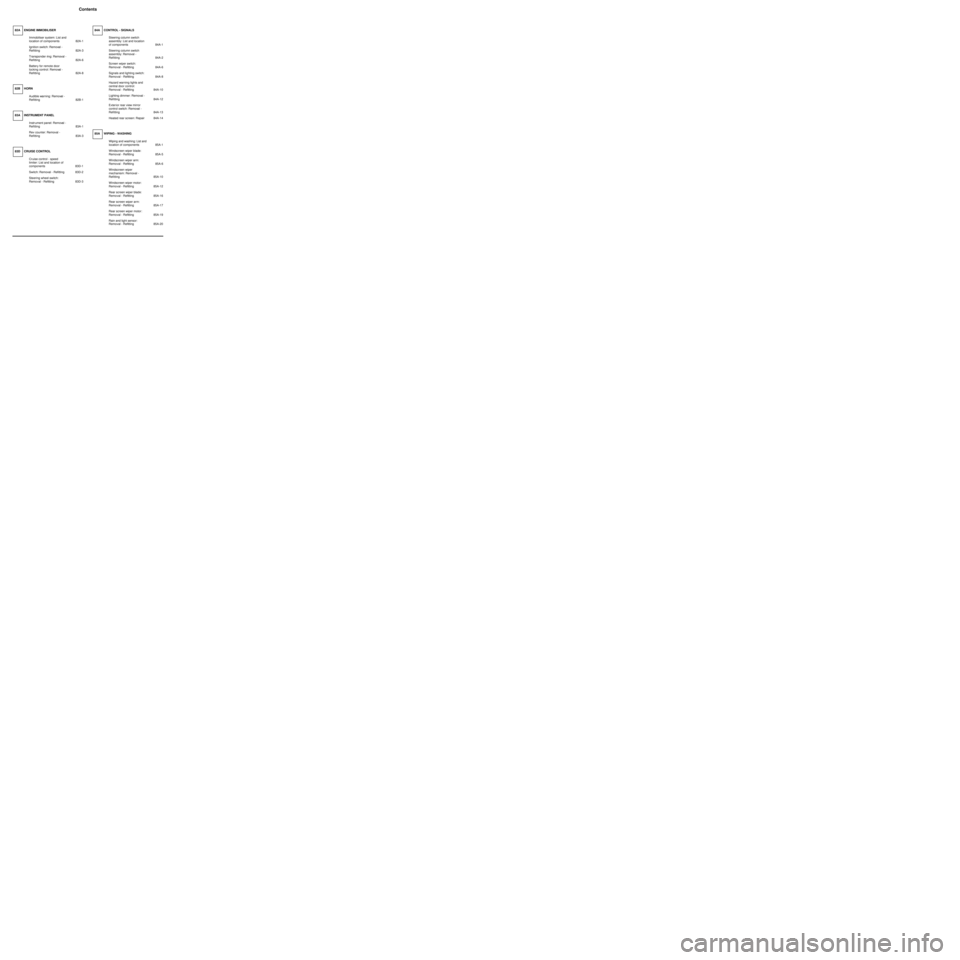

Contents
82A ENGINE IMMOBILISER
Immobiliser system: List and
location of components 82A-1
Ignition switch: Removal -
Refitting 82A-3
Transponder ring: Removal -
Refitting 82A-6
Battery for remote door
locking control: Removal -
Refitting 82A-8
82B HORN
Audible warning: Removal -
Refitting 82B-1
83A INSTRUMENT PANEL
Instr ument panel: Removal -
Refitting 83A-1
Rev counter: Removal -
Refitting 83A-3
83D CRUISE CONTROL
Cruise control - speed
limiter: List and location of
components 83D-1
Switch: Removal - Refitting 83D-2
Steering wheel switch:
Removal - Refitting 83D-384A CONTROL - SIGNALS
Steering column switch
assembly: List and location
of components 84A-1
Steering column switch
assembly: Removal -
Refitting 84A-2
Screen wiper switch:
Removal - Refitting 84A-6
Signals and lighting switch:
Removal - Refitting 84A-8
Hazard warning lights and
central door control:
Removal - Refitting 84A-10
Lighting dimmer: Removal -
Refitting 84A-12
Exter ior rear view mirror
control switch: Removal -
Refitting 84A-13
Heated rear screen: Repair 84A-14
85A WIPING - WASHING
Wiping and washing: List and
location of components 85A-1
Windscreen wiper blade:
Removal - Refitting 85A-5
Windscreen wiper arm:
Removal - Refitting 85A-6
Windscreen wiper
mechanism: Removal -
Refitting 85A-10
Windscreen wiper motor:
Removal - Refitting 85A-12
Rear screen wiper blade:
Removal - Refitting 85A-16
Rear screen wiper arm:
Removal - Refitting 85A-17
Rear screen wiper motor :
Removal - Refitting 85A-19
Rain and light sensor:
Removal - Refitting 85A-20

82A-8
ENGINE IMMOBILISER
Battery for remote door locking control: Removal - Refitting82A
REMOVAL
OPERATION FOR REMOVAL OF PART
CONCERNED
aRemove the bolt (1) .
aOpen the key with a small flat-blade screwdriver at
(2) .aRemove the battery (3) from the door locking remote
control using a small flat-blade screwdriver.
REFITTING
REFITTING OPERATION FOR PART CONCERNED
a
aFit the door locking remote control battery.
aClose the key.
aTighten the bolt.
107732
107733
107731
WARNING
To ensure that the remote control operates cor-
rectly, take care not to damage the battery con-
tacts.
Only handle the new battery with dry, grease-free
hands or wearing clean gloves to avoid any risk
of dir t and oxidation on the battery.

84A-10
CONTROL - SIGNALS
Hazard warning lights and central door control: Removal - Refitting84A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aLock the airbag computer using the Diagnostic tool
(see MR 413 Fault finding, 88C, Airbags and pre-
tensioners, Fault finding - Replacement of com-
ponents).
aDisconnect the battery (see 80A, Battery, Battery:
Removal - Refitting, page 80A-2) .
aRemove:
-the instrument panel (see 83A, Instrument panel,
Instrument panel: Removal - Refitting, page
83A-1) ,
-the passenger front airbag (1) (see 88C, Air bag
and Pretensioners, Passenger's frontal airbag:
Removal - Refitting, page 88C-8) .
aUnclip the side trim from the driver's side dashboard
(2) .II - OPERATION FOR REMOVAL OF PART
CONCERNED
aUnclip the dashboard central trim (3) .
aDisconnect the hazard warning light and central
door locking switch connector.
aUnclip the hazard warning light and central door loc-
king switch at (4) .
aRemove the hazard warning light and central door
locking switch (5) . Equipment required
Diagnostic tool
119517
119518
119539

84A-11
CONTROL - SIGNALS
Hazard warning lights and central door control: Removal - Refitting84A
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
aRefit the hazard warning light and central door loc-
king switch.
aConnect the hazard warning light and central door
locking switch connector.
II - FINAL OPERATION.
aClip on:
-the dashboard central trim,
-the side trim from the driver's side dashboard.
aRefit:
-the passenger front airbag (see 88C, Air bag and
Pretensioners, Passenger's frontal airbag: Re-
moval - Refitting, page 88C-8) ,
-the instrument panel (see 83A, Instrument panel,
Instrument panel: Removal - Refitting, page
83A-1) .
aConnect the battery (see 80A, Battery, Battery: Re-
moval - Refitting, page 80A-2) .
aUnlock the airbag computer using the Diagnostic
tool (see MR 413 Fault finding, 88C, Airbags and
pretensioners, Fault finding - Replacement of
components).

87C-1
OPENING ELEMENT MANAGEMENT
Opening elements management: List and location of components87C
I - LIST OF COMPONENTS
II - LOCATION OF COMPONENTS
1 - UCH
The UCH is located in the dashboard, above the pas-
senger compartment relay/fuse box; to remove it (see
87B, Passenger compartment connection unit,
UCH: Removal - Refitting, page 87B-1) .2 - Passenger compartment fuse and relay box
3 - Remote door locking control
To replace the battery (see 82A, Engine immobiliser,
Battery for remote door locking control: Removal -
Refitting, page 82A-8) . No. Description
(1) UCH
(2) Passenger compartment fuse and relay
box
(3) Remote door locking control
(4) Centr al door locking switch
(5) Tailgate opening switch
119507
119504
107733

87C-2
OPENING ELEMENT MANAGEMENT
Opening elements management: List and location of components87C
4 - Central door locking switch
To remove it (see 84A, Control - Signals, Hazard
warning lights and central door control: Removal -
Refitting, page 84A-10) .
5 - Tailgate opening switch
121084
120162

88A-2
WIRING HARNESS
Wiring: Precautions for the repair
88A
I - SAFETY
1 - Potentially dangerous components
Do not leave any unused +12V connectors exposed to
the air without any protection (see Connector: Sea-
ling and locking) (Technical Note 6015A, 88A, Wi-
ring).
Check that there is no contact between the wiring and
the fuel and brake pipes.
Avoid mounting the wiring in areas with a temperature
above 100˚C.
2 - Advice to be followed before any operation
Before carrying out any work on the wiring, disconnect
the battery.
3 - Instructions to be followed during the operation
To prevent the wiring from being damaged, check that
the surrounding area is not mechanically harmful (e.g.:
door windows, sharp corners, burrs, studs, etc.).
The wiring should be at least 30 mm away from any
moving components (belt, pulley, steering column,
etc.).
Depending on the surrounding area, check that the
unused connectors respect the necessary sealing
constraints (see Connector: Sealing and locking)
(Technical Note 6015A, 88A, Wiring).
All of the connections (connectors) used in the engine
compartment are sealed; do not remove the seal from
around the connectors.II - GENERAL RECOMMENDATIONS
Do not connect an earth to a stud with insulating pro-
tection (paint,etc.).
Do not use more than two earth terminals on the same
point.
Do not use power earths on the same point as electro-
nic earths.
To prevent water flowing into the connectors, make a
low point just on the wiring routing (just before the con-
nector).
For connections between fixed and mobile compo-
nents, secure the wiring on the fixed part.
Overlapping of the battery feed wires (positive and ne-
gative) causes disruption; they must be secured sepa-
rately.
Wiring mountings:
- use plastic clips, ensuring that the colour coding is
respected,
-do not use steel clips that are not protected with rub-
ber,
- keep the clips integrated into the wiring during a re-
placement operation,
- do not leave steering wheel wires without protection.
Check that:
- the shunts are correctly secured,
- the connectors are correctly housed and locked.
Wiring routing:
- when it is visible it must be aesthetically pleasing, and
resemble the routing marked during removal,
- prohibit wiring routing in grooves and overlaps (risk of
wear through friction),
- prohibit mounting several wires on the same clip,
- do not lock the connectors or wiring in areas that are
sensitive to drilling (number plate etc.). WARNING
To prevent damaging the connectors, consult the
disconnection procedure (see Connector: Discon-
nection and reconnection) (Technical Note
6015A, 88A, Wiring).
WARNING
To prevent any risk of noise, premature wear, short
circuits, etc. after the refitting operation, mark the
wiring routing and how to connect the connectors.
WARNING
To prevent any damage during the removal opera-
tion, check that the wiring is free from its mountings
(retaining clip, plastic clip, adhesive tape, connec-
tor, etc.).

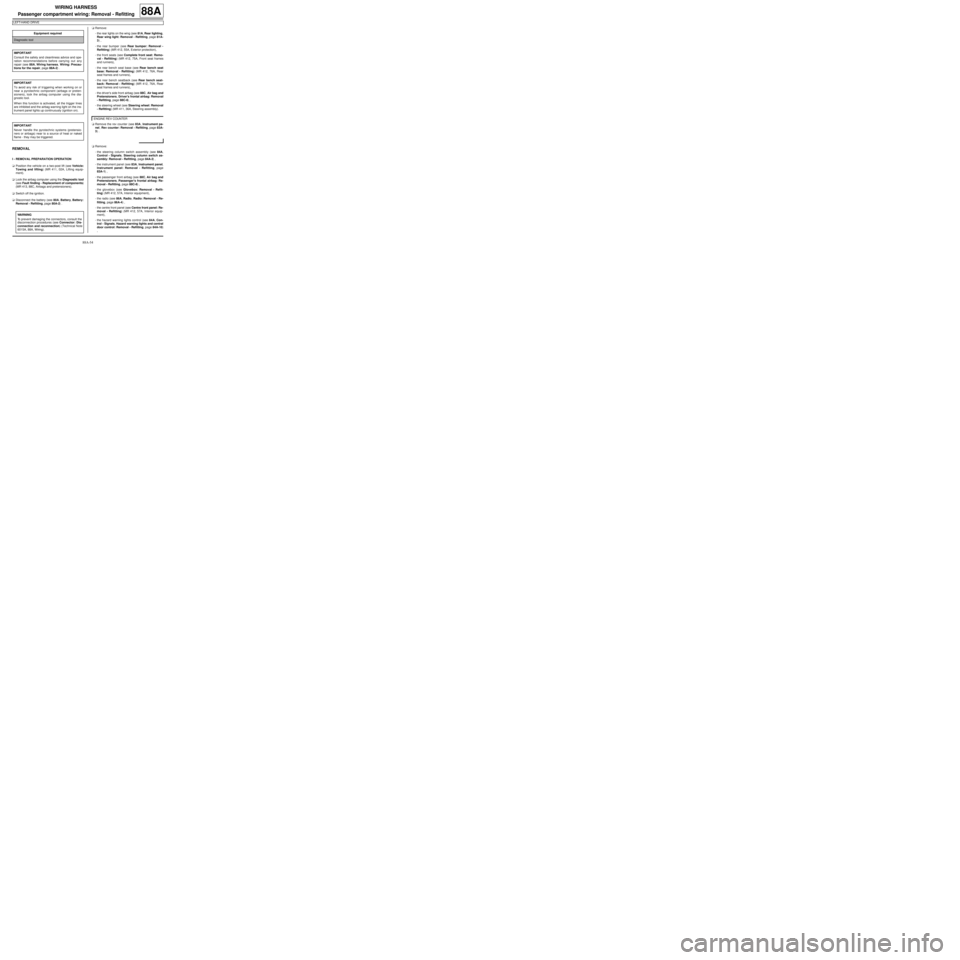

88A-54
WIRING HARNESS
Passenger compartment wiring: Removal - Refitting
LEFT-HAND DRIVE
88A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPosition the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 411, 02A, Lifting equip-
ment).
aLock the airbag computer using the Diagnostic tool
(see Fault finding - Replacement of components)
(MR 413, 88C, Airbags and pretensioners).
aSwitch off the ignition.
aDisconnect the battery (see 80A, Battery, Battery:
Removal - Refitting, page 80A-2) .aRemove:
-the rear lights on the wing (see 81A, Rear lighting,
Rear wing light: Removal - Refitting, page 81A-
3) ,
-the rear bumper (see Rear bumper: Removal -
Refitting) (MR 412, 55A, Exterior protection),
-the front seats (see Complete front seat: Remo-
val - Refitting) (MR 412, 75A, Front seat frames
and runners),
-the rear bench seat base (see Rear bench seat
base: Removal - Refitting) (MR 412, 76A, Rear
seat frames and runners),
-the rear bench seatback (see Rear bench seat-
back: Removal - Refitting) (MR 412, 76A, Rear
seat frames and runners),
-the driver's side front airbag (see 88C, Air bag and
Pretensioners, Driver's frontal airbag: Removal
- Refitting, page 88C-6) ,
-the steering wheel (see Steering wheel: Removal
- Refitting) (MR 411, 36A, Steering assembly).
aRemove the rev counter (see 83A, Instrument pa-
nel, Rev counter: Removal - Refitting, page 83A-
3) .
aRemove:
-the steering column switch assembly (see 84A,
Control - Signals, Steering column switch as-
sembly: Removal - Refitting, page 84A-2) ,
-the instrument panel (see 83A, Instrument panel,
Instrument panel: Removal - Refitting, page
83A-1) ,
-the passenger front airbag (see 88C, Air bag and
Pretensioners, Passenger's frontal airbag: Re-
moval - Refitting, page 88C-8) ,
-the glovebox (see Glovebox: Removal - Refit-
ting) (MR 412, 57A, Interior equipment),
-the radio (see 86A, Radio, Radio: Removal - Re-
fitting, page 86A-4) ,
-the centre front panel (see Centre front panel: Re-
moval - Refitting) (MR 412, 57A, Interior equip-
ment),
-the hazard warning lights control (see 84A, Con-
trol - Signals, Hazard warning lights and central
door control: Removal - Refitting, page 84A-10)
, Equipment required
Diagnostic tool
IMPORTANT
Consult the safety and cleanliness advice and ope-
ration recommendations before carrying out any
repair (see 88A, Wiring harness, Wiring: Precau-
tions for the repair, page 88A-2) .
IMPORTANT
To avoid any risk of triggering when working on or
near a pyrotechnic component (airbags or preten-
sioners), lock the airbag computer using the dia-
gnostic tool.
When this function is activated, all the trigger lines
are inhibited and the airbag warning light on the ins-
trument panel lights up contin uously (ignition on).
IMPORTANT
Never handle the pyrotechnic systems (pretensio-
ners or airbags) near to a source of heat or naked
flame - they may be triggered.
WARNING
To prevent damaging the connectors, consult the
disconnection procedures (see Connector: Dis-
connection and reconnection) (Technical Note
6015A, 88A, Wiring).
ENGINE REV COUNTER
