2009 RENAULT TWINGO Engine And Peripherals Workshop Manual

19D-19
ENGINE MOUNTING
Lower engine tie-bar: Removal - Refitting
D4F or D7F
19D
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPosition the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 411, 02A, Lifting equip-
ment).
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aRemove:
-the engine tie-bar bolt (1) from the subframe,
-the engine tie-bar bolt (2) on the gearbox,
-the engine tie-bar reinforcement bolt (3) ,-the engine tie-bar .
aRemove:
-the engine tie-bar reinforcement bolt (1) ,
-the engine tie-bar bolt (2) on the gearbox,
-the engine tie-bar bolt (3) from the subframe,
-the engine tie-bar. Tightening torquesm
engine tie-bar reinforce-
ment bolt62 N.m
engine tie-bar bolt on
the gearbox105 N.m
engine tie-bar bolt on
the subframe105 N.m
D4F, and 772
120309
D4F, and 780 or 782
120048

19D-20
ENGINE MOUNTING
Lower engine tie-bar: Removal - Refitting
D4F or D7F
19D
aRemove:
-the engine tie-bar bolt (1) from the subframe,
-the engine tie-bar bolt (2) on the gearbox.
-the engine tie-bar.
REFITTING
REFITTING OPERATION FOR PART CONCERNED
aRefit:
-the engine tie-bar,
-the engine tie-bar bolt (2) on the gearbox,
-the engine tie-bar bolt (1) on the sub-frame.
aRefit:
-the engine tie-bar,
-the engine tie-bar bolt (3) from the subframe,-the engine tie-bar bolt (2) on the gearbox,
-the bolt (1) from the engine tie-bar reinforcement.
aRefit:
-the engine tie-bar,
-the engine tie-bar reinforcement bolt (3) ,
-the engine tie-bar bolt (2) on the gearbox,
-the engine tie-bar bolt (1) on the sub-frame.
aTorque tighten the engine tie-bar reinforcement
bolt (62 N.m).
aTorque tighten:
-the engine tie-bar bolt on the gearbox (105
N.m),
-the engine tie-bar bolt on the subframe (105
N.m). D7F
120521
D7F
D4F, and 780 or 782
D4F, and 772
D4F

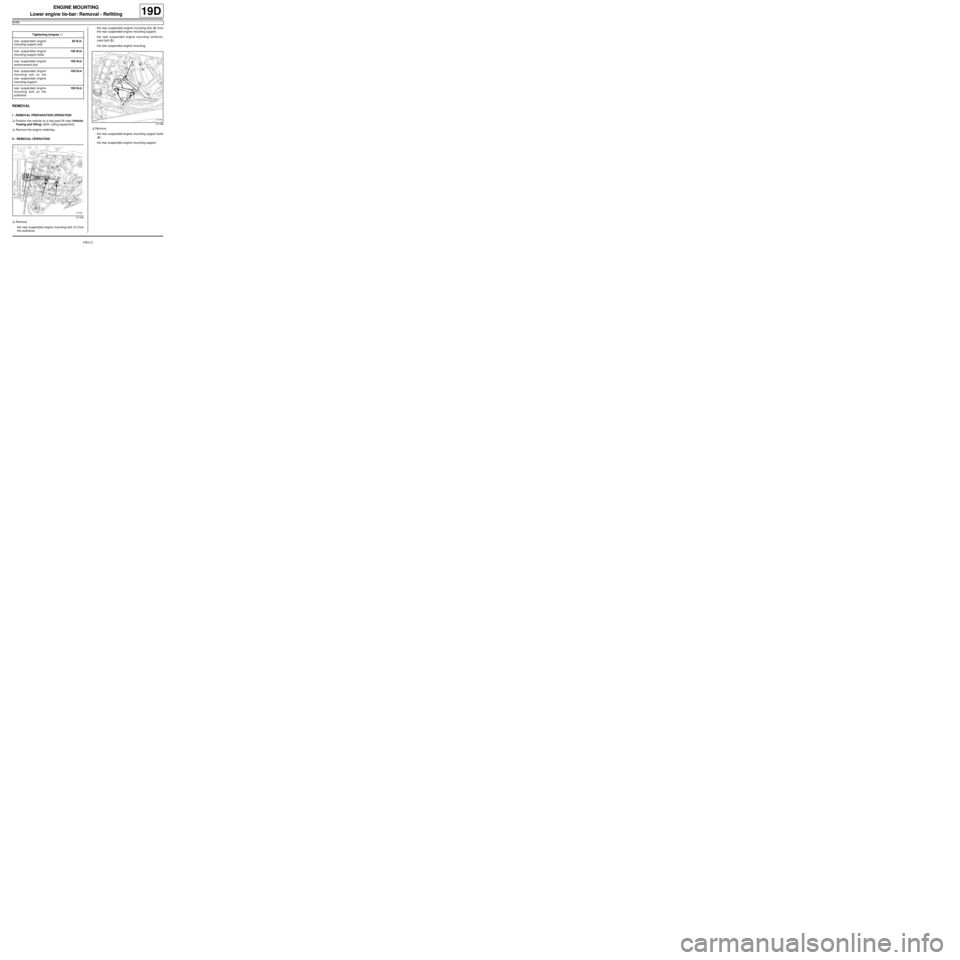

19D-21
ENGINE MOUNTING
Lower engine tie-bar: Removal - Refitting
K4M
19D
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPosition the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
aRemove the engine undertray.
II - REMOVAL OPERATION
aRemove:
-the rear suspended engine mounting bolt (1) from
the subframe,-the rear suspended engine mounting bolt (2) from
the rear suspended engine mounting support,
-the rear suspended engine mounting reinforce-
ment bolt (3) ,
-the rear suspended engine mounting.
aRemove:
-the rear suspended engine mounting support bolts
(4) ,
-the rear suspended engine mounting support. Tightening torquesm
rear suspended engine
mounting suppor t bolt62 N.m
rear suspended engine
mounting suppor t bolts105 N.m
rear suspended engine
reinforcement bolt105 N.m
rear suspended engine
mounting bolt on the
rear suspended engine
mounting suppor t105 N.m
rear suspended engine
mounting bolt on the
subframe105 N.m
131769
131768

19D-22
ENGINE MOUNTING
Lower engine tie-bar: Removal - Refitting
K4M
19D
REFITTING
I - REFITTING OPERATION
aRefit the rear suspended engine mounting support.
aTorque tighten:
-the rear suspended engine mounting support
bolt (62 N.m) (5) ,
-the rear suspended engine mounting support
bolts (105 N.m) (6) .
aRefit the rear suspended engine mounting.
aTorque tighten:
-the rear suspended engine reinforcement bolt
(105 N.m),
-the rear suspended engine mounting bolt on
the rear suspended engine mounting support
(105 N.m),
-the rear suspended engine mounting bolt on
the subframe (105 N.m).
II - FINAL OPERATION
aRefit the engine undertray.
131768
