2009 RENAULT TWINGO Engine And Peripherals Workshop Manual

11A-140
TOP AND FRONT OF ENGINE
Camshaft seal, timing end: Removal - Refitting
K9K
11A
III - FINAL OPERATION.
aRefit:
-the camshaft pulley hub,
-the camshaft pulley hub nut, locking it using the
(Mot. 799-01).
aTorque and angle tighten using a cylinder head
bolt tightening gauge (angular measuring type)
the camshaft hub nut ( 30 Nm + 86˚ ±± ± ±
6˚).
aRefit the camshaft pulley wheel.
aFit the camshaft pulley wheel bolts, without tighten-
ing them.
aRefit:
-the timing belt (see 11A, Top and front of engine,
Timing belt: Removal - Refitting, page 11A-27) ,
-the camshaft position sensor (see 13B, Diesel in-
jection, Camshaft position sensor: Removal -
Refitting, page 13B-14) ,
-the crankshaft accessories pulley (see 11A, Top
and front of engine, Crankshaft accessories
pulley: Removal - Refitting, page 11A-20) ,
-the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-3) ,
-the right-hand suspended engine mounting (see
19D, Engine mounting, Right-hand suspended
engine mounting: Removal - Refitting, page
19D-13) ,
-the lower engine tie-bar (see 19D, Engine mount-
ing, Lower engine tie-bar: Removal - Refitting,
page 19D-18) ,
-the front upper cross member (see Front upper
cross member: Removal - Refitting) (MR 412,
42A, Upper front structure),
-the halogen headlights (see Halogen headlight:
Removal - Refitting) (MR 411, 80B, Halogen
headlights),
-the front bumper (see Front bumper: Removal -
Refitting) (MR 412, 55A, Exterior protection),
-the front right-hand wheel arch liner (see Front
wheel arch liner: Removal - Refitting) (MR 412,
55A, Exterior protection),
-the front right-hand wheel (see Wheel: Removal -
Refitting) (MR 411, 35A, Wheels and tyres),
-the scoop under the scuttle panel grille (see Scoop
under the scuttle panel grille: Removal - Refit-
ting) (MR 412, 56A, Exterior equipment),-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (MR 412, 56A, Exterior
equipment),
-the windscreen wiper arms (see Windscreen wip-
er arm: Removal - Refitting) (MR 411, 85A, Wip-
ers - Washers).
aConnect the battery (see Battery: Removal - Refit-
ting) (see MR 411, 80A, Battery).

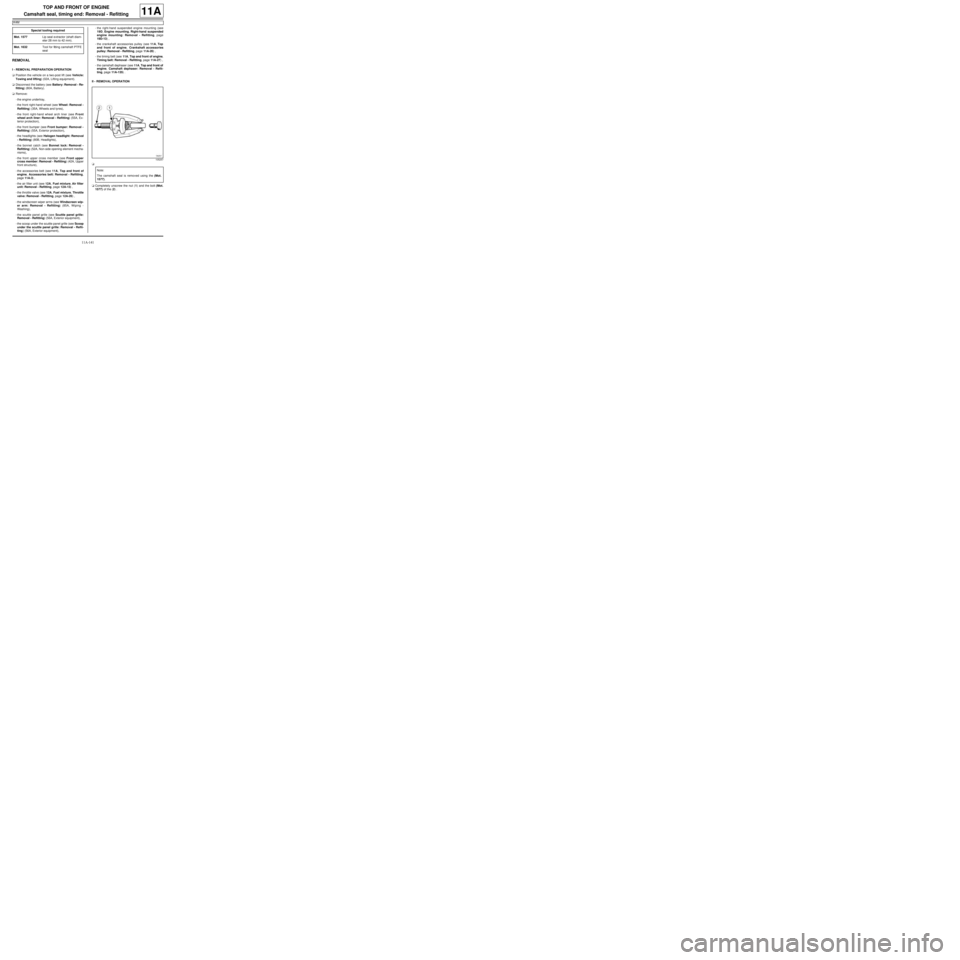

11A-141
TOP AND FRONT OF ENGINE
Camshaft seal, timing end: Removal - Refitting
K4M
11A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPosition the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
aDisconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
aRemove:
-the engine undertray,
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
-the front right-hand wheel arch liner (see Front
wheel arch liner: Removal - Refitting) (55A, Ex-
terior protection),
-the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
-the headlights (see Halogen headlight: Removal
- Refitting) (80B, Headlights),
-the bonnet catch (see Bonnet lock: Removal -
Refitting) (52A, Non-side opening element mecha-
nisms),
-the front upper cross member (see Front upper
cross member: Removal - Refitting) (42A, Upper
front structure),
-the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-3) ,
-the air filter unit (see 12A, Fuel mixture, Air filter
unit: Removal - Refitting, page 12A-13) ,
-the throttle valve (see 12A, Fuel mixture, Throttle
valve: Removal - Refitting, page 12A-20) ,
-the windscreen wiper arms (see Windscreen wip-
er arm: Removal - Refitting) (85A, Wiping -
Washing),
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the scoop under the scuttle panel grille (see Scoop
under the scuttle panel grille: Removal - Refit-
ting) (56A, Exterior equipment),-the right-hand suspended engine mounting (see
19D, Engine mounting, Right-hand suspended
engine mounting: Removal - Refitting, page
19D-13) ,
-the crankshaft accessories pulley (see 11A, Top
and front of engine, Crankshaft accessories
pulley: Removal - Refitting, page 11A-20) ,
-the timing belt (see 11A, Top and front of engine,
Timing belt: Removal - Refitting, page 11A-27) ,
-the camshaft dephaser (see 11A, Top and front of
engine, Camshaft dephaser: Removal - Refit-
ting, page 11A-135) .
II - REMOVAL OPERATION
a
aCompletely unscrew the nut (1) and the bolt (Mot.
1577) of the (2) . Special tooling required
Mot. 1577Lip seal e xtractor (shaft diam-
eter 28 mm to 42 mm).
Mot. 1632Tool for fitting camshaft PTFE
seal
105257
Note:
The camshaft seal is removed using the (Mot.
1577).

11A-142
TOP AND FRONT OF ENGINE
Camshaft seal, timing end: Removal - Refitting
K4M
11A
Removing the seal on the exhaust side and inlet
side
aPosition the claws of the (Mot. 1577) on the cam-
shaft.
aPush the (Mot. 1577) until contact is made between
the ends of the claws and the camshaft seal.aSeparate the claws by turning the nut (3) clockwise
using an open-jawed spanner.
aRemove the camshaft seal by turning the bolt clock-
wise using a spanner (4) .
126608
126608
126609
126605

11A-143
TOP AND FRONT OF ENGINE
Camshaft seal, timing end: Removal - Refitting
K4M
11A
REFITTING
I - REFITTING PREPARATION OPERATION
aUse SURFACE CLEANER (see Vehicle: Parts
and consumables for the repair) (04B, Consuma-
bles - Products) to clean and degrease:
-the seal mating face of each camshaft,
-the cylinder head seal housings.
aparts always to be replaced: Camshaft seal on
timing end.
II - REFITTING OPERATION
a1 - Refitting the exhaust side seal
aPosition the protector fitted with a new seal (7) on
the camshaft (taking care not to touch the seal).
aScrew the stud (8) of the (Mot. 1632) onto the cam-
shaft. WARNING
Do not scrape the joint faces of the aluminium,
any damage caused to the joint face will result in
a risk of leaks.
WARNING
The joint faces must be clean, dr y and free from
grease (avoid finger marks).
18687
Note:
Always hold the camshaft seal with the protector
(5) when handling, as this type of camshaft seal
is very FRAGILE. Touching the camshaft seal (6)
is strictly forbidden in order to avoid any oil leaks
once the camshaft seal is fitted on the engine.
105531
126219

11A-144
TOP AND FRONT OF ENGINE
Camshaft seal, timing end: Removal - Refitting
K4M
11A
aFit the cover (9) and the collar nut (10) of the (Mot.
1632).
aScrew on the collar nut until the cover touches the
cylinder head.
aRemove:
-the collar nut from the (Mot. 1632),
-the cover from the (Mot. 1632),
-the stud of the (Mot. 1632),
-the camshaft seal protector.2 - Refitting the inlet side seal
aPosition the protector fitted with a new seal (11) on
the camshaft (taking care not to touch the seal).
aRemove the camshaft seal protector.
aScrew the stud (12) of the (Mot. 1632) onto the cam-
shaft.
126218
105531
126223

11A-145
TOP AND FRONT OF ENGINE
Camshaft seal, timing end: Removal - Refitting
K4M
11A
aFit the cover (13) and the collar nut (14) of the (Mot.
1632).
aScrew on the collar nut until the cover touches the
cylinder head.
aRemove:
-the collar nut from the (Mot. 1632),
-the cover from the (Mot. 1632),
-the stud from the (Mot. 1632).
III - FINAL OPERATION
aRefit:
-the camshaft dephaser (see 11A, Top and front of
engine, Camshaft dephaser: Removal - Refit-
ting, page 11A-135) ,
-the timing belt (see 11A, Top and front of engine,
Timing belt: Removal - Refitting, page 11A-27) ,
-the right-hand suspended engine mounting (see
19D, Engine mounting, Right-hand suspended
engine mounting: Removal - Refitting, page
19D-13) ,
-the scoop under the scuttle panel grille (see Scoop
under the scuttle panel grille: Removal - Refit-
ting) (56A, Exterior equipment),
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the windscreen wiper arms (see Windscreen wip-
er arm: Removal - Refitting) (85A, Wiping -
Washing),-the throttle valve (see 12A, Fuel mixture, Throttle
valve: Removal - Refitting, page 12A-20) ,
-the air filter unit (see 12A, Fuel mixture, Air filter
unit: Removal - Refitting, page 12A-13) ,
-the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-3) ,
-the front upper cross member (see Front upper
cross member: Removal - Refitting) (42A, Upper
front structure),
-the bonnet catch (see Bonnet lock: Removal -
Refitting) (52A, Non-side opening element mecha-
nisms),
-the headlights (see Halogen headlight: Removal
- Refitting) (80B, Headlights),
-the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
-the front right-hand wheel arch liner (see Front
wheel arch liner: Removal - Refitting) (55A, Ex-
terior protection),
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
-the engine undertray.
aConnect the battery (see Battery: Removal - Refit-
ting) (80A, Battery).
126222

11A-146
TOP AND FRONT OF ENGINE
Camshaft seal, timing end: Removal - Refitting
K4M
11A

11A-147
TOP AND FRONT OF ENGINE
Oil decanter: Removal - Refitting
K4M
11A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aDisconnect the battery (see ) (80A, Battery).
aRemove:
-the windscreen wiper arms (see Windscreen wip-
er arm: Removal - Refitting) (85A, Wiping -
Washing),
-the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the scoop under the scuttle panel grille (see Scoop
under the scuttle panel grille: Removal - Refit-
ting) (56A, Exterior equipment),
-the inlet distributor (see 12A, Fuel mixture, Inlet
distributor: Removal - Refitting, page 12A-29) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aRemove:
-the bolts (1) from the oil separator,
-the oil decanter,
-the oil separator seal.
REFITTING
I - REFITTING PREPARATION OPERATION
aparts always to be replaced: Oil decanter seal.
parts always to be replaced: oil decanter bolt.
aUse SUPER CLEANING AGENT FOR JOINT FA-
CES (see Vehicle: Parts and consumables for
the repair) (04B, Consumables - Products) to clean:
-the oil separator joint face if it is to be re-used,
-the rocker cover joint face.
aUse SURFACE CLEANER (see Vehicle: Parts
and consumables for the repair) (04B, Consum-
ables - Products) to degrease:
-the oil separator joint face if it is to be re-used,
-the rocker cover joint face. Tightening torquesm
oil separator bolts10 N.m
101820
WARNING
Do not scrape the joint faces of the aluminium,
any damage caused to the joint face will result in
a risk of leaks.
WARNING
When cleaning par ts, it is essential that the parts
do not impact on each other, otherwise their mat-
ing faces may be damaged and therefore their
adjustments may be altered, which could dam-
age the engine.
WARNING
The joint faces must be clean, dr y and free from
grease (avoid finger marks).
