2009 RENAULT TWINGO Engine And Peripherals Workshop Manual

19A-35
COOLING

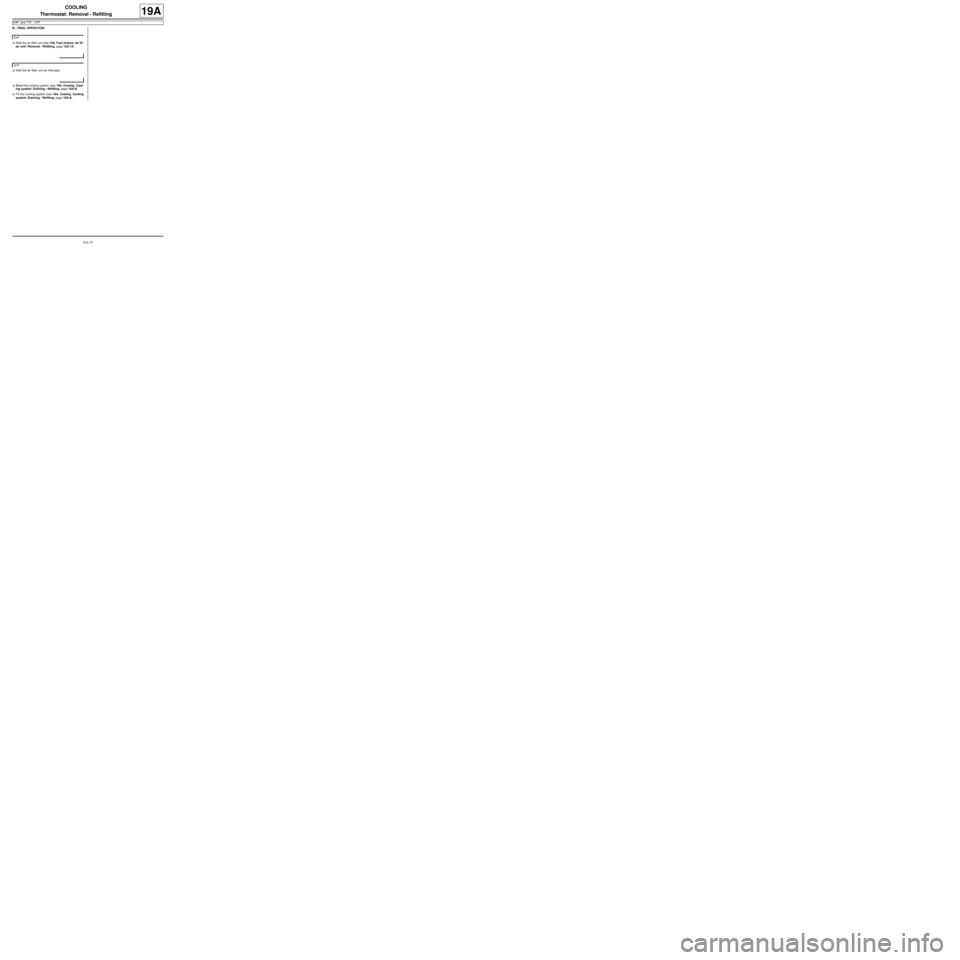

Thermostat: Removal - Refitting
D4F, and 772 – D7F
19A
III - FINAL OPERATION
aRefit the air filter unit (see 12A, Fuel mixture, Air fil-
ter unit: Removal - Refitting, page 12A-13) .
aRefit the air filter unit air inlet pipe.
aBleed the cooling system (see 19A, Cooling, Cool-
ing system: Draining - Refilling, page 19A-9) .
aFill the cooling system (see 19A, Cooling, Cooling
system: Draining - Refilling, page 19A-9) . D4F
D7F

19A-36
COOLING
Thermostat: Removal - Refitting
K9K
19A
To remove and refit the thermostat (see 19A, Cooling,
Water chamber: Removal - Refitting, page 19A-40) .

19A-37
COOLING

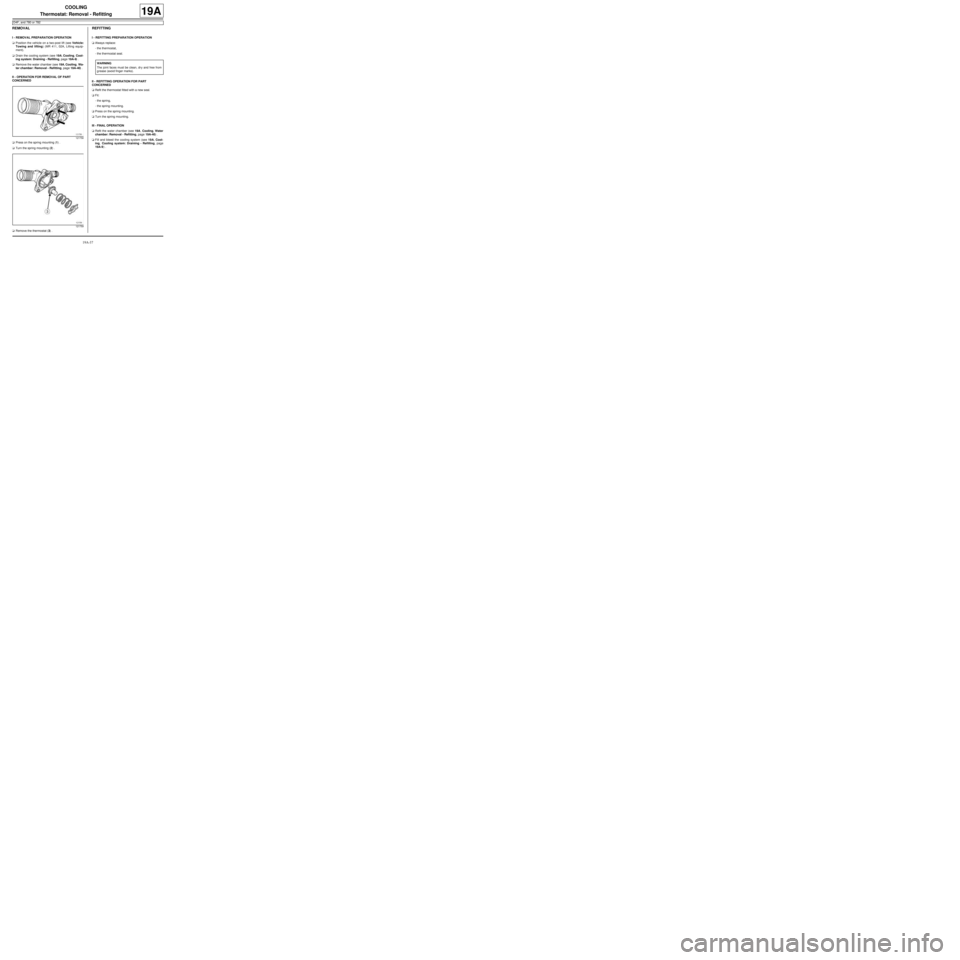

Thermostat: Removal - Refitting
D4F, and 780 or 782
19A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPosition the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 411, 02A, Lifting equip-
ment).
aDrain the cooling system (see 19A, Cooling, Cool-
ing system: Draining - Refilling, page 19A-9) .
aRemove the water chamber (see 19A, Cooling, Wa-
ter chamber: Removal - Refitting, page 19A-40) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aPress on the spring mounting (1) .
aTurn the spring mounting (2) .
aRemove the thermostat (3) .
REFITTING
I - REFITTING PREPARATION OPERATION
aAlways replace:
-the thermostat,
-the thermostat seal.
II - REFITTING OPERATION FOR PART
CONCERNED
aRefit the thermostat fitted with a new seal.
aFit:
-the spring,
-the spring mounting.
aPress on the spring mounting.
aTurn the spring mounting.
III - FINAL OPERATION
aRefit the water chamber (see 19A, Cooling, Water
chamber: Removal - Refitting, page 19A-40) .
aFill and bleed the cooling system (see 19A, Cool-
ing, Cooling system: Draining - Refilling, page
19A-9) .
121758
121759
WARNING
The joint faces must be clean, dr y and free from
grease (avoid finger marks).

19A-38
COOLING
Thermostat: Removal - Refitting
D4F, and 780 or 782
19A

19A-39
COOLING
Thermostat: Removal - Refitting
K4M
19A
aThe thermostat cannot be separated from the water
chamber.
Replace the « water chamber - thermostat » assem-
bly if the thermostat is faulty (see 19A, Cooling, Wa-
ter chamber: Removal - Refitting, page 19A-40) .

19A-40
COOLING
Water chamber: Removal - Refitting
D4F, and 772 – D7F
19A
PARTS AND CONSUMABLES FOR THE
REPAIR WORK
aPart always to be replaced:
-water chamber seal.
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPosition the vehicle on a two-post lift ( (see Vehicle:
Towing and lifting) ).
aRemove the air filter box (see 12A, Fuel mixture,
Air filter unit: Removal - Refitting, page 12A-13) .
aDrain the cooling system (see 19A, Cooling, Cool-
ing system: Draining - Refilling, page 19A-9) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
aMove the water chamber hose clips to one side us-
ing the (Mot. 1448) or (Mot. 1202-01) or (Mot. 1202-
02).
aDisconnect the water chamber hoses.aRemove:
-the water chamber bolts (1) ,
-the water chamber.
REFITTING
I - REFITTING PREPARATIONS OPERATION
aClean the gasket faces.
II - REFITTING OPERATION FOR PART
CONCERNED
aRefit:
-the water chamber with a new seal,
-the water chamber bolts.
aTorque tighten the water chamber bolts (10 Nm).
aConnect the water chamber hoses.
aFit the water chamber hose clips using the (Mot.
1448) or (Mot. 1202-01) or (Mot. 1202-02). Special tooling required
Mot. 1448Remote operation pliers for
hose clips .
Mot. 1202-01Clip pliers for hose clips
(large size).
Mot. 1202-02Clip pliers for hose clips
(small size)
Tightening torquesm
water chamber bolts10 Nm
D4F
113372
WARNING
The joint faces must be clean, dr y and free from
grease (avoid finger marks).

19A-41
COOLING
Water chamber: Removal - Refitting
D4F, and 772 – D7F
19A
III - FINAL OPERATION.
aRefit the air filter box (see 12A, Fuel mixture, Air fil-
ter unit: Removal - Refitting, page 12A-13) .
aFill and bleed the cooling system (see 19A, Cool-
ing, Cooling system: Draining - Refilling, page
19A-9) . D4F

19A-42
COOLING
Water chamber: Removal - Refitting
K9K
19A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPosition the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
aRemove the front engine cover. Special tooling required
Mot. 1448Remote operation pliers for
hose clips .
Tightening torquesm
water chamber bolts10 N.m
intercooler air outlet
pipe clip at the damper
valve end5.5 N.m
IMPORTANT
When working in the engine compartment, take
care as the radiator fan(s) may start up unexpect-
edly (risk of being cut).
To avoid any risk of serious burns when the engine
is hot:
-do not open the expansion bottle cap,
-do not drain the cooling system,
-do not open the bleed screw(s).
WARNING
Before the operation, protect the electrical accesso-
ries to prevent any risk of shor t circuiting and pro-
tect the belts to avoid damaging them.
WARNING
When carr ying out a repair that requires a complete
change, it is essential to flush the circuit with clean
water, blast compressed air through the circuit to
drive out the water, fill and bleed the circuit and
then measure the effective protection.
The cr iteria to be met are:
-protection down to -25˚C ±± ± ±
2 for cold and temper-
ate countries,
-protection down to -40˚C ±± ± ±
2 for "extreme cold"
countries.
WARNING
The coolant helps to keep the engine running prop-
erly (heat exchange).
The system does not operate using pure water.
WARNING
Take care not to damage the bearing faces to pre-
vent any risk of coolant leaks.
