SERVICE INDICATOR
This is a visual reminder of when the
next service is due. This service is to
be carried out according to the manu-
facturer’s servicing schedule. Service indicator zero reset
Your PEUGEOT dealer carries out this
operation after each service.
However, if you carry out the service
yourself, the reset procedure is as
follows:

 Switch off the ignition,

 Press and hold the trip recorder
reset button,

 Switch on the ignition.
The display begins a countdown.
When the display shows "=0" , release
the button; the spanner disappears .
Once an engine oil level indication has
been displayed, the display indicates
the total and trip distances.
If the service is overdue , each time the
ignition is switched on and for 5 seconds,
the distance and the spanner fl ash.

Example
: when the ignition is switched
on and for 5 seconds, the display
indicates that the service is overdue by
300 miles/km. The service should be
carried out very shortly.
Once the servicing and oil level infor-
mation has been displayed, the total
distance recorder resumes normal
operation and the spanner remains lit.
The point at which a service is due is
calculated using two parameters:
- the total distance travelled,
- the time elapsed since the last service.
The distance remaining may be weighted
by the time factor, depending on the
user’s driving habits.
Operation
As soon as the ignition is switched
on and for 5 seconds, the spanner
symbolising the service operations is
lit. The trip recorder display shows the
distance remaining (in round fi gures)
before the next service.

Example
: when switching on the
ignition and for 5 seconds, the dis-
play shows that 900 miles/km remain
before the next service is due.
After this operation, if you
wish to disconnect the battery,
lock the vehicle and wait for at
least fi ve minutes, otherwise
the zero reset will not be
registered.

1INSTRUMENTS and CONTROLS
27
Engine oil level indicator
When the ignition is switched on,
the engine oil level is indicated for
approximately 5 seconds, after the
service information. Dipstick
There are 2 level marks on
the dipstick: never exceed
level A .
In position B , top up the
level via the oil reservoir
cap, using the type of oil
suited to your engine.

A = max.

B = min. Trip recorder zero reset
Oil level correct
Lack of oil
Flashing indicates a lack of oil which
may damage the engine.
If the lack of oil is confi rmed by
checking using the dipstick, it is impe-
rative that the level is topped up. Oil level gauge fault
(fl ashing segments)
Check the oil level using the dipstick.
If the level is correct, the fl ashing
indicates an engine oil level gauge
malfunction.
Consult a PEUGEOT dealer.
The level observed on the dipstick is
only valid if the vehicle is parked on
level ground and the engine has been
off for more than 15 minutes. The total distance is displayed in
zone A of the display and the trip
distance in zone B .
Distance recorder
With the trip distance displayed, press
the button for a few seconds.

1INSTRUMENTS and CONTROLS
28

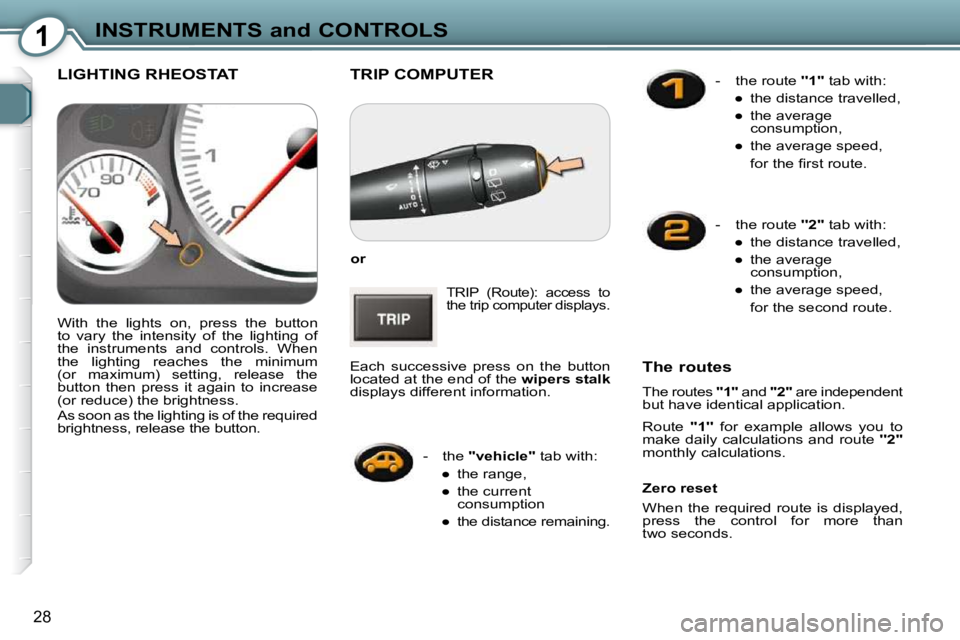

TRIP COMPUTER

or
TRIP (Route): access to
the trip computer displays.
Each successive press on the button
located at the end of the wipers stalk
displays different information.
LIGHTING RHEOSTAT
Zero reset
When the required route is displayed,
press the control for more than
two seconds.
With the lights on, press the button
to vary the intensity of the lighting of
the instruments and controls. When
the lighting reaches the minimum
(or maximum) setting, release the
button then press it again to increase
(or reduce) the brightness.
As soon as the lighting is of the required
brightness, release the button.
- the ''vehicle'' tab with:

1INSTRUMENTS and CONTROLS
28
TRIP COMPUTER

or
TRIP (Route): access to
the trip computer displays.
Each successive press on the button
located at the end of the wipers stalk
displays different information.
LIGHTING RHEOSTAT
Zero reset
When the required route is displayed,
press the control for more than
two seconds.
With the lights on, press the button
to vary the intensity of the lighting of
the instruments and controls. When
the lighting reaches the minimum
(or maximum) setting, release the
button then press it again to increase
(or reduce) the brightness.
As soon as the lighting is of the required
brightness, release the button.
- the ''vehicle'' tab with:

1INSTRUMENTS and CONTROLS
29
Range
(km or miles)
Current consumption
(l/100 or km/l or mpg)
This is the average quantity of fuel
consumed during the last few seconds.
This shows the distance that can still
be covered with the fuel remaining
in the tank in accordance with the
average consumption over the last
few miles (kilometres).
Distance remaining to be
travelled (km or miles)
Average speed
(km/h or mph) ''TRIP'' (Route) menu
Press the
''MENU'' button to gain access
to the general menu.
Select the ''Trip computer'' or ''Vehicle
diagnostics'' application using the navi-
gator, then confi rm or press the ''MODE''
button until you gain access to the trip
computer screen, then confi rm ''OK'' .
The ''Trip computer'' or ''Vehicle diagnostics''
menu offers various options:
- Warnings log,
- Status of the functions,
- Inputting of the distance to be
travelled.

Average consumption
(l/100 or km/l or mpg)
Distance travelled
(km or miles) Warnings log
This summarises the active warning
messages, displaying them on the
multifunction display in succession.
Status of the functions
This summarises the active or inactive
status of the functions present on the
vehicle.
Distance remaining
(km or miles)
When guidance is not activated, this
enables you to enter an approximate
distance to be travelled.
This fi gure may increase if
there is a change in the style
of driving or the road surface,
producing a signifi cant drop in
current consumption.
When the range is less than 20 miles
(30 km), four segments are displayed.
After fi lling with fuel, the range is
displayed when it exceeds 62 miles
(100 km). If horizontal segments are dis-
played for long periods instead
of digits, contact a dealer.

This function is displayed only when
the vehicle is travelling at a speed
greater than 20 mph (30 km/h).
This is the distance remaining to
the destination, either calculated at
any time by the navigation system if
guidance is activated or entered by
the user, minus the distance covered
since the distance was entered.
If digits are missing, dashes are dis-
played in their place.
This is the average fuel consumption
since the computer was last set to zero.
This indicates the distance travelled
since the computer was last set to zero. Access via the general menu
This is the average speed calculated
since the computer was last set to
zero (with the ignition on).

2MULTIFUNCTION DISPLAYS
30
MONOCHROME DISPLAY C AND COLOUR DISPLAY C (WITH PC SOUND)
This displays the following information:
- the time,
- the date,
- the exterior temperature (the value displayed fl ashes if there is a risk of
ice),
- the accesses check,
- the vehicle function status messages, displayed temporarily,
- the warning messages,
- the audio functions,
- the trip computer information,
- the vehicle parameters,
- the air conditioning parameters,
- the choice of language. General menu
Defi ne the vehicle parameters
Permits the activation or deactivation
of certain driving and comfort ele-
ments.
Example: Automatic switching on of
the lights.
Press the "MENU" button to gain ac-
cess to the general menu and select
one of the following functions: Audio
Functions, Trip Computer, Person-
alisation/Confi guration and Air Condi-
tioning.
Example: display selected on "Audio
Functions".
The "Personalisation-Confi guration"
menu provides access to successive
confi rmation windows.
Management of the displays
The "AUDIO" , "TRIP" and "CLIM"
buttons on the audio equipment key-
pad permit displaying in the main win-
dow (on the right).
Example: TRIP Choice of language
German, Spanish, French, English,
Italian, Dutch, Turkish, Portuguese
and Brazilian Portuguese.

2MULTIFUNCTION DISPLAYS
31
Display confi guration Changing the date and time Set the parameters one by one, using
the navigator, then confi rm by clicking
on "OK" .
From the list displayed, select "Display
confi guration" , then confi rm.
From the list displayed, select "Setting
the date and time" , then confi rm.
- Brightness, to be adjusted in accor-
dance with a scale between Moon
(-) and Sun (+).
-
Selection of the units of measurement.

- Setting the date and time. Your op- erational zone is displayed on the
screen. Use the navigator to move
from one selection to another.
Your new parameters are confi rmed
one by one, by pressing the naviga-
tor button. All of the parameters are
recorded if you click on OK, displayed
on the screen.
The ESCape button on the control pad
enables you to choose not to confi rm
your changes.
- Selection of the colours (on colour display C only). From the menu, displayed on the screen,
select the icon
"Personalisation-
Confi guration" using the navigator, then
confi rm.
For safety reasons, confi gura-
tion of the multifunction dis-
plays by the driver must be
carried out when stationary.

2MULTIFUNCTION DISPLAYS
32
Display
This menu allows you to set the bright-
ness of the display, the display colour
scheme and the colour of the map
(day/night and auto mode).
Vehicle
This menu permits the activation or
deactivation of certain driving and
comfort systems:
- air conditioning (A/C),
- vehicle information,
- access to the vehicle,
- driving assistance,
- lighting confi guration,
- comfort lighting.
Units
This menu permits selection of the
units: temperature (°C or °F) and
consumption (km/l, l/100, miles and
mpg).
System
This menu permits restoring of the
factory confi guration, displaying of the
software version and activation of the
scrolling text. For safety reasons, confi gura-
tion of the multifunction dis-
plays by the driver must be
carried out when stationary. COLOUR DISPLAY(WITH PC NAV) "SETUP" menu
Press the SETUP button to gain access
to the "SETUP" menu. This provides
access to the following functions:
- System language,
- Date & Time,
- Display,
- Vehicle,
- Units,
- System.
System language
This menu allows you to select
the language used by the display:
German, English, Spanish, French,
Italian, Dutch, Polish, Portuguese.
Date & Time
This menu allows you to set the date
and time, the format of the date and
the format of the time (refer to the "Au-
dio and Telematics" section).
This displays the following informa-
tion:
- the time,
- the date,
- the exterior temperature (the value
displayed fl ashes if there is a risk of
ice),
- the accesses check,
- the vehicle function status messag- es, displayed temporarily,
- the warning messages,
- the audio functions,
- the trip computer information,
- the air conditioning parameters,
- the satellite navigation system infor- mation.
