To start the vehicle from another
battery:
-
Connect the red cable to the posi-
tive (+) terminals of the two batteries,
- Connect one end of the green or black cable to the negative (-)
terminal of the slave battery,
- Connect the other end of the green or black cable to an earth point on
the broken down vehicle as far as
possible from the battery,
- Operate the starter, let the engine run,
- Wait for the engine to return to idle, then disconnect the cables.
BATTERY (LOCATED IN THE ENGINE COMPARTMENT)
Disconnecting/Reconnecting
the cables

1. Raise the locking plate A .

2. Position the open clip of the cable
on the positive (+) terminal of the
battery.

3. Press until the position checking
system B tilts.

4. Lock the clip by lowering the locking
plate while pressing on the clip.
It is advisable to disconnect
the battery if the vehicle is not
to be used for a period of more
than one month.
To charge the battery using a
battery charger:
- Disconnect the battery,
- Follow the instructions for use
given by the battery charger
manufacturer,
- Reconnect starting with the nega- tive (-) terminal,
- Check that the terminals and connectors are clean. If they are
covered with sulphate (white or
greenish deposit), disconnect them
and clean them.
Do not force the plate as lock-
ing is not possible if the clip is
not positioned correctly.
Start the procedure again.

1010PRACTICAL INFORMATION
124

To start the vehicle from another

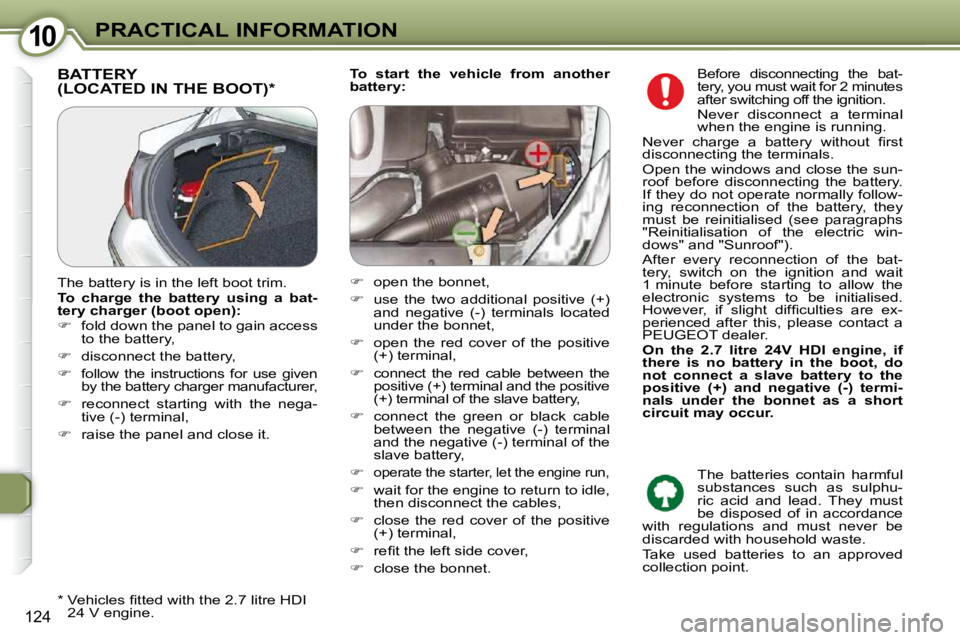

battery: BATTERY (LOCATED IN THE BOOT) *
* Vehicles fi tted with the 2.7 litre HDI
24 V engine.
The battery is in the left boot trim.

To charge the battery using a bat-
tery charger (boot open):

 fold down the panel to gain access
to the battery,

 disconnect the battery,


follow the instructions for use given
by the battery charger manufacturer,

 reconnect starting with the nega-
tive (-) terminal,

 raise the panel and close it.
 open the bonnet,

 use the two additional positive (+)
and negative (-) terminals located
under the bonnet,

 open the red cover of the positive
(+) terminal,

 connect the red cable between the
positive (+) terminal and the positive
(+) terminal of the slave battery,

 connect the green or black cable
between the negative (-) terminal
and the negative (-) terminal of the
slave battery,


operate the starter, let the engine run,

 wait for the engine to return to idle,
then disconnect the cables,

 close the red cover of the positive
(+) terminal,

 refi t the left side cover,

 close the bonnet. Before disconnecting the bat-
tery, you must wait for 2 minutes
after switching off the ignition.
Never disconnect a terminal
when the engine is running.
Never charge a battery without fi rst
disconnecting the terminals.
Open the windows and close the sun-
roof before disconnecting the battery.
If they do not operate normally follow-
ing reconnection of the battery, they
must be reinitialised (see paragraphs
"Reinitialisation of the electric win-
dows" and "Sunroof").
After every reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to allow the
electronic systems to be initialised.
However, if slight diffi culties are ex-
perienced after this, please contact a
PEUGEOT dealer.

On the 2.7 litre 24V HDI engine, if
there is no battery in the boot, do
not connect a slave battery to the
positive (+) and negative (-) termi-
nals under the bonnet as a short
circuit may occur.
The batteries contain harmful
substances such as sulphu-
ric acid and lead. They must
be disposed of in accordance
with regulations and must never be
discarded with household waste.
Take used batteries to an approved
collection point.

1010PRACTICAL INFORMATION
125
Without lifting
(4 wheels on the ground)
You must always use a towbar.
The removable towing eye is inside
the spare wheel.
At the front and at the rear:

 Unclip the cover,

 Screw in the towing eye as far as it
will go. Special features of the
automatic gearbox
When towing with the engine switched
off, there is no braking or steering
assistance.
Failure to observe this special require-
ment may lead to the destruction of
certain braking units and the absence
of braking assistance when the engine
is re-started.
TOWING YOUR VEHICLE
Lifting
(2 wheels only on the ground)
It is preferable to raise the vehicle with
a professional lifting device.
Place the gear lever in neutral
(position N in the case of the
automatic gearbox).
Towing a vehicle with an auto-
matic gearbox in reverse gear
is prohibited (absence of lubri-
cation). When towing with four wheels on the
ground, the following rules must be
obeyed:
- lever in position
N ,
- tow the vehicle at less than 30 mph (50 km/h) over a maximum dis-
tance of 30 miles (50 km).
- do not add oil to the gearbox.

1010PRACTICAL INFORMATION
126
FITTING ROOF BARS (SALOON)
When fi tting transverse roof bars,
use the four quick-fi t fi xings provided
for this purpose. Lift the concealing
fl aps and adjust the roof bar quick-fi t
fi xings. Maximum authorised weight
on the roof rack, for a loading
height not exceeding 40 cm
(with the exception of bicycle
carriers): 80 kg.
If the height exceeds 40 cm, adapt the
speed of the vehicle to the profi le of the
road to avoid damaging the roof bars
and the fi xings on the roof.
Be sure to refer to national legislation
in order to comply with the regulations
for transporting objects which are
longer than the vehicle.
When fi tting transverse roof bars, ensure
that they are positioned correctly.
The correct positions are shown by
marks on each of the longitudinal bars.
Use accessories approved by
PEUGEOT and follow the manufactur-
er's fi tting instructions. Maximum authorised weight
on the roof bars, for a loading
height not exceeding 40 cm (except bicycle carriers): 100 kg.
If the height exceeds 40 cm, adapt the
speed of the vehicle to the condition of
the road, to avoid damaging the roof
bars.
Please refer to national legislation to
comply with the regulations regarding
the transportation of objects which are
longer than the vehicle.

1010PRACTICAL INFORMATION
127
In all cases, pay attention to the cool-
ant temperature. Lighting TOWING A TRAILER, CARAVAN, BOAT, ETC...
We recommend the use of original
PEUGEOT towbars and their harnesses
which have been tested and approved
from the design stage of your vehicle
and that you entrust the fi tting of the
towbar to a PEUGEOT dealer.
If the towbar is not fi tted by a PEUGEOT
dealer, it is imperative that it is fi tted us-
ing the electrical pre-equipment installed
at the rear of the vehicle, in accordance
with the manufacturer’s instructions.
Driving advice

Distribution of loads: distribute the
load in the trailer so that the heavi-
est loads are as close as possible to
the axle and the nose weight is close
to the maximum authorised without,
however, exceeding it.

Cooling: towing a trailer on a slope in-
creases the coolant temperature.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
In the case of vehicles fi tted with an
HDI engine, it is advisable, following
intensive use (towing on a motorway,
prolonged driving, ...), to leave the en-
gine running at idle for approximately
20 seconds before switching off the ig-
nition. This limits any increase in the
temperature of the engine after it has
been switched off.
Note: in certain cases of par-
ticularly arduous use (towing
the maximum load in high
temperatures on a steep
slope), the engine automatically lim-
its its power and selects the appropri-
ate automatic gearbox gear in manual
mode. In this case, cutting off the air
conditioning allows the engine power
to be recovered, and therefore the
towing capacity to be increased.
If the coolant temperature
warning light comes on, stop
the vehicle and switch off the
engine as soon as possible.

Tyres: check the tyre pressures of the
towing vehicle (label on the central
door pillar on the driver’s side) and of
the trailer towed, observing the recom-
mended pressure.

Brakes: towing increases the braking
distance. Drive at a moderate speed,
change down early and brake gradu-
ally.

Side wind: sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed. Manual adjustment
Adjust your headlamps so as not to
dazzle other road users. Check the
electrical signalling of the trailer.

1010PRACTICAL INFORMATION
128
ACCESSORIES FOR YOUR 407
A wide range of accessories recom-
mended by PEUGEOT and original
parts are offered by the Network.
They all benefit from PEUGEOT recommendation.
These accessories and parts, having
been tested and approved for reliability
and safety, are all adapted to your
PEUGEOT vehicle.
The product range offered by PEUGEOT Accessories is structured
around 5 categories: PROTECTION -
TOURING - IN-CAR TECHNOLOGY -
STYLING - UNIVERSAL. Anti-theft alarm, parking as-
sistance, engraved windows,
wheel anti-theft devices, fi rst
aid kit, warning triangle, high
visibility safety jacket, snow
chains, anti-skid covers, dog
guard, etc.

"Protection": Seat covers compatible with
side air bags, mats, boot
tray.
For leisure pursuits: roof bars, transportation acces-
sories (bicycle carrier, ski
carrier), roof box, child seats and
booster cushions, rear screen blind,
audio/telephone console, side blinds,
cool box.
Trailer towbar which must be fi tted by
the PEUGEOT Network.
"Touring":
Telephone, hands-free kits,
satellite navigation, CD changer, multimedia, connec-
tion for portable MP3 player
(in the glove box), USB Box.

"In-Car Technology": Alloy wheels, wheel trims,
spoiler, leather steering wheel,
styling strips, door spoilers,
stainless steel sill protectors.

"Styling":
Windscreen wash fl uid, inte-
rior and exterior cleaning and
maintenance products.

"Universal":
The fi tting of electrical equipment or accessories which are not
recommended by PEUGEOT
may result in a failure of your
vehicle's electronic system.
Please note this specifi c warning. You
are advised to contact a representa-
tive of the Marque to be shown the
range of recommended equipment
and accessories.

Note
To avoid any jamming under the pedals:
- ensure that the mat is positioned
and secured correctly,
- never place one mat on top of another.
Depending on the country in
which the vehicle is sold, it
is compulsory to have a high
visibility safety jacket, warning
triangle and spare bulbs available in the vehicle.
Installation of radiocommunication
transmitters
It is advisable to contact a representa-
tive of the PEUGEOT marque before
installing accessory radiocommunica-
tion transmitters with external aerial
on your vehicle. The PEUGEOT Network will inform
you of the specifi cations (frequency
waveband, maximum output power,
aerial position, specifi c installation
conditions) of the transmitters which
can be fi tted, in accordance with the
Motor Vehicle Electromagnetic Com-
patibility Directive (2004/104/EC).

407 SW: you can obtain "Van" con-
version kits to convert from a private
vehicle to a van.

1111TECHNICAL DATA
* Draining by gravity with oil fi ller cap open.
Model codes:
6D.../6E...
6FYC RFJC RFJF - 3FYF XFVJ

Engines 1.8 litre 16V 2 litre 16V
2 litre 16V
BioFlex
2.2 litre
16V
3 litre V6
24V
Cubic capacity (cm 3
) 1 749 1 997 1 997 2 230 2 946
Bore x stroke (mm) 82.7 x 81.4 85 x 88 85 x 88 86 x 9 6 87 x 82.6
EU standard maximum
power (kW) 92 103 103 120 155
Maximum power engine
speed (rpm) 5 500 6 000 6 000 5 875 6 000
EU standard maximum
torque (Nm) 163 191/200 200 220 290
Maximum torque engine
speed (rpm) 4 500 4 100/4 000 4 100 4 150 3 750
Fuel Unleaded Unleaded
Unleaded E85 Unleaded Unleaded
Catalytic converter Yes Yes Yes Yes Yes

Gearbox - Gears Manual - 5 Manual - 5 Automatic - 4 Manual - 5 Automatic - 4 Automatic - 6

Oil capacity (in litres)
Engine (with cartridge
replacement) * 4.25 4.25 4.25 4.25 4.25 4.75
ENGINES AND GEARBOXES: PETROL

1111TECHNICAL DATA
130

Model codes:
6D.../6E...
9HZC RHRH RHRJ RHHA ** 4HPH 4HTH UHZJ

Engines
1.6 litre
HDI 16V
2 litre HDI 16V 2.2 litre HDI 16V
2.7 litre
HDI 24V
Cubic capacity (cm 3
) 1 560 1 997 2 179 2 720
Bore x stroke (mm) 75 x 88.3 85 x 88 85 x 96 81 x 88
EU standard maximum
power (kW) 80 103 100 - 120 125 150
Maximum power engine
speed (rpm) 4 000 4 000 - 4 000 4 000
EU standard maximum
torque (Nm) 240 320 - 370 440
Maximum torque engine
speed (rpm) 1 750 2 000 - 1 500 1 900
Fuel Diesel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes Yes
Particle emission fi lter (PEF) Yes Yes Yes Yes

Gearbox - Gears Manual - 5 Manual - 6
Automatic - 6 Automatic - 6 Manual - 6 Automatic - 6

Oil capacity (in litres)
Engine (with cartridge
replacement) * 3.5 5.25 5.25 5.25
ENGINES AND GEARBOXES: DIESEL
* Draining by gravity with oil fi ller cap open.
** During the year. For further information, refer to th
e site http://public.servicebox.peugeot.com.
