2009 Peugeot 407 Owner's Manual

6LAYOUT
83
High load retaining net
The high load retaining net can be
used behind the front seats (row 1) or
behind the rear bench seat (row 2).
To install it:

 fold the rear seat backs,

 position the high load retaining net
roller above the two rails 5 located
behind the rear seats (2/3 bench
seat). The two notches 6 must be
placed above the two rails,

 slide the two rails 5 in the notches 6 ,

push the roller (in the direction of the
length) from right to left to secure it,

 put the rear seat backs back in
place. To use it in
row 1 :

 fold the rear seat backs,

 open the covers 7 of the corre-
sponding upper fi xings,

 unroll the high load retaining net
and position one end of the metal
bar in the corresponding fi xing
cover. Ensure that the hook is
seated correctly in the rail located
inside the cover 7 ,

 pull the metal bar on the high load
retaining net to position the other
hook in the second fi xing cover.

Note: if it is used behind the
front seats, the rear seat backs
and cushions must be folded
(see section on rear seats).

6LAYOUT
84
To use it in row 2 :

 open the covers 8 of the corre-
sponding upper fi xings,

 from the rear bench seat, unroll the
high load retaining net pushing it to
detach it from the retaining hooks,

 position one of the ends of the
metal bar of the net in the corre-
sponding fi xing cover. Ensure that
the hook is seated correctly in the
rail located inside the cover 8 ,

 position the other hook in the second
fi xing cover and pull the metal bar
towards you.
To unfold
To fold
LOAD SPACE COVER (407 SW)

6LAYOUT
84
To use it in row 2 :

 open the covers 8 of the corre-
sponding upper fi xings,

 from the rear bench seat, unroll the
high load retaining net pushing it to
detach it from the retaining hooks,

 position one of the ends of the
metal bar of the net in the corre-
sponding fi xing cover. Ensure that
the hook is seated correctly in the
rail located inside the cover 8 ,

 position the other hook in the second
fi xing cover and pull the metal bar
towards you.
To unfold
To fold
LOAD SPACE COVER (407 SW)

7SAFETY
85
HORN
Press one of the spokes of the steering
wheel.
HAZARD WARNING LAMPS
Automatic lighting of hazard
warning lights *
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lights come on automatically.
They switch off automatically the fi rst
time you accelerate.
It is also possible to switch them off by
pressing the button.
* According to country.
ELECTRONIC STABILITY CONTROL (ESP)
This system is linked and complemen-
tary to the ABS system.
In the event of a signifi cant variation
between the trajectory of the vehicle
and the path required by the driver,
the ESP monitors wheel by wheel and
acts automatically on the engine and
on the brake of one or more wheels, to
put the vehicle back on course, within
the limit of the laws of physics.
ESP operation The indicator light comes on. Disarming the ESP
In exceptional conditions (starting the
vehicle when it is stuck in the mud,
immobilised in snow, on unstable
ground...), it may be advisable to dis-
arm the ESP.

 Press the "ESP OFF" switch, lo-
cated on the centre console.
The switch lights up and the warning
light comes on: the ESP no longer acts
on the operation of the engine.
Instrument panel indicator
light.

The system is triggered again:

 automatically if the ignition is
switched off,


automatically above 30 mph (50 km/h),

 manually by pressing the switch
again.
Press the button, the direction indicators
fl ash.
They can operate with the ignition off.

7SAFETY
85
HORN
Press one of the spokes of the steering
wheel.
HAZARD WARNING LAMPS
Automatic lighting of hazard
warning lights *
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lights come on automatically.
They switch off automatically the fi rst
time you accelerate.
It is also possible to switch them off by
pressing the button.
* According to country.
ELECTRONIC STABILITY CONTROL (ESP)
This system is linked and complemen-
tary to the ABS system.
In the event of a signifi cant variation
between the trajectory of the vehicle
and the path required by the driver,
the ESP monitors wheel by wheel and
acts automatically on the engine and
on the brake of one or more wheels, to
put the vehicle back on course, within
the limit of the laws of physics.
ESP operation The indicator light comes on. Disarming the ESP
In exceptional conditions (starting the
vehicle when it is stuck in the mud,
immobilised in snow, on unstable
ground...), it may be advisable to dis-
arm the ESP.

 Press the "ESP OFF" switch, lo-
cated on the centre console.
The switch lights up and the warning
light comes on: the ESP no longer acts
on the operation of the engine.
Instrument panel indicator
light.

The system is triggered again:

 automatically if the ignition is
switched off,


automatically above 30 mph (50 km/h),

 manually by pressing the switch
again.
Press the button, the direction indicators
fl ash.
They can operate with the ignition off.

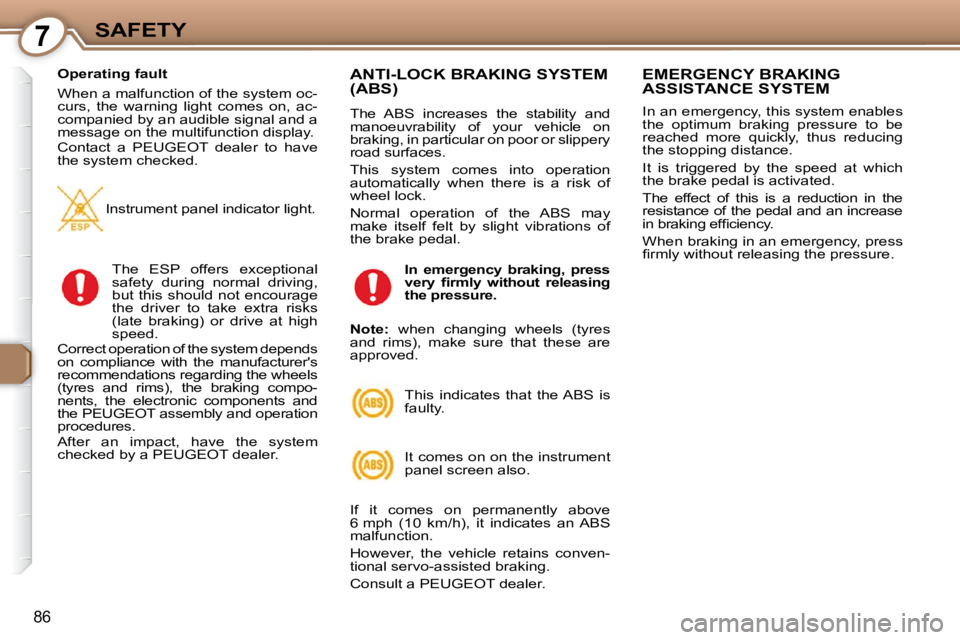

7SAFETY
86
Operating fault
When a malfunction of the system oc-
curs, the warning light comes on, ac-
companied by an audible signal and a
message on the multifunction display.
Contact a PEUGEOT dealer to have
the system checked. Instrument panel indicator light.
The ESP offers exceptional
safety during normal driving,
but this should not encourage
the driver to take extra risks
(late braking) or drive at high
speed.
Correct operation of the system depends
on compliance with the manufacturer's
recommendations regarding the wheels
(tyres and rims), the braking compo-
nents, the electronic components and
the PEUGEOT assembly and operation
procedures.
After an impact, have the system
checked by a PEUGEOT dealer. ANTI-LOCK BRAKING SYSTEM (ABS)
The ABS increases the stability and
manoeuvrability of your vehicle on
braking, in particular on poor or slippery
road surfaces.
This system comes into operation
automatically when there is a risk of
wheel lock.
Normal operation of the ABS may
make itself felt by slight vibrations of
the brake pedal.
This indicates that the ABS is
faulty.
It comes on on the instrument
panel screen also.
If it comes on permanently above
6 mph (10 km/h), it indicates an ABS
malfunction.
However, the vehicle retains conven-
tional servo-assisted braking.
Consult a PEUGEOT dealer.
EMERGENCY BRAKING ASSISTANCE SYSTEM
In an emergency, this system enables
the optimum braking pressure to be
reached more quickly, thus reducing
the stopping distance.
It is triggered by the speed at which
the brake pedal is activated.
The effect of this is a reduction in the
resistance of the pedal and an increase
in braking effi ciency.
When braking in an emergency, press
fi rmly without releasing the pressure.

In emergency braking, press
very fi rmly without releasing
the pressure.

Note: when changing wheels (tyres
and rims), make sure that these are
approved.

7SAFETY
86
Operating fault
When a malfunction of the system oc-
curs, the warning light comes on, ac-
companied by an audible signal and a
message on the multifunction display.
Contact a PEUGEOT dealer to have
the system checked. Instrument panel indicator light.
The ESP offers exceptional
safety during normal driving,
but this should not encourage
the driver to take extra risks
(late braking) or drive at high
speed.
Correct operation of the system depends
on compliance with the manufacturer's
recommendations regarding the wheels
(tyres and rims), the braking compo-
nents, the electronic components and
the PEUGEOT assembly and operation
procedures.
After an impact, have the system
checked by a PEUGEOT dealer. ANTI-LOCK BRAKING SYSTEM (ABS)
The ABS increases the stability and
manoeuvrability of your vehicle on
braking, in particular on poor or slippery
road surfaces.
This system comes into operation
automatically when there is a risk of
wheel lock.
Normal operation of the ABS may
make itself felt by slight vibrations of
the brake pedal.
This indicates that the ABS is
faulty.
It comes on on the instrument
panel screen also.
If it comes on permanently above
6 mph (10 km/h), it indicates an ABS
malfunction.
However, the vehicle retains conven-
tional servo-assisted braking.
Consult a PEUGEOT dealer.
EMERGENCY BRAKING ASSISTANCE SYSTEM
In an emergency, this system enables
the optimum braking pressure to be
reached more quickly, thus reducing
the stopping distance.
It is triggered by the speed at which
the brake pedal is activated.
The effect of this is a reduction in the
resistance of the pedal and an increase
in braking effi ciency.
When braking in an emergency, press
fi rmly without releasing the pressure.

In emergency braking, press
very fi rmly without releasing
the pressure.

Note: when changing wheels (tyres
and rims), make sure that these are
approved.

7SAFETY
87
SEAT BELTS
Detection of fastening of the front
seat belts

When the ignition is switched on , if a
front passenger has not fastened his seat
belt and if the vehicle speed is below
13 mph (20 km/h) , you are warned by
lighting of the seat belt warning light .
The warning light switches off when the
seat belt(s) concerned is(are) fastened.
If the vehicle speed is above 13 mph
(20 km/h) , you are warned by fl ashing
of the seat belt warning light , an
audible signal and a message on the
multifunction display locating the un-
fastened seat belt(s).
Front seat belts with
pre-tensioner and force
limiter
In the event of a serious front impact,
the pre-tensioning system instantly
tightens the seat belts fi rmly against
the bodies of the occupants.
The pre-tensioning seat belts are
armed when the ignition is on.
The force limiter reduces the pressure
of the seat belt against the chest of the
occupant, so increasing his protection.
Rear seat belts
The rear seats are all fi tted with a
three-point inertia reel seat belt.
The rear side seat belts have a force
limiter and may be fi tted with a pre-
tensioning inertia reel.

To fasten the seat belts

 Pull the strap, then insert the
tongue into the buckle.

 Check that the seat belt is secured
correctly by pulling the strap.

To unfasten the seat belts

 Press the red button on the buckle. Before folding the seat back, pull the
strap and insert the seat belt tongue
into the buckle. This precaution will
ensure that each seat belt is in place
when the rear seats are lifted again.

Note: a bag or an animal
placed on the front passenger
seat may trigger the lighting of
the warning light.
The audible signal ceases and the
warning light switches off when the
seat belt concerned is fastened.
After two minutes without any action on
the seat belts, the fl ashing warning light
remains on permanently and the audible
signal ceases. All of the warnings cease
when a door is opened or when the
engine is switched off.
Front seat belt height adjustment:

 To lower the attachment point,
squeeze control 1 and slide it
downwards,

 To raise the attachment point, slide
control 1 upwards.
